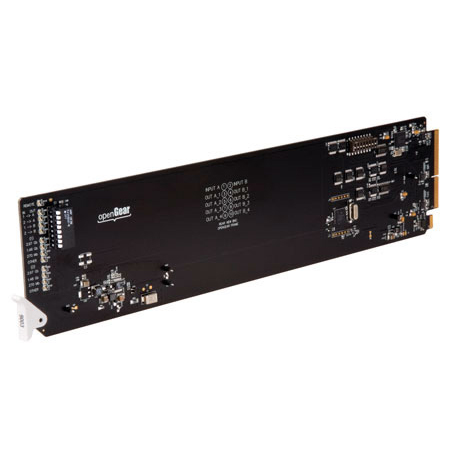

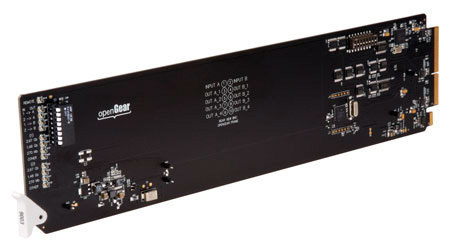

Cobalt Digital 9002 openGear 3G/HD/SD Non-Reclocking Distribution Amplifier Card

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Cobalt Digital 9002 openGear 3G/HD/SD Non-Reclocking Distribution Amplifier Card

    Manufacturer: Cobalt Digital

    Item #: CB-9002   •   MFG #: CB-9002



    List Price:$399.00
    Our Price:$375.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

      The Cobalt Digital 9002 3G/HD/SD 1x9 Distribution Amplifier (Non-Reclocking) is a multi-rate 1x9 SDI and ASI distribution amplifier capable of equalizing 3G, HD, and SD signals. All outputs are non-inverting, allowing for distribution of ASI signals. Excellent receiver EQ performance allows up to 150m cable lengths for HD signals.


      • Features

        • Equalize up to 150m of Belden 1694A cable at 1.485 Gbit
        • Automatic rate detection/display for all popular data rates
        • ASI distribution on all outputs
        • Remote control/monitoring via Dashboard software or OGCP-9000 remote control panels
        • Five year warranty

      • Specifications

        • Input:
        • Number of Inputs: 1
        • Formats supported:
        • 3Gbps - SMPTE 424M
        • 1.485Gbps - SMPTE 292
        • 143-360 Mbps - SMPTE 259M
        • Output: Number of outputs: 9 SDI-BNC (all 9 are ASI compatible)
        • Return loss > 15dB (for SMPTE 259M)
        • Power: 3 watts
        • Cable lengths w/ Belden 1694A:
        • 3Gbps - 80m
        • 1.485Gbps - 120m
        • 143-360 Mbps - 300m
        • Size: 12.9" x 3" (330mm x 76mm)
        • For use in openGear frames
