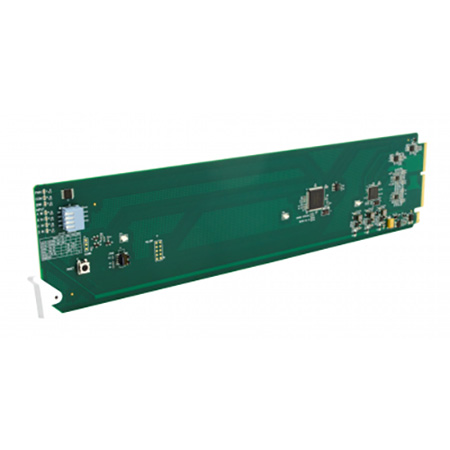

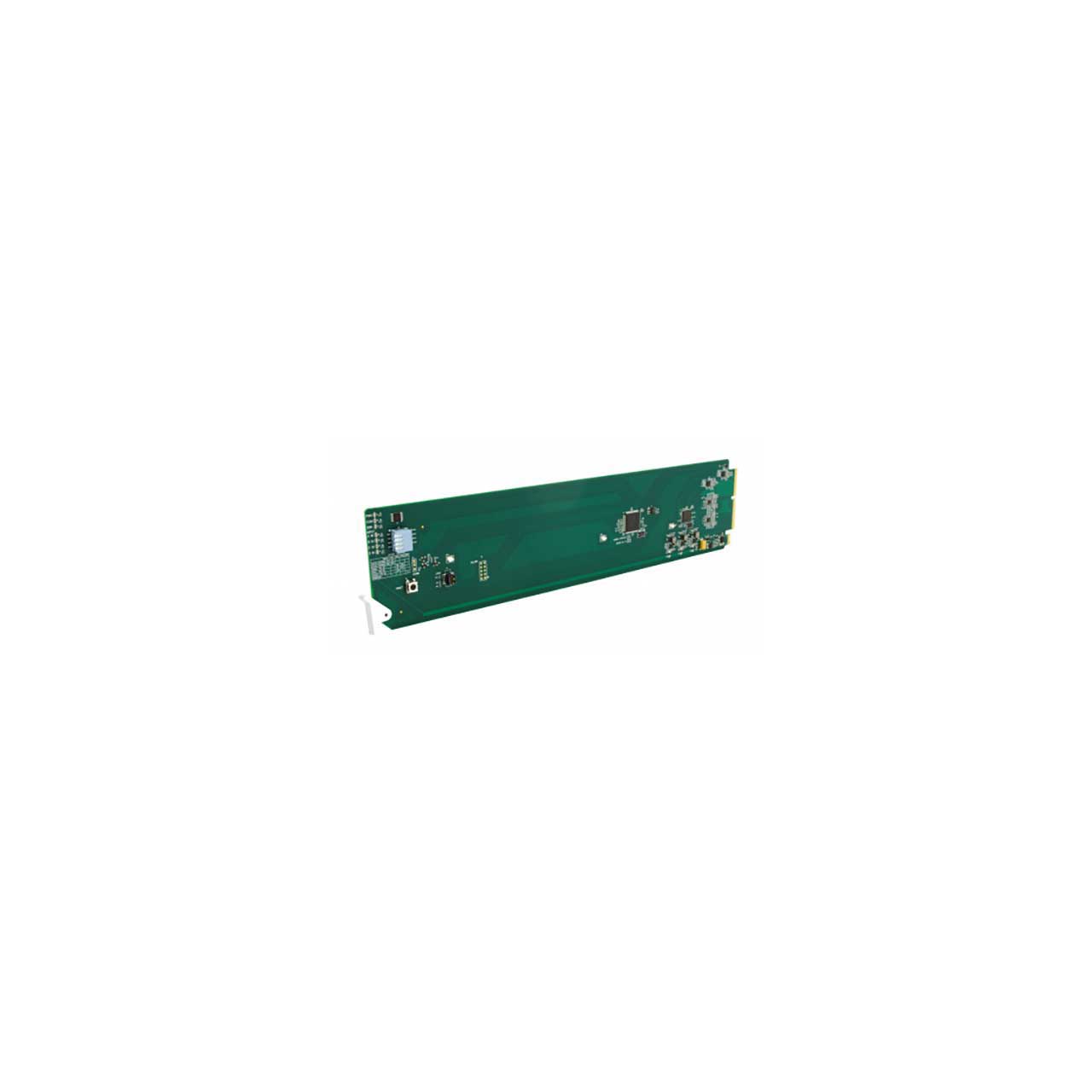

The Cobalt® 9910DA-2Q-3G 3G/HD/SD/ASI Dual-Channel Multi-Rate DA with x4 Output Crosspoint (Non-Reclocking) supports two input channels which can be crosspoint-routed to any of 16 DA outputs. The 9910DA-2Q-3G is multi-rate and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.
The extremely flexible crosspoint (which is user-configurable via DashBoard™ GUI remote control) allows dual 1x8 or single 1x16 routing possibilities. Any of the two input channels can be distributed or duplicated across four groups of 1x4 DAs, and either of the two inputs can be set to use an alternate failover input upon loss of signal.
Excellent receive performance allows receive EQ for up to 120m 3G and 160m HD cable length (1694A). Card edge and DashBoard™ remote status monitoring indicates input lock for each input channel. Up to 10 of the 9910DA-2Q-3G cards can be installed in a frame to provide 20 channels of input, with distribution to up to 160 outputs.
Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
