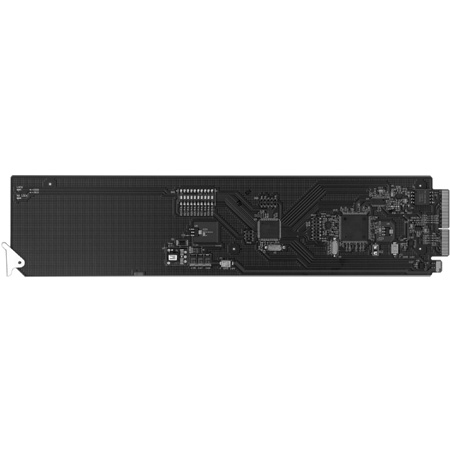

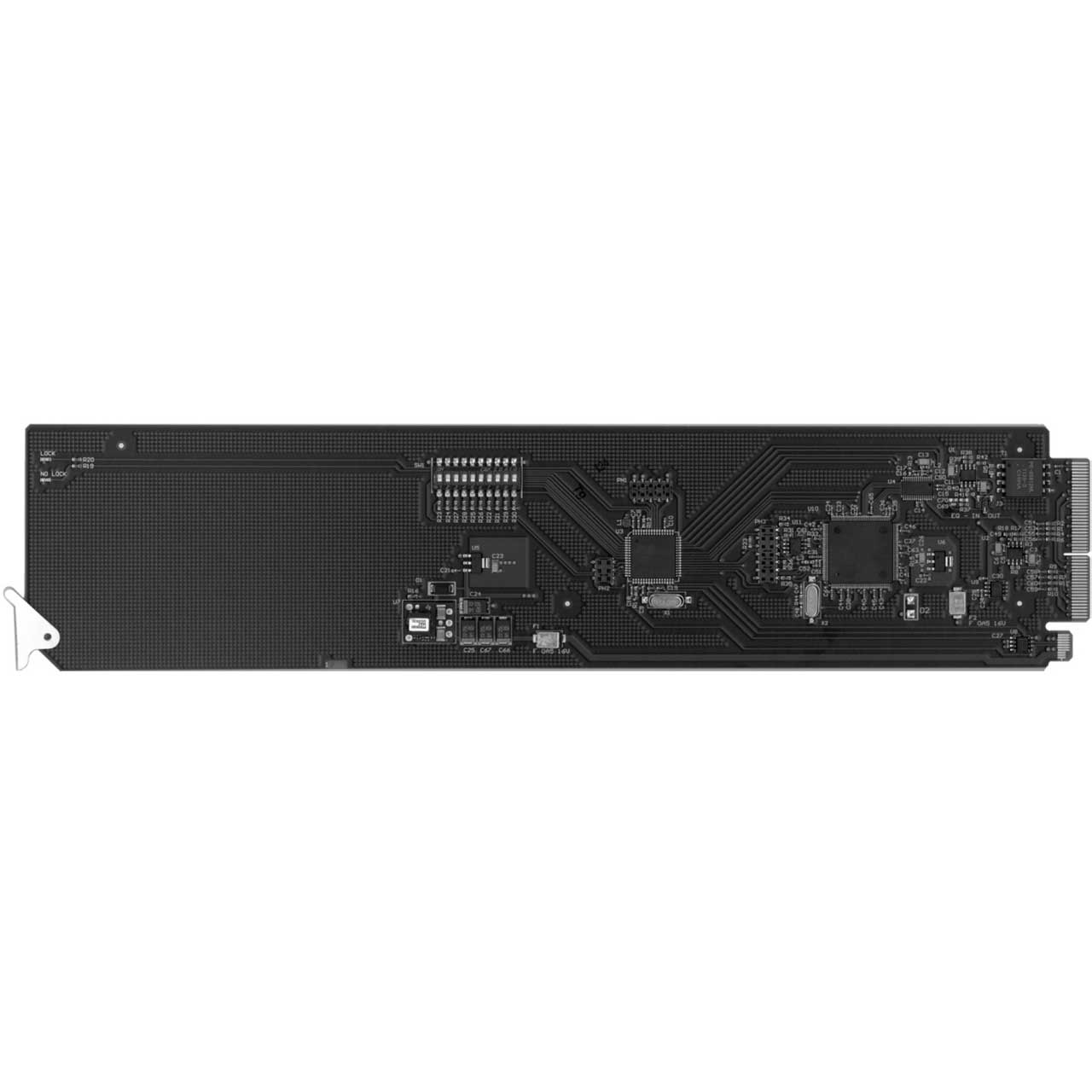

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CB-9913DAAES75RG

9913DA-AES75-RG - Overview

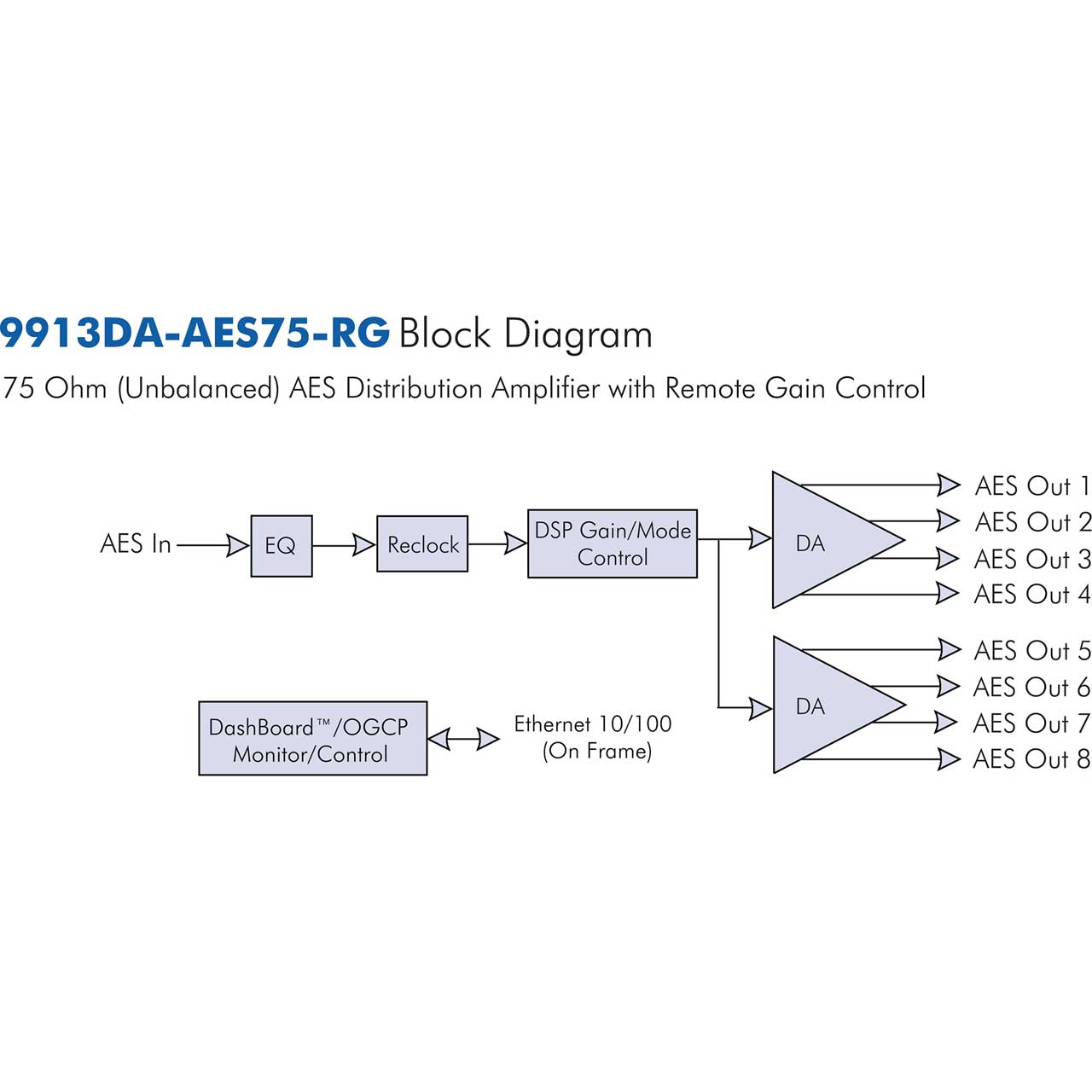

The Cobalt Digital 9913DA-AES75-RG 75-Ohm (Unbalanced) AES Distribution Amplifier with Remote Gain Control is a broadcast-quality AES distribution amplifier that provides up to eight copies of the input AES-3id signal. A transformer-coupled input helps prevent ground loop and other grounding-related problems.

The 9913DA-AES75-RG supports audio sampling frequencies from 32kHz to 96kHz. Cable equalization and re-clocking techniques enable the 9913DA-AES75-RG to recover the incoming digital audio signal reliably. The 9913DA-AES75-RG also includes built-in loudness measurement, with ITU1770 LKFS loudness measurement displayed in DashBoard.

A built-in DSP allows mono-mix and L/R-only outputs (these functions can be locked out for Dolby® signal processing). The DSP attenuation function allows overall gain (stereo ganged) trim (offset) via DashBoard™ remote control.

The space-saving design and very low power consumption of the 9913DA-AES75-RG provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard-width "split" rear module.

  • Features:

    • Full remote control of operating mode and gain control
    • Multiple DSP modes - stereo/pass-thru, mono mix, L/R only outputs
    • Transformer-coupled input prevents ground loop issues and other ground-related problems
    • Convenient DSP gain trim via DIP or remote control (gain disable for Dolby/non-PCM usage)
    • DashBoard LKFS loudness display (10-second averaging)
    • Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
    • Hot-swappable
    • Five year warranty

  • Specifications:

    • Power
    • < 2.2 Watts

      AES Input
    • Number of Inputs: (1), unbalanced AES-3id (transformer-coupled)
    • Impedance: 75 Ω
    • Maximum Input Level: +27.5 dBu

      Performance
    • Sampling Rates: 32 kHz to 96 kHz
    • Signal Level: 0.2 - 7 Vp-p
    • Resolution: 24-bit
    • Output Jitter: < 5 ns

      AES Output
    • Number of Outputs: (8) max, unbalanced AES-3id (available as stereo, pass-thru, mono-mixed, or L/R only)
    • Impedance: 75 Ω
    • Return Loss: -25 dB

  • Item Includes:

    • 1x Cobalt Digital 9913DA-AES75-RG AES 75 Ohm (Unbalanced) Distribution Amplifier with Remote Gain via DashBoard Software

  • Warranty:

    • Five year warranty
