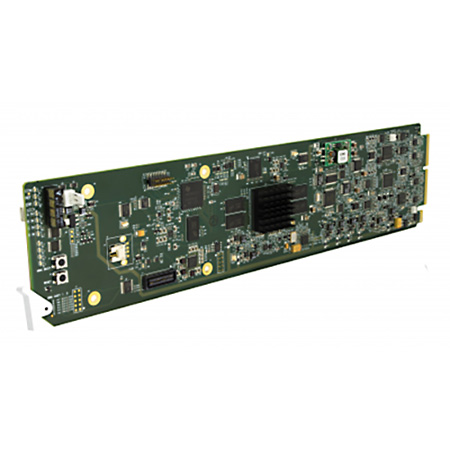

Cobalt Digital 9980-2CSC-3G 3G/HD/SD-SDI Dual Path RGB Color Space Corrector and Frame Sync openGear Card

ITEM #: CB-9980-2CSC-3G MFG #: 9980-2CSC-3G

free ship

List Price:

$6,253.00

Our Price:

$6,145.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    9980-2CSC-3G - Overview

    The Cobalt® 9980-2CSC-3G 3G/HD/SD-SDI Dual-Channel RGB Color Space Corrector / Frame Sync with Integrated Test Signal Generator and OGCP-9000/CC Control Panel Support offers two independent signal paths of color correction/frame sync on a single open-Gear® card. Using our HPF-9000 20-slot frame, this provides up to 40 channels of processing in a single frame. The 9980-2CSC-3G offers dual independent RGB-space color correction channels with YCbCr proc features with RGB processing controls providing full offset, gain and gamma adjustments. The YCbCr proc controls provide lift, gain, saturation, phase, white clip (hard and soft), black clip, and color saturation clip.

    Two independent built-in pattern generators (which provide calibrated 75% or 100% color bars among other patterns) preceding the color correction blocks allow setting custom calibration offsets to compensate for on-set monitor/camera colorimetry, with the custom settings saved to a preset, resulting in one-button recall of monitor/camera calibration settings. Any custom settings can be saved to user presets for instant recall via DashBoard or our intuitive OGCP-9000/CC Color Correction Remote Control Panel.

    The space-saving design of the 9980-2CSC provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard width "split" rear module. This provides four video paths per each pair of slots, readily providing 20 channels of processing in only 10 slots.

    Note: SDI Return loss and receive cable length are affected by rear I/O module used. Specifications represent typical performance.

    • Features:

      • Two independent processing paths per card - 20 channels of processing in only 10 slots
      • Full dual-channel independent RGB color correction (offset, gain, gamma)
      • Dual frame sync with full H/V offset and manual/LOS video pattern generator. Color corrector preceded by pattern generator allows custom offset calibrations for on-set monitor/camera colorimetry characteristics.
      • Passes entire YCbCr gamut in unity gain configuration
      • Extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip
      • Phase preserved when applying saturation clip
      • One button bypass of color correction for comparison purposes
      • Low-power/high-density design - less than 18 Watts per card
      • Remote control/monitoring via DashBoard™ software or OGCP-9000/CC remote control panel. Award-winning OGCP-9000/CC Remote Control Panel provides fast and intuitive color correction control.
      • Five year warranty

    • Specifications:

      • SDI Input/Outputs: Up to (4) 75Ω; BNC inputs; Up to (4) 75Ω; BNC outputs
      • SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
      • SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
      • SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
      • SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
      • Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
      • Minimum Latency (framesync disabled): SD: 127 pixels; 9.4 us; 720p: 330 pixels; 4.45 us; 1080i: 271 pixels; 3.65 us; 1080p: 361 pixels; 2.43 us
      • Max offset: 20 frames
      • Latency (min): 1 frame
      • User Audio Delay Offset from Video
      • Bulk delay control: -33 msec to +3000 msec.
      • Per-channel delay controls: -800 msec to +800 msec
      • RGB Black Adjust (one per primary): -100% to 100% in 0.1% steps
      • RGB White Adjust (one per primary): 0% to 200% in 0.1% steps
      • RGB Gamma Control (one per primary): 0.125 to 8.0 in 0.001 steps
      • White Adjust (Gain): 0 to 200% in 0.1% steps
      • Black Adjust (Lift): -100% to 100% in 0.1% steps
      • C Gain (Saturation): 0% to 200% in 0.1% steps
      • Color Phase: -360° to + 360° in 0.1 degree steps
      • Y Black hard clip (values limited at or above): -6.8% to 50% in 0.1% steps
      • Y White hard clip (values limited at or below): 50% to 109.1% in 0.1% steps
      • Y White soft clip (values rolled off at): 50% to 109.1% in 0.1% steps
      • CbCr Saturation clip (values limited at or below): 50% to 160% in 0.1% steps

    • Warranty:

      • 5 Year
