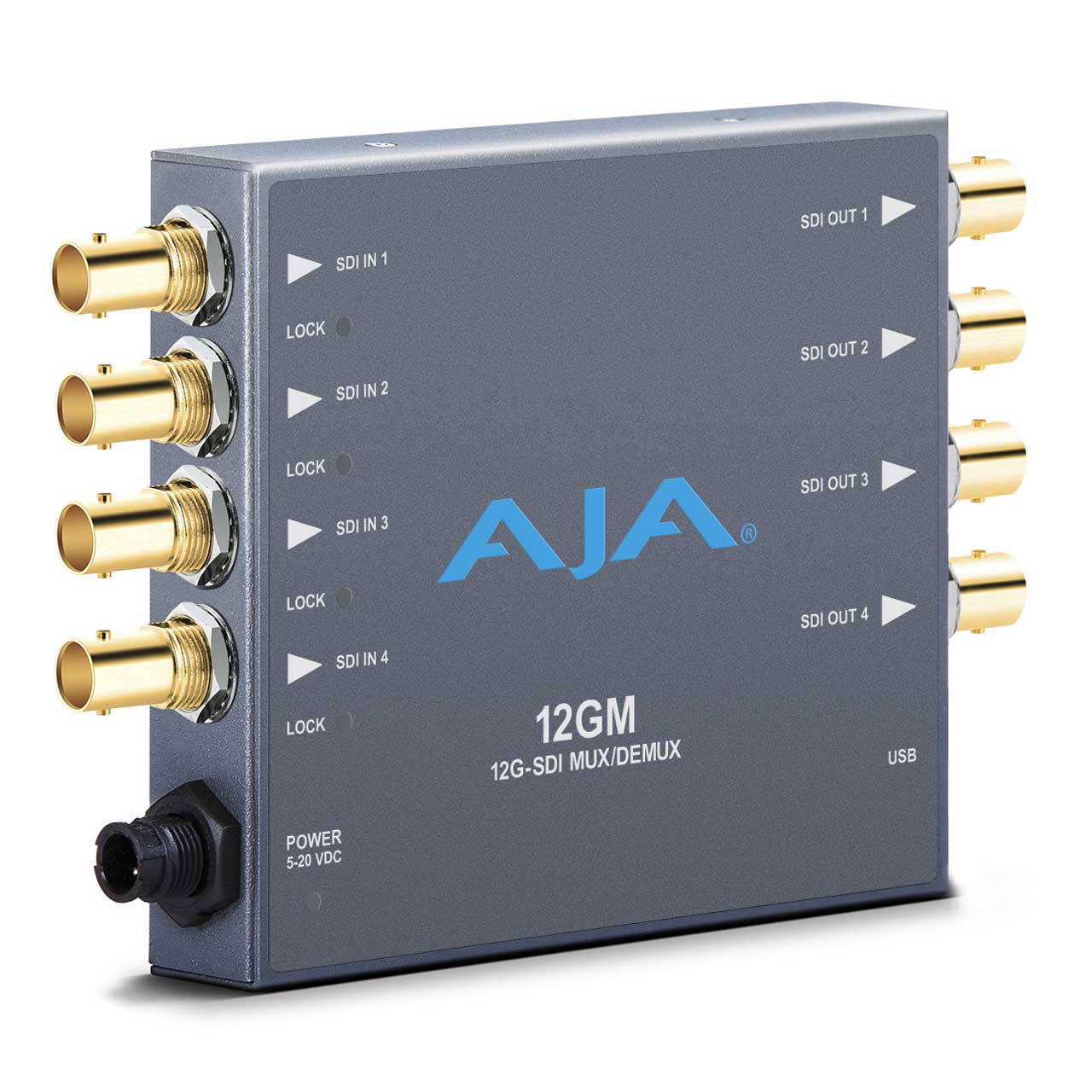

AJA 12GM 12G-SDI To/From SDI Muxer/DeMuxer

ITEM #: AJA-12GM MFG #: 12GM

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,189.00

Availability: In Stock
iAvailability Description Popup


    12GM - Overview

    AJA's 12GM is a compact SDI transport converter that enables 12G-SDI to quad link 3G-SDI and quad link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

    • Features:

      • Single 12G-SDI to/from Quad 3G-SDI Level A
      • Single 12G-SDI to/from Quad 3G-SDI Level B-DL
      • Single 6G-SDI to/from Quad 1.5G-SDI
      • Quad 3G-SDI Level A to/from Quad 3G-SDI Level B-DL
      • Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping, 3G
      • Pass through of Single Link 3G, 1.5G and 270M SDI video
      • Distribution Amplifier support (1x4)
      • Input signal diagnostics and timing analyzer for quad link signals
      • Automatic or manual control
      • Detailed timing analysis for validating alignment of quad-link SDI inputs
      • Passes SDI embedded audio, 24-bit, up to 16-Channels
      • Recognizes and transmits High Dynamic Range (HDR) and Wide Color Gamut (WCG) signaling on VPID
      • DWP-U-R1 power supply included

    • Specifications:

      • Supported Input Video Formats
      • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048x1080p 50, 59.94, 60
      • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920x1080i 50, 59.94, 60
      • (HD) 1280x720p 50, 59.94, 60
      • (SD) 625i 50
      • (SD) 525i 59.94
      • RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit
      • Note: Raster and Frame Rate Dependent, please see 12GM Video Formats in Documents and Manual.

        Video Input Digital
      • 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
      • Single Link 12G/6G/3G/1.5G-SDI
      • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5
      • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
      • Quad Link HD-SDI (4x 1.5G)
      • Single Link 4K/UltraHD/HD/SD

        Video Output Digital
      • 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
      • Single Link 12G/6G/3G/1.5G-SDI
      • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5
      • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
      • Quad Link HD-SDI (4x 1.5G)

        Supported Conversions and Functions
      • Quad 3G-SDI Level A to Single 12G-SDI
      • Quad 3G-SDI Level B-DL to Single 12G-SDI
      • Single 12G-SDI to Quad 3G-SDI Level A
      • Single 12G-SDI to Quad 3G-SDI Level B-DL
      • Quad 1.5G-SDI to Single 6G-SDI
      • Single 6G-SDI to Quad 1.5G-SDI
      • Quad 3G-SDI Level A to Quad 3G-SDI Level B-DL
      • Quad 3G-SDI Level B-DL to Quad 3G-SDI Level A
      • Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
      • Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
      • Pass through of Single Link 12G, 3G, 1.5G and 270M SDI video
      • Distribution Amplifier support (1x4)
      • Input signal diagnostics
      • Input timing analyzer for quad link signals

        Cable Equalization
      • (Belden 1694A coax)
      • 12 Gbps, 70m
      • 6 Gbps, 100m
      • 3 Gbps, 140m
      • 1.5 Gbps, 200m
      • 270 Mbps, 300m

        Audio Input / Output Digital
      • Passes SDI embedded audio, 24-bit, up to 16-channels

        User Interface
      • USB port used with supplied cable and Mini-Config software application to configure device and access diagnostics via macOS or Windows.

    • Warranty:

      • 5 Years

    • GTIN:

      0892448000601
