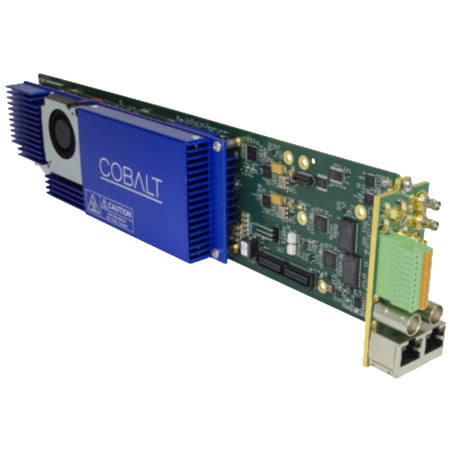

Cobalt Digital 9992-2DEC Dual Upgradeable AVC H.264 / MPEG2 Software Defined Broadcast Decoder

ITEM #: CB-9992-2DEC MFG #: 9992-2DEC

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$9,495.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    9992-2DEC - Overview

    The Cobalt 9992-2DEC Dual Upgradeable AVC/MPEG-2 Software Defined Broadcast Decoder is a broadcast-grade multi-standard decoder designed to meet the most stringent requirements for today's broadcasters. It supports two channels of MPEG-2 and AVC (H.264) decoding, with resolution optionally up to 4K over a single channel, and offers a full complement of audio decoding capabilities. The 9992-2DEC is an industry standard openGearr card module and provides an ideal platform for transitioning to state-of-the-art decoding capabilities.

    The 9992-2DEC is HEVC and 4K upgradeable (in addition to other upgrades) using a flexible firmware-based licensing structure that allows managing CAPEX while allowing for future growth as needs change

    Industry Standard Form-Factor - The 9992-2DEC is offered in the industry-standard openGear format, and is compatible with existing deployed openGear frames.

    High Density - The 9992-2DEC supports two independent 1080p60 input streams, or (optionally) a single UHD 4Kp60 input stream. One openGear frame can support up to 10 cards, for a total of 20 HD channels standard, or optionally 10 UHD 4K channels.

    Full Audio Support - The 9992-2DEC supports MPEG-1 Layer II, AAC-LC, HE-AAC, Dolby AC-3/EAC-3 and LPCM (SMPTE-302M), as well as Dolby AC-3/EAC-3 pass-thru. With an optional audio board, the decoder can support up to 16 audio channels with each video service.

    • Features:

      • Ultra Low Latency - Low latency modes available
      • Support for two decode channels up to 1080p60
      • Support for MPEG-2 and MPEG-4 AVC (H.264)
      • Support for 4:2:0 8-bit/10-bit decoding
      • Full ancillary data support
      • Support for 4 stereo pairs (8 audio channels) in any combination of
      • MPEG-1 Layer II, AAC-LC, and HE-AAC (v1/v2) modes
      • Supports UDP and RTP. Other protocols available as options.
      • Remote control/monitoring via DashboardT software
      • Hot-swappable
      • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
      • Five year warranty

    • Specifications:

      • Inputs
      • (2) 75O DVB-ASI inputs
      • (2) Gigabit Ethernet ports for IP input, supporting the following protocols:
      • UDP unicast/multicast
      • RTP unicast/multicast with optional SMPTE-2022 FEC
      • HTTP Live Streaming
      • RIST for contribution over the Internet
      • Optional SMPTE-2110 baseband video over IP turnaround (Future release availability)

        Outputs
      • (2) SDI outputs each supporting 12G-SDI, 3G-SDI, HD-SDI and SD-SDI
      • (2) SDI outputs each supporting 3G-SDI, HD-SDI and SD-SDI
      • Support for all standard frame rates (interlaced and progressive): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

        Video Post-Processing
      • Support for up/down/cross conversion of output video (independent of incoming stream) (Future release availability)
      • Conversion between interlaced and progressive
      • Frame rate conversion
      • High Dynamic Range (HDR) support

        Video Decoding Standards
      • MPEG-2
      • MPEG-4 AVC (H.264)
      • HEVC (H.265) (Option)
      • Support for up to two independent 1080p60 decode sessions
      • Support for UHD decoding (option) in AVC and HEVC modes (Maximum resolution 3840x2160p60)
      • Support for 4:2:0 and 4:2:2 (option) color spaces in all modes
      • Support for 8-bit / 10-bit decoding in all modes
      • Low Latency decoding supported

        Audio Decoding Standards
      • MPEG-1 Layer II
      • AAC-LC
      • HE-AAC (v1/v2)
      • Dolby AC-3
      • Dolby EAC-3
      • LPCM (SMPTE-302M)
      • Dolby AC-3/EAC-3 pass-thru support (5.1-Surround encoding available for AAC-LC, HE-AAC, Dolby AC-3 and Dolby EAC-3; subject to licensing)
      • Maximum number of channels supported (subject to licensing): MPEG-1 Layer II: 16 stereo pairs (32 audio channels), Dolby AC-3: 16 stereo pairs (32 audio channels), Dolby, EAC-3: 8 stereo pairs (16 audio channels), AAC-LC: 8 stereo pairs (16 audio channels), HE-AAC (v1/v2): 8 stereo pairs (16 audio channels)
      • Optional support for 5.1 Surround Sound encoding, in AAC and Dolby modes.
      • Optional audio module increases the capacity to 32 stereo pairs (64 audio channels), allowing full 16-channel support for the four HD inputs, in all compression modes (Future release availability).

        Ancillary Data Support
      • Closed-Captioning: SMPTE-334M (EIA-608 and EIA-708 supported), Line 21 (SD sources)
      • OP-47/SMPTE RDD-08 teletext subtitles (Future release availability)
      • AFD: SMPTE-2016, Line 20/22 WSS (SD sources)
      • SCTE-104 to SCTE-35 conversion
      • SMPTE-2038 generic ancillary data transport (timecode, KLV, etc.)
