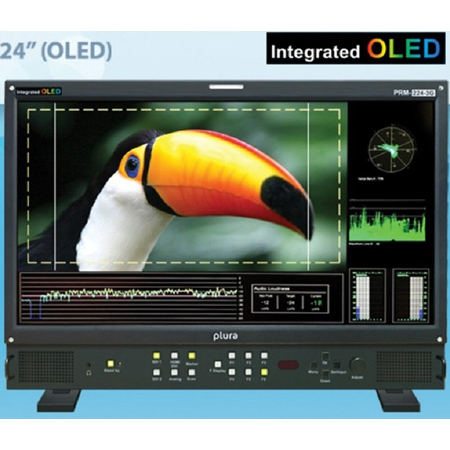

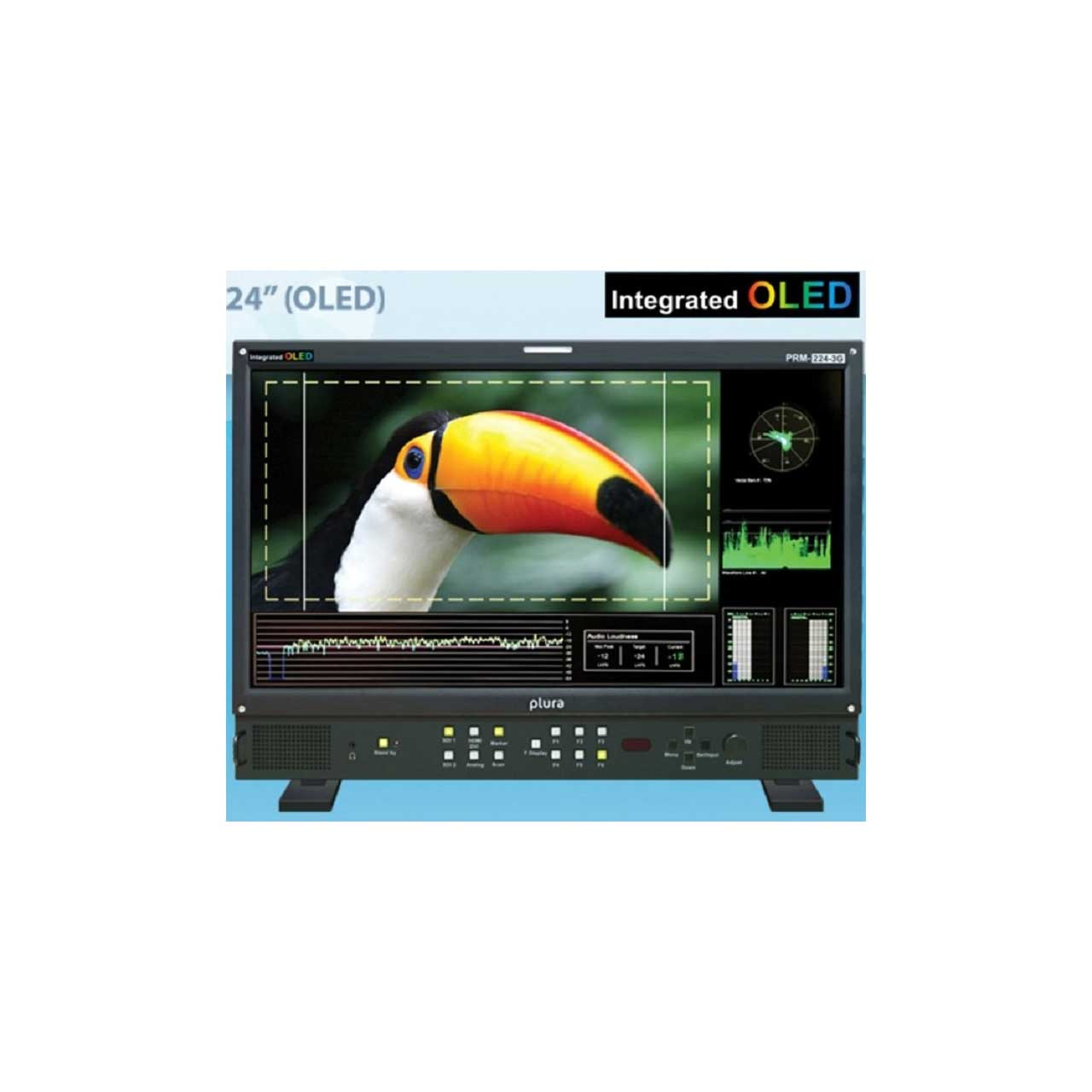

Plura PRM-224-3G-O 24-Inch 3G HD Broadcast Monitor with Integrated OLED 10bit Panel

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Plura PRM-224-3G-O 24-Inch 3G HD Broadcast Monitor with Integrated OLED 10bit Panel

    Manufacturer: Plura Broadcast, Inc.

    Item #: PLUR-PRM-224-3GO   •   MFG #: PRM-224-3G-O



    List Price:$7,350.00
    Our Price:$6,615.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    The Most Valuable 10-bit Monitor EVER!

    New PRM-3G series including PRM-224-3G offers an elegant slim design integrated with Grade A - 10 BIT OLED 24.5" panel and delivers outstanding BLACK performance, very fast response time for smooth video with virtually NO motion blur, High contrast of 5000:1, wide viewing angle, accurate color reproduction and quality picture consistency that meets all your HD & SD Monitoring applications.

    10-Bit Panel
    The PRM Series benefits from a powerful and advanced 10-bit panel. While 8-bit panel technology can produce 16.7 million colors, this much larger quantity of data means that the colors you see are more accurate and the transitions between colors are smoother. The result is a much more realistic picture, delivering all the vivid color intensity that was present in the original source.

    3D LUT Capability
    The PRM-Series offers 17x17x17 - 8 points linear interpolation 3D LUT, 12bit precision which results in superior additive-color-mixing (combination of RGB), and a precise color management environment as demanded by the color grading and graphics applications. The PRM monitor will compensate a certain color at any point on the display throughout the entire levels by using a 3D-LUT.

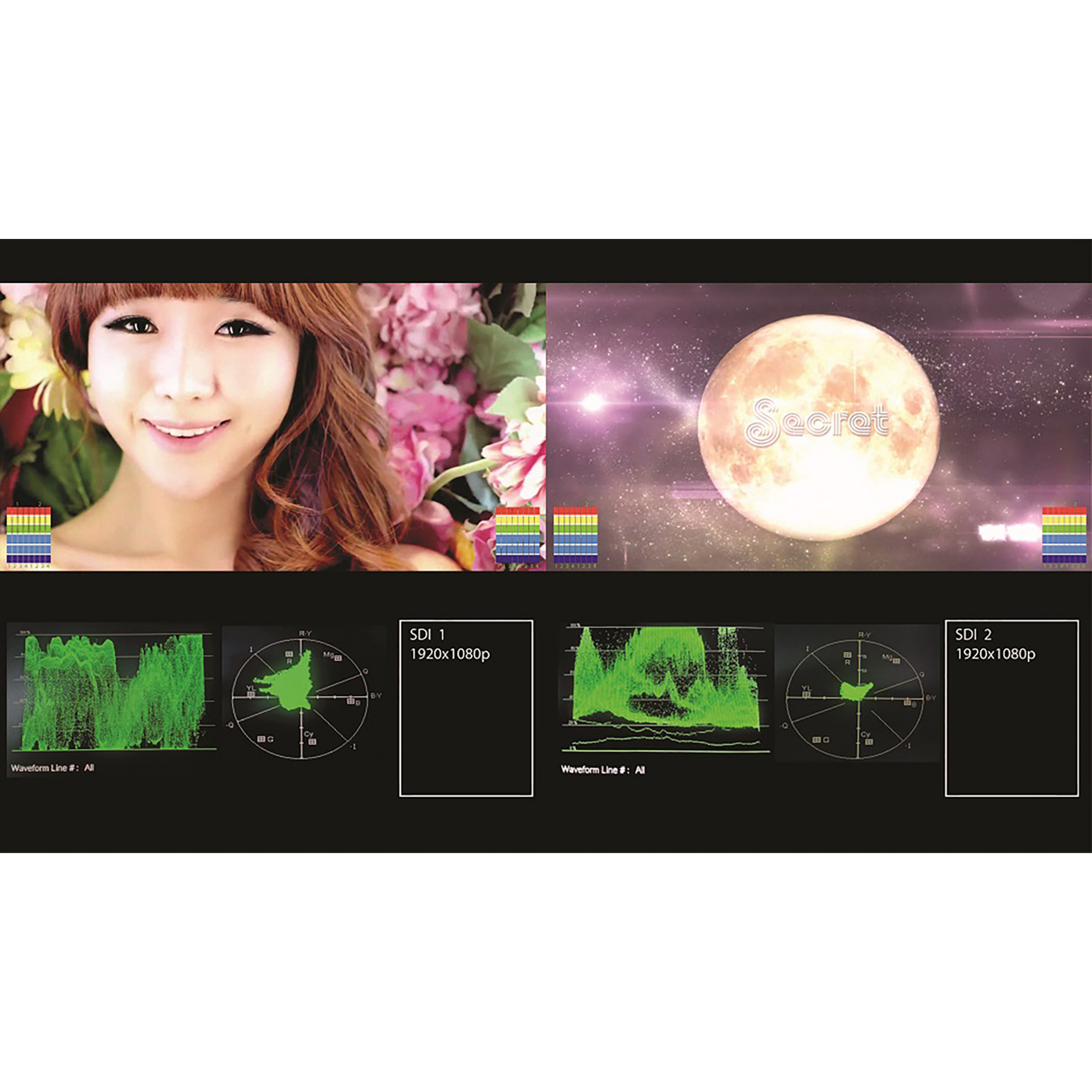

    Dual Display Mode
    PRM is equipped with powerful video processor to display concurrently two video inputs with the related Waveform & Vector, 16CH Audio Level Metering, and Timecode. 2048x256 Waveform, 256x256 Vector scope. Dual Waveforms and Vectors supported for SDI1/SDI2. Histogram/Vertical waveform/RGB conversion. Waveform for DVI/HDMI supported. RGB Parade, Waveform have an option to display Luminance & chrominance. Waveform & Vector Full Screen. Display Advanced Waveform & Vector Scope simultaneously with line select.

    6" Programmable Presets and other Prominent Features
    You may program 6 preset functions to be available at your figure tips without going through the menu. Other great features as Line Mode, Skin tone, Range error, Focus Assist. Color Temperature - User, VAR, Adjustable (11000K TO 3200K), Internal Monitor Display (IMD), Pixel to Pixel Mode, Tally, DC Operation, Display LTC & DVITC time code with line select, Internal Pattern Generator Digital Audio Decoding Picture and Picture (PaP), Picture in Picture (PiP) display / Blend. Various and User defined Markers Display, Safe Area in HD & SD.


    • Features

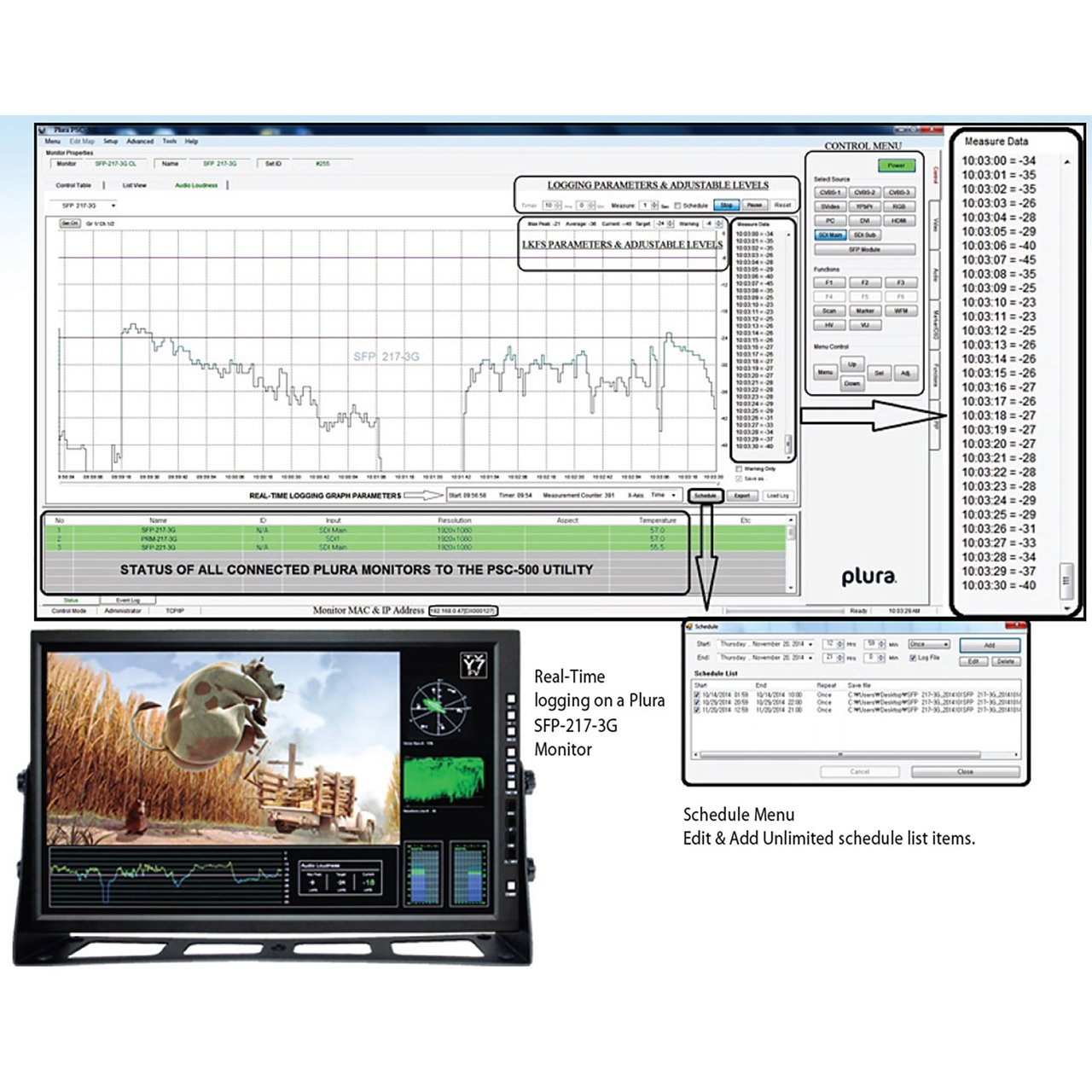

      • LKFS Audio Measurement - Digital Loudness Audio metering in LKFS scale
      • 10 BIT Color Depth 24.5" integrtaed OLED Panel, 3D LUT, Dual display modes with dual Wfrm & Vect
      • 2 x Auto-detect HD-SDI, SDI with active loops (3 Gb/s / 1.485Gb/s / 270Mb/s)
      • 3 x Composite inputs with active loops, 1 x DVI/VGA and 1 x HDMI
      • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
      • 3D LUT & Wide range of Gamma selection
      • Closed Caption (608/708) - Teletext 801 & Subtitle OP-47
      • Ethernet control, Advanced audio metering
      • RGB 12 Bit Digital Signal Processing
      • Internal Monitor Display (IMD)
      • 5000:1 Contrast Ratio
      • Pixel to Pixel Mode, Tally, DC Operation
      • Display LTC & DVITC time code with line select
      • Internal Pattern Generator and Wall Control System
      • Built In Stereo Speaker, 16 CH Audio Metering Display
      • Analog & Embedded Audio Input, Digital Audio Decoding
      • Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
      • Various and User defined Markers Display, Safe Area in HD & SD
      • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
      • Display Advanced Waveform & Vector Scope simultaneously with line select
      • Programmable 6 User Front Pushbutton Controls, GPI & RS232 Remote Control
      • OPTION: Battery Mount, Rack mount, Wall mount, Carry Case

    • Specifications

      • Input
      • HD/SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
      • Analog Input: 3EA, Composite, Component(YPbPr/RGB), BNC Jack
      • S-VIDEO Input: 1EA,YC(S-Video), S-Jack
      • PC-RGB (DVI) Input: 1EA,PC-RGB (VGA) Jack D-SUB 15Pin
      • DVI Input: 1EA, DVI-I, 24pin, Female
      • HDMI Input: 1EA, HDMI, 19pin Female
        Output
      • SDI Output: 2EA, BNC, Active Through Output
      • Analog Loop Ouput: 3EA, 75O,BNC Jack (Option)
        Analog Input Level
      • Composite: 1.0Vp-p(with sync), NTSC/PAL
      • YC (S-Video): Y :1.0Vp-p, C:0.286Vp-p
      • Component (Y/Pb/Pr): Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
      • Component (R/G/B): G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
      • PC-RGB, Sync Level: R, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p
        Digital Input Format
      • SMPTE 425M/3G: 1920*1080p(60,59.94,50)
      • 2K Format: 2048*1080,24p/psf,23.98p/psf
      • SMPTE 372: 1920*1080i(60,59.94,50),1080p(30,29.97,24,23.98), Dual_YUV444, Dual_RGB444/ Dual_YUV422/1920*1080p(60,59.94,50) 1280*720p(60,59.94,50)
      • SMPTE 274M/292M: 1920*1080i/60,59.94,50; 1920*1080p/30,29.97,25,24,23.98,23.98sf
      • SMPTE 296M: 1280*720p/60,59.94,50
      • SMPTE 260M: 1920*1035i/60,59.94
      • SMPTE 259M, 125M: 720*480i/60,59.94
      • ITU R-BT.656: 720*576i/50
      • Component: 640 X 480 up to 1920 X 1080p
      • HDMI Digital: ~ 1920 X 1200(embedded Audio, with HDCP)
      • DVI Digital: 640 X 480 up to 1920 X 1200
      • PC-RGB(DVI) Mode: 640 X 480 up to 1280 X 1024, max 1600 X 1200
        Audio Input
      • Input Line: 1EA, L/R, Stereo pin jack
      • SDI Audio Input: Embedded HD/SD-SDI Audio
        Audio Output
      • Output Line: 1EA, L/R, Stereo pin jack
      • Speaker Output: 2EA, 2W+2W
      • Ear-phone Output: 1EA, L/R Stereo, 3.5mm Stereo pin jack
      • Output Signal: Input Line & De-embedded Audio, 1~ 16CH
        I/O
      • Remote: 1EA, Remote, RJ-45P Jack, GPI-7 Port
      • Update: 2EA, RJ-11P Jack, RS-422, Serial interface
        LCD
      • Size: 24.5"
      • Resolution: 1920 X 1080
      • Pixel Pitch: 0.283 mm
      • Color: 1,073,741,824 Colors
      • Viewing Angle (deg): R/L:178, U/D:178
      • Luminance of White:250 cd/m2
      • Contrast 5000 : 1
      • Display Area (H X V): 543.36 X 305.64 mm
        General
      • Power Requirements: AC 100 - 230V, 50Hz/60Hz
      • Power Consumption: 1.0 A- 0.5A(100W)
      • Operating Temperature: 0°C ~35°C(41°F~95°F)
      • Operating Humidity: 20% ~ 80% RH
      • Weight: 30.8 Lbs
      • Dimension (W*H*D) w/o Box & Stand: 21.8 x 16.1 x 3.93 Inch
