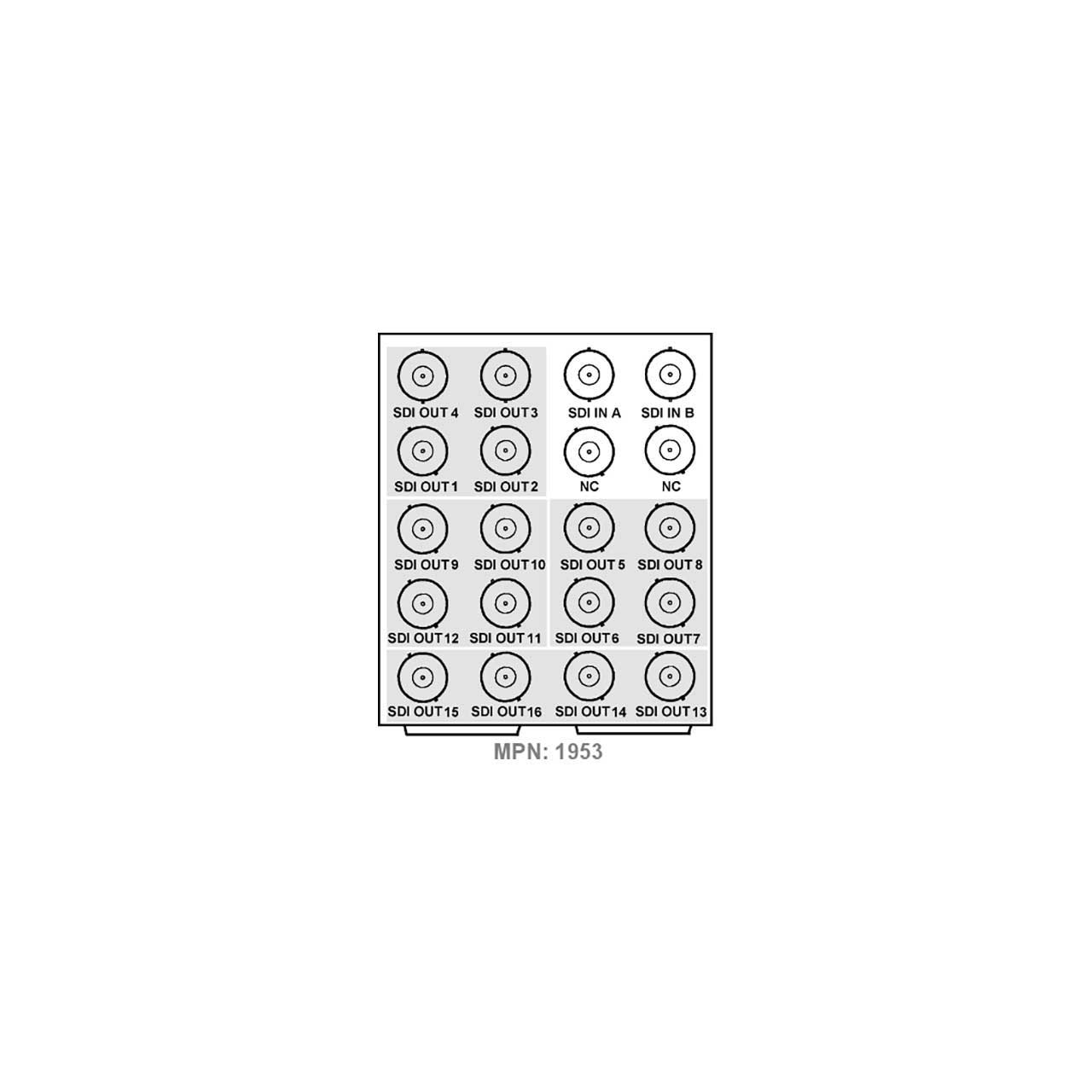

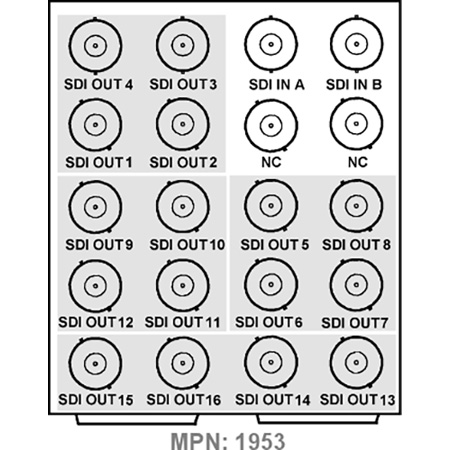

The Cobalt Digital RM20-9910-2Q-E is a rear module for the Cobalt 9910DA-2Q-3G-RCK openGear card! Module is a 20-Slot Frame Rear I/O Module (Double Width) (2) 3G/HD/SD-SDI/ASI Input BNC, (16) 3G/HD/SD-SDI/ASI Output BNCs.
Please Note: Rear I/O Module output designations here correlate to output numbers for four DA quadrants as shown in the card block diagram. As such, SDI outputs within a quadrant group can only be sourced from a particular input at one time (for example, if the card is set to feed SDI IN A to quadrant SDI Out (1-4), the rear module outputs 1 thru 4 will all output SDI IN A). Dissimilar inputs cannot be routed within a quadrant group (for example, SDI OUT 1 sourced from SDI IN A and SDI OUT 2 sourced from SD
The Cobalt® 9910DA-2Q-3G-RCK 3G/HD/SD/ASI Dual-Channel Multi-Rate DA with x4 Output Crosspoint (Non-Reclocking) supports two input channels which can be crosspoint-routed to any of 16 DA outputs. The 9910DA-2Q-3G is multi-rate and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.
The extremely flexible crosspoint (which is user-configurable via DashBoard™ GUI remote control) allows dual 1x8 or single 1x16 routing possibilities. Any of the two input channels can be distributed or duplicated across four groups of 1x4 DAs, and either of the two inputs can be set to use an alternate failover input upon loss of signal.
Excellent receive performance allows receive EQ for up to 120m 3G and 160m HD cable length (1694A). Card edge and DashBoard™ remote status monitoring indicates input lock for each input channel. Up to 10 of the 9910DA-2Q-3G cards can be installed in a frame to provide 20 channels of input, with distribution to up to 160 outputs.
Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
