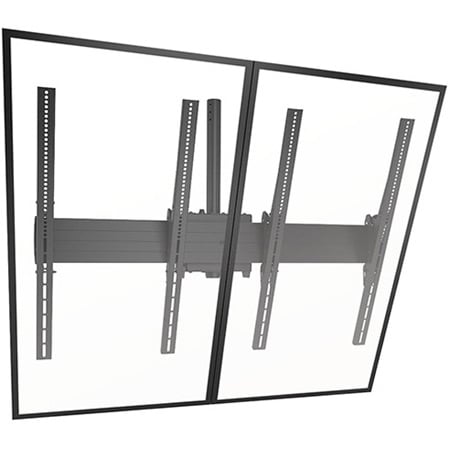

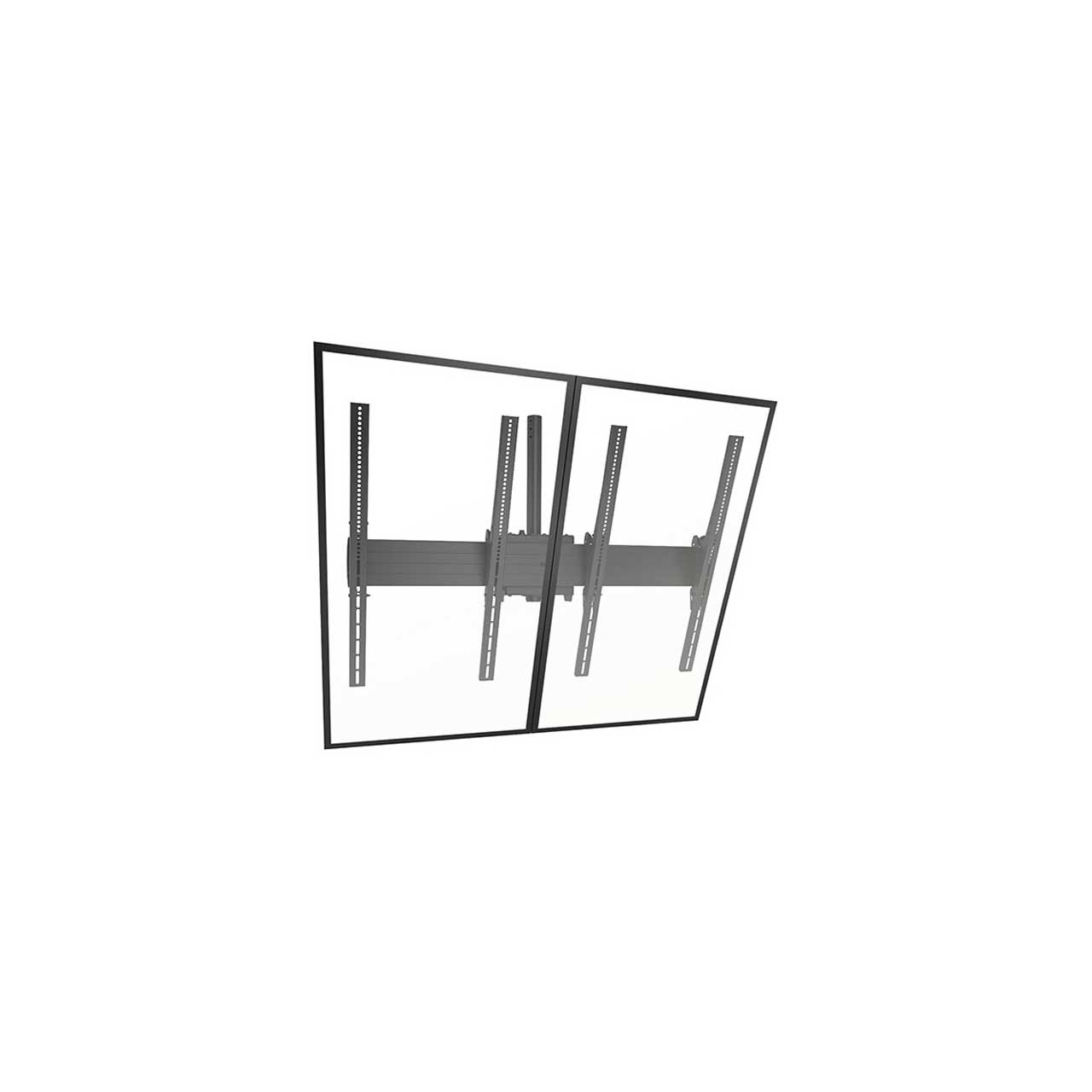

Chief Fusion Large 2x1 Large Ceiling Display Mount - Portrait Menu Board

LCM2X1UP - Overview

• Features:

  • Single drop for fast installation
  • Micro adjustable roll for perfect leveling +/- 3 degrees
  • 360 degree swivel for optimal viewing angles
  • Single horizontal extrusion keeps screens aligned
  • Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
  • Tool-free screen engagement
  • Secure displays with optional pad-lock security
  • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
  • Ceiling plate and extension column are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
  • See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
  • See CPA ceiling plates and CPA columns for pin connection compatibility
  • Recommended ceiling plates for multi-display ceiling mounts (PDF)
  • TAA Compliant
  • Screen array configuration: screens wide x screens high.


• Specifications:

  • Certifications: UL Listed, TAA Compliant
  • Color: Black
  • Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 800 mm
  • Notes: Weight capacity is per display
  • Number of Monitors: 2
  • Orientation: Portrait
  • Post-Installation Leveling Roll: + / - 3°
  • Screen Array Configuration2 x 1
  • Shipping Weight: 50 lbs (22.68 kg)
  • Solution Type: Universal
  • Tilt: + 5° , - 20°
  • Typical Screen Sizes: 40 - 55" (up to 65" with FCAX extension brackets)
  • Weight Capacity: 125 lbs (56.7 kg)


• GTIN:

  0841872158846
