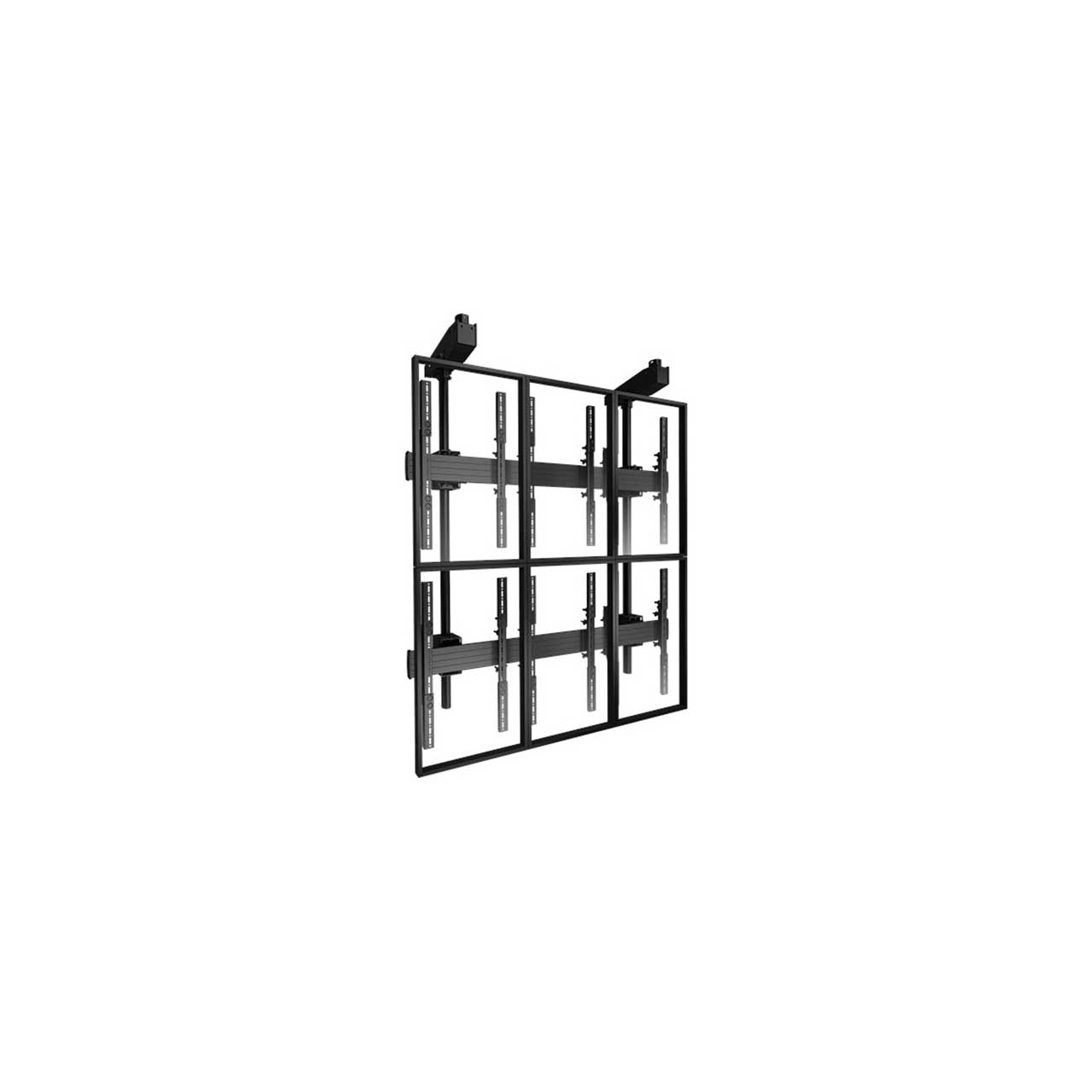

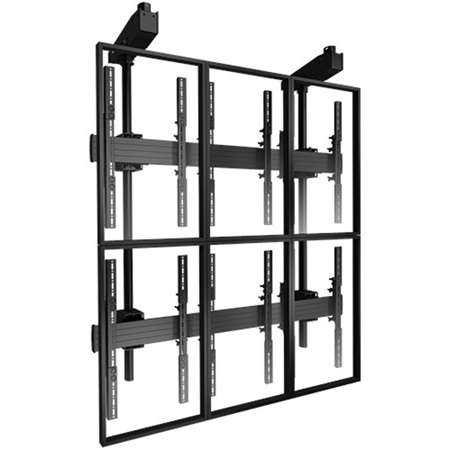

Chief LCM3X2U FUSION Portrait Micro-Adjustable Large Ceiling Mounted 3 x 2 Video Wall Solutions

LCM3X2UP - Overview

• Features:

  • Screen array configuration: screens wide x screens high.
  • Easily align displays with independent knobs for height and plumb adjustments, no tools required.
  • Micro-height and leveling adjustment at all column intersection points.
  • Infinite vertical and lateral adjustments provide tight display rows and columns.
  • Solid construction supports displays up to 55".
  • Add configurations side by side to create any video wall arrangements up to 3 screens tall
  • Ceiling plate and extension column are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
  • See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
  • See CPA ceiling plates and CPA columns for pin connection compatibility
  • Recommended ceiling plates for multi-display ceiling mounts (PDF)


• Specifications:

  • Adjustments: Micro-Adjustments of 2" at structural intersection points
  • Certifications: UL Listed
  • Color: Black
  • Manual Height Adjustment: 1" (25 mm) increments at structural intersections
  • Mounting Pattern Compatibility (Universal Versions): 100 - 800 mm x Any Height
  • Notes: Weight capacity is per display, Max Screen Height 45" (114 cm)
  • Number of Monitors6
  • Orientation: Portrait
  • Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
  • Screen Array Configuration: 3 x 2
  • Shipping Weight: 190 lbs (86.18 kg)
  • Typical Screen Sizes: 40" - 50" (102 - 127 cm)
  • Weight Capacity: 125 lbs (56.7 kg)


• GTIN:

  0841872159119
