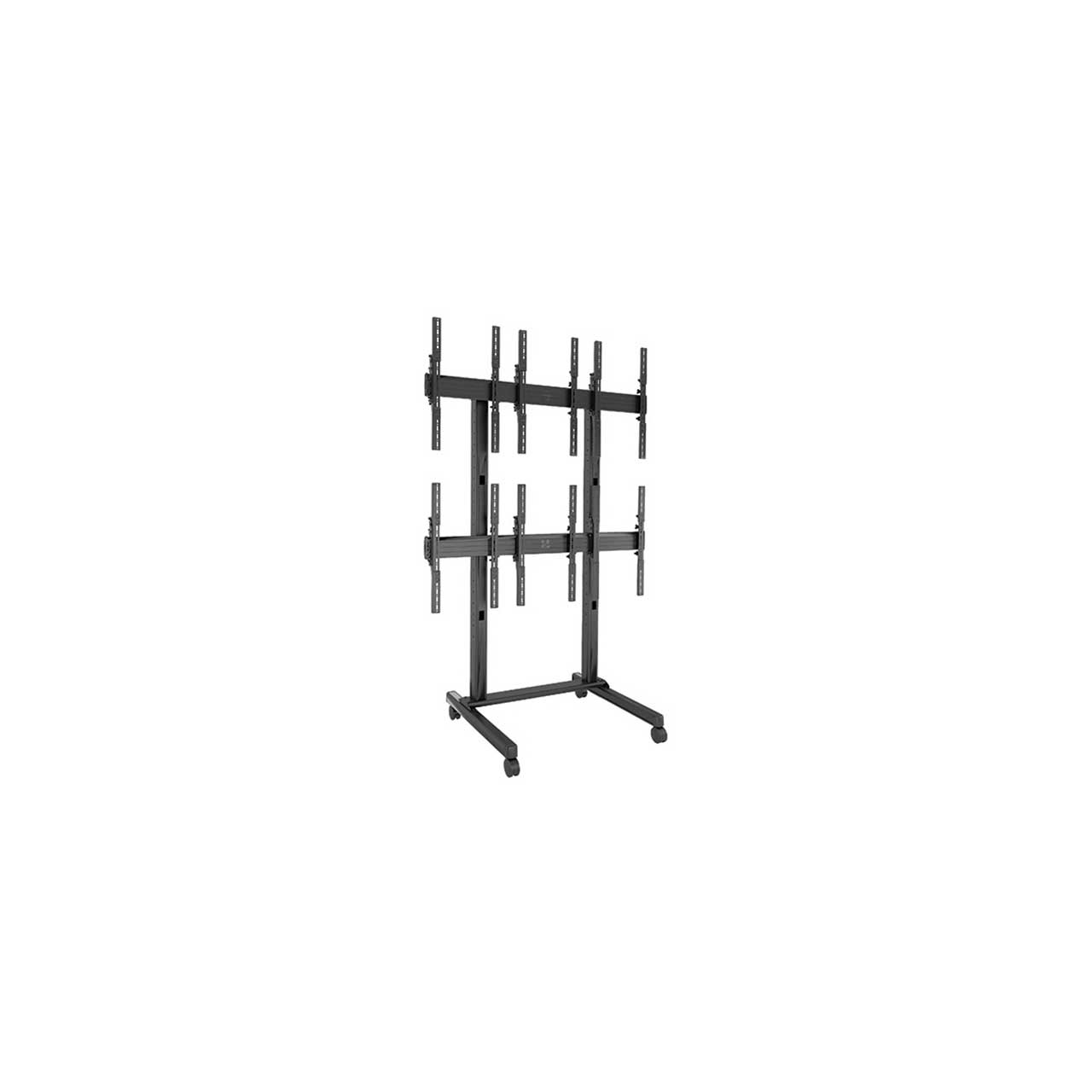

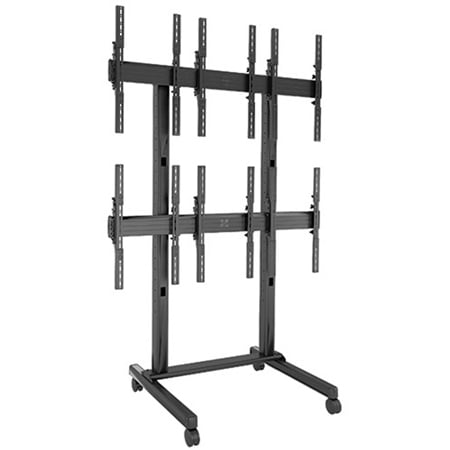

Chief LVM3X2UP FUSION 3 x 2 Portrait Micro-Adjustable Large Freestanding Video Wall Cart/Stand

LVM3X2UP - Overview

• Features:

  • 3 x 2 portrait screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets
  • Easily align displays with independent height, plumb and lateral shift adjustment
  • Smooth rolling casters for effortless positioning (1 locking caster per leg )
  • Integrated cable management for a clean installation
  • Available leveling feet (FCA776) for more permanent installations


• Specifications:

  • Center of Display to Floor Table Range: 24.47" (622 mm) (minimum bottom row) - 90.6" (2302 mm) (maximum top row)
  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: Yes
  • Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
  • Mounting Pattern Compatibility (Universal Versions)any width x 100 mm - 800 mm
  • Number Of Monitors: 6
  • Orientation: Portrait
  • Overall Dimensions (H x W x D): 106.7" x 68.0" x 40.4" (2710 x 1727 x 1026 mm)
  • Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
  • Screen Array Configuration: 3 x 2
  • Shipping Weight: 269 lbs (122.02 kg)
  • Solution Type: Universal
  • Typical Screen Sizes: 42 - 46" (Larger displays possible with FCAX brackets)
  • Weight Capacity: 100 lbs (45.4 kg)


• GTIN:

  0841872157740
