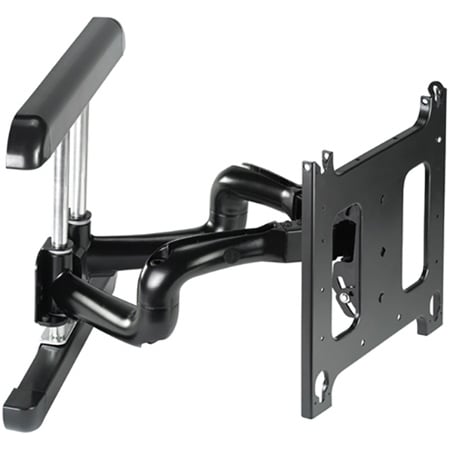

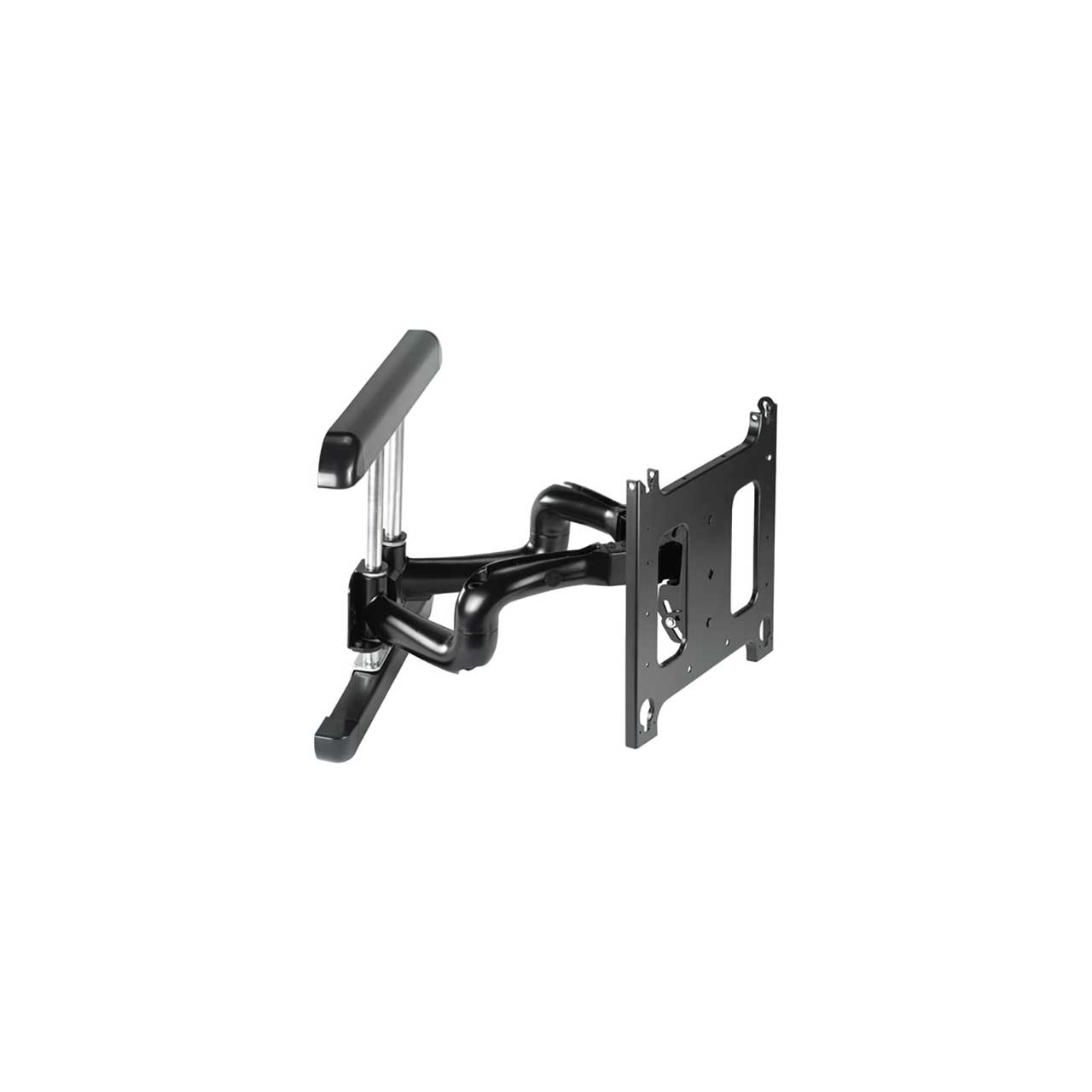

Chief 25 Inch Extension Monitor Arm Wall Mount - Black

PNRUB-G - Overview

• Features:

  • Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity
  • Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Easy connect/disconnect without tools
  • Extends up to 25 (635 mm) for viewing from any angle
  • CableTrac System provides channeled cable management for easy cable routing
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)


• Specifications:

  • Certifications: TAA Compliant, UL Listed
  • Color: Black
  • Lateral Shift: 9" (229 mm)
  • Manual Height Adjustment: 1" (25 mm)
  • Maximum Extension: 25" (635 mm)
  • Minimum Depth: 3.25" (82.6 mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
  • Orientation: landscape and portrait
  • Overall Dimensions (H x W x D): 21.2" x 27.1" x 3.3" (538 x 687 x 84mm)
  • Post-Installation Leveling Roll: Yes
  • Solution Type: Universal, Custom
  • Tilt: + 5° , - 15°
  • Typical Screen Sizes: 42 - 71"
  • Wall Stud Compatibility In: 16" (406 mm)
  • Weight Capacity: 200 lbs (90.7 kg)


• GTIN:

  0841872164311
