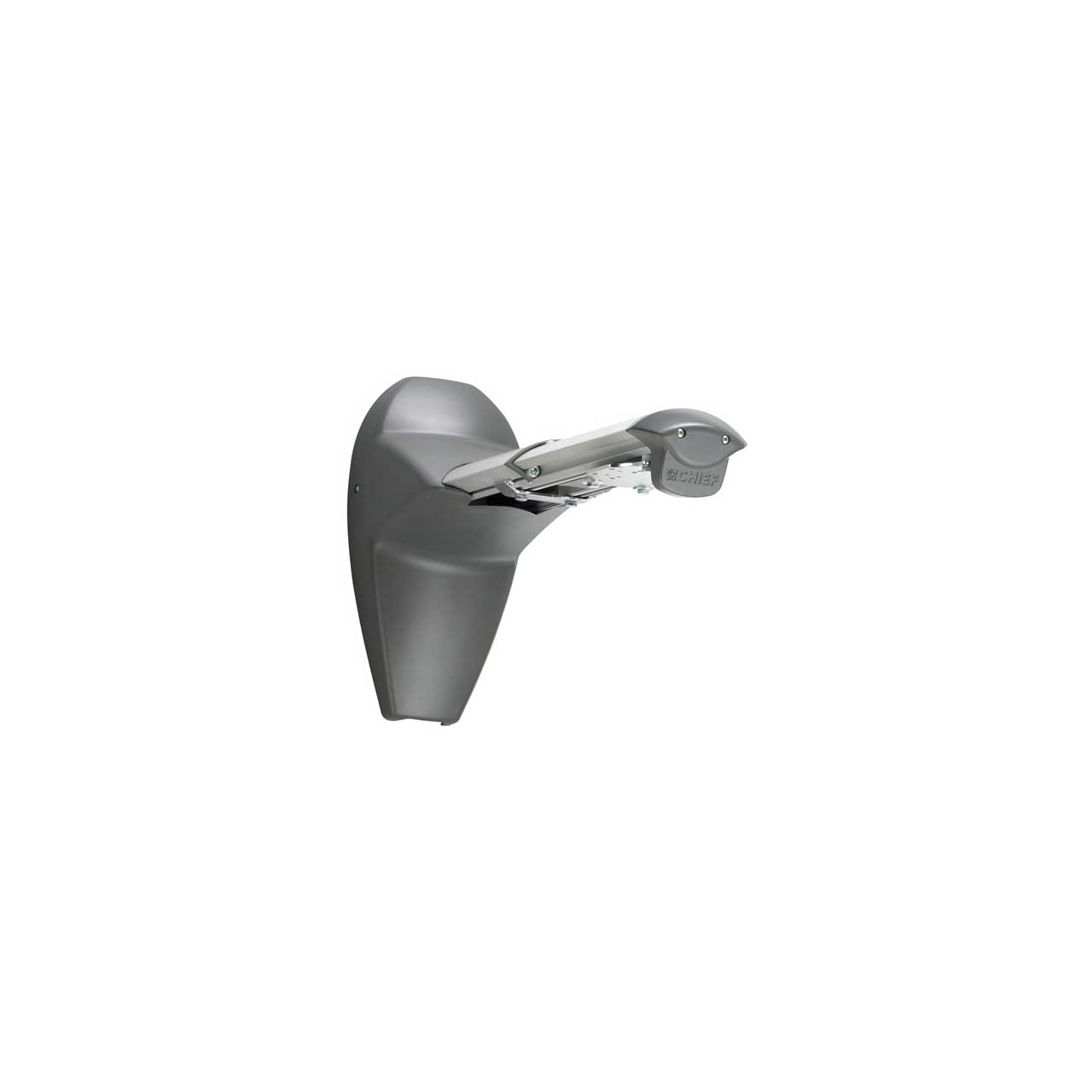

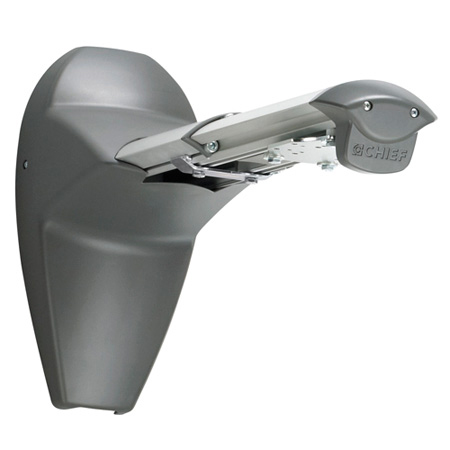

Chief WM110S Projector Wall Mount - 0-18 Inch Extension

WM110S - Overview

• Features:

  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Extension from wall, 11.25-18.00" (285.75-457 mm)
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
  • Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
  • Includes short throw arm only, projector mount must be ordered separately
  • Includes hardware for wood stud, steel stud and concrete wall construction
  • Also supports long-throw projectors


• Specifications:

  • Adjustments:
  • Roll: 0°
  • Pitch: 3°
  • Yaw: 0°
  • Certifications: UL Listed
  • Color: Silver
  • Extension: 11.3" - 18"
  • Overall Dimensions (H x W x D): 14.2" x 7.3" x 21.7" (360 x 185 x 551 mm)
  • Shipping Weight: 18.00 lbs
  • Weight Capacity: 50 lbs (22.7 kg)


• GTIN:

  0841872122830
