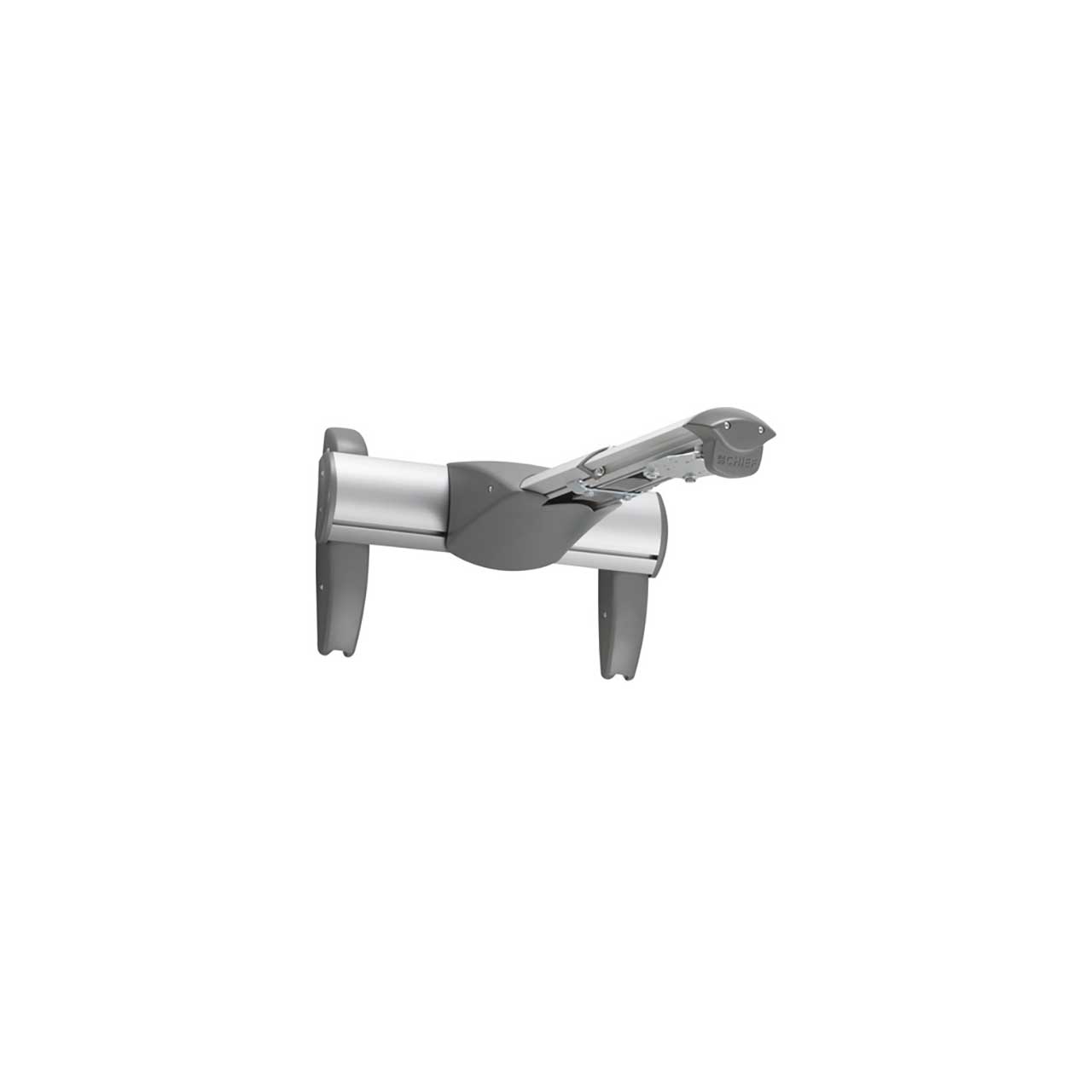

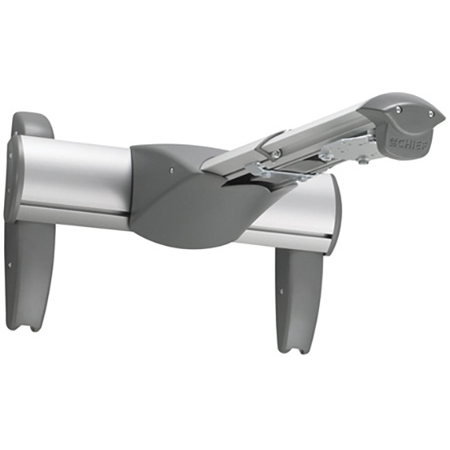

Chief WM210S Ultra Short Throw Wall Mount - Dual Stud

WM210S - Overview

• Features:

  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Integrated lateral shift
  • Extension from wall, 12.75"-19.50" (324-495 mm)
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
  • Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
  • Includes short throw arm only, projector mount must be ordered separately
  • Includes hardware for wood stud, steel stud and concrete wall construction
  • Also supports long-throw projectors


• Specifications:

  • Adjustments: Roll: 0°, Pitch: 3°, Yaw: 0°
  • Certifications: UL Listed
  • Color: Silver
  • Extension: 12.8" - 20"
  • Lateral Shift: 10" (254 mm)
  • Overall Dimensions (H x W x D): 11.5" x 19.6" x 23.1" (293 x 499 x 586 mm)
  • Shipping Weight: 20 lbs (9.07 kg)
  • Solution Type: Universal
  • Weight Capacity: 50 lbs (22.7 kg)


• GTIN:

  0841872122908
