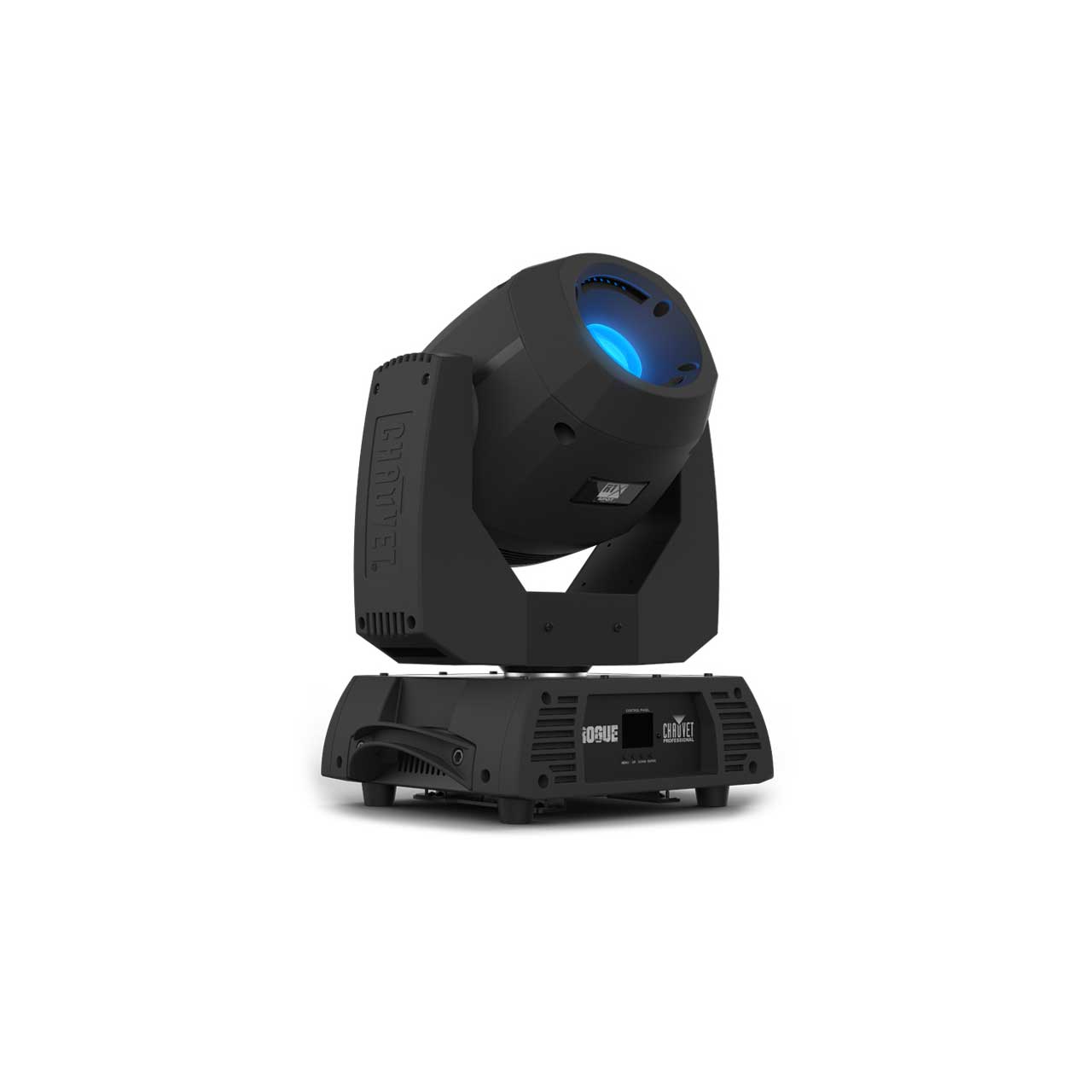

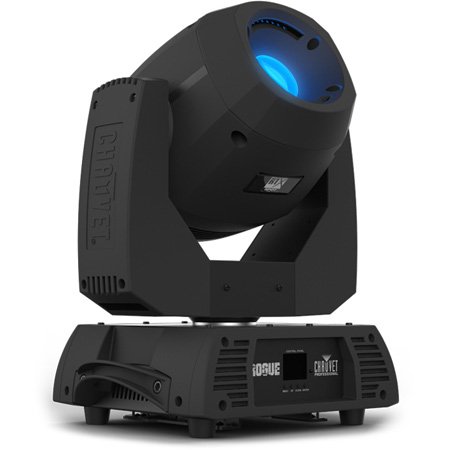

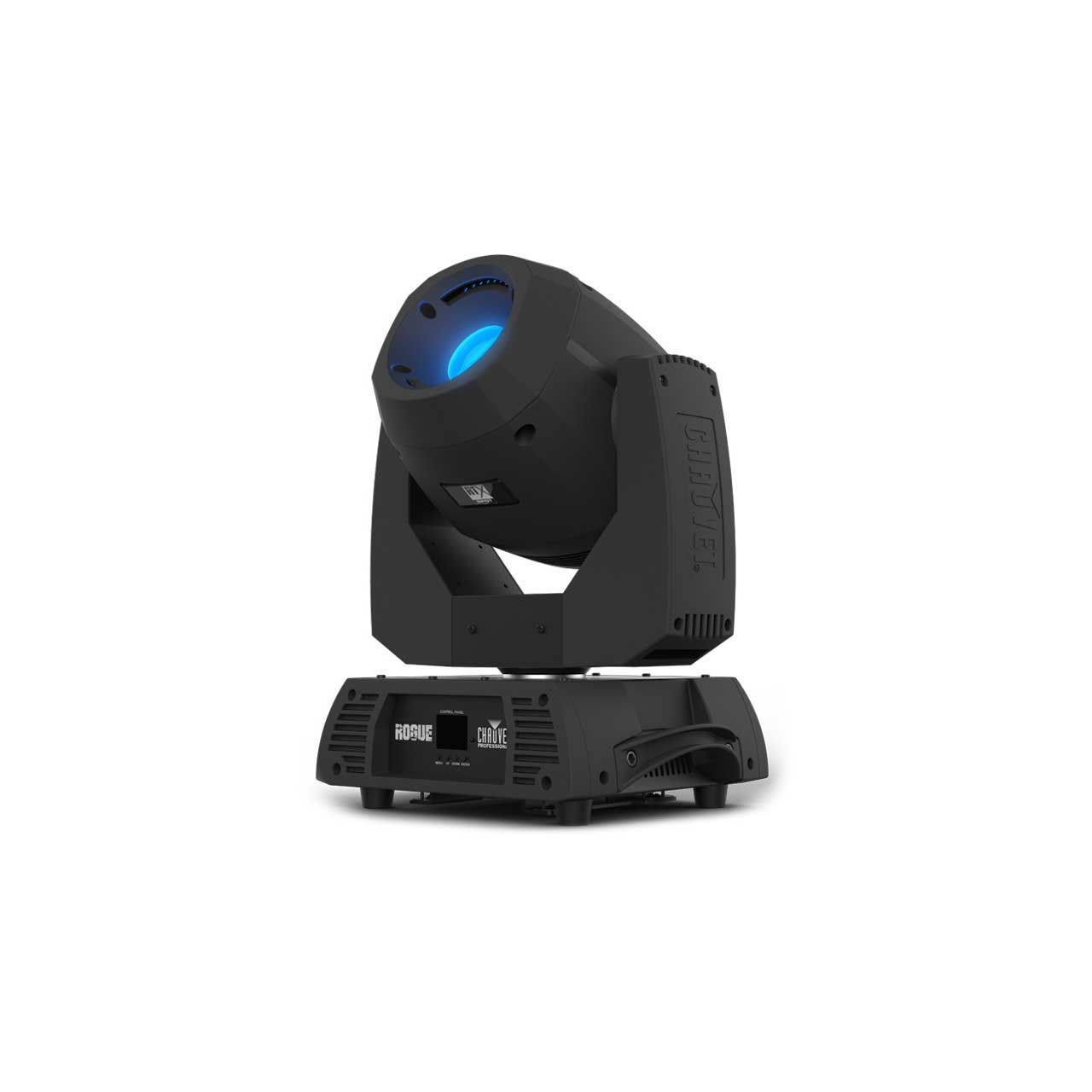

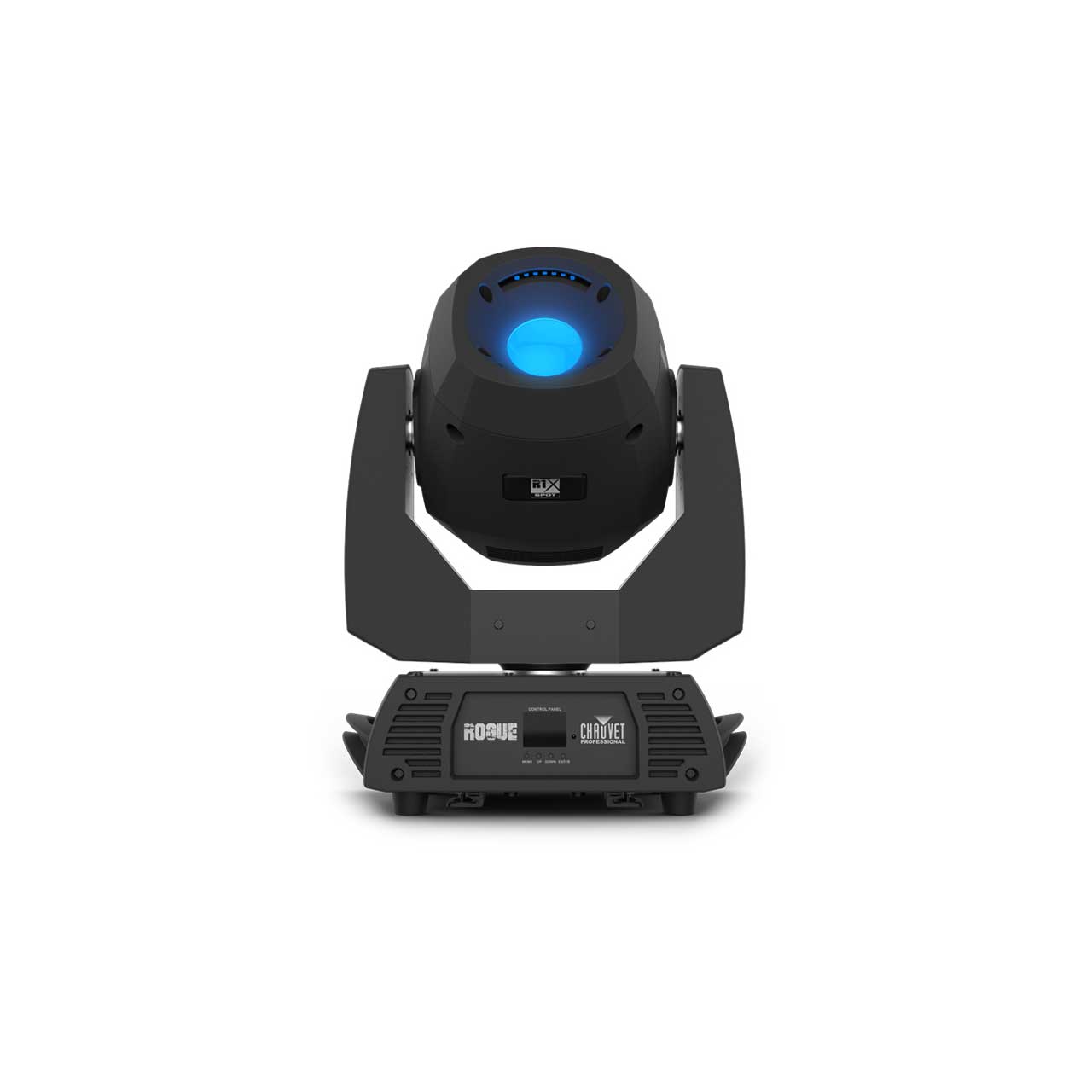

Chauvet ROGUER1XSPOT Moving Head Light Fixture

ROGUER1XSPOT - Overview

• Features:

  • Bold, bright 170 W LED light engine for punchy, solid beams
  • Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling
  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris and 3-facet prism for stunning visual effects
  • Neutrik® powerCON® power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R1 Spots
  • Selectable PWM settings to maintain flicker free operation on camera
  • Simple and complex DMX channel profiles for programming versatility


• Specifications:

  • Optical
  • Light Source: 1 LEDs (CW) 170 W, (7.4 A), 8847 K, 50,000 hours life expectancy
  • Color Temperature (at full): 8847 K
  • Front lens diameter: 65 mm
  • CRI: 75.2
  • Beam Angle: 14°
  • Field Angle: 15.6°
  • Lumens - Source: 12,000
  • Lumens - Output: 6,700
  • Illuminance (total): 4,388 lux @ 5 m
  • Selectable LED Power output: 50-100
  • Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

    Dynamic Effects
  • Pan and Tilt: 540°/250°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
  • Colors: 8 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal),continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Move in Black: Yes

    Construction / Physical
  • Dimensions (single unit): 11.10 x 14.20 x 17.60 in (282 x 360 x 447 mm)
  • Weight (single unit): 37.6 lb (17.1 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

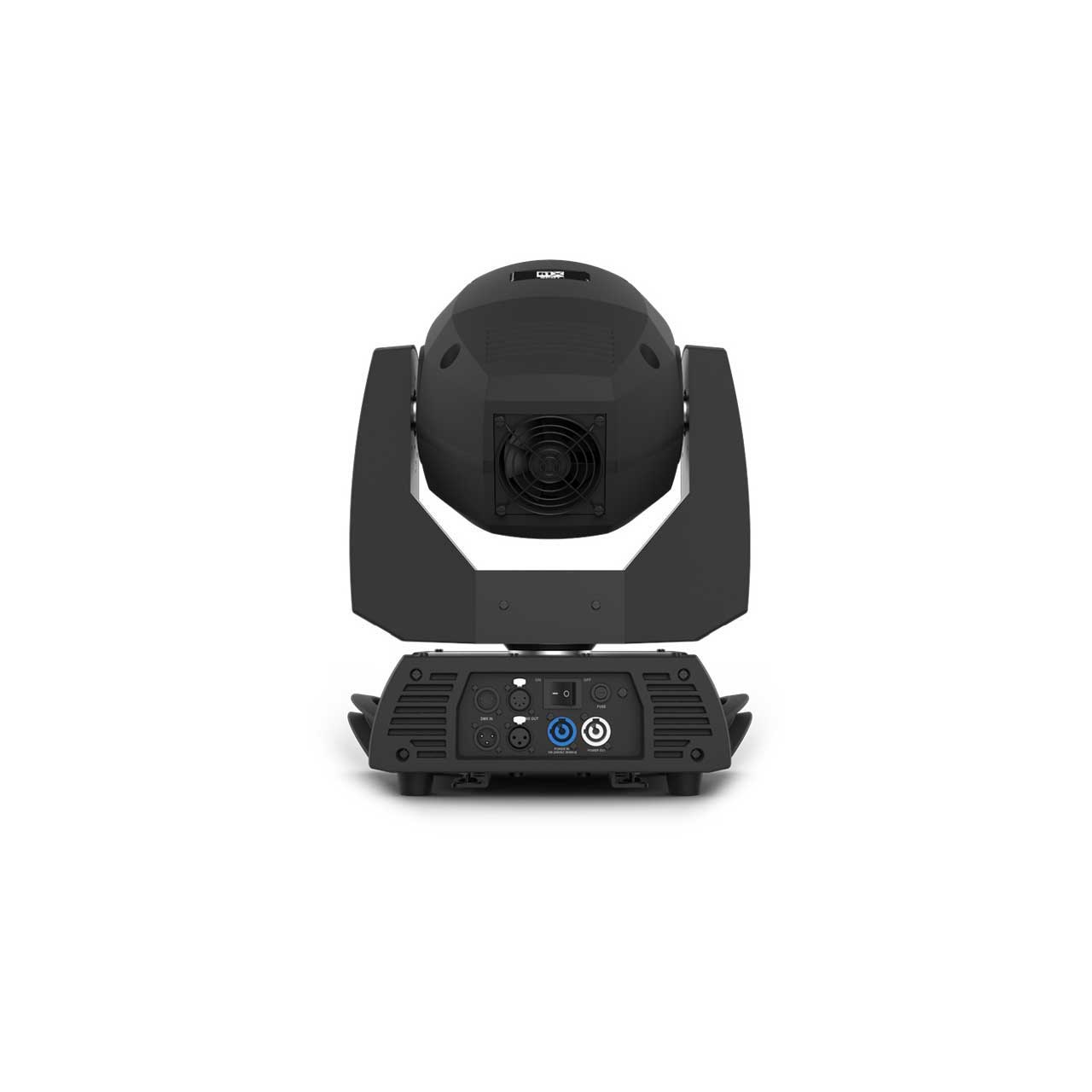

    Connections
  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 16 or 19
  • Modes/Personalities: 2 personalities (16, 19)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
  • Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
  • Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
  • Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE, MET, FCC
  • IP Rating: IP20, dry location


• Item Includes:

  • 1x Rogue R1X Spot
  • 1x Neutrik powerCON power cord
  • 2x Omega brackets with mounting hardware


• GTIN:

  0781462217440
