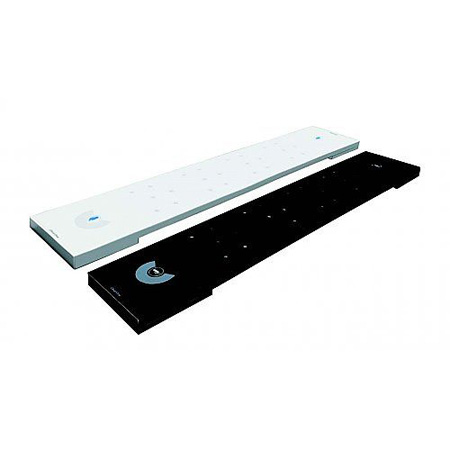

ClearOne 910-3200-201 Beamforming Microphone Array 2 - White

910-3200-201 - Overview

• Features:

  • 2nd-Generation Mic Array
  • Ultra-Sleek Design
  • Flexible & Scalable
  • Configuration & Management


• Specifications:

  • Audio
  • 24 microphones
  • 1 Channel In (does not use any input channels in CONVERGE Pro 2)
  • Number of Beams: 5 in Ceiling mode, 6 in Table mode, 5 in Wall mode
  • Polar Pattern: Custom
  • Frequency Response: 150Hz - 16kHz, +/- 3dB
  • Dynamic Range: 150Hz - 16kHz, >70dB

    LED & Touch Sensor
  • Sensor Type: 2 Capacitive Touch Button for Mute
  • LED (2x: one on each end of a unit): Power On, Power On & Unmuted: Blue, Muted: Red, Power Off: No light

    Configuration
  • Beam enable/disable
  • Mounting mode selection:, Auto, Ceiling, Wall, Table
  • Acoustic Echo Cancellation (AEC) on/off
  • Noise Cancellation (NC) on/off
  • Filters: All Pass, Low Pass, High Pass, Notch, PEQ
  • Automatic Level Control (ALC) on/off
  • Gain adjust
  • Mute on/off
  • Auto gate/Manual gate

    USB
  • For future use

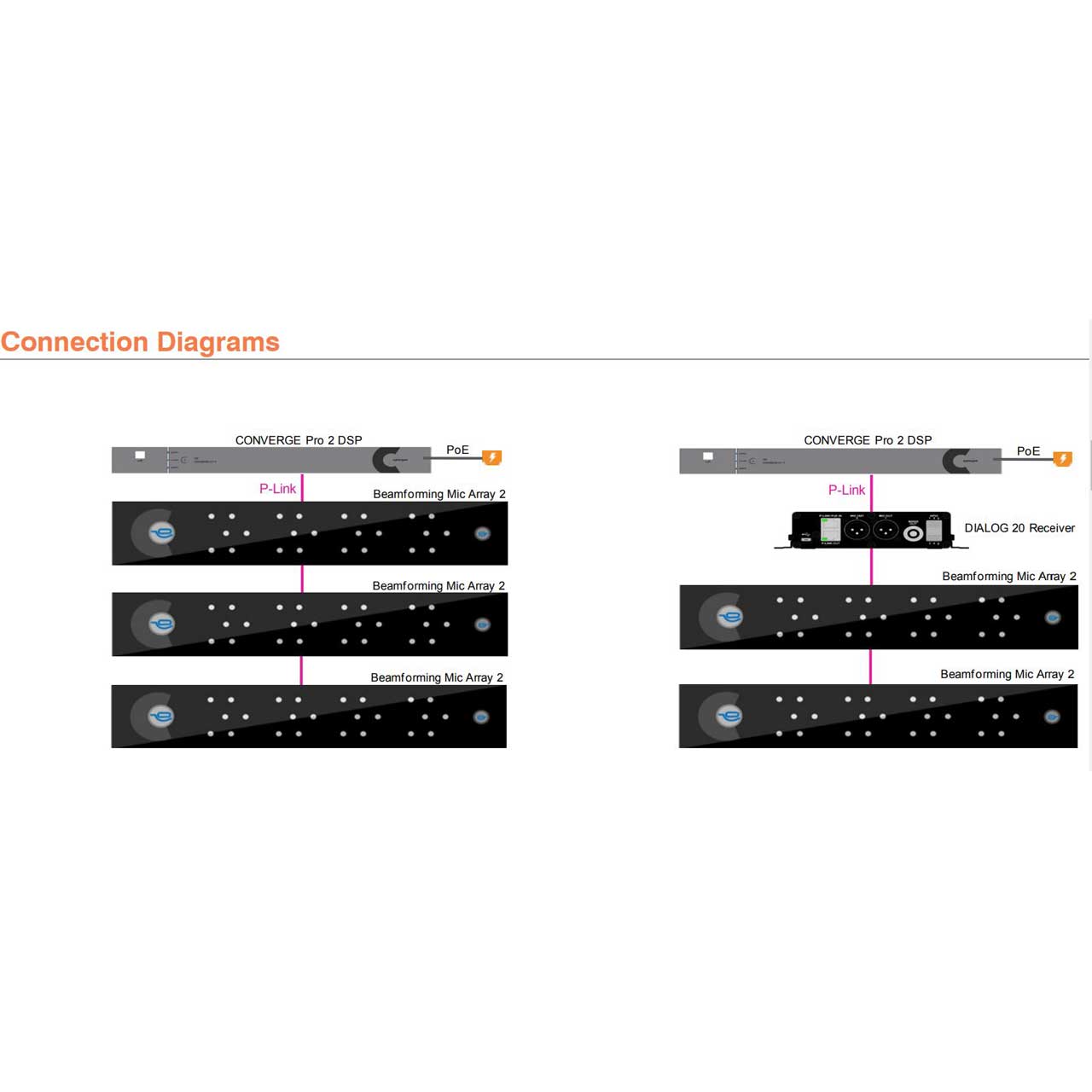

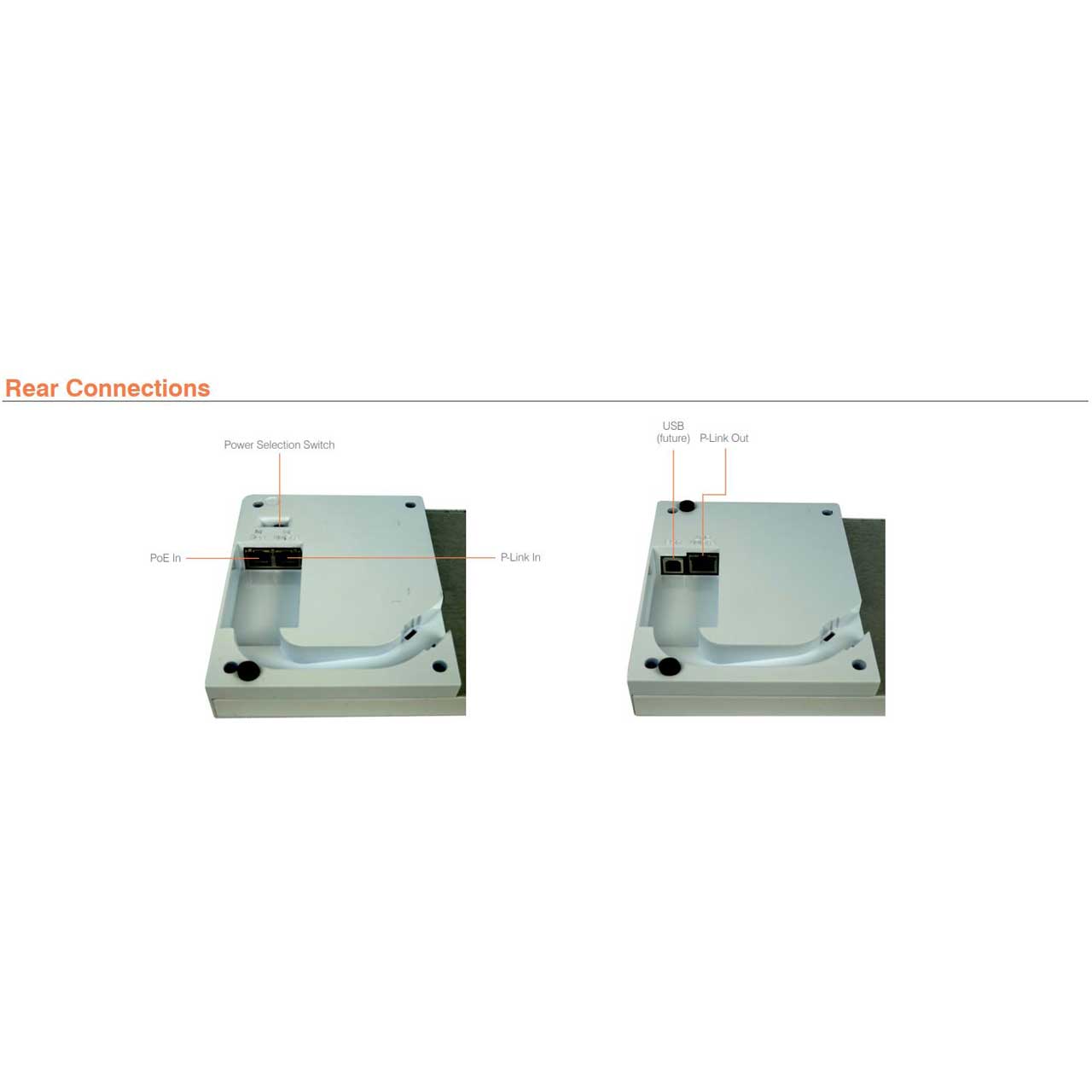

    P-Link Peripheral Bus
  • P-Link In & Out: Proprietary Peripheral Bus
  • Ports Type: RJ-45
  • Cable: Solid core 24AWG, factory terminated Cat
  • 5e or Cat 6
  • Distance: Up to 200 feet
  • Sub-standard: Mode B

    Power Selection Switch
  • Sensor Type: Slide Switch
  • Toggle toward P-Link to power device by P-Link
  • Toggle toward PoE to power device by PoE Injector

    Configuration & Administration Software
  • CONVERGE Pro 2 CONSOLE Software

    Commands
  • Through supported CONVERGE Pro 2 unit connected through P-Link

    Mounting
  • Ceiling mount kit (12" 24" 36" and 48" suspension column)
  • Wall mount kit
  • Table mount

    Power & Thermal
  • Power Type: PoE
  • Port Type: RJ-45
  • Power Source: P-Link or PoE Injector
  • PoE In: PoE IEEE 802.3at
  • Power Source Indicator:
  • Set the position of the power source to indicate the source of the power (P-Link or PoE)
  • Mains Voltage: 100-240VAC, 50/60Hz
  • AC Power Consumption: 12W Typical
  • DC Power Consumption: 5.26W Typical
  • Thermal: 40.95 BTU/Hr
  • Operating Temperature: 14° F/-10° C to 104° F/40° C ambient temperature

    Dimension & Weight
  • 30" x 1" x 5.75" (762mm x 25.4mm x 146mm)
  • Unit Weight: 4.4 lbs (2.0kg)
  • Shipping Weight: 5.7 lbs (2.59kg)


• Item Includes:

  • 1x 910-3200-201 Mic Array 2


• Warranty:

  • 3
