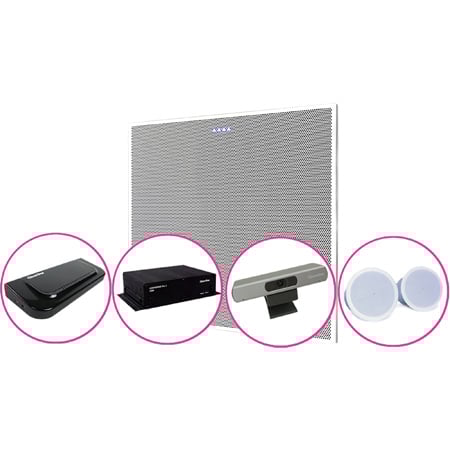

ClearOne COLLABORATE Versa Room CT COLLABORATE Versa Hub & Versa USB/UNITE 50 4K ePTZ Camera/Ceiling Loudspeaker

930-3200-020 - Overview

• Features:

  • USB audio-enabled Beamforming Ceiling Tile microphone (BMA CTH) brings cost-effective professional conferencing audio to small-and mid-sized meeting rooms. Built-in AEC, noise cancellation, and adaptive steering (think ofit as smart switching), provides impeccable room coverage.
  • Provides a convenient single USB cable connection to the laptop or room computer.
  • UNITE 50 4K camera provides a 120-degree wide-angle field of view.
  • 2x10 Watt power amps drive the included 8-inch ceiling speakers.
  • Includes 50' CAT6 cable, 33' USB extender cable, PoE kit, ceiling speakers, and 50 feet of speaker cable
  • Easily and quickly configure the system using CONSOLE® AI Lite software with Audio Intelligence™ and Auto Connect™.
  • Add ClearOne's CONVERGE® Wall-Mount Bluetooth Expander to enable mobile devices to join the conference wirelessly.
  • ClearOne's BMA technology is protected by at least a dozen patents and pending patent applications.
  • Delivering unbeatable price, versatility, and coverage, the Versa Room CT dramatically enhances the room audio and video experience for any cloud-collaboration application


• Specifications:

  • BMA CTH
  • Dimensions & Weight
  • 24" BMA CTH: 23.72 x 23.72 x 2.13" (602.5 x 602.5 x 54.1mm)
  • 600mm BMA CTH: 592.5 x 592.5 x 54.1mm (23.33 x 23.33 x 2.13")
  • Unit Weight: 7.7lbs (3.5kg)

    COLLABORATE VERSA HUB
  • Dimension & Weight
  • Without rack-ears (WxDxH): 5.5 x 1.6 x 4.1" (14.4 x 4.2 x 10.3cm)
  • With rack-ears (WxDxH): 6.8 x 1.7 x 4.1" (17.2 x 4.3 x 10.3cm)
  • Unit Weight: 0.88 lbs (0.4 kg)

    VERSA HUB
  • 1x USB 3.0 (Type-B) for laptop (Requires Display Link driver on laptop)
  • 2x USB 3.0 (Type-A) for UNITE camera & CHAT Speakerphone
  • 4x USB 2.0 ports
  • 1x HDMI out
  • 1x DVI out

    Ceiling Loudspeakers
  • Speaker Type: 2-way, ceiling speaker with metal back can
  • Frequency Range: 65 Hz to 20 kHz
  • Power Handling: 60 Watts RMS, 120 Watts Peak
  • Nominal Sensitivity: 88 dB, 1W @ 1m
  • Nominal Impedance: 8 Ohms
  • Transformer Taps:
    70V - 30W, 15W, 7.5W, 3.8W, 1.9W
    100V - Null, 30W, 15W, 7.5W, 3.8W
  • Woofer: 6.5" (165mm) poly-propylene cone with moisture-resistant coating
  • Tweeter: ¾" (19mm) silk dome
  • Overload Protection: Full range power limiter with the 8 ohm direct input only, protecting the tweeter, woofer and crossover
  • Dimensions: 10.24" (260mm) diameter, 7.40" (188mm) deep
  • Net Weight (each): 3.5 Kg (7.71 lb)

    Please Note: For a list of full specs, see the Data Sheets tab


• Item Includes:

  • 1x BMA CTH 24in (930-3200-205) OR BMA CTH 600mm (930-3200-205-I)
  • 1x COLLABORATE Versa Hub
  • 1x COLLABORATE Versa USB
  • 1x UNITE 50 4K ePTZ Camera
  • 1x Ceiling Loudspeakers
  • 1x PoE power supply kit
  • 1x RJ45 CAT6 Cable - 50'
  • 1x USB 3.0 Cable - 33'
  • 1x Speaker Cable - 50'
