ClearOne 930-6200-206-W-D Ceiling Microphone Array Dante (6 Channel Bundle ) - White

ITEM #: CL1-9306200206WD MFG #: 930-6200-206-W-D

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,771.00

Our Price:

$2,689.47

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    930-6200-206-W-D - Overview

    The 930-6200-206-W-D from ClearOne is an advanced tri-element Dante ceiling microphone array with superior sound quality and adjustability for desired height.

    A built-in Dante audio networking interface, supports daisychain options for conferencing, sound reinforcement and audio
    distribution applications.

    Applications
    Audio conferencing
    Video or web conferencing
    Sound reinforcement
    Audio distribution
    Boardrooms
    Conference rooms
    Training centers
    Lecture halls
    Courtrooms
    Telemedicine theaters

    • Features:

      • Full 360-degree coverage.
      • LED indicators for On/Mute.
      • Daisy-chain up to 4 mic arrays, 12 channels, for one combined system.
      • Optimized for speech-intelligibility with full audio bandwidth and highest SNR.
      • 100% shielding against RF interference.
      • Numbered microphone elements for easy identification.
      • Height easily adjustable from 0 feet to 7 feet.
      • Sleek, unobtrusive design.
      • White or black color options.
      • Works with ClearOne and other 3rd-party DSP mixers.

    • Specifications:

      • Acoustic Characteristics
      • Element: Condenser (Electret)
      • Polar Pattern: 3 X 120° Cardioid Patterns, covering 360°
      • Signal/Noise Ratio: 74 dBA @ 1 kHz
      • Frequency Response: 70 Hz - 20 kHz
      • Sensitivity: -37dB @ 1 kHz (0 dB = 1V / Pa)
      • Max Sound Pressure Level: 120 dB SPL
      • RF Immunity: 100% immunity, fully balanced twisted pair throughout

        Power & Thermal
      • Power Type: PoE
      • Port Type: RJ-45
      • Power Source: PoE power injector, PoE Ethernet Network Switch
      • Impedance: 200Ω
      • Mains Voltage: 100-240V AC, 50/60Hz
      • Power Consumption: 8.5 Watts Typical with 4 Mic Capsules
      • Operating Temperature: 41° to 104° F (5° to 40° C)

        Cables
      • Junction to Interface/Junction Box: RJ45 CAT5e/ CAT6 24AWG (max 33 ft)
      • Interface Box to Network Switch: RJ45 CAT5e/CAT6 24AWG (max 330 feet)
      • Network Switch to Dante DSP Mixer: RJ45 CAT5e/ CAT6 24AWG (max 330 feet)
      • Junction Box to Mic Capsule: Proprietary Mic Array cable (max 7 ft)

        Dimensions (WxDxH)
      • Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
      • Analog-X Interface: 6.8" x 4.1" x 1.7" (172 mm x 103 mm x 43 mm)
      • Analog-X Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm)

        Weight
      • Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
      • Digital Dante Interface: 6.8" x 6.7" x 1.7" (172 mm x 169 mm x 43 mm)
      • Digital Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm)
      • Mic Capsule: 6 oz (170 g)
      • Digital Dante Interface: 21.6 oz (612 g)
      • Digital Junction: 7.2 oz (204 g)

        Mic Array Color Finish
      • White or Black

        LED
      • Mic Capsule - Mute (Red/Blue = GPIO Controlled)
      • Power and Status (On=Red/Blue, Off=Not Illuminated)
      • Dante RJ45s (Green = Connected, Yellow = Connectivity Status)
      • Digital-In RJ45 (Green = Connected, Red = Error)
      • Digital Junction
      • Power (On=Blue, Off=Not Illuminated)
      • Digital-In/Out RJ45 (Green = Connected, Red = Error)

        Compliance
      • FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated)

    • Item Includes:

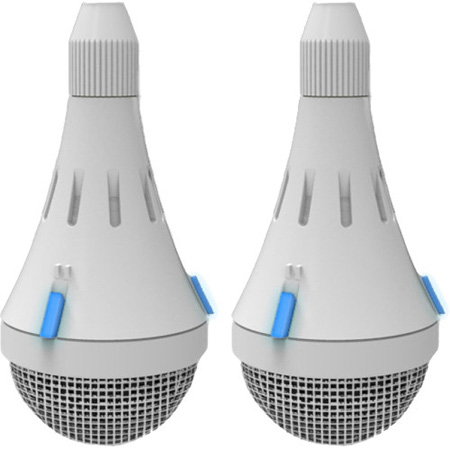

      • 2x 930-6200-206-W-D Mic Capsule - White

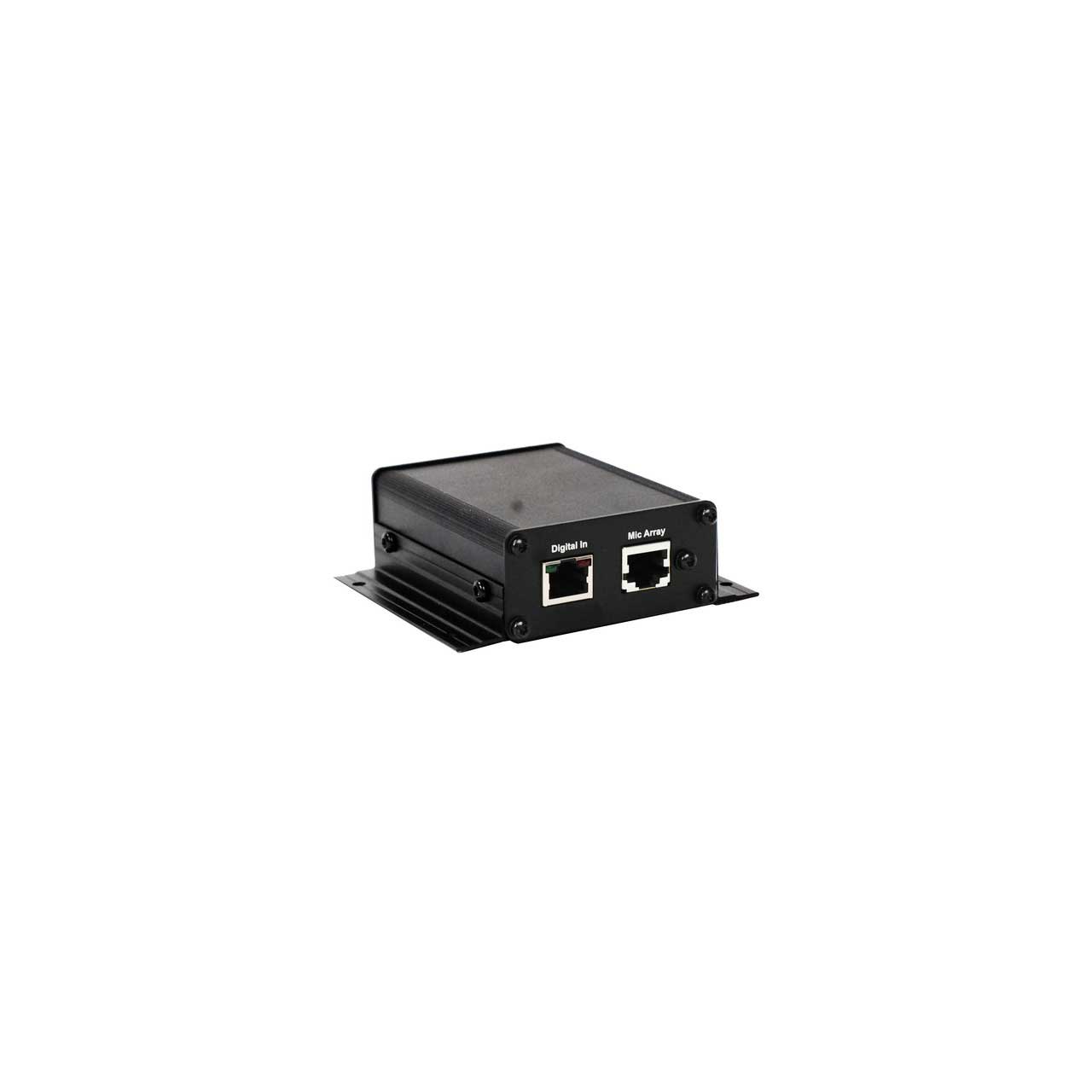

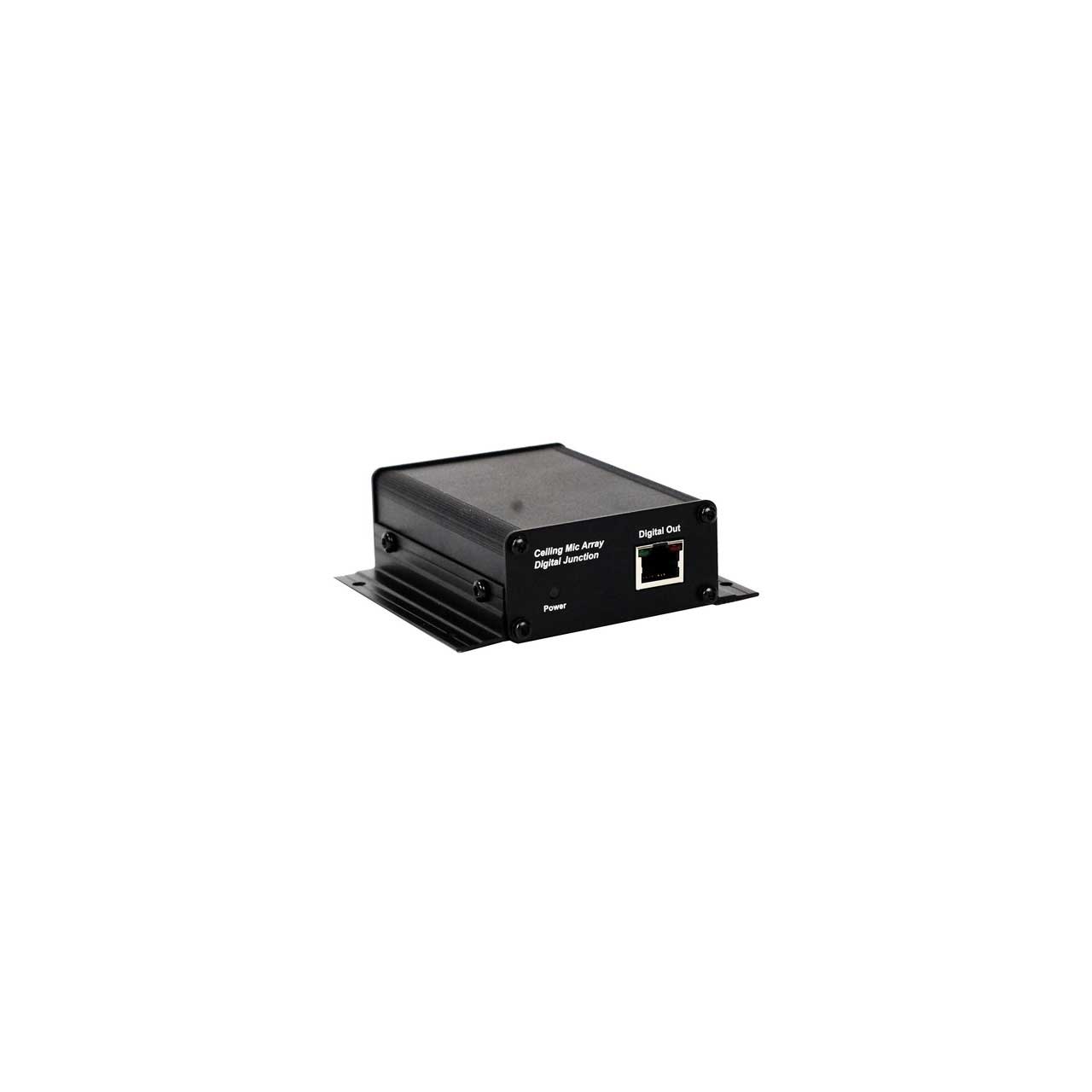

      • 2x Dante Junction Box

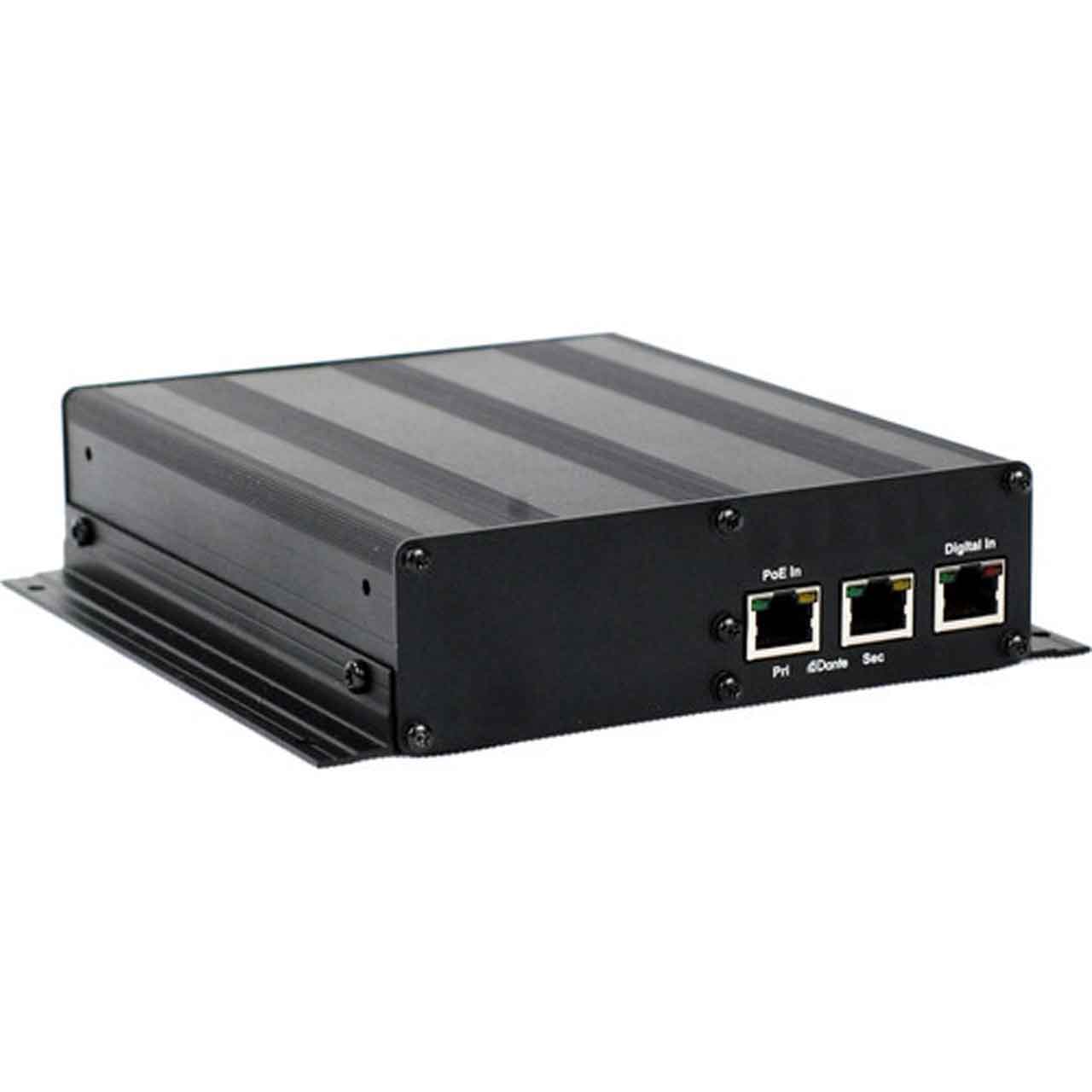

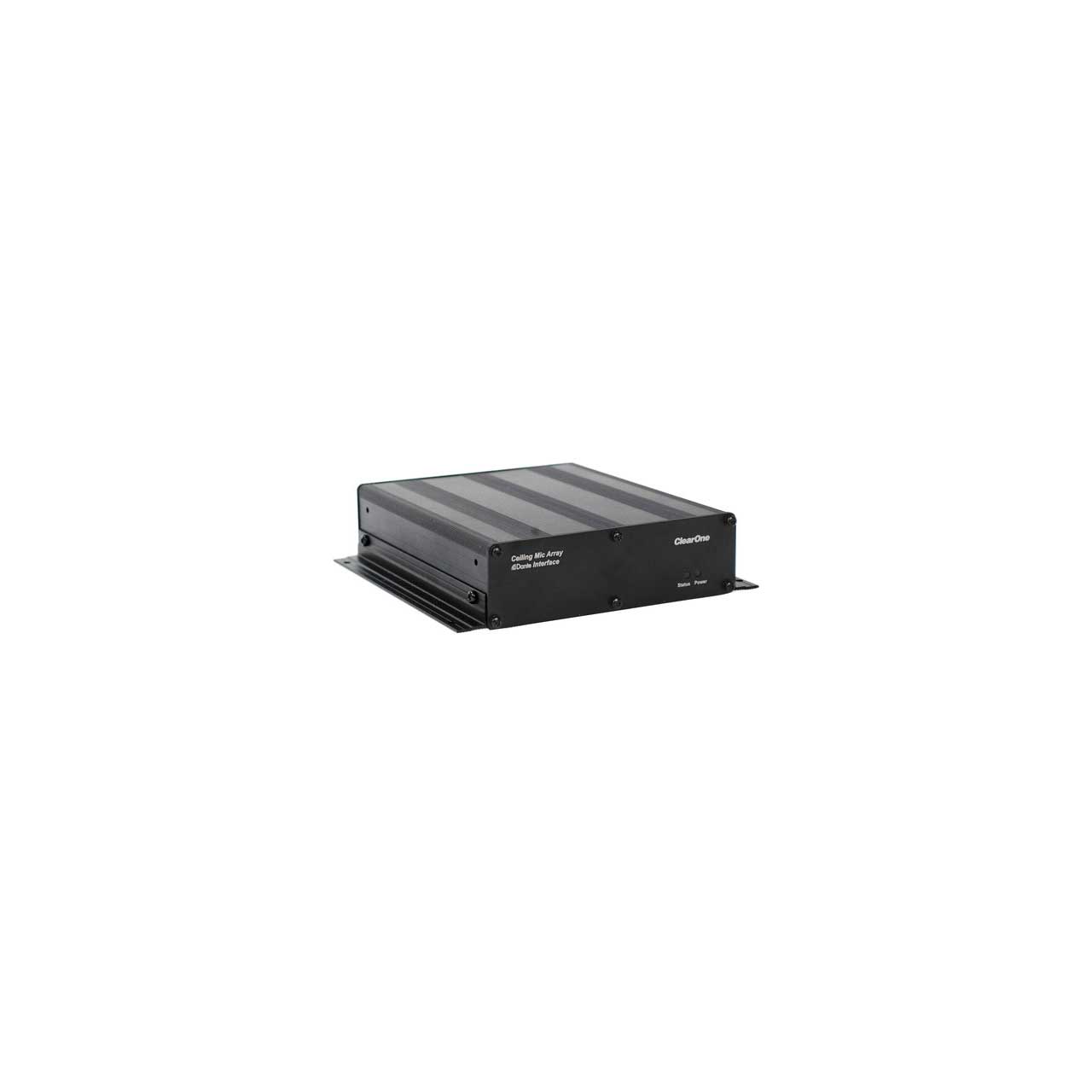

      • 1x Dante Interface Box
