ClearOne 930-6200-412-W-A Ceiling Microphone Array Analog-X (12 Channel Bundle ) - White

ITEM #: CL1-9306200412WA MFG #: 930-6200-412-W-A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    930-6200-412-W-A - Overview

    The Ceiling Microphone Array 930-6200-412-W-A Analog-X is the newest addition to our ceiling mic lineup and most advanced tri-element ceiling microphone array for conferencing and sound reinforcement applications.

    Flexible and easy to use, Ceiling Mic Array is 100% RF immune, optimized for speech-intelligibility, and can daisy-chain for easy installation.

    It is a perfect companion to all our DSP mixers, as well as any 3rd party DSP mixers.

    Applications
    Boardrooms
    Conference Rooms
    Huddle Rooms
    Training Rooms
    Lecture Halls
    Courtrooms
    Telemedicine Facilities

    • Features:

      • Tri-element ceiling microphone array
      • Full 360-degree coverage
      • Superior audio quality with wide bandwidth and high SNR
      • Optimized for speech-intelligibility
      • LED indicators for On/Mute

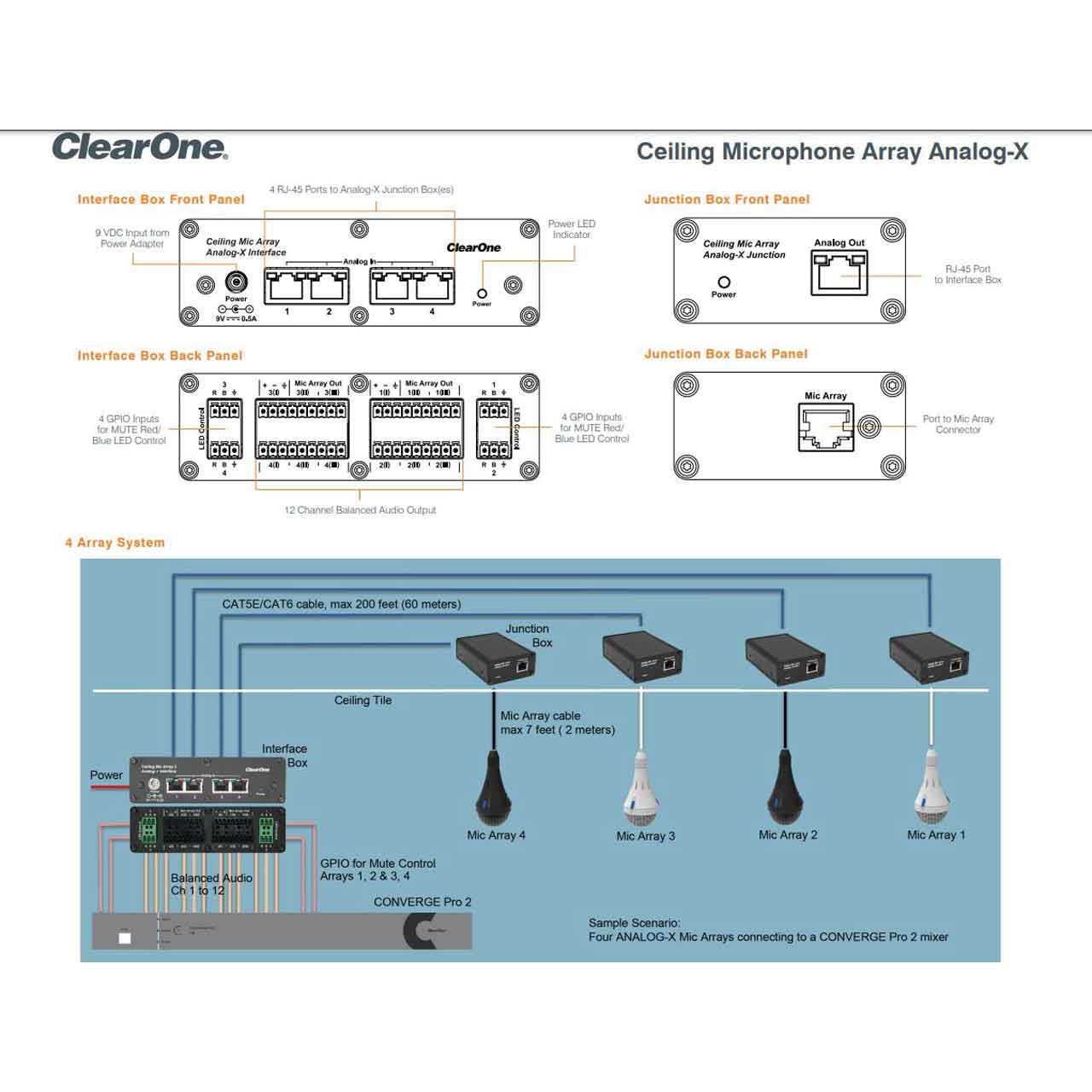

      • Up to 4 Mic arrays (12 channels) in one combined system
      • Numbered microphone elements for easy identification
      • 100% shielding for RF and other interferences
      • Sleek, unobtrusive design
      • Easily adjustable for desired height (0 feet to 7 feet)
      • White or Black color options
      • Works with ClearOne and other 3rd party DSP mixers

    • Specifications:

      • Acoustic Characteristics
      • Element: Condenser (Electret)
      • Polar Pattern: 3 X 120° Cardioid Patterns, covering 360°
      • Signal/Noise Ratio: 74 dBA @ 1 kHz
      • Frequency Response: 70 Hz - 20 kHz
      • Sensitivity: -37dB @ 1 kHz (0 dB = 1V / Pa)
      • Max Sound Pressure Level: 120 dB SPL
      • RF Immunity: 100% immunity, fully balanced twisted pair throughout

        Power & Thermal
      • DC Power: 9Vdc @ 0.5A
      • Impedance: 200Ω
      • Operating Temperature: 41° to 104° F (5° to 40° C)

        Dimensions (WxDxH)
      • Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
      • Analog-X Interface: 6.8" x 4.1" x 1.7" (172 mm x 103 mm x 43 mm)
      • Analog-X Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm)

        Weight
      • Mic Capsule: 6 oz (170 g)
      • Analog-X Interface: 13 oz (370 g)
      • Analog-X Junction: 6.5 oz (185 g)

        Mic Array Color Finish
      • White or Black

        Compliance
      • FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated)

    • Item Includes:

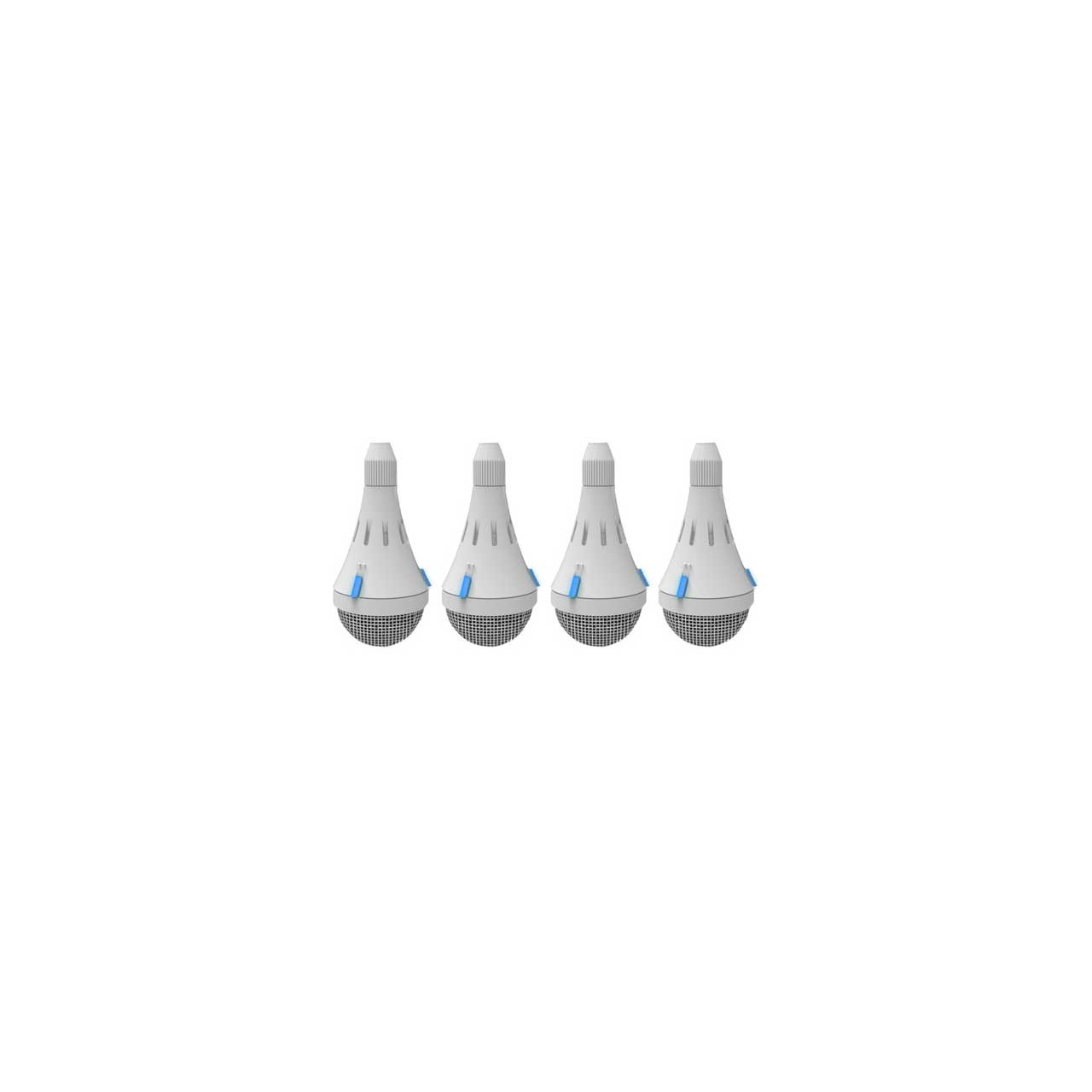

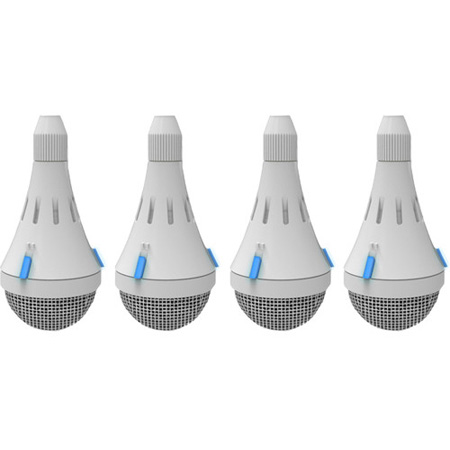

      • 4x 910-6200-101-W Mic Capsule - White

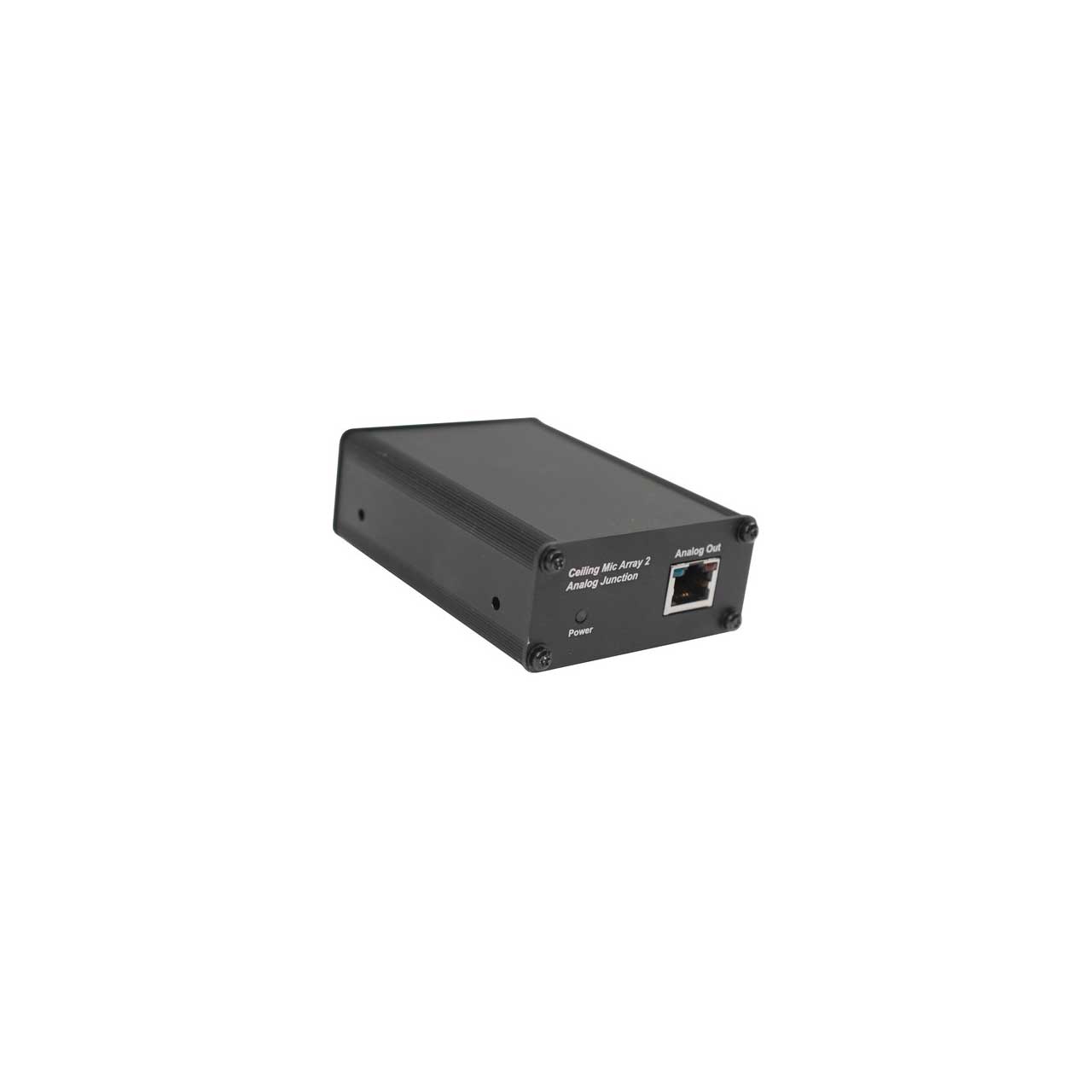

      • 4x 910-6200-102 Analog Junction

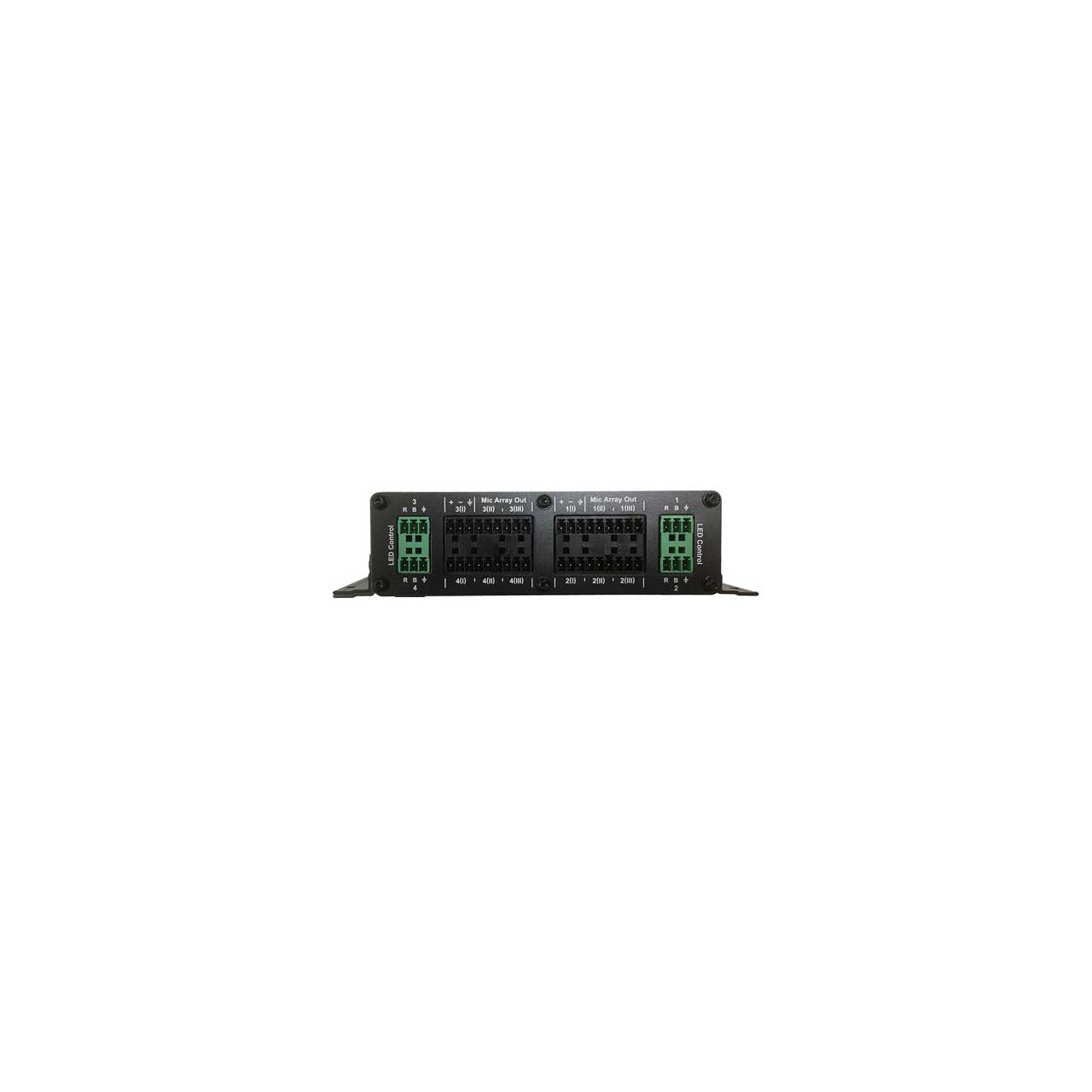

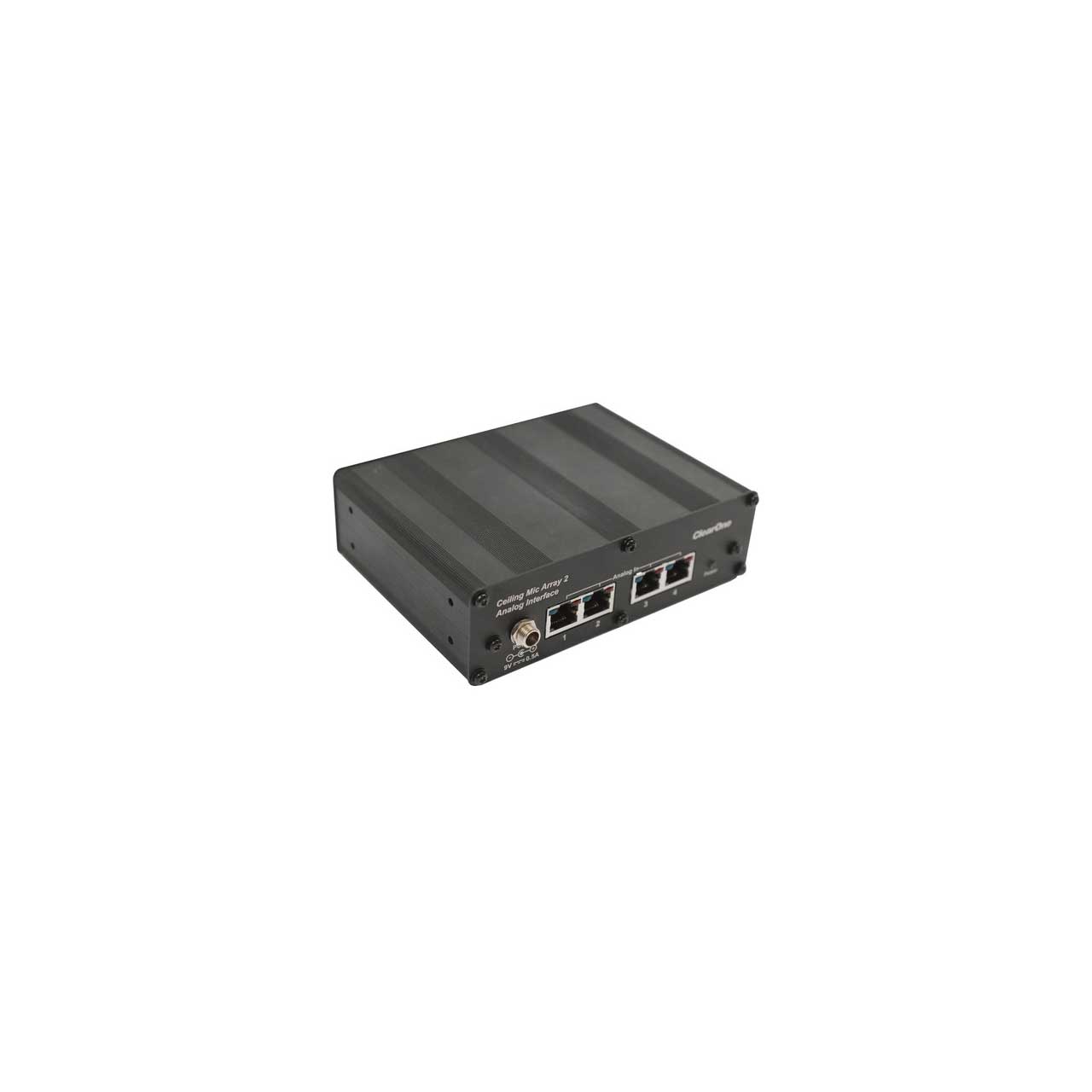

      • 1x 910-6200-103 Analog Interface


    930-6200-412-W-A - Required Accessories
