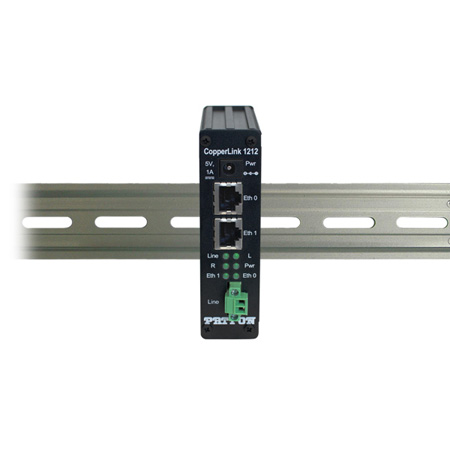

Patton CL1211E/EUI-2PK High Speed CopperLink Ethernet Extender Kit - 2 Pack

ITEM #: CL1211E-EUI-2PK MFG #: CL1211E/EUI-2PK

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    CL1211E/EUI-2PK - Overview

    The Patton CL1211E/EUI-2PK combines data flow from up to four network-enabled devices onto a single twisted pair or coax cable, the Model 1212E can deliver IP traffic up to 1.8 miles (3 km) away well beyond the standard 328-foot (100-meter) Ethernet distance limitation.

    With achievable line rates up to 168 Mbps, the CopperLink 1211E eliminates the bandwidth constraints commonly experienced with other copper-based transmission technologies. The Model 1211E is engineered to re-use existing infrastructure previously employed in legacy applications including alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV. Many newer cabling standards are also supported, including Cat 5e, Cat 6 and Cat 7.

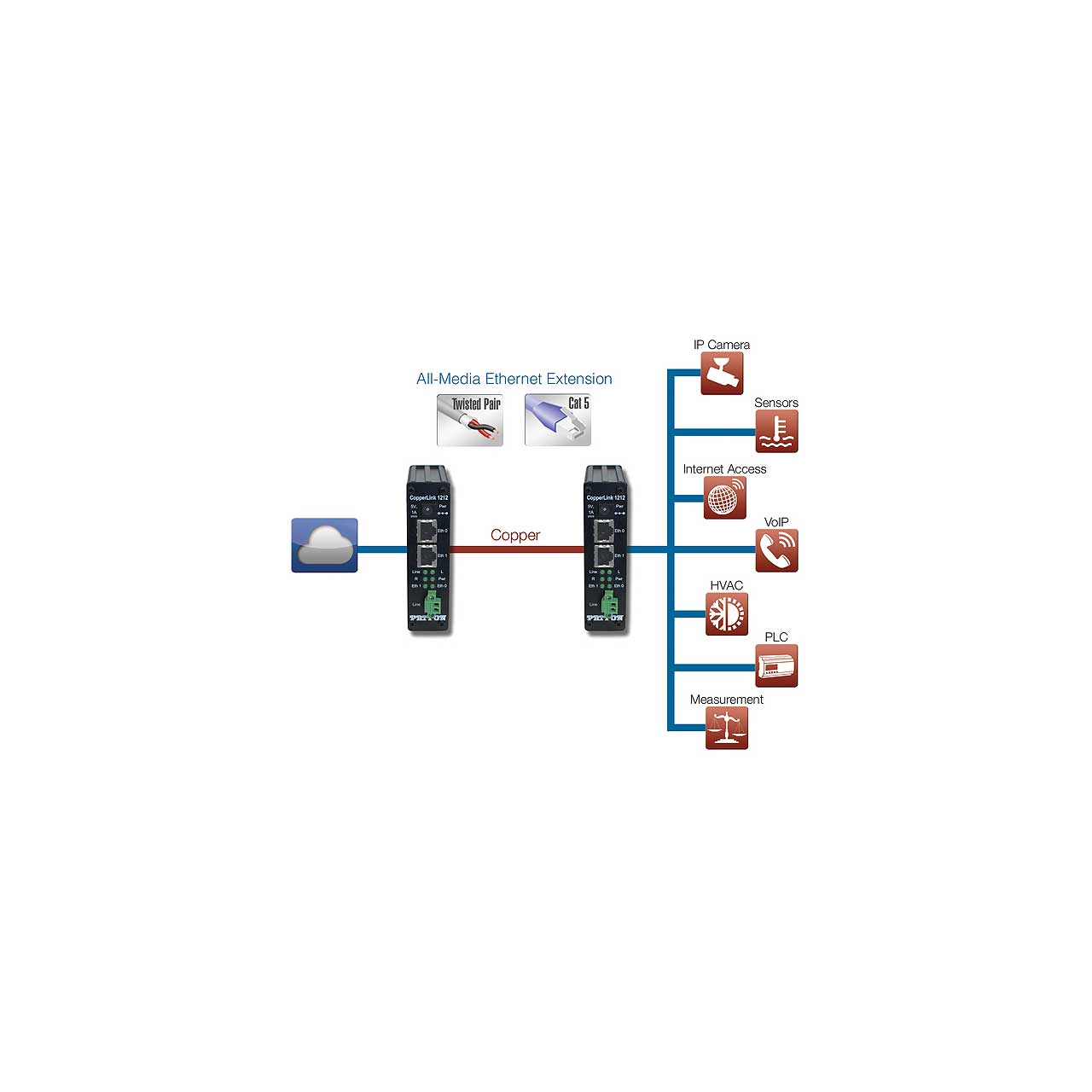

    Typical Application: Extending Ethernet over Cat 5+ or UTP

    • Features:

      • Ethernet Extension
      • Operates Over Twisted Pair
      • Plug and Play
      • Multiple Line Rates Supported
      • Transparent LAN Bridging
      • Made in the USA
    • Specifications:

      • CopperLink Line Interface:
        RJ-45 (pin 4 = ring; pin 5 = tip)
        Terminal block, 2 position
      • CopperLink Line Modulation: DMT (Discrete Multi-Tone)
      • Ethernet Interface (x2): 8-position, shielded RJ-45. Auto-sensing 10/100Base-TX with half or full
        duplex operation. Model 1211 has one 10/100Base-TX port.
      • Protocol:
        Transparent to high layer protocols: supports 802.1Q VLAN tagged or untagged frames.
        Transparent to IP Video schemes: fully transparent to such compression schemes as MPEG-4, H.264,
        and MJPEG.
      • Target SNR Modes: 6 dB and 9 dB
      • Management: 8-position DIP switch
      • Monitoring: 8 LEDs display Power, Link, Ethernet 1–4, Remote, and Local status.
      • Power Supply: External AC: 100–240 VAC
      • Compliance: FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC
      • Temperature: 32 to 122°F
      • Humidity: 5 to 95%, non-condensing
      • Extended Humidity: 5 to 85%, condensing (CL1212E/CC or CL1211E/CC)
      • Dimensions: 4.13 W x 1.5 H x 3.15 D Inches
      • Weight: 0.4 lbs (181 g)
      • MTBF: 77,000 hours
