Clear-Com CZ11433 4-Up 4 User DX100 2.4GHz Wireless Intercom System with CC-15-MD4 Headsets

ITEM #: CLCM-CZ11433 MFG #: CZ11433

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    CZ11433 - Overview

    Digital Communications on the Go!

    The ClearCom DX100 4-Up is a simple, cost-effective and reliable 4 Person wireless intercom system operating in the 2.4GHz band license free. Seamlessly communicate in hands-free mode or have a private conversation on a secured channel on either the durable beltpack or all-in-one wireless headset. The DX100 employs Digital Frequency Hopping Spread Spectrum and Encryption technologies to prevent people outside of the system from hearing your conversations. Up to four people can simultaneously have two-way, hands-free conversations.

    Simple and expandable, the DX100 comes complete with everything you need for a professional, reliable, 4 Person Intercom System. This kit includes the MB100 Mobile Base Station, 4 CC-15-MD4 Single Muff Headsets with Noise Canceling Mic, 4 BP200 Beltpacks with pouch, 8 BAT41 Li-Ion Rechargeable Batteries, the AC40 Battery Charger and more! Ready for reality the Base Station is built tough with weather-proofed gaskets to protect the electronics and the1000 time, drop tested beltpacks have completely sealed buttons to keep out dirt and moisture and to prevent mechanical failures.

    PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

    • Features:

      • 2.4 GHz License-Free Operation
      • Portable, Compact Design
      • Flexible Battery-Powered Operation
      • Secure Communications
      • Hands-Free Communications
      • Informative Voice Prompts
      • Expandable System
    • Specifications:

      • System Specifications
      • Frequency Range: 2400-2483.5 MHz
      • Frequency Response: 200 Hz to 3.5 kHz
      • Security: 64-Bit Encryption
      • Temperature Range: (Typical) -20 to 55°C (-4 to 131°F)
      • FCC License: Not Required

        System Transmit
      • Type: Frequency Hopping Spread Spectrum (FHSS)
      • Transmit Power: 100mW
      • Burst Transmission Modes: Continuous (Latched) or Push-to-Talk (PTT)
      • Modulation Type: Guassian Filtered FSK, TDMA

        System Receive
      • Type: Frequency Hopping Spread Spectrum (FHSS)
      • Sensitivity: <-90dBm with 10-3 BER
      • Dynamic Range: -90dBm to -20dBm
      • Distortion: <2%

        Base Station Specs
      • Antenna Type: External, Dual Diversity, ½-Wave Dipole (Supplied)
      • Power Requirements: Six 1.5V AA Batteries or Rechargeable BAT850 Battery; 12VDC Automotive Adapter or 100/240VAC Power Supply
      • Size: 10.2" x 6.45" x 3.33" (25.91cm x 16.38cm x 8.46cm)
      • Weight: 2.35 lb (1.07 kg) with Alkaline Batteries
      • Front Panel Controls: Power Switch/Register Beltpack/Beltpack Unlatch/Clear Registration/Reset Button
      • Front Panel Indicators: Beltpack Registration Status Display Power/Low BAT Indicator/Beltpack Receive

        Beltpack Specs
      • Battery Requirements: One Lithium-Ion Rechargeable
      • Battery Life: Latched (Hands-Free): Up to 14 Hours/PTT: Up to 20 Hours
      • Size: 3.4" x 2.6" x 1.5" (8.64cm x 6.60cm x 3.81cm)
      • Weight: 7.4 oz (0.21 kg) with Battery & Pouch
      • Headset Connector: Mini-DIN
      • Mic Input: Electret
      • Headset Output: 160 mW @ into 32 Ω/Capable of Driving 16-32 Ω
      • Controls: Volume On/Off Volume Up/Down Talk Intercom Talk ISO
      • Indicators: Power/Transmit/Low Battery LED & Voice Prompts
      • Carrying Pouch: Santoprene Rubber

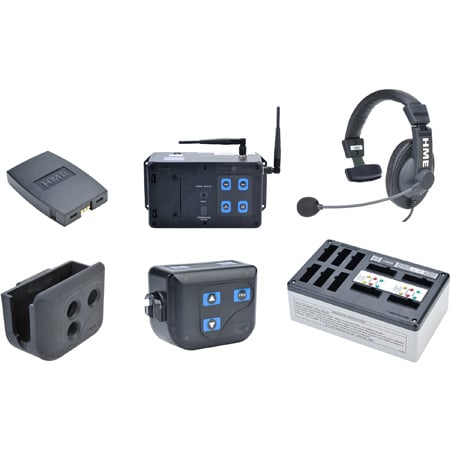

    • Item Includes:

      • 1 MB100 Mobile Base Station

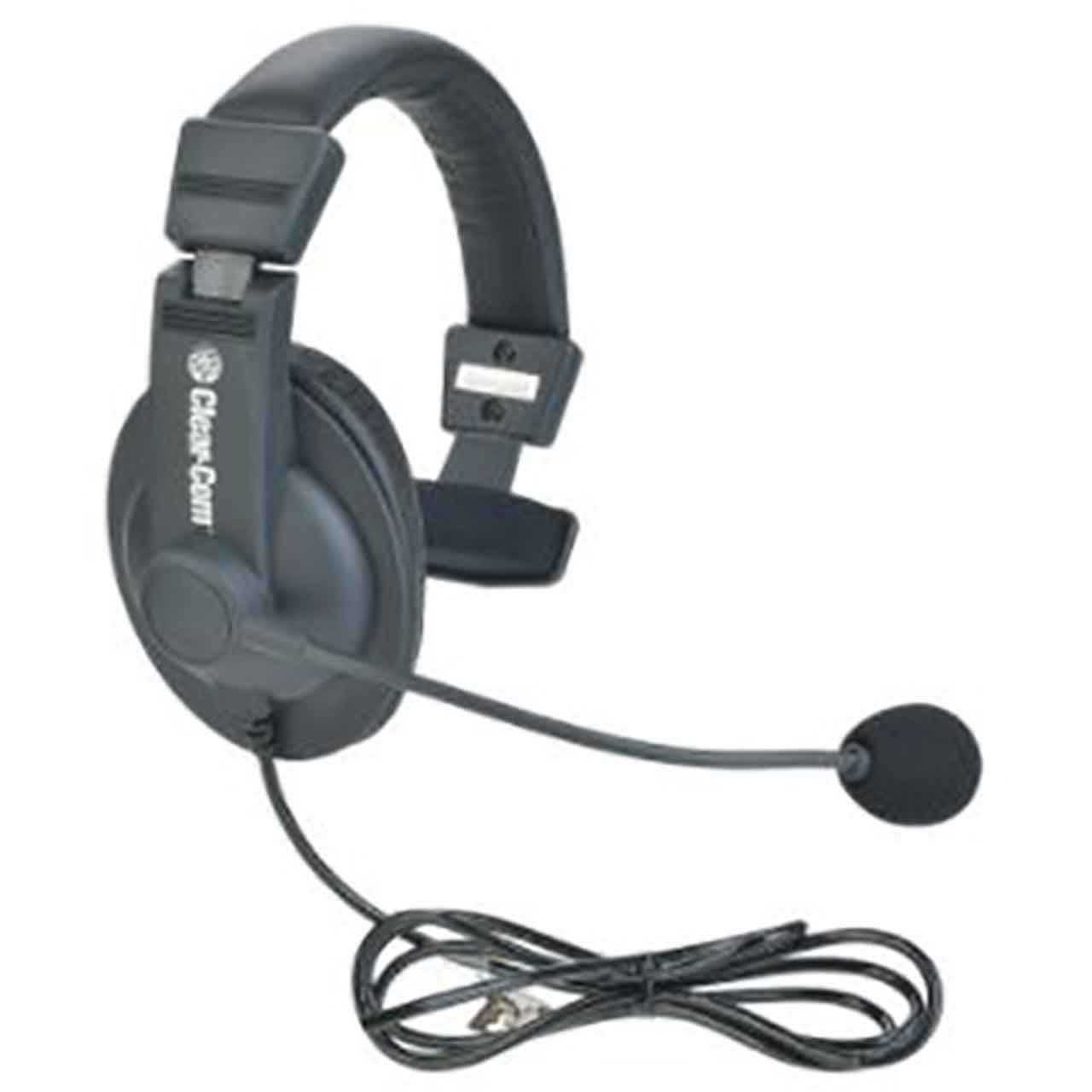

      • 4 CC-15-MD4 Single Muff Headset with Noise Canceling Mic
      • 4 BP200 Beltpack
      • 4 Beltpack Pouch

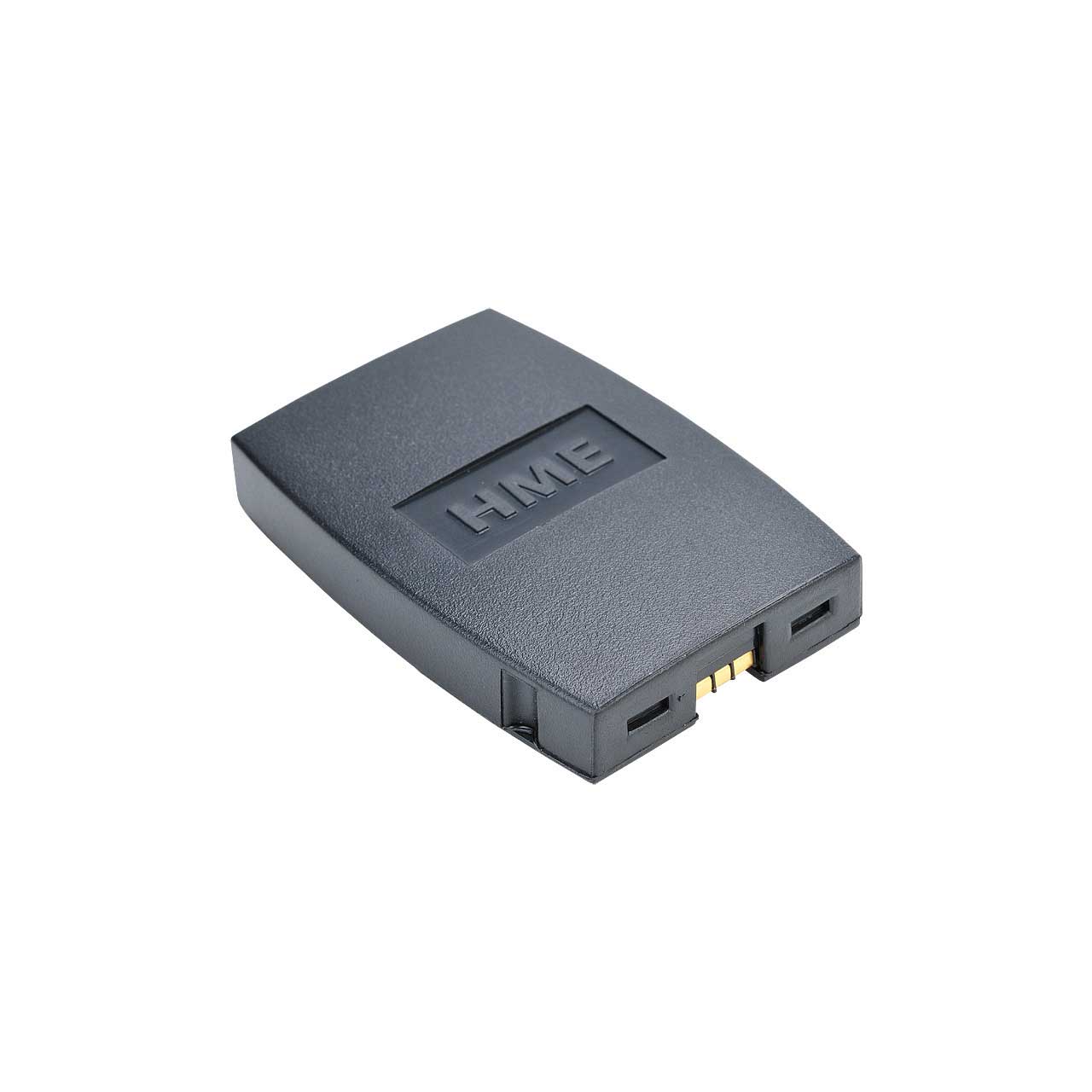

      • 8 BAT41 Battery Li-ion Rechargeable

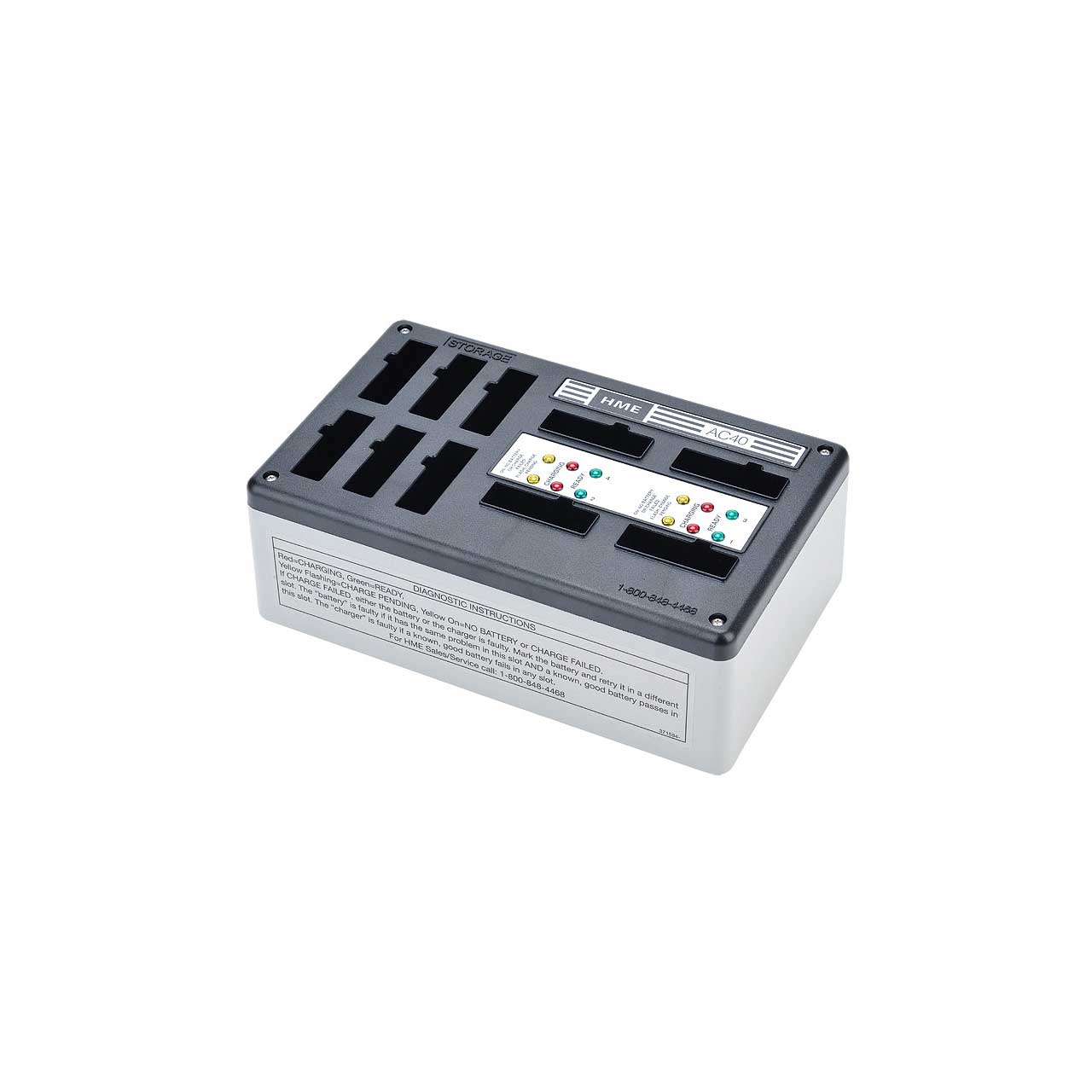

      • 1 AC40A Battery Charger
      • 2 12VDC 60W Power Supply (100/240VAC Universal)
      • 2 115VAC Power Cord
