    FSII-BASE-II - Overview

    The ClearCom FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks, all part of the FreeSpeak II Intercom System. FreeSpeak II is a high-performance wireless intercom solution operating in the 1.9 and 2.4GHz frequency bands designed for extensive communication in large-scale operations.

    The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided. A single base station can operate using a mix of both 1.9GHz and 2.4GHz FreeSpeak II active antenna transceivers to support up to 25 1.9 GHz and/or 2.4GHz beltpacks and 10 active transceiver antennas via two transceiver splitters (FSII-SPL) (Items sold separately).

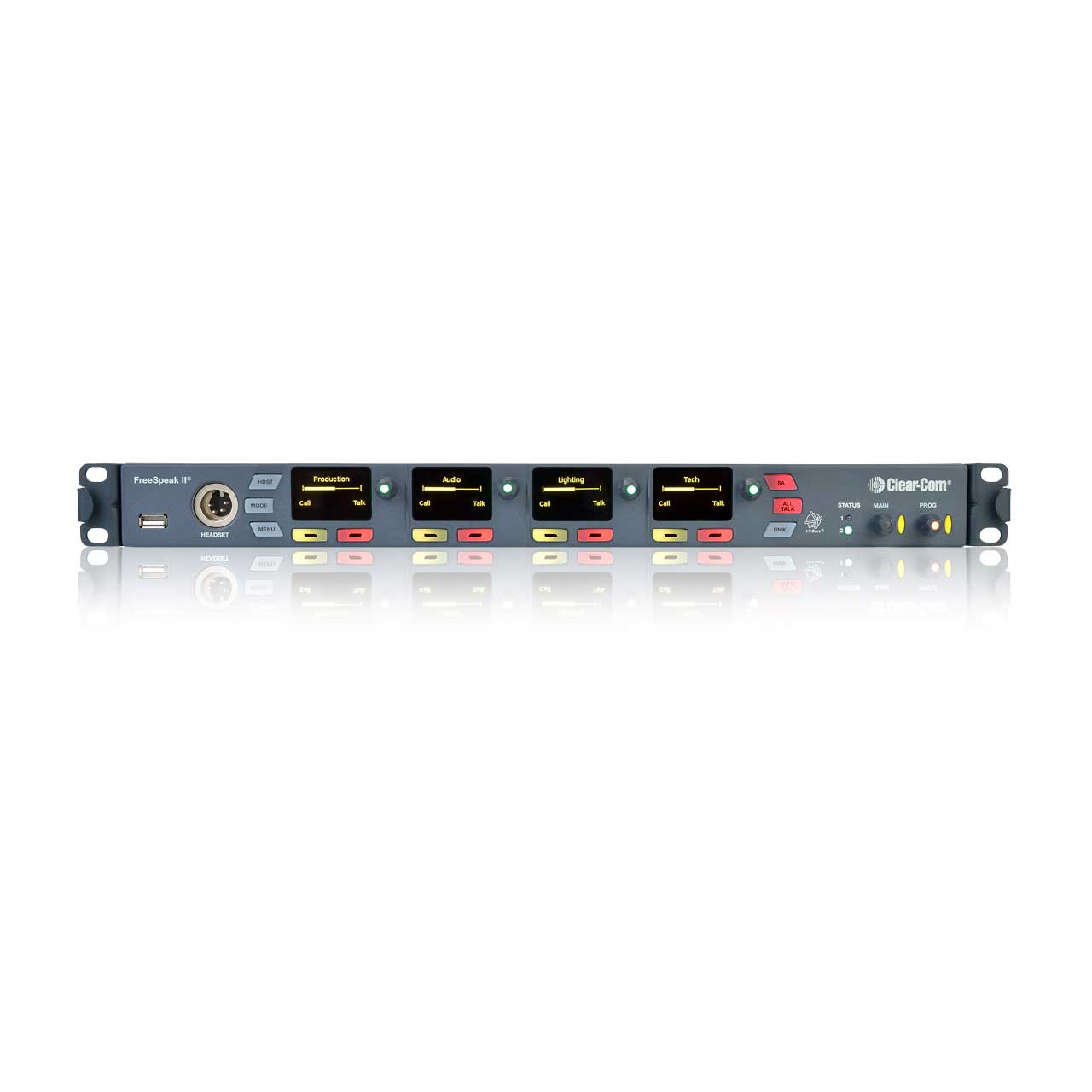

    The user interface supports system configuration and system monitors along with a main station mode with Talk and Call soft keys. A dedicated headset jack is included for communications and monitoring from the front panel. Access to channels and other functions are assignable through the menu on the base station or through the Core Configuration Manager (CCM) browser-based tool.

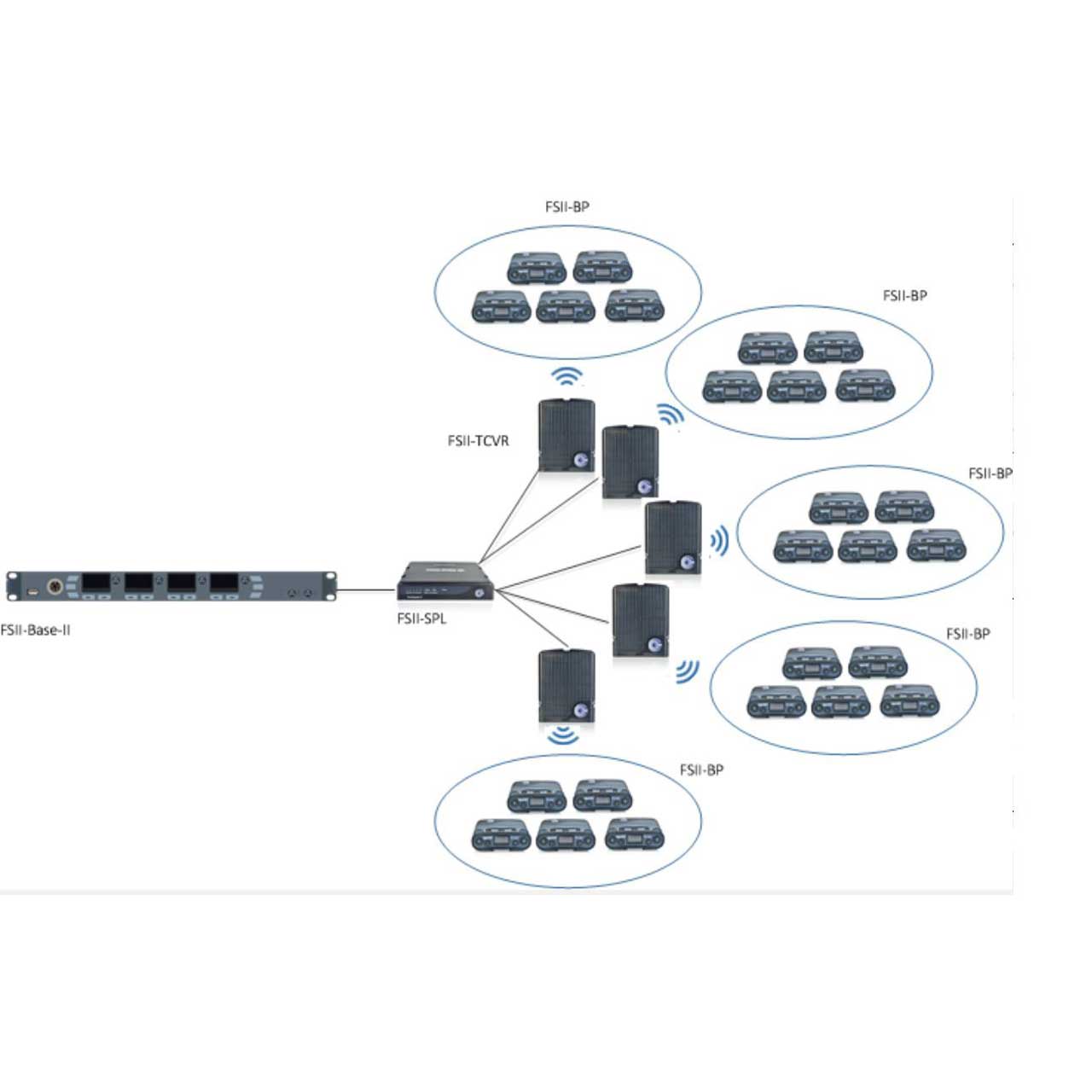

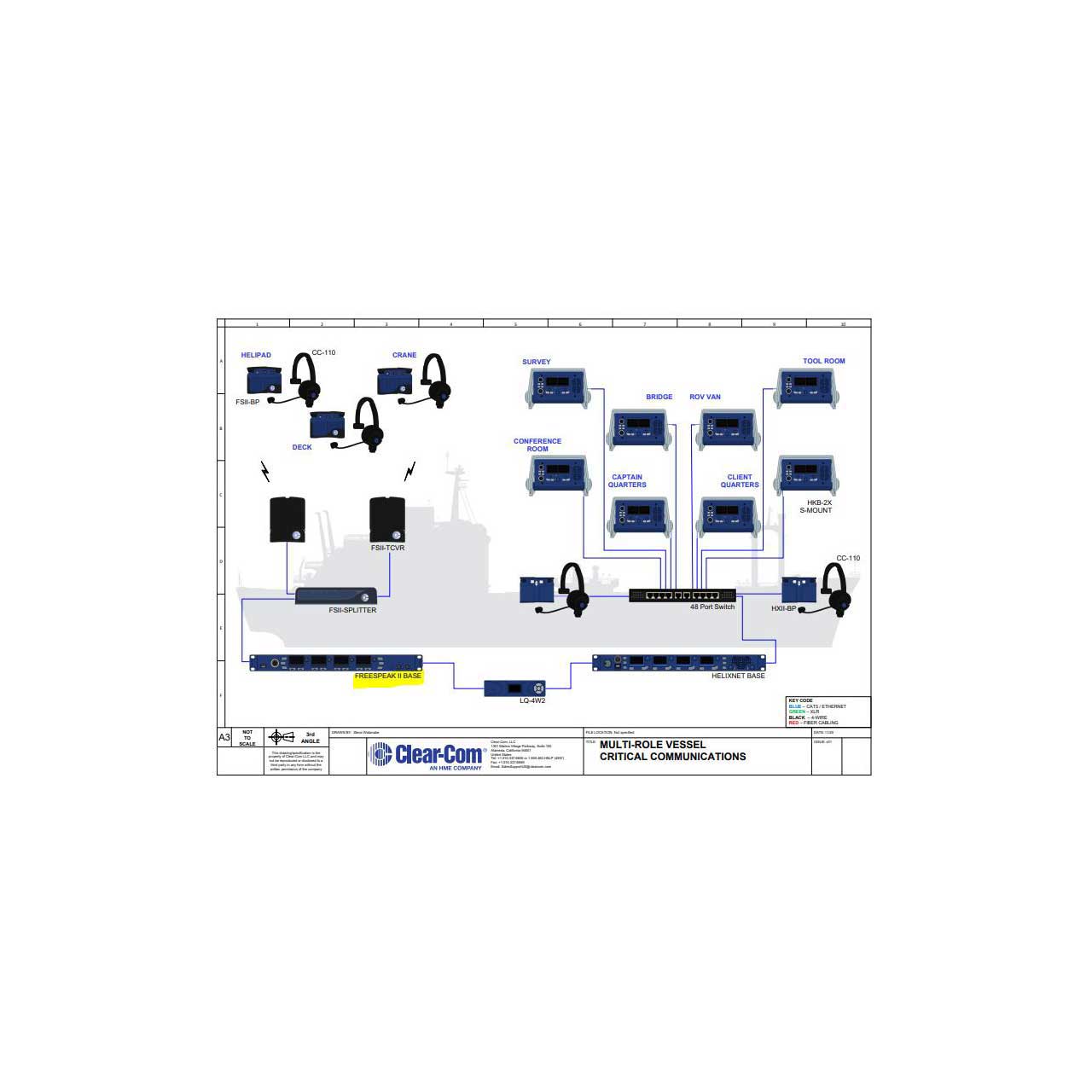

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • FreeSpeak II Transceiver Splitter
      • Provides 5 FSII transceiver feeds on one port on FSII base station or E-QUE-HX card
      • SFP fiber slot for fiber link to FSII base station or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames
      • Supports both multi-mode and single-mode fiber
      • Configure settings using DIP switches
      • IP-63 water resistance for outdoor use
      • LED status indicator on front and back
      • Mic stand or wall mount orientation (metric and imperial threads)

    • Specifications:

      • Technical Specifications
      • Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz
      • No. of Beltpacks per Base Station: 25
      • No. of Transceiver/ Antennas Supported by Base: 10
      • No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
      • PC Programming Port: 2 LAN RJ45
      • Relay Port: DB15, supports one relay assigned to the SA out

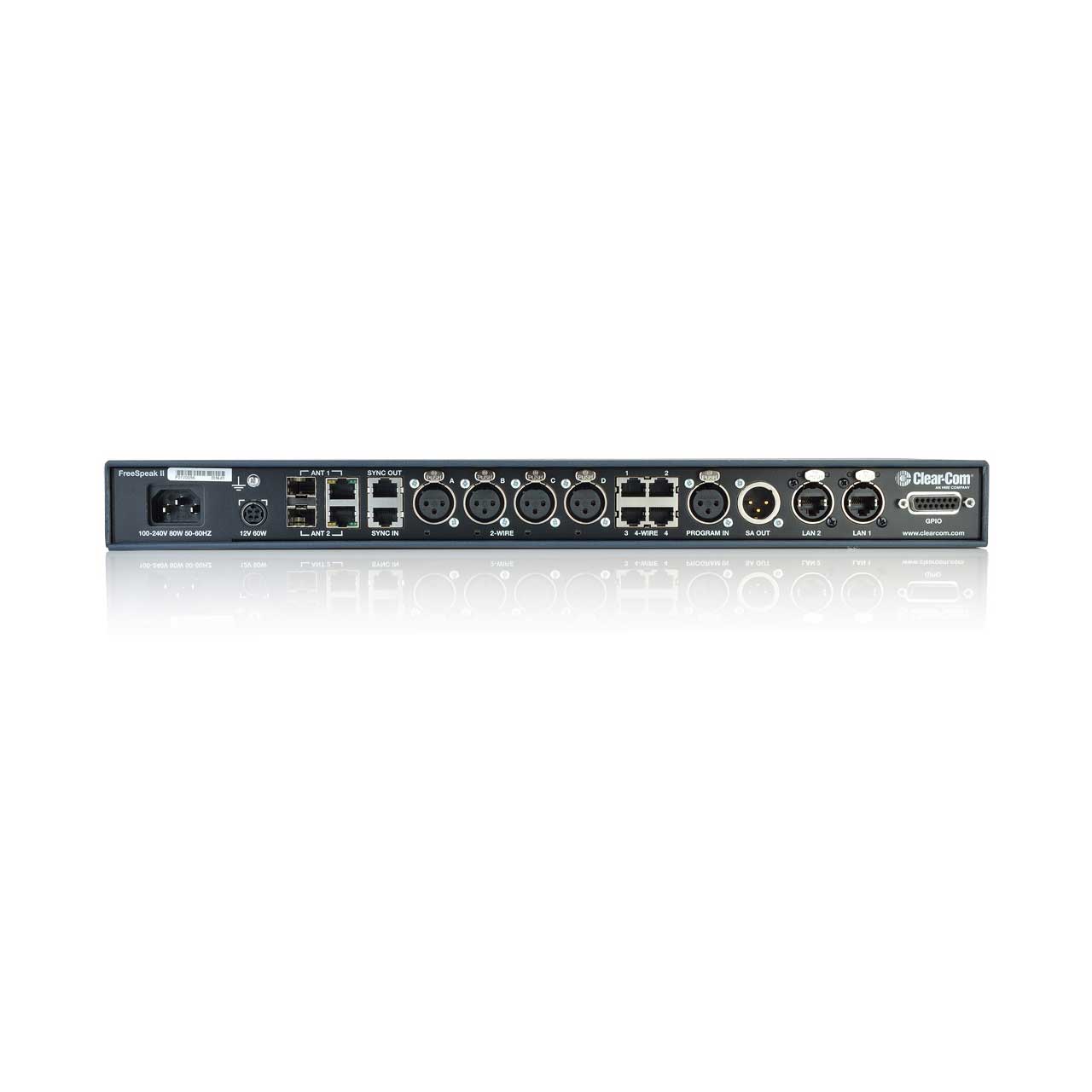

      • Partyline A ,B,C,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
      • Partyline Power On/Off: A/B, C/D paired
      • Partyline Output Voltage: 26 - 28VDC, 800mA per pair (A/B or C/D)
      • 4-Wire/Matrix Connection: 4 RJ-45
      • Program Input: XLR-3F, transformer isolated, line-level input
      • Stage Announce Output: XLR-3M, transformer isolated, line-level output
      • Front Panel Headset: 4-pin male and 5-pin female options
      • Front Panel Displays: 4 OLED's with encoders and assignable soft keys
      • Front Panel Indicators: Antenna Status, Beltpack Status
      • External Power Supply Connection: 12VDC
      • Base Station Programming/Editing: Push-to-enter rotary encoder

        Power
      • Input: 100-240V AC, 1.4A max
      • Output: 12V DC, 60W, 5A
      • Current Draw: 12V, 4A max, 48W max

        Dimensions
      • 1.75 x 19.0 x 10.2 in (HxWxD)
      • (44 x 483 x 259 mm)

        Weight
      • 5.57 lbs (2.5 kg)

    • GTIN:

      0609385892127
