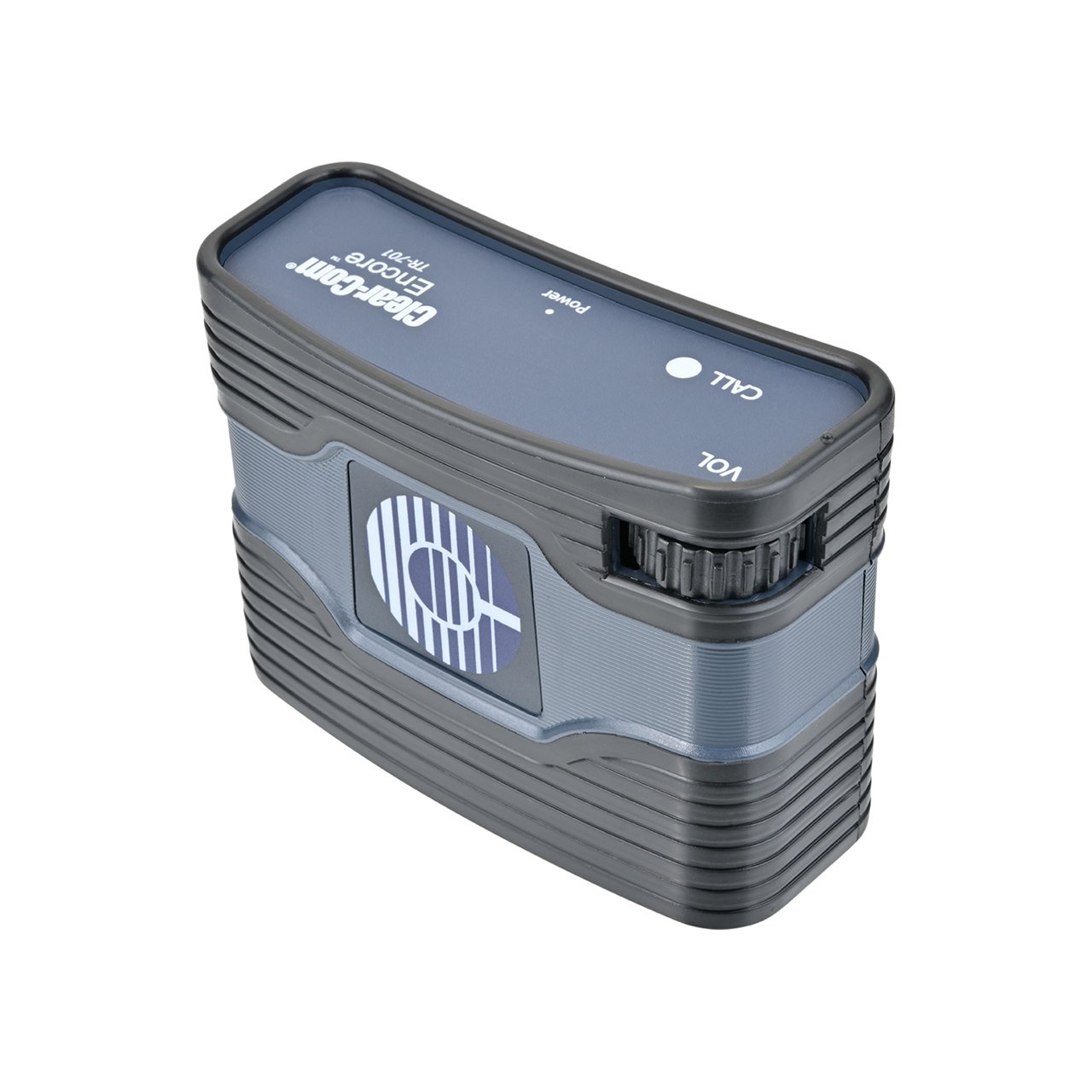

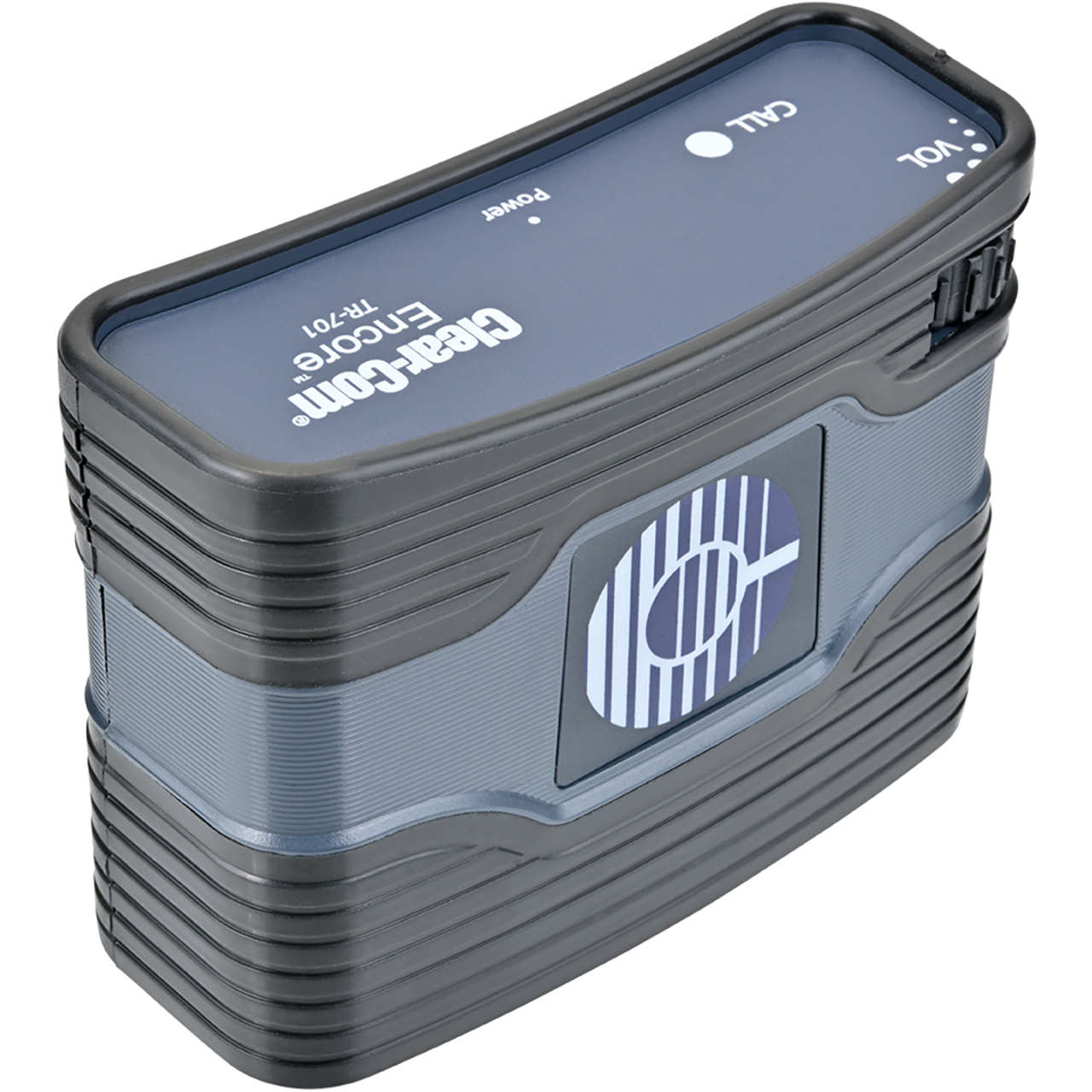

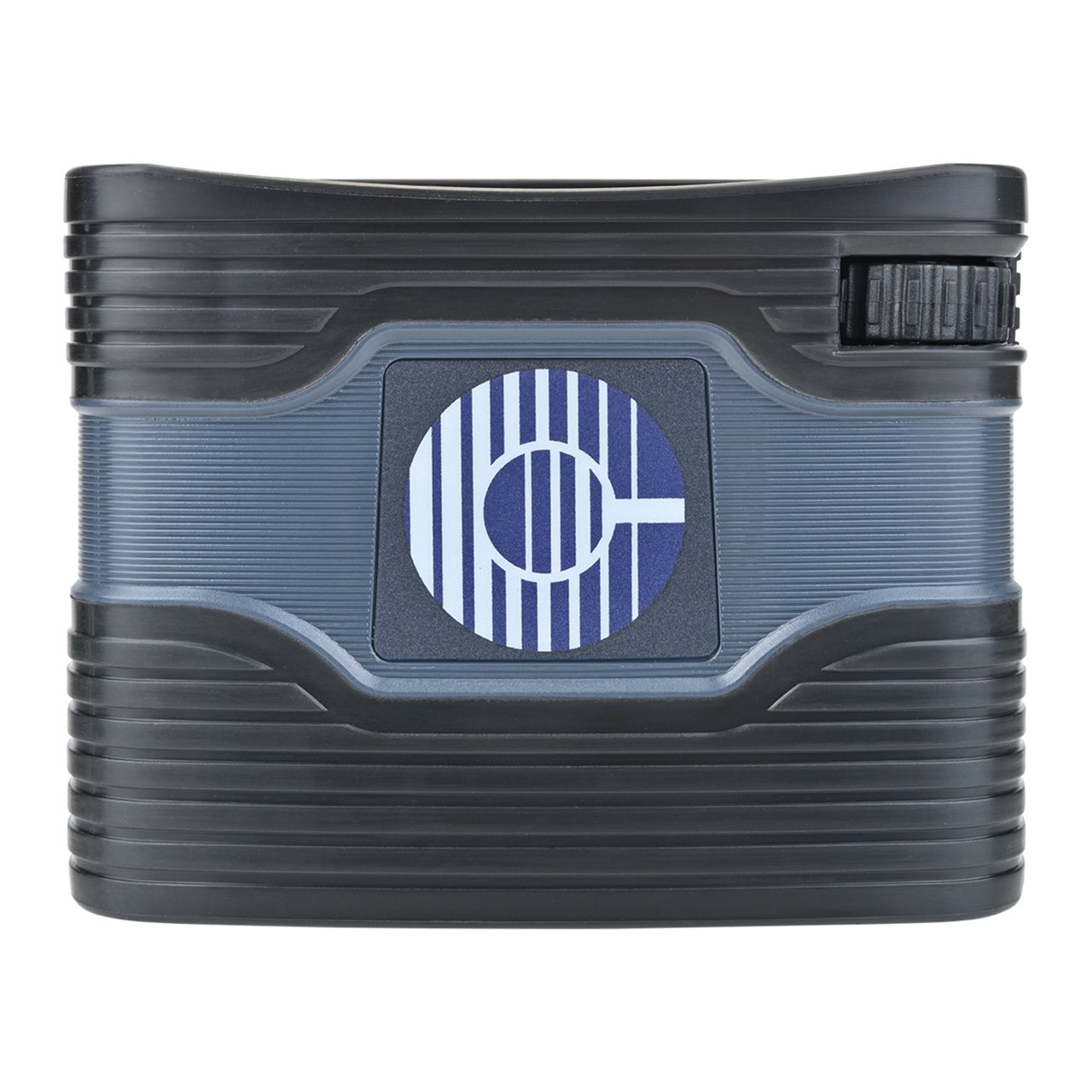

Clear-Com TR-701 Encore 1-Channel IFB Beltpack with BP-Mount - Listen Only

TR-701 - Overview

• Features:

  • 2-wire IFB talent beltpack with BP-Mount
  • Visual LED indication on top of keypad, Power (green), and Call Signal (amber)
  • Listen only with call light
  • Tactile buttons for Call and Talk
  • Recessed rotary control for Volume with end stops for 270° rotation range

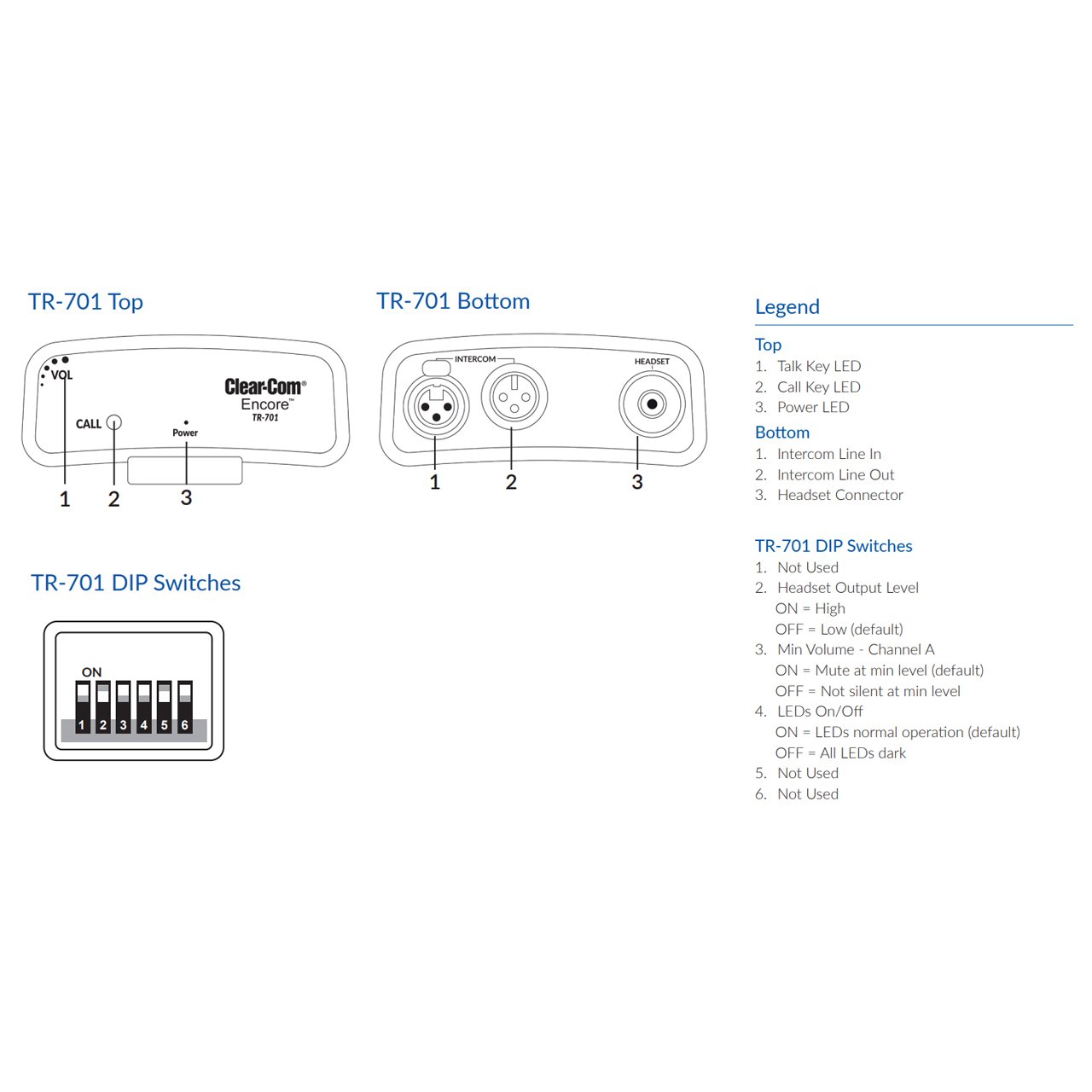

  • Concealed, programmable DIP Switches, LEDs Off, and HP Level Off
  • Fully compatible with current and previous models of Clear-Com analog partyline systems
  • Low operating current for more beltpack daisy-chaining
  • Rugged and strong construction
  • "Clear-Com Sound" for intelligible audio


• Specifications:

  Headphone
  • Type: Dynamic or Electret
  • Impedance: 30Ω or greater
  • Maximum Output Level: +20 dBm
  • Current Required: 12mA Max

    Headphone Pre-Amplifier
  • Frequency Response - Line to Headphone: 150 - 20kHz ± 3dB
  • Headphone input from line - Audio Level (-9dBm Electret input): 3.5dBm
  • Headphone input from line - Distortion: <0.5%
  • Headphone input from line - Signal to Noise: >50dB

    Keypad Indicators
  • Power: Green LED
  • Call: Orange LED

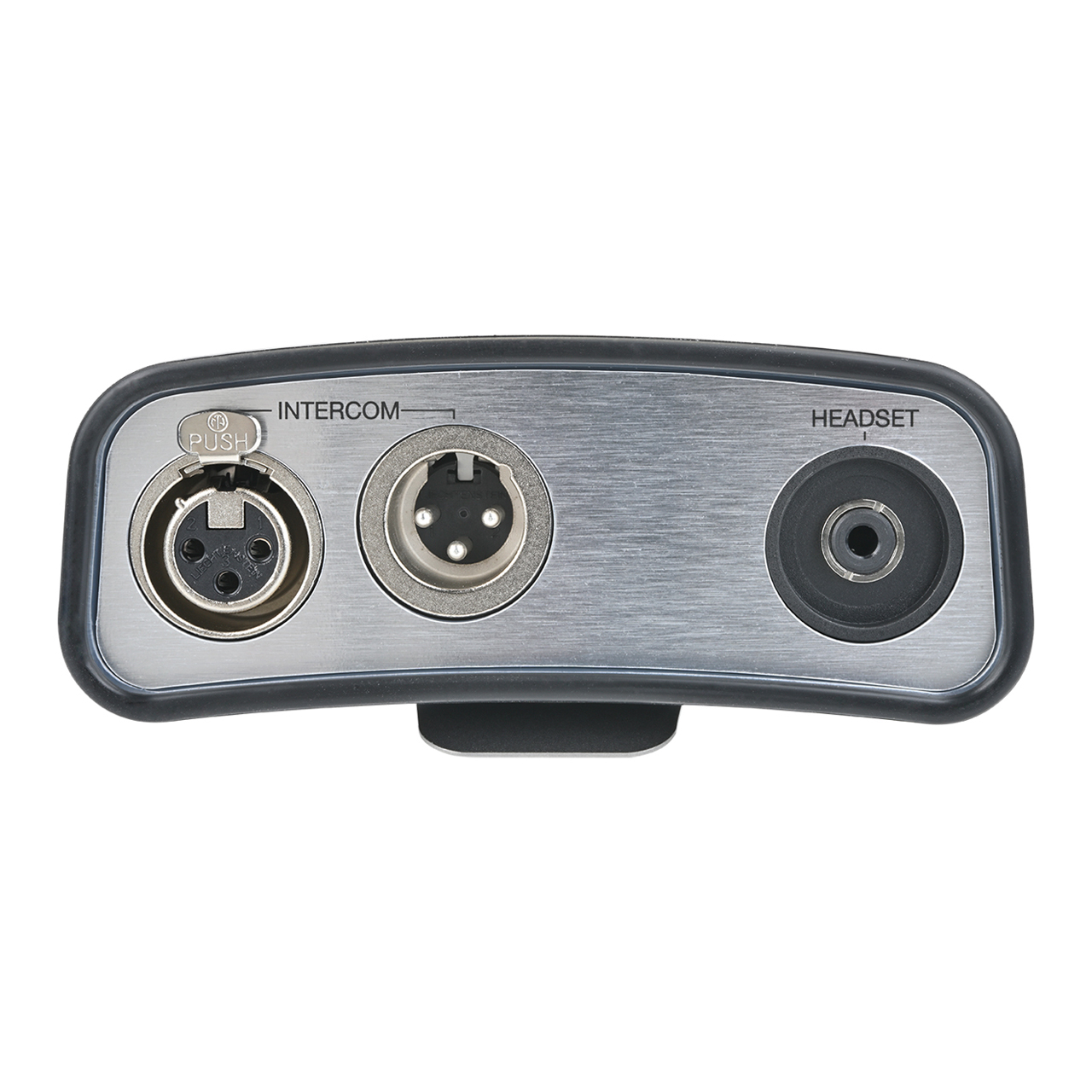

    Connectors
  • Stereo Mini Jack

    Physical
  • IP54 water and dust resistance
  • Operating: 14°-125°F (-10°-50°C)
  • Storage: -22°-150°F (-30°-70°C)
  • Humidity: Between 20% and 90%, Non-Condensing
  • Dimensions: 1.7 x 3.4 x 4.5 in (WxHxD)(43 x 86 x 114mm)
  • Weight: 0.66lb (299g)


• Item Includes:

  • 1x Clear-Com TR-701 Encore 1-Channel IFB Beltpack with B-Mount - Listen Only
