Cleerline SSF-1RUME-12AC 12 Slot Fiber Chassis with One AC Power Supply and Fans for SSF Series Converters


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLT-SSF1RUME12AC

SSF-1RUME-12AC - Overview

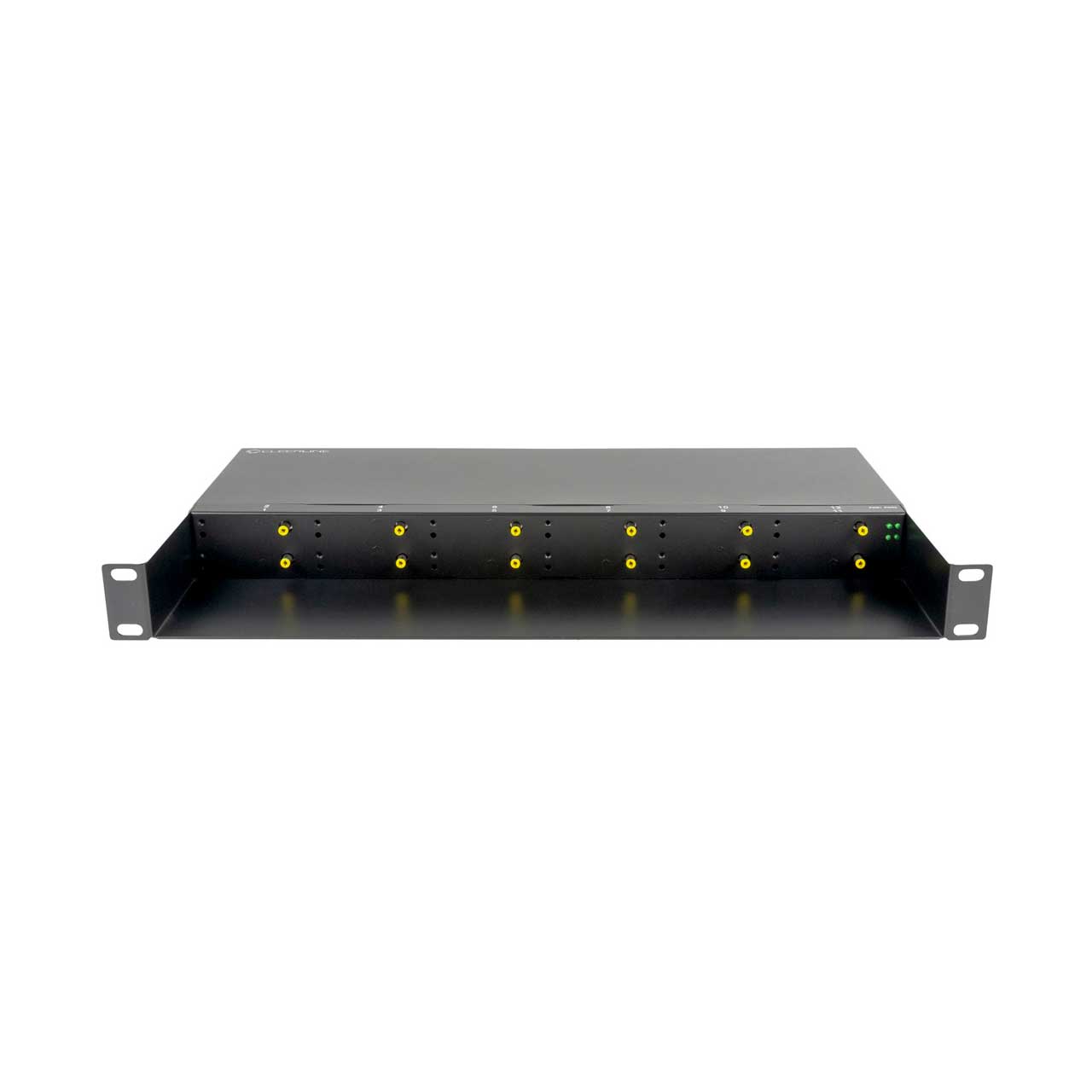

The Cleerline SSF-1RUME-12AC accommodates 12 media converters within only 1RU of space. This carefully designed fiber media converter chassis features redundant and hot-swappable power supplies. The unit is highly reliable, with MTBF exceeding 65,000 hours.

This unit fits 19" racks. It features hot-swappable power supplies.

The SSF-1RUME-12AC accepts SSF-SFP-RJ45-1G and SSF-SFP-SFP-CON media converters (sold separately).

  • Features:

    • Holds SSF-SFP-RJ45-1G or SSF-SFP-SFP-CON media converters (NOT INCLUDED)

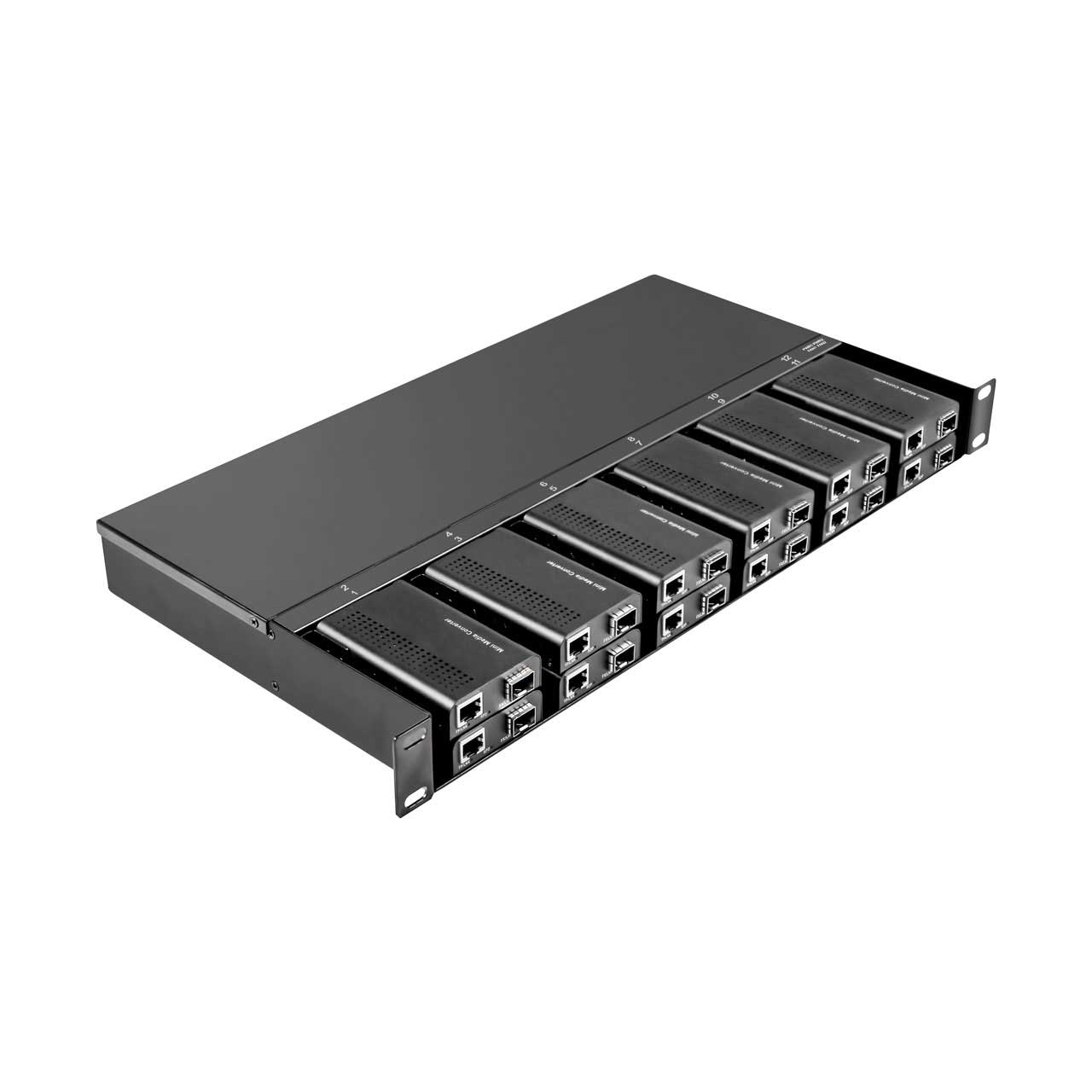

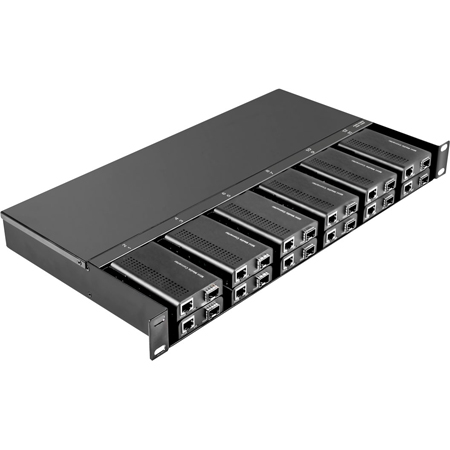

    • 12 slots available for media converters on two rows (6 per row)

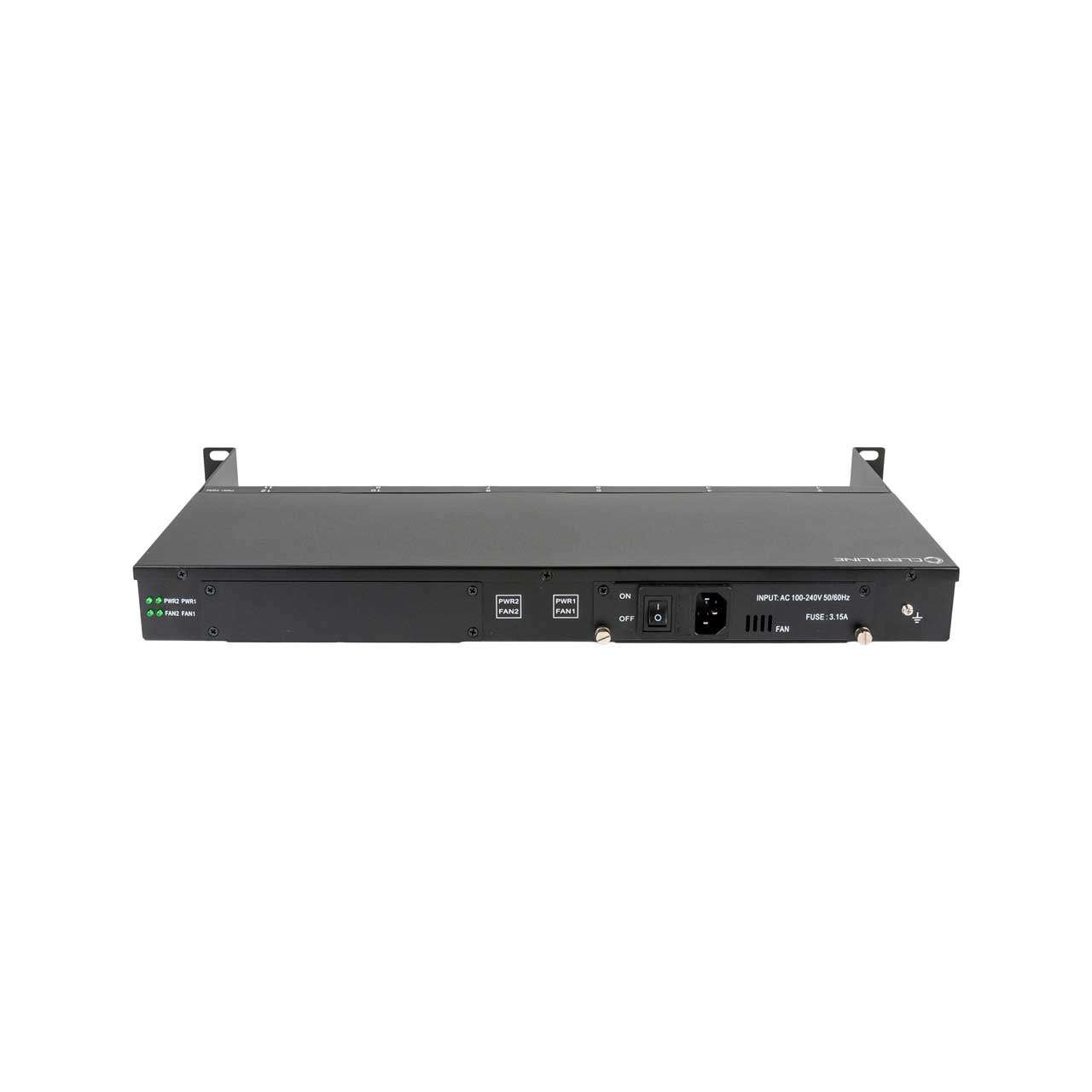

    • Redundant power supply bays
    • Hot-swappable power supplies. Any combination of AC 100-240V and DC 36~72V power input is allowed for the two power bays
    • Dual LED power and fan indicators for front and back of the chassis
    • 19" rack mountable
    • Can accept 10G, Gigabit, or Fast Ethernet media converters
    • Each converter can be secured with a set of metal brackets
  • Specifications:

    • Indications: LED (Power, Fan)
    • Power Input:
      DC 36 ~ 72V
      AC 100 ~ 240V, 50-60Hz
    • Power Plug: US 2 blade, type A connector
    • Power Consumption: < 40W
    • Dimensions: 19.09 x 10.6 x 1.75" (485 x 270 x 44.5mm) (SFP transceivers not included)
    • Weight With dual PS installed: 7.05Lbs (3.2kg)
    • Temperature:
      Operating: 32° to 122°F (0° to 50°C)
      Storage: 14° to 158°F (-10° to 70°C)
    • Humidity: 10 to 90% non-condensing
    • Certification: CE, FC
    • MTBF: 65,000 hrs

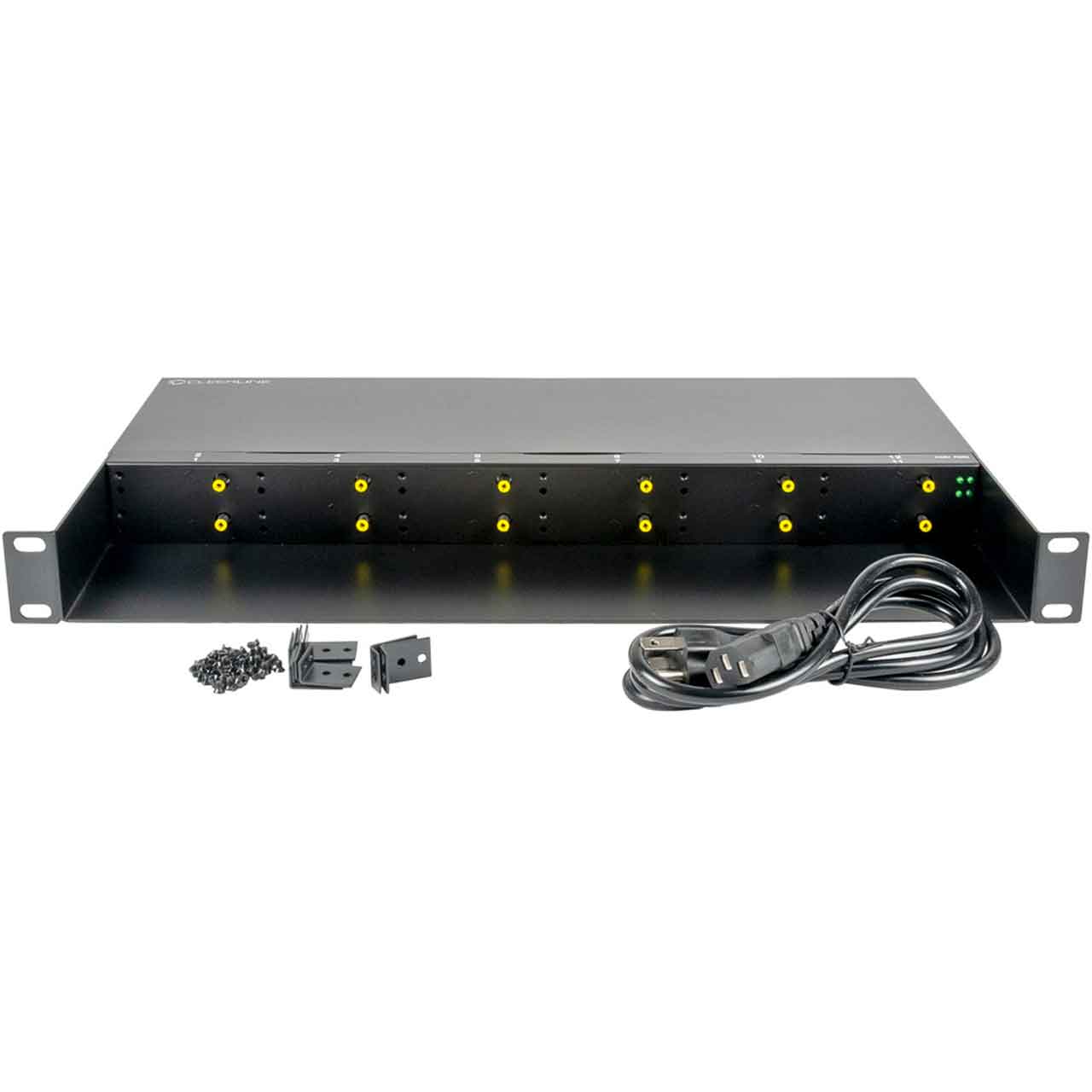

  • Item Includes:

    • 1x SSF-1RUME-12AC unit
    • 1x Media converter mounting brackets and screws
    • 1x AC power cord for AC-type power supplies
    • 1x User manual
