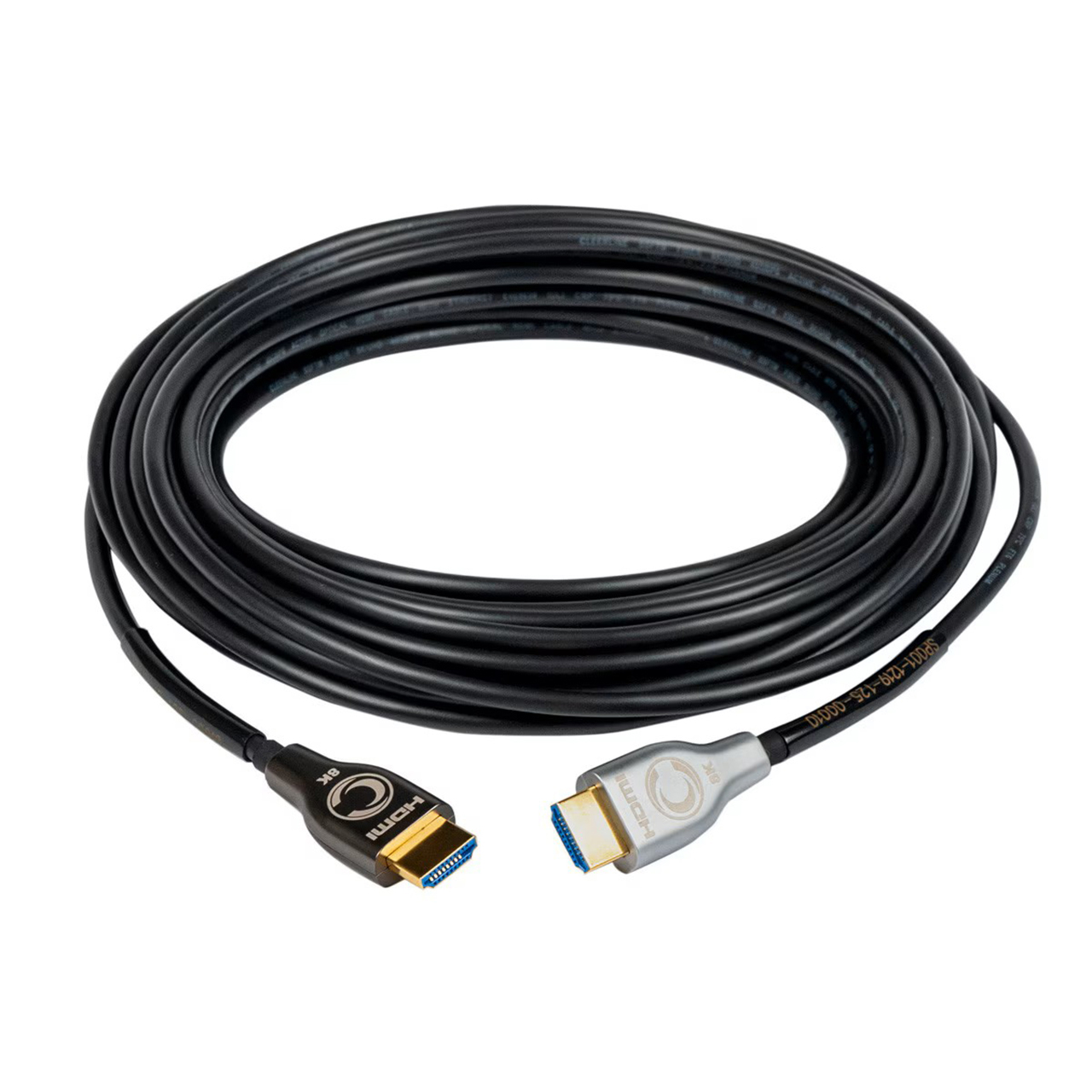

Cleerline SSF 8K Ultra High Definition HDMI Active Optical Cable - 48Gbps - Plenum Rated - 24.61 Foot

ITEM #: CLT-SSF48HDAOC24 MFG #:

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$341.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


- Overview

The Cleerline SSF48HDAOC24 8K Ultra High Definition HDMI Active Optical Cable (AOC) provide the ultimate signal transfer at 48Gbps. These cables bridge the gap between shorter distance HDMI installations and longer-distance fiber installations. In longer-distance applications, they also reduce needed materials by eliminating the immediate need for HDMI over fiber extenders. Offering incredible 8K UHD signal transfer, these cables provide everything needed for the highest quality transmissions, including up to 120FPS/Hz, HDR, ARC, and more.

All Cleerline SSF™ 8K UHD HDMI Active Optical Cables are constructed using 4 strands of SSF™ fiber optic glass alongside copper wire. The internal fibers feature SSF™ Glass, Glass, Polymer construction, creating a fiber that is much more durable and flexible than traditional fiber optic cable. Due to the fiber optic component of these cables, they are more resistant to EMI and have lower latency than passive copper HDMI cables. Additionally, the internal SSF™ fibers allow future retermination of SSF™ HDMI AOC with optical connectors. Simply remove the HDMI connector head, re-terminate, and apply any needed fiber balun. No replacement cable required! SSF™ HDMI AOC are constructed with a plenum rated jacket, allowing in-wall installation. The connector ends of the cable are marked to identify source and display ends as the cable is directional.

  • Features:

    • 4K, 5K, 8K, and 10K Resolution
    • 48Gbps, max 120fps/HZ
    • SSF™ Fiber Optic Technology
    • Increased durability and flexibility
    • 10 & 12 bit, HDCP 2.2 High Dynamic Range
    • Plenum/CL2/3 Rating for in-wall installation
    • Connector heads marked Source or Display for easy identification.
    • Cable is directional and SSFT allows cable to be re-terminated if necessary
    • No external power required for most applications - HDMI to USB cord included in case of embedded power <5V
    • Supports CEC

  • Specifications:

    • Jacket Type: Plenum Rated
    • Jacket Color: Black
    • Rating: CMP/FT6
    • Min. Conduit Diameter: >0.79" (fits most 1.0" conduit)
    • Cable Diameter: 0.19"/Connector End Width 0.79"
    • Connector Type: Male HDMI A-to-A
    • Connector Plating: Gold Plated
    • Fibers: 4
    • Type: SSF™ Multimode
    • Coating: 250µm "Soft Peel" S-Type Coating

  • Warranty:

    • 2 Year Limited Warranty
