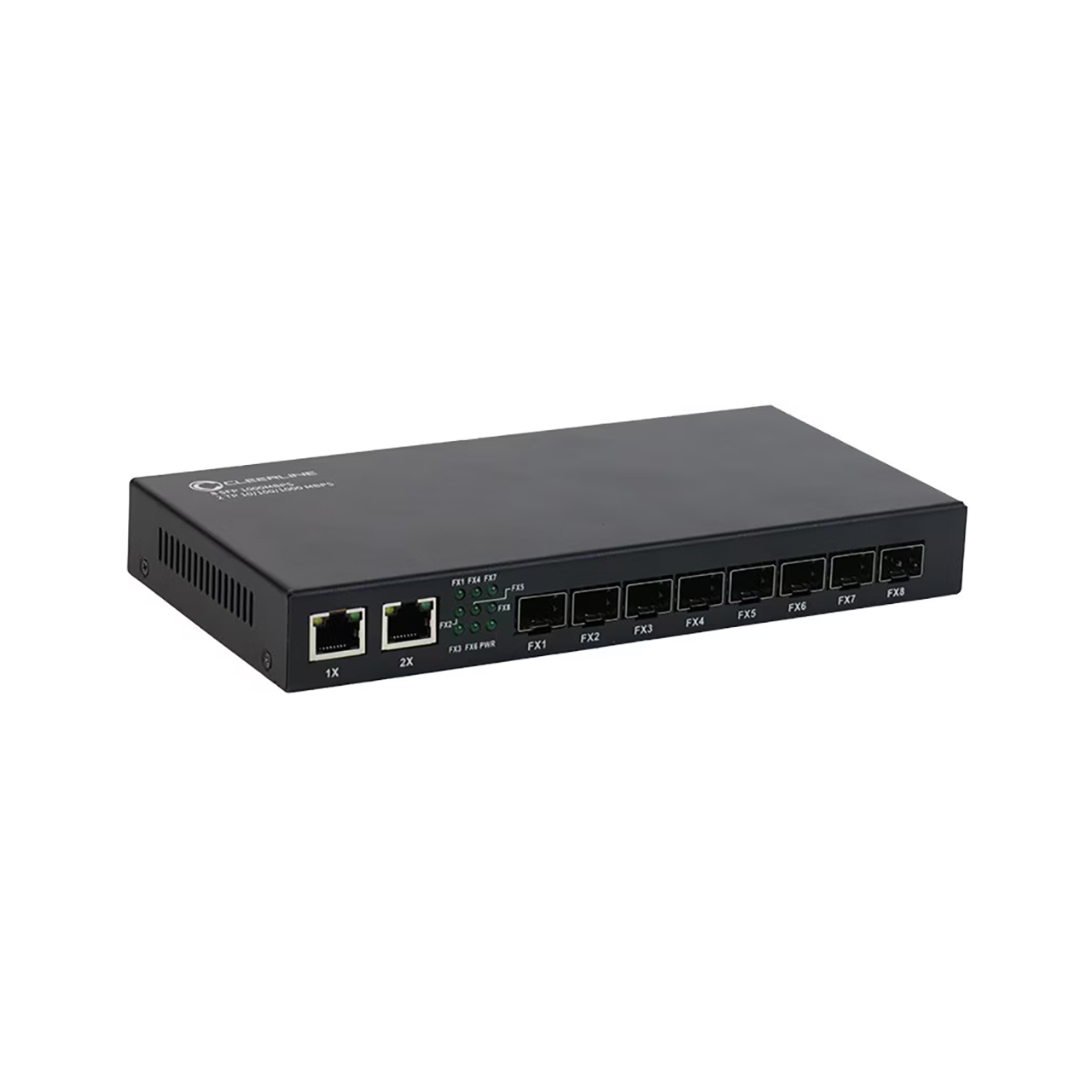

Cleerline SSF-8SFPx2RJ45-1G Uplink Gigabit Non-Managed Ethernet Switch - Eight SFPs to Two RJ45 - 328ft Distance

SSF-8SFPX2RJ45-1G - Overview

Ideal for secure data transmission and for connecting with devices like computers, other switches, hubs, servers, etc!

• Features:

  • 8x SFP Slot 1000Base-X, 2x RJ45 Gigabit 10/100/1000Base-Tx
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X
  • Power supply included; Input AC100V - 250V/Output DC12V - 15V

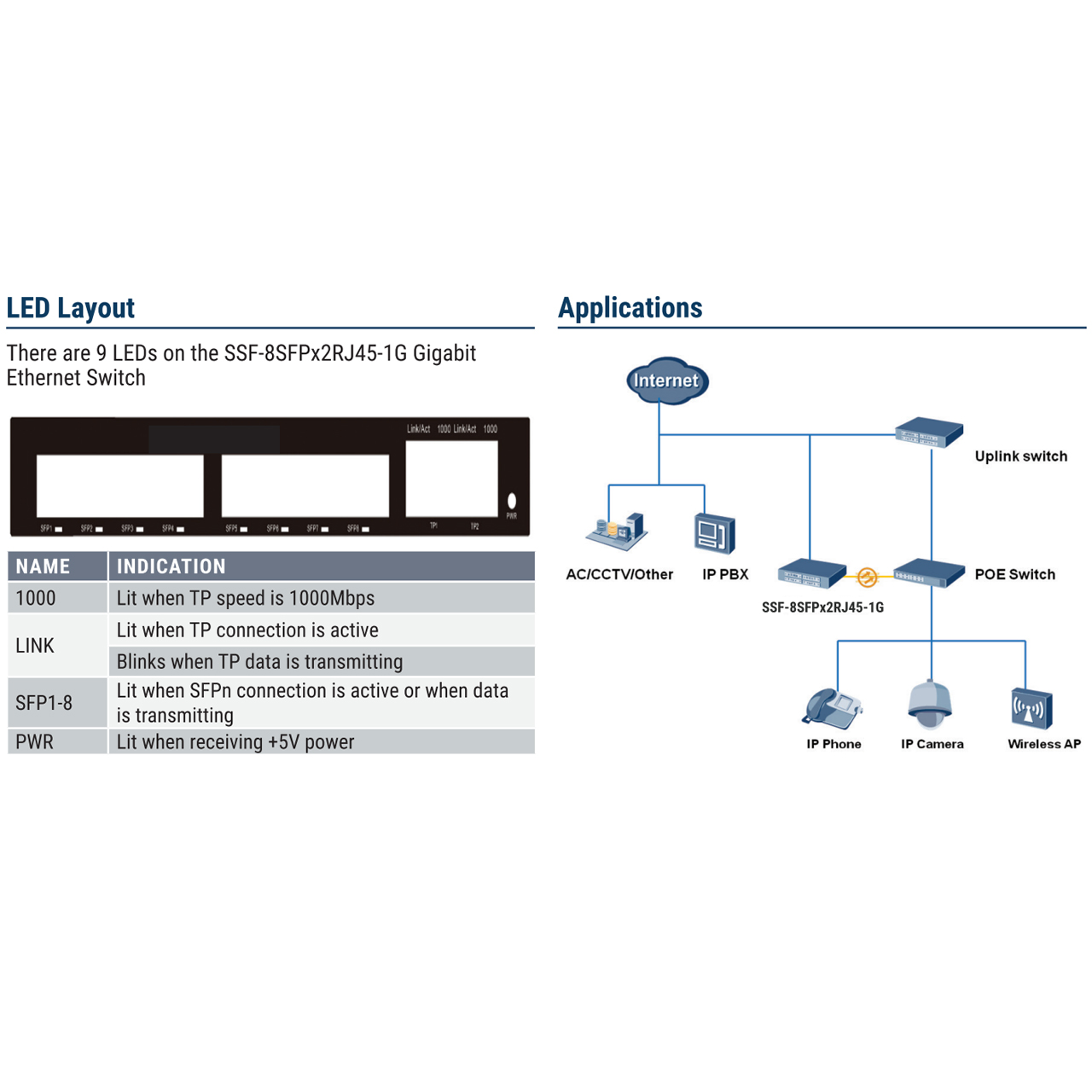

  • LED indicators for monitoring power/link/activity
  • Supports 10/100/1000Mbps-Full/Half-duplex
  • Excellent heat dispersion without cooling fan
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City


• Specifications:

  • TP Ports (RJ45): 2x 10/100/1000Mbps with Auto Uplink
  • SFP Slots: 8x 100/1000mbps
  • Bandwidth: 20Gpbs Full duplex
  • MAC Address Table: 4K
  • Packet Forward Rate: 488000pps/port
  • Network Protocols:
    - IEEE 802.3 10BASE-T
    - IEEE 802.3i 100BASE-T
    - IEEE 802.3u 100BASE-TX/FX
    - IEEE 802.3AB 1000BASE-T
    - IEEE 802.3z 1000BASE-X
    - IEEE 802.3x
  • Fiber Media:
    - Multimode: 550m - 2km
    - Singlemode: 20/40/60/80/100/120km
  • Safety: Present
  • Power Input: AC100V - 250V
  • Reverse Polarity Protection: Yes
  • Power Input: AC 100V - 250V
  • Reverse Polarity Protection: Yes
  • Operating Temp: 14°F - 131°F (-10°C - 55°C)
  • Operating Humidity: 90% maximum relative humidity, non-condensing
  • Storage Temp: -40°F - 158°F (-40°C - 70°C)
  • Dimensions (LxWxH): 7.95" x 3.93" x 1.77" (183mm x 100mm x 45mm)
  • Weight: 1.77lbs (0.477kg)


• Item Includes:

  • 1x Cleerline SSF-8SFPx2RJ45-1G Uplink Gigabit Non-Managed Ethernet Switch
  • 1x Power supply
