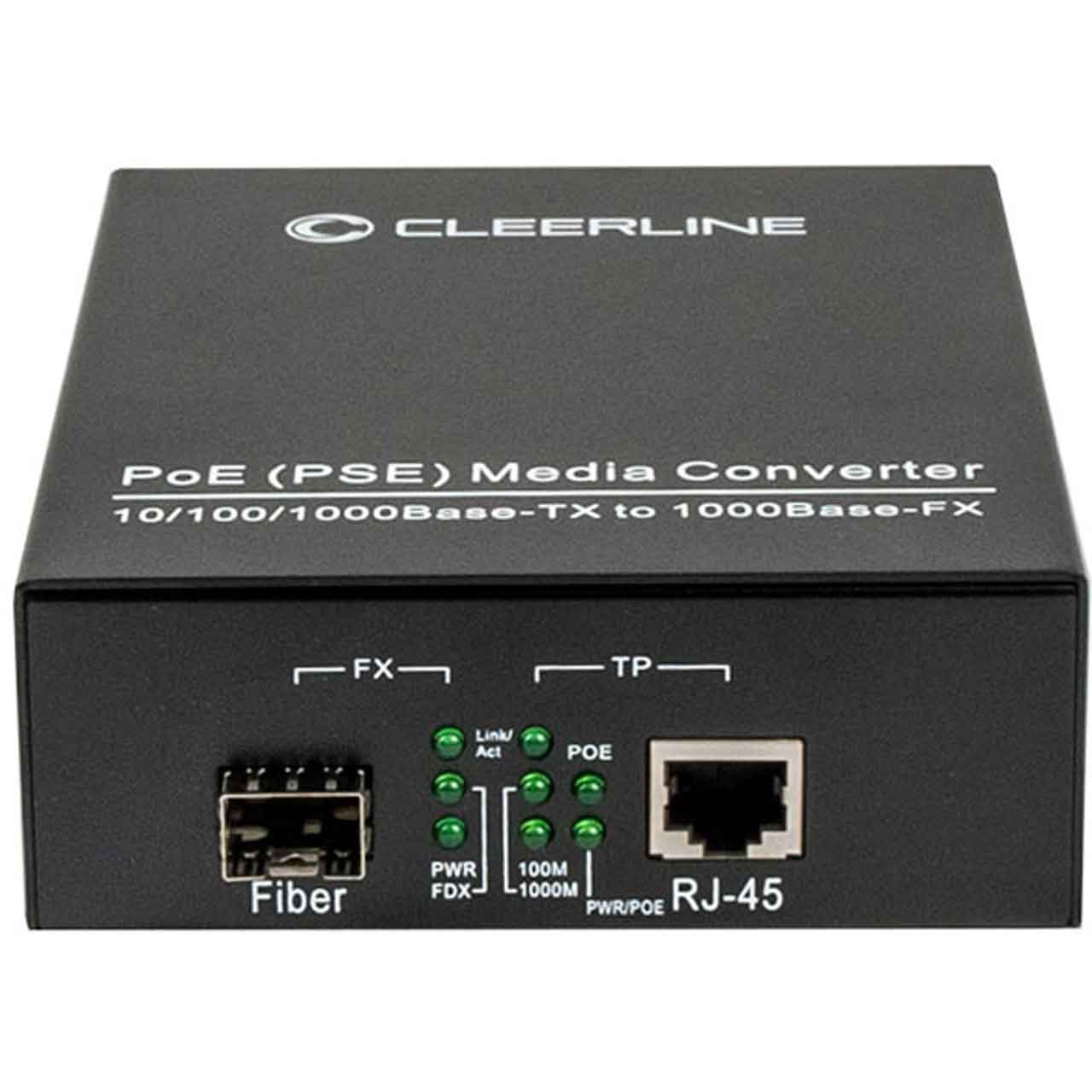

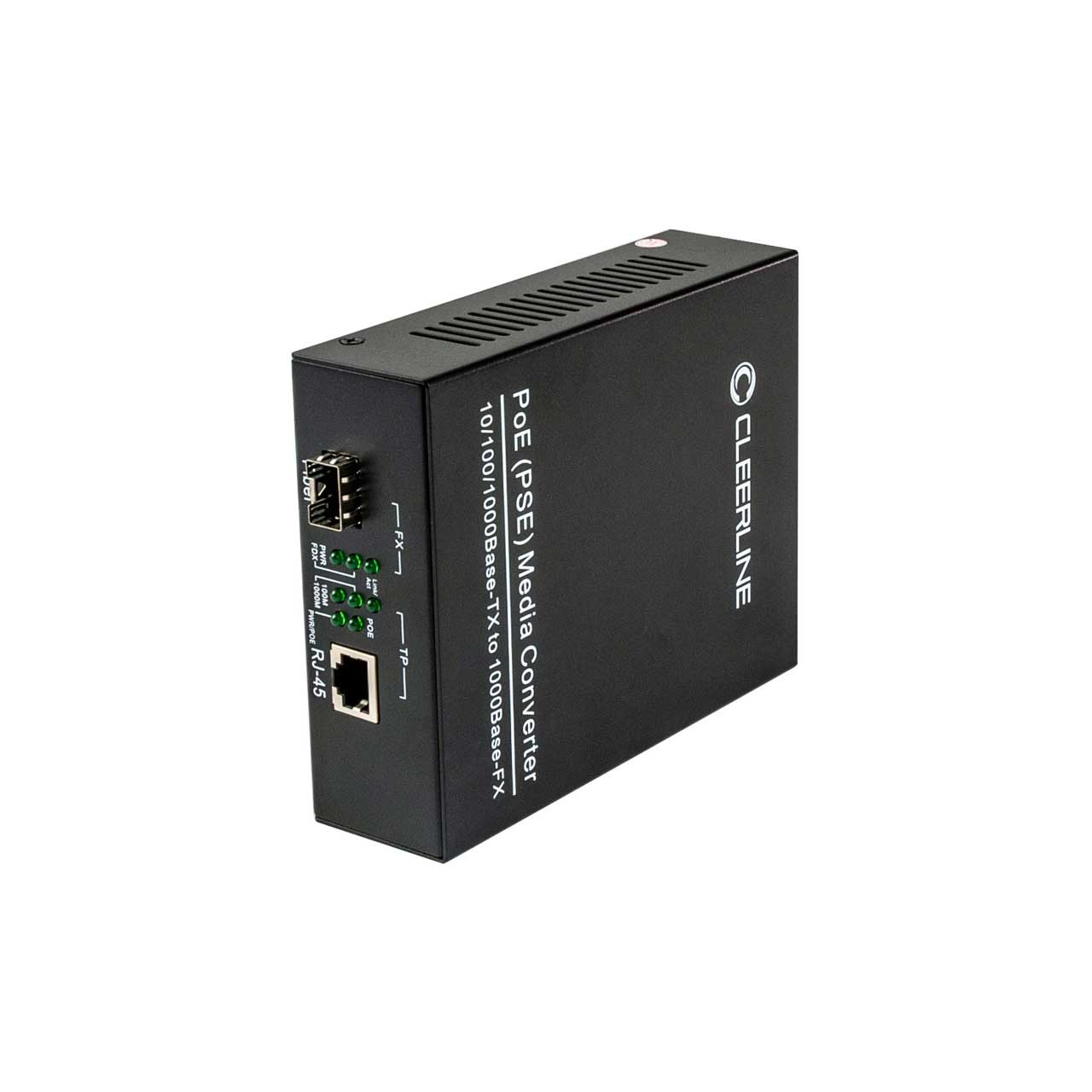

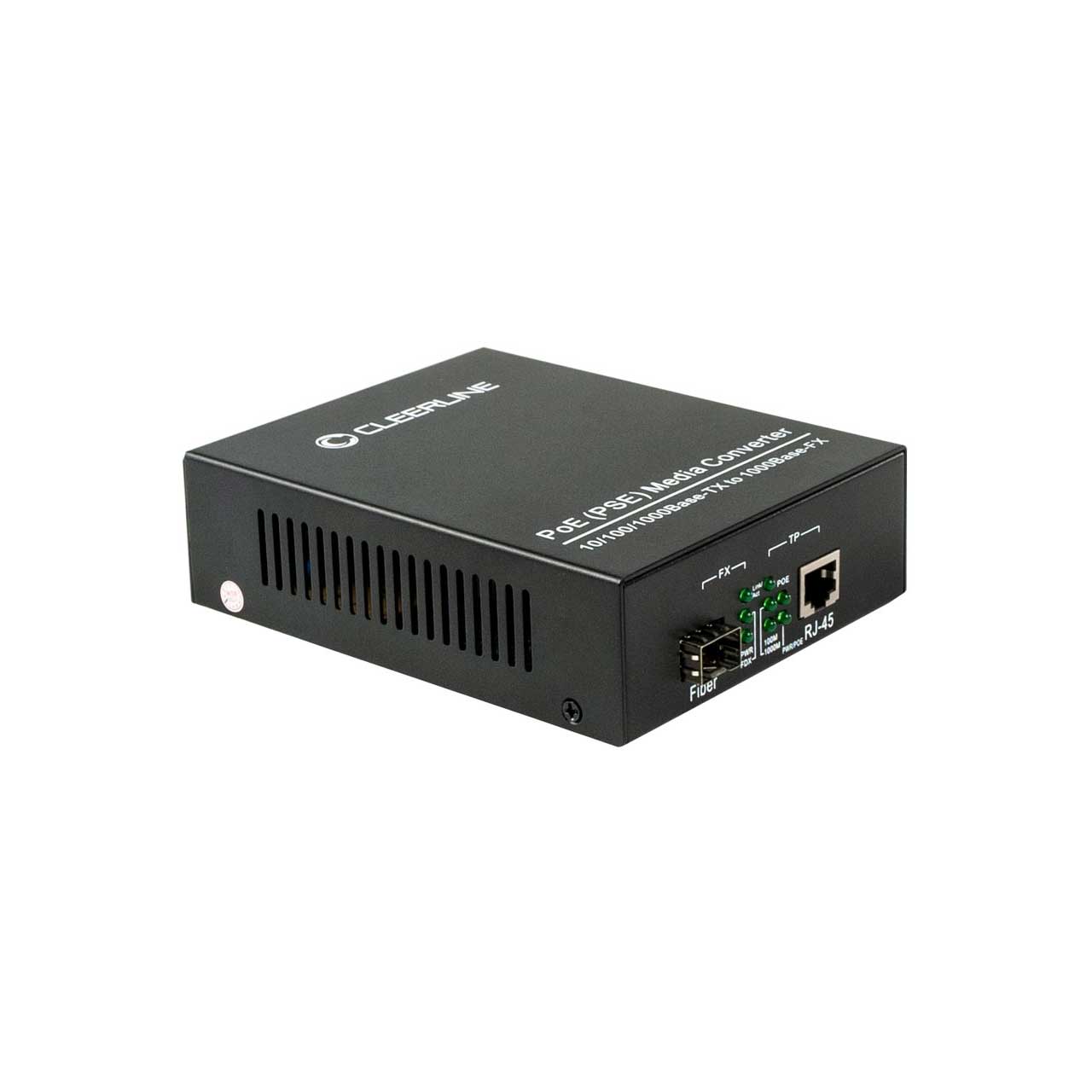

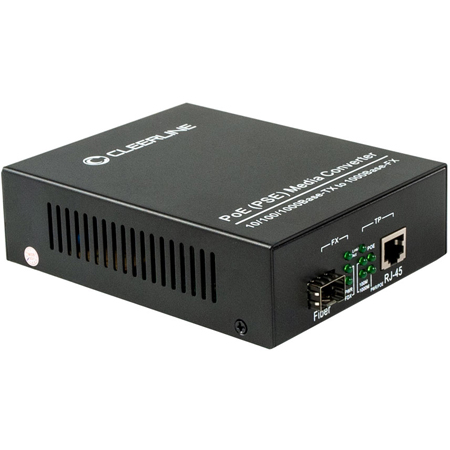

Cleerline SSF-SFP-RJ45POE-1G Gigabit 10/100/1000Base-Tx to 100/1000Base-X SFP Slot / PoE+ / AC Power

ITEM #: CLT-SSFSFPRJ45PO MFG #: SSF-SFP-RJ45POE-1G

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLT-SSFSFPRJ45PO

SSF-SFP-RJ45POE-1G - Overview

The Cleerline SSF-SFP-RJ45POE-1G is a Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X non-managed stand-alone media converter. This converter offers PoE+ (30W PSE).

Additionally, the SSF-SFP-RJ45POE-1G is equipped with DIP switches for flexibility in configuration. Gigabit and Fast Ethernet operation is possible due to the SFP slot, which can accept all SFP types, including multimode, single mode, CWDM, DWDM, or BiDi. BiDi allows bi-directional transmission over a single strand of fiber.

  • Features:

    • 10/100/1000Base-T to 100/1000Base-X SFP Converter

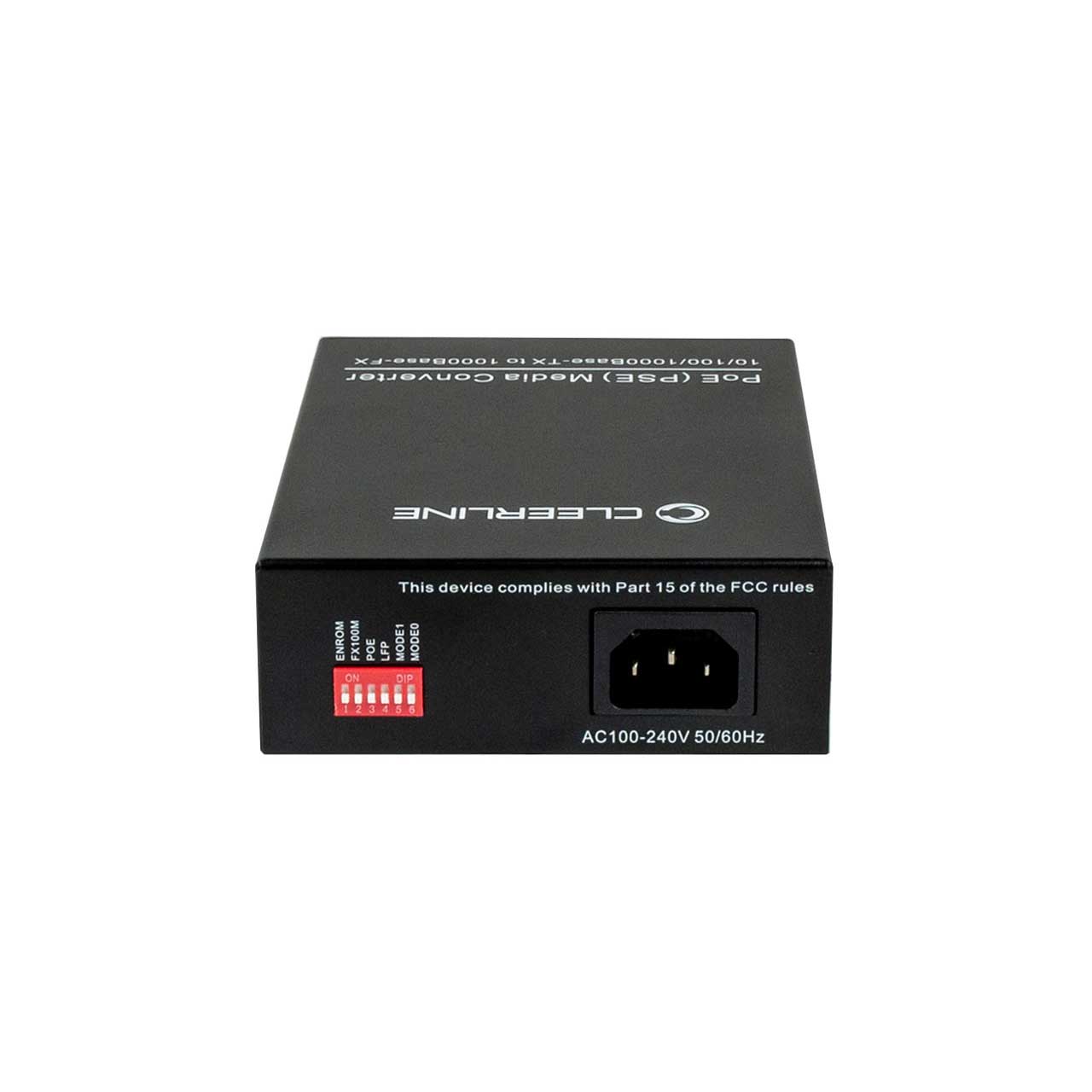

    • DIP settings for fiber speed, LFP functions and PoE type
    • Forward 2048 bytes (Max.) packets in switch mode
    • Forward 9Kbytes Jumbo packets in transparent converter mode
    • Auto-Negotiation & Auto MDI/MDI-X
    • Supports Q in Q double tagged frame transparent
    • Supports IEEE 802.1Q Tag VLAN pass thru


  • Specifications:

    • Optical Interface
    • Connector: SFP slot
    • Data Rate: 1.25G (GE) or 155M (FE)
    • Duplex Mode: Full duplex
    • Fiber: MM 50/125µm, 62.5/125µm, SM 9/125µm
    • Distance: Depending on SFP used
    • Wavelength: Depending on SFP used, MM 1310nm, SM 1310, 1550nm, WDM 1310TX/1550Rx (Type A), WDM 1550TX/1310Rx (Type B)

      Electrical Interface
    • Connector: RJ45
    • Data Rate: 10Mbps, 100Mbps, 1000Mbps
    • Duplex mode: Full duplex
    • Cable: 100Base-TX Cat .5, 5e or higher, 1000Base-T Cat.5, 5e or higher

      Operation & Details
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Operating Humidity: 10 to 90% non-condensing
    • Storage Temperature: -4&def; to 185°F (-20° to 85°C)
    • Dimensions: 5.51 x 4.43 x 1.57" (140 x 110 x 40mm) (SFP transceiver and AC power cord not included)
    • Weight:
      Adapter: 0.20Lbs (90g)
      Converter: 0.26Lbs (120g)

      Standards & Power
    • Standards: IEEE 802.3, 802.3u, 802.3Z, 802.3ab
    • Indications: LED (Power, FX Link, SPD, TP Link)

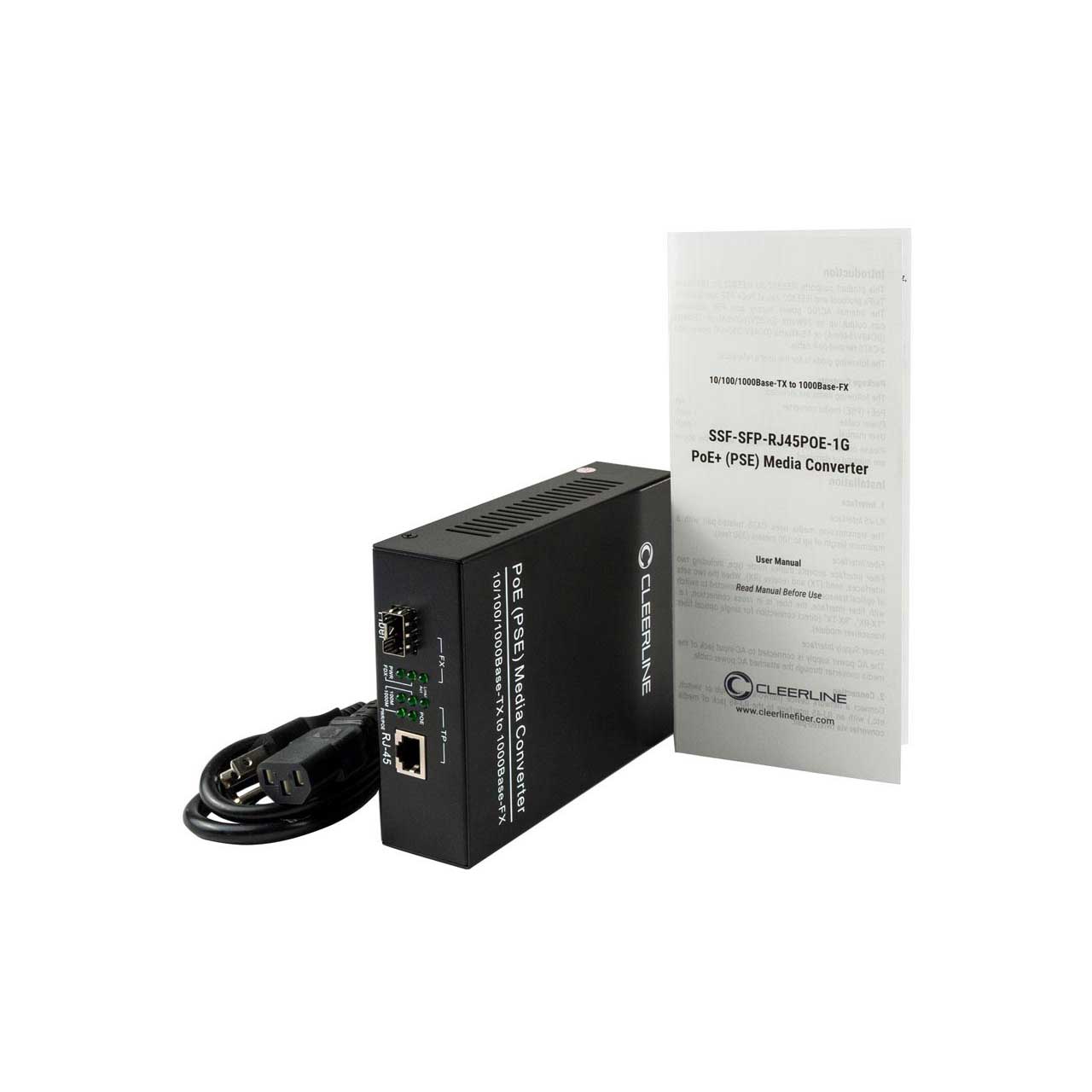

    • Power Input: AC 100 ~ 240V, 47-63Hz, AC power cord included
    • PoE Specs: 54VDC voltage output, short and overload protection, Pin polarity 1/2 (V+),3/6 (V-); IEEE 802.3at
    • Power Consumption: < 5W with no PSE, 35.4W at max load PoE+ (802.3at)
    • Certification: CE, FCC
    • MTBF: 65,000 hrs
