Camplex Adjustable Fiber Enclosure for 19 or 23-Inch Racks - Holds 6 Modules for up to 144 Fibers

ITEM #: CMX-MPR-2RU MFG #: CMX-MPR-2RU

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$201.49

Our Price:

$192.49

Availability: In Stock
iAvailability Description Popup


    CMX-MPR-2RU - Overview

    The CMX-MPR-2RU adjustable rackmount fiber optical enclosure fits both 19 & 23-inch racks and holds 6 Modules for up to 144 fiber termination points. Camplex rackmount fiber optic enclosures deliver simplified interconnections in video studio, OB truck and IT cabling systems between routing, video extenders and other active equipment. Our low cost fiber patching solutions offer the added benefit of protecting the mechanical connections of your devices and extend the equipment life.

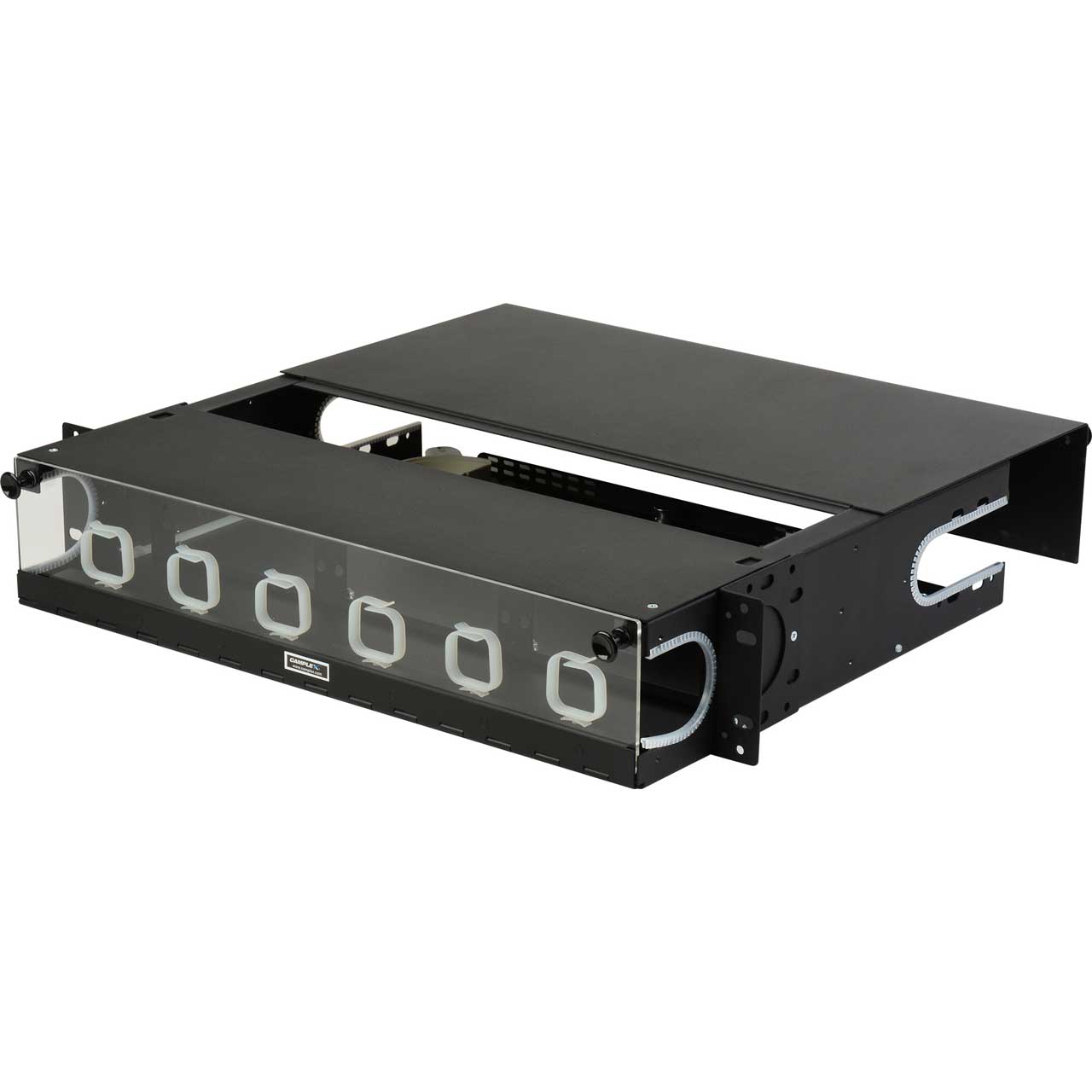

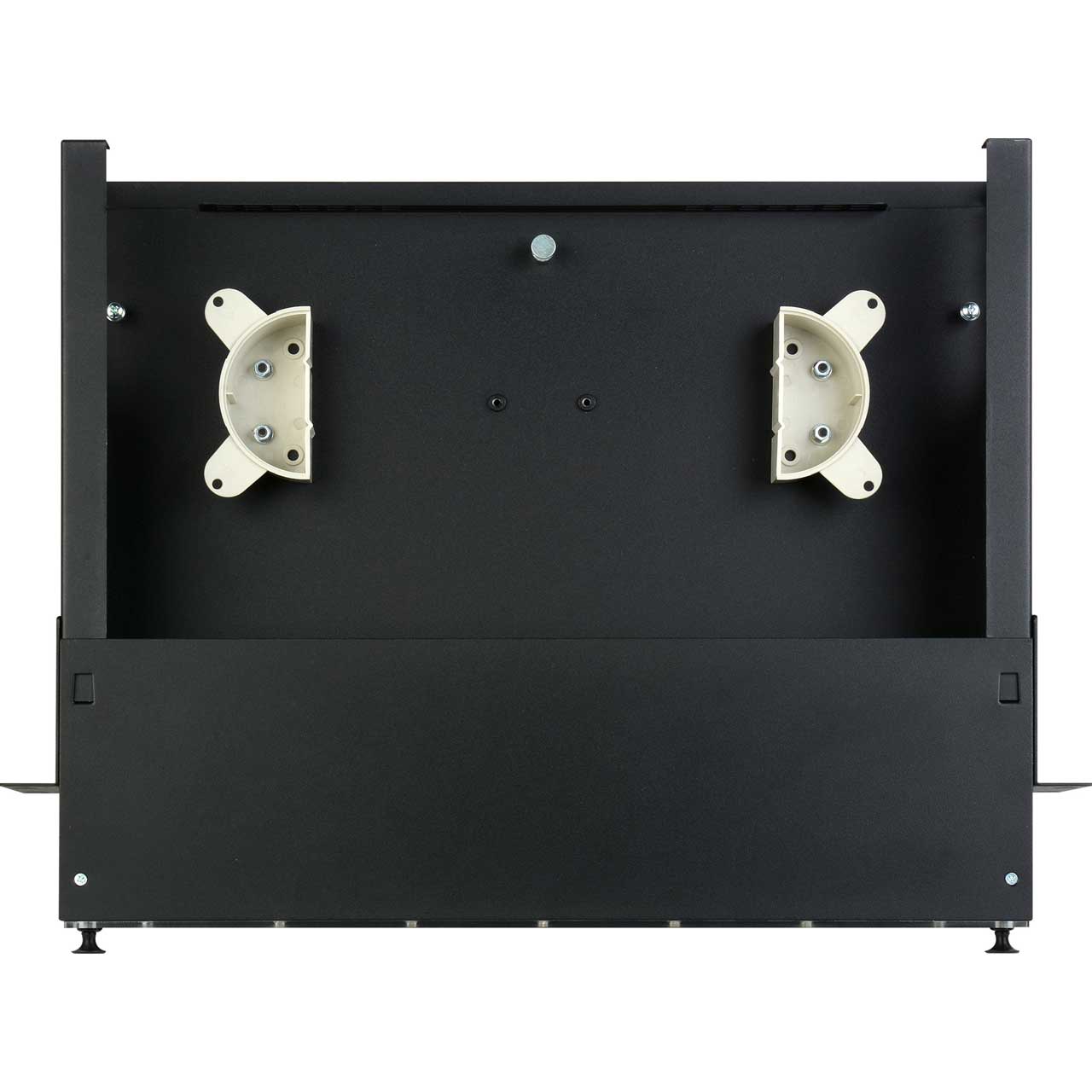

    The enclosure features a slide-out front tray for access to the chassis interior when fiber management is necessary. The rear panel has all the required cable routing cutouts you'll need.

    The Camplex modular design chassis holds a variety of fiber adapter plates allowing the flexibility to order connection types based on your needs. Order 1 or order 6 plate groups in a variety of connector combinations. Adapter plates quickly mount in a tool-less fashion with "push-pin" locking mechanisms.

    • Features:

      • 2RU Cabinet with Termination Densities from 72 to 144 Fibers
      • Toolless Entry with Sliding Tray for Easy Access
      • Internal Mounting Holes for Cable Tie-Down, Fiber Management, and Splice Tray
      • Routing Guides Limit Internal Bend Radius
      • Corrosion Resistant Black Powder-Coated Metal Steel Enclosures
      • Modular Design Supports a Variety of Modules (see CMX-MP Modules)
      • Heavy Duty Metal Construction

    • Specifications:

      • Configuration 2RU
      • 19-inch Mount Adjusts to 23-inch Frame
      • Max Capacity/6 Modules: 144 fibers- 6 ports LC Quad / 72 fibers - 6 ports SC Duplex / 72 fibers - 12 ports ST/FC
      • Dimensions: 19 x 14.75 x 3.5 in
      • Weight: 15 lb 9 oz

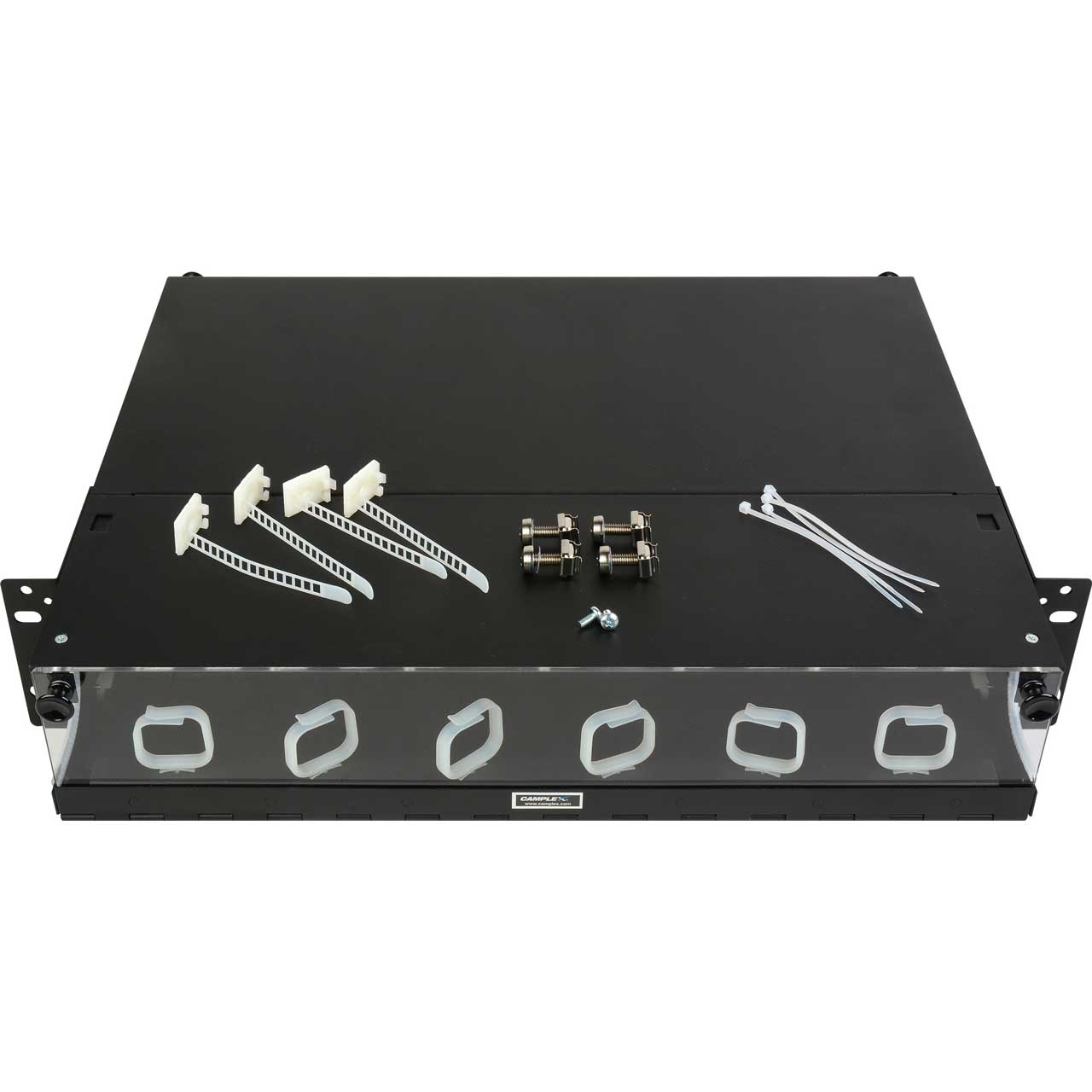

    • Item Includes:

      • Cable management pack: plastic tie wraps, cable managers with adhesive bottom, port identification label, and radiation caution label, screws for securing to rack and top panels
