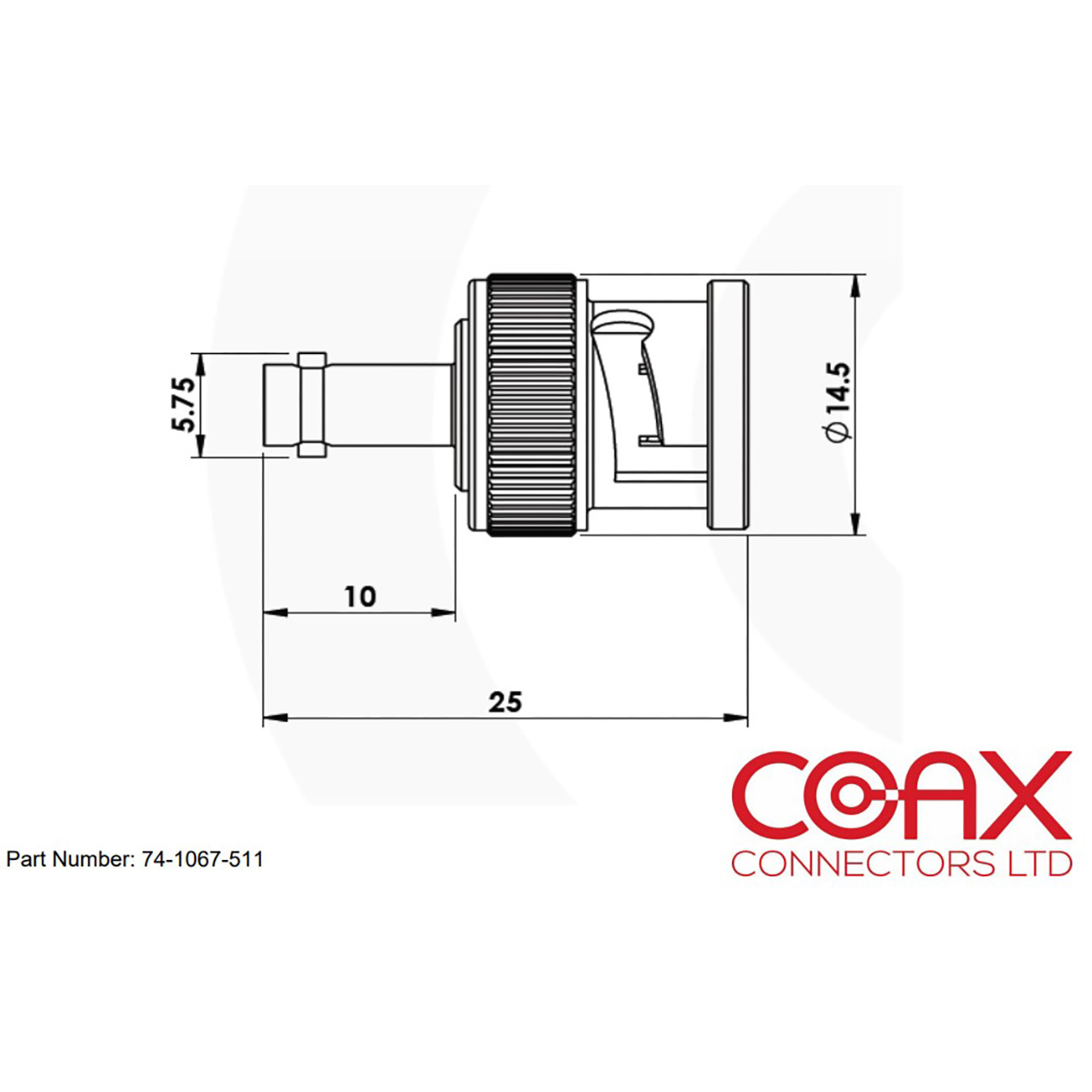

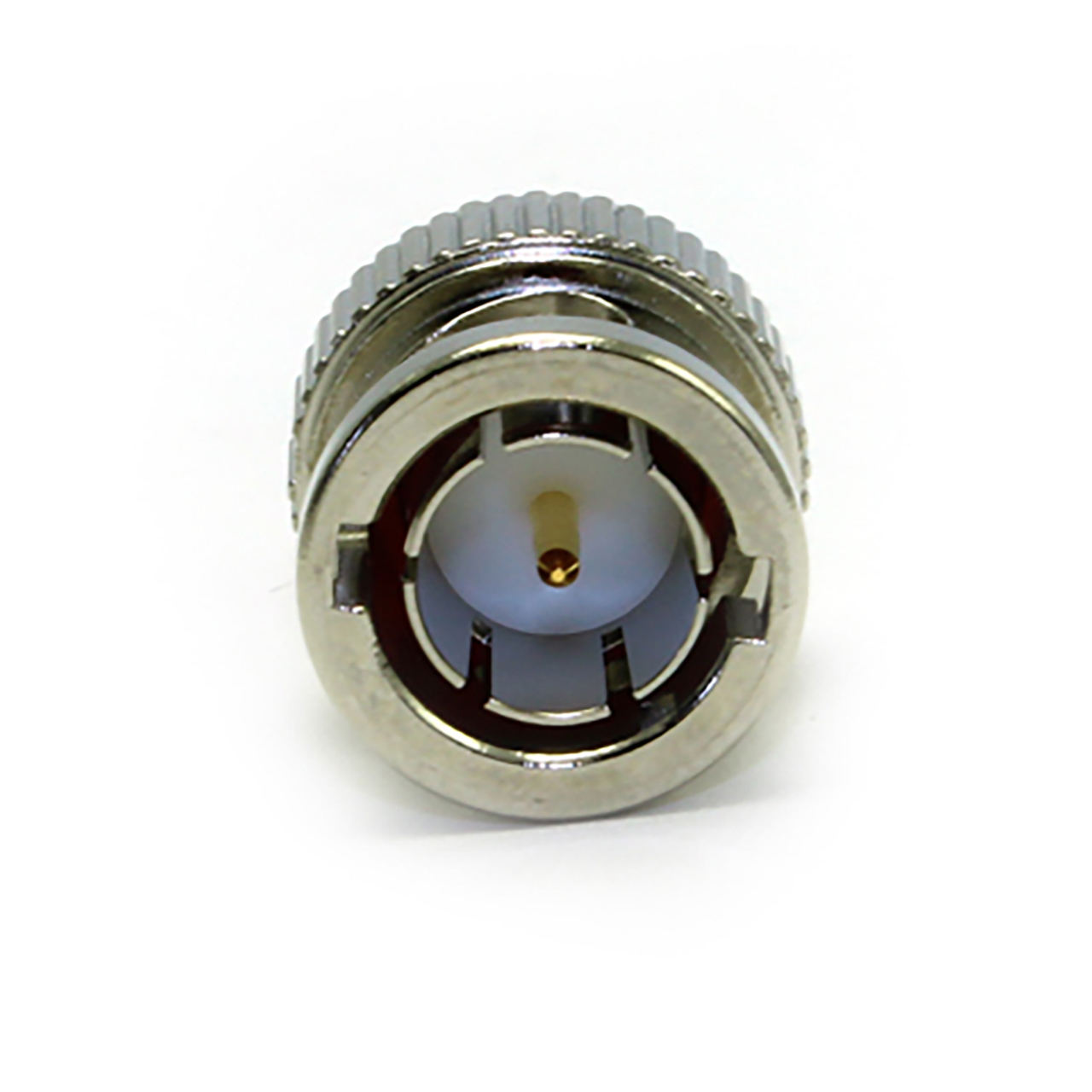

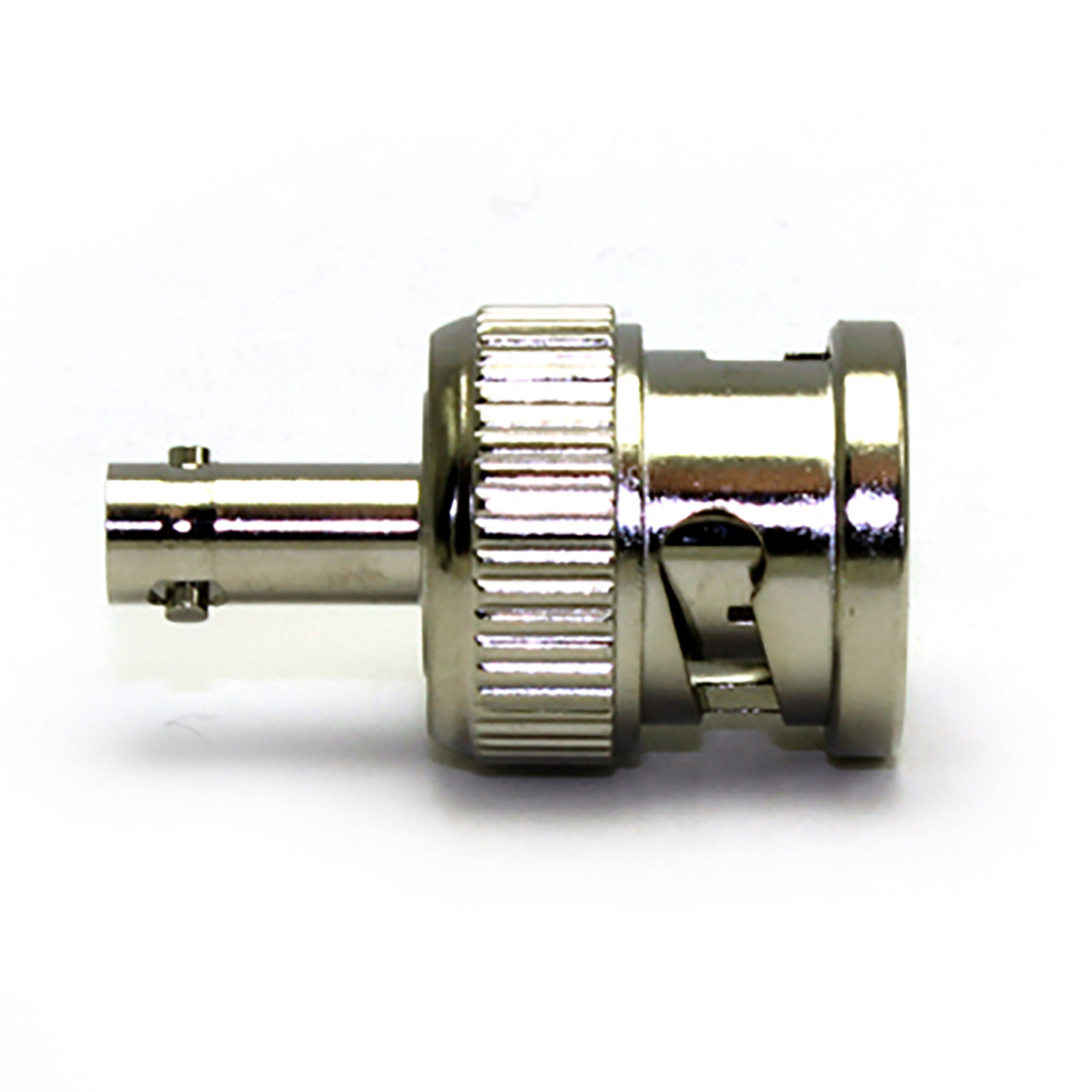

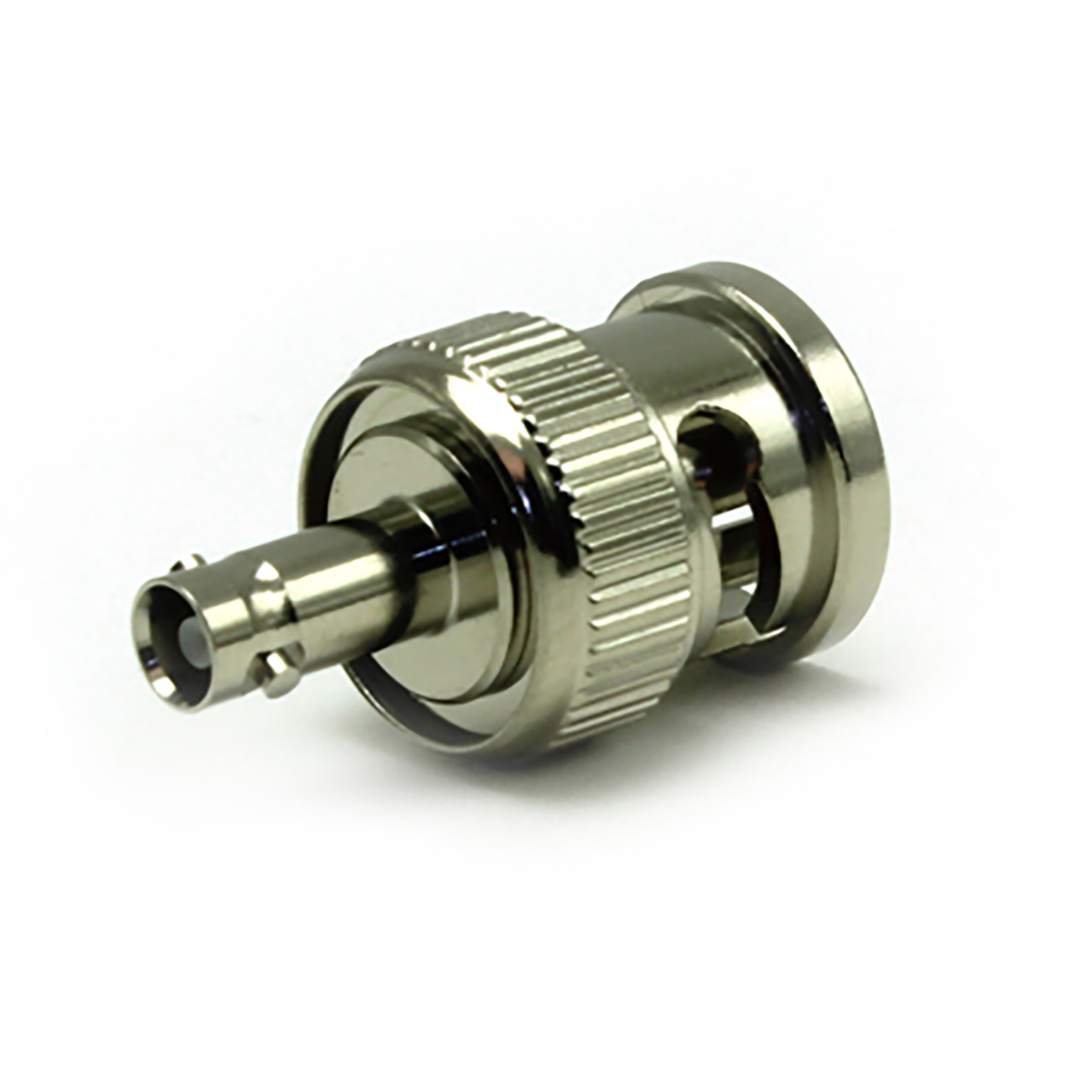

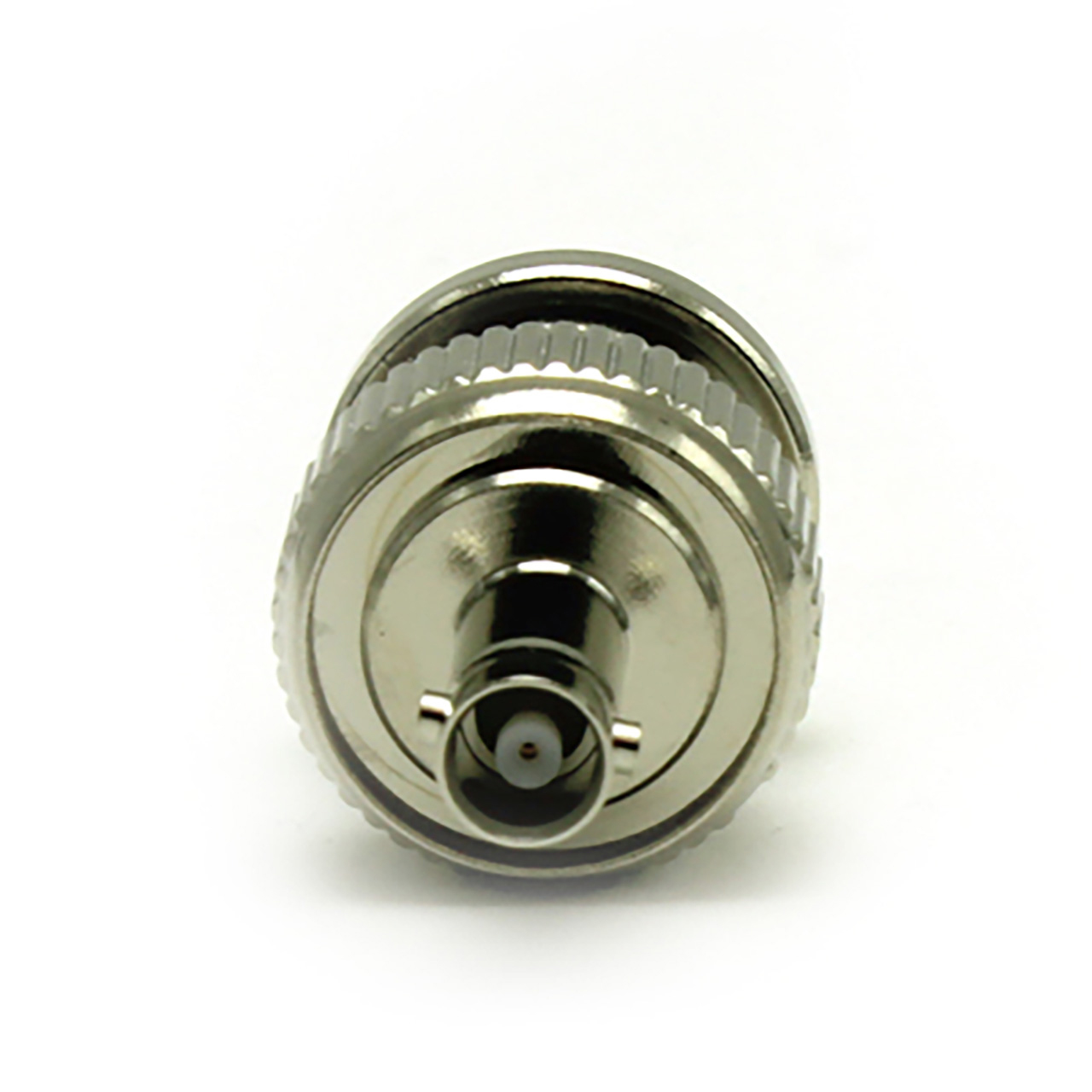

Coax Connectors 74-1067-511 Micro BNC Jack to BNC Plug 18Ghz Straight Adapter

ITEM #: COA-74-1067-511 MFG #: 74-1067-511

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$13.95

Our Price:

$11.79

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


74-1067-511 - Overview

The Coax Connectors 74-1067-511 is an Inter-Series adaptor for connection between different connector families. Micro BNC (HDBNC) Jack to BNC Plug 18Ghz Straight Adaptor.

  • Specifications:

    • Impedance: 75Ω
    • Frequency Range: 0GHz - 18GHz
    • Dielectric Withstand Voltage: 1500 Veff
    • Insulation Resistance: 5000MΩ
    • Return Loss: -20.5dB @ 18GHz
    • Mating Cycles: 500
    • RoHS 3 Compliant: Yes
    • Weight: 0.31oz (8.8g)
    • Operating Temperature: -67°F - 311°F (-55°C - 155°C)
    • IP Rating (Mated): IP64
    • Centre Contact: Beryllium Copper
    • Outer Contact: Brass
    • Centre Contact Plating: Gold
    • Outer Contact Plating: Nickel
    • Pack Size: 1
