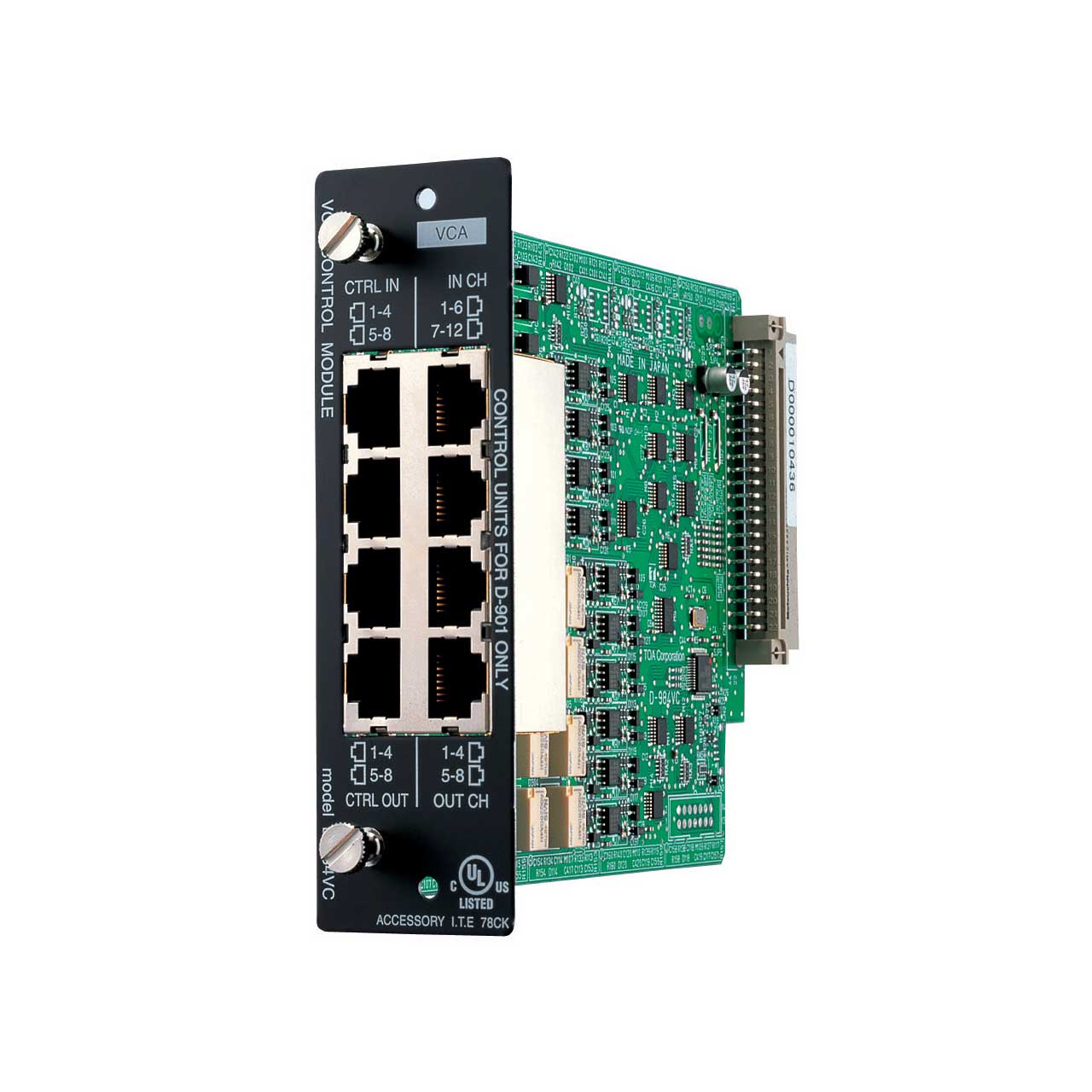

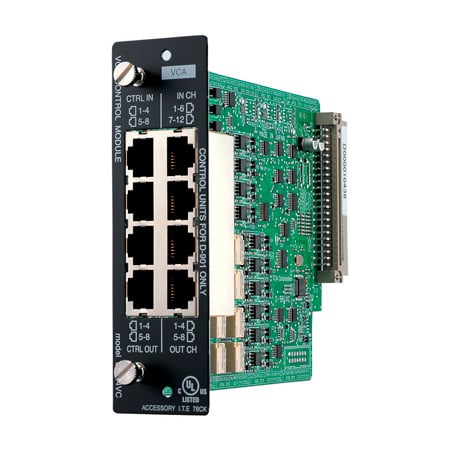

TOA D-984VC VCA Control Module for the D-901 Mixer

ITEM #: D-984VC MFG #: D-984VC

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the D-984VC

D-984VC - Overview

By the VCA controls from external equipment, this module permits the D-901's gains of 12 inputs and 8 outputs to be controlled. By the contact input controls from external equipment, it permits preset memory recall, gain control, stereo input selection and channel ON/OFF operation plus tally outputs.

  • Features:

    • Interface to D-911 Remote Controller via Cat5 cables or configure custom interface
    • Eight RJ-45 connectors
    • Control up to 12 inputs, eight outputs
    • Eight programmable switch closure inputs for activation of memory, volume up/down, channel on/off and stereo input selection
    • Eight programmable relay outputs of memory, channel on/off, contact input status and stereo input selection
