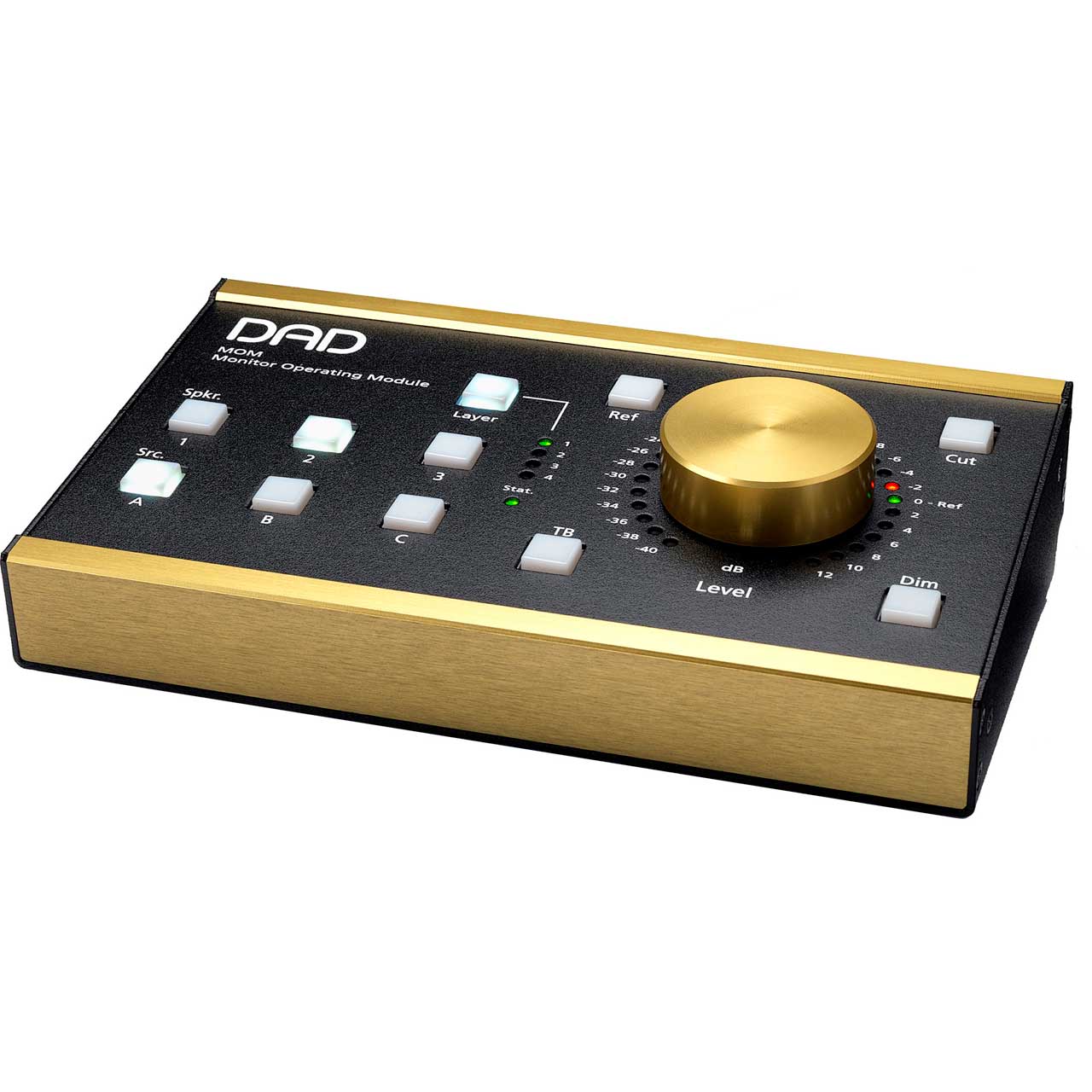

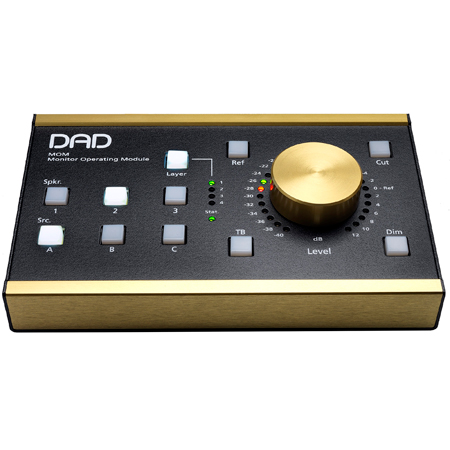

Digital Audio Denmark DAD MOM Monitor Operating Module - Control via Ethernet - PoE


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    NTP-DADMOM - Overview

    With near zero latency, the Digital Audio Denmark DAD-MOM-BASE can be used to expand I/O channel count and interface digital components, providing a high quality bridge between AES/EBU, MADI, and the Dante IP audio network.

    In a world that seem to be gradually moving towards working and mixing 'in the box', there are still situations where hands-on control is second to none.

    Monitor control is one of those cases. Enter MOM - our Monitor Operating Module.

    MOM is the perfect, tactile match for one or more AX32 and DX32R units equipped with the PRO MON 3 monitor control license.

    The MOM is a remote control, connected via Ethernet, and no audio is actually passing through the unit. The audio-routing magic happens within the AX32 or DX32R and is set up via the DADman software. But once you connect the MOM, the magic now resides right at your fingertips.

    MOM is the perfect companion if you use the monitor controller capabilities of the Avid MTRX, MTRX Studio, DAD AX32 or NTP Penta 721s.

    MOM is a remote control for the Pro|Mon monitor profile in the DADman control software. It features 10 user-programmable keys, a rotary encoder and a GPI input for an external switch. You can assign almost any function in the monitor profile to any key on the MOM, making it easy to configure it for your specific needs. Further, MOM offers 4 layers of keys, offering a total of 40 programmable keys.

    Weighing in at 2 lbs., the MOM is sturdy and will remain in place while also being compact enough to not take up valuable desk space. The rotary encoder for volume control has been carefully designed for superb tactile feel and features colored LEDs to indicate the volume setting in 0.5 dB steps.

    While working perfectly fine in combination with the DADman software, its real power is revealed when used in combination with EUCON control surfaces such as the Avid Dock, S4, S6 or even the free Control app, as MOM-operation is synchronized with these units. Simply select e.g. a source on the Dock and the corresponding key on the MOM will light up, and vice versa, what you do on the MOM is also reflected on the Dock.

    And not only can you use MOM in combination with EUCON control surfaces, you can also use multiple MOMs on the same system. This can come in handy if you have multiple workspaces or listening positions, e.g. a sound engineer and a director position, as you can place the MOM wherever it is needed.

    MOM also features a GPI input, which can be used for an external switch, e.g. a footswitch or a separate switch on the desk. The function of the GPI input can be programmed just like any of the keys.

    Made in Denmark, the MOM also features a sleek and stylish design that will look amazing in any studio.

    • Features:

      • Large Top-Quality Rotary Knob
      • Switching Between Different Sources
      • Switching Between Different Monitor Configurations (from Mono to Atmos)
      • Mute/Solo Individual Monitor Channels
      • Talkback
      • Dim
      • Cut
      • Reference Level
    • Specifications:

      • Power: 5 VDC/1A
      • Power adapter: 100–240 VAC, 50/60 Hz, 0.18A
      • Dimensions: 6.8” x 4.25” x 1.7 / 172 mm x 108 mm x 43 mm
      • Weight: 2 lbs / 0.95 kg
      • Number of keys: 10
      • Number of layers: 4
      • GPI Input: 1
