Delvcam DELV-3LCD-3GHD 5-Inch Triple Rackmount 3G-SDI HDMI Video Monitor

ITEM #: DELV-3LCD-3GHD MFG #: DELV-3LCD-3GHD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$799.95

Our Price:

$749.95

Availability: In Stock
iAvailability Description Popup


    DELV-3LCD-3GHD - Overview

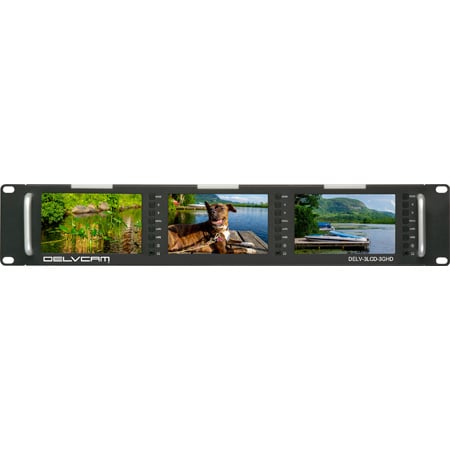

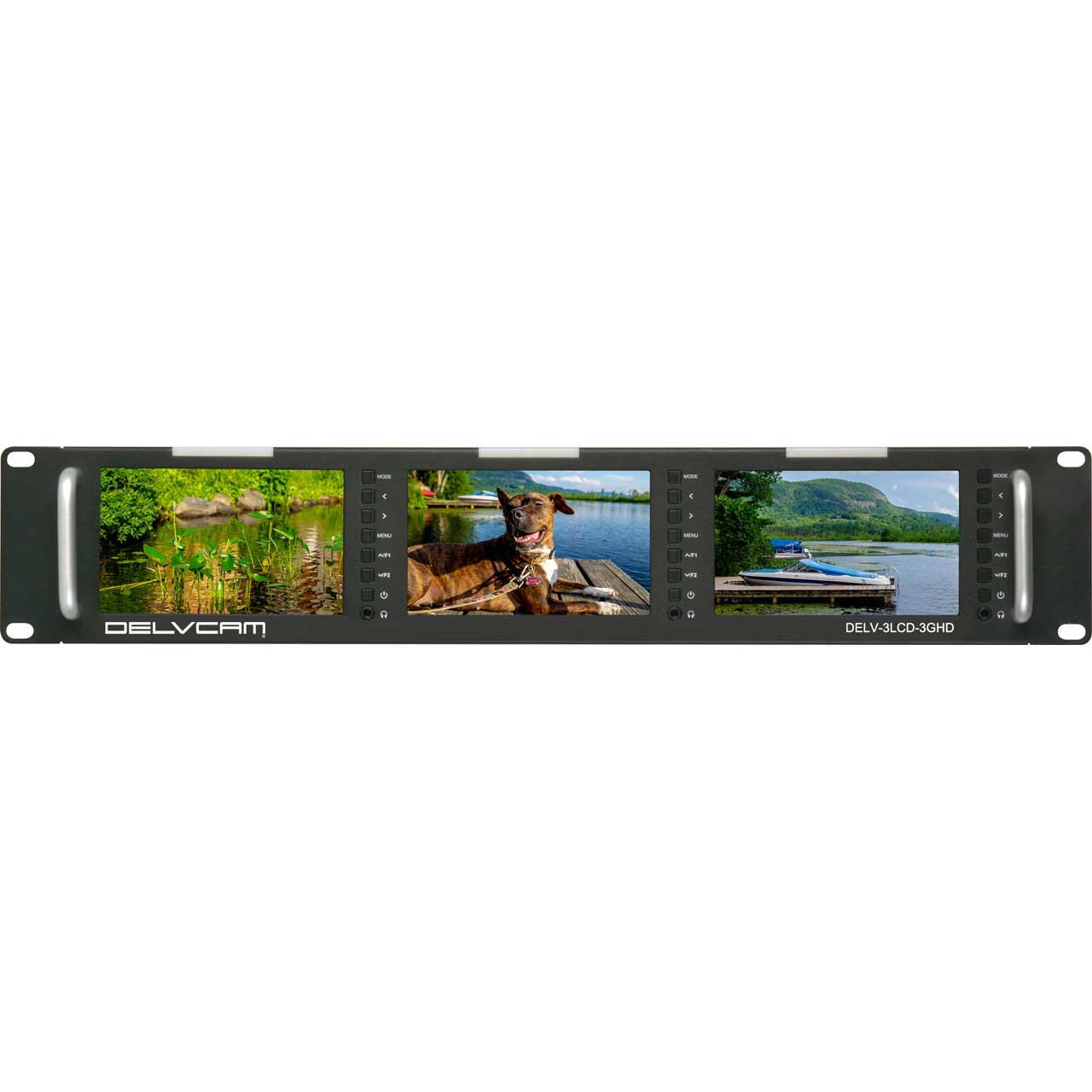

    Triple your HD monitoring value with the Delvcam DELV-3LCD-3GHD rackmount monitor. Its three 5-Inch LCD screens provide the ideal solution for fly-packs, production trucks and OB vans where a slim and lightweight form factor prevail.

    Each screen features tri-color tally lights as well as the convenience of 3G-HD BNC, HDMI and Composite BNC multiformat inputs. All inputs also have looping outputs and left/right RCA audio. Power the DELV-3LCD-3GHD is accomplished either by 12V wall wart or 4-pin XLR making it perfect for field production.

    All three of the DELV-3LCD-3GHD monitors have individual menu control and a handy front mounted earphone jack for monitoring purposes.

    • Features:

      • 3 vibrant color 5-inch LCD screens
      • Ultra-slim design with grip handles
      • Durable black powder-coated steel 2RU cabinet
      • Stereo earphone 3.5mm jack
      • Customizable function buttons
      • 3 color Tally Indicator controlled via DB-15 port
      • 3G/HD/SD-SDI loop output
      • Camera 5D II Mode

    • Specifications:

      • Display Screen: Three 5-inch LCDs
      • Resolution: 800 x 480 x 3 (RGB)
      • Brightness: 500cd/m²
      • Contrast: 500:1
      • Aspect Ratio: 16:9
      • Viewing Angle: 70°/70°(L/R) 50°/70°(U/D)
      • Color Format: PAL-4.43 / NTSC-3.58
      • Compatibility: SDI A, SDI B limited to1080i60
      • Power Input: 12VDC 4-pin XLR
      • Input Voltage: 9V-24VDC
      • Power Consumption: 25W
      • Backlight: LED
      • Dimensions:19x3.5x1.34 in / 482.6Lx88Hx34D mm
      • Weight: 3.5 lb/1570 g

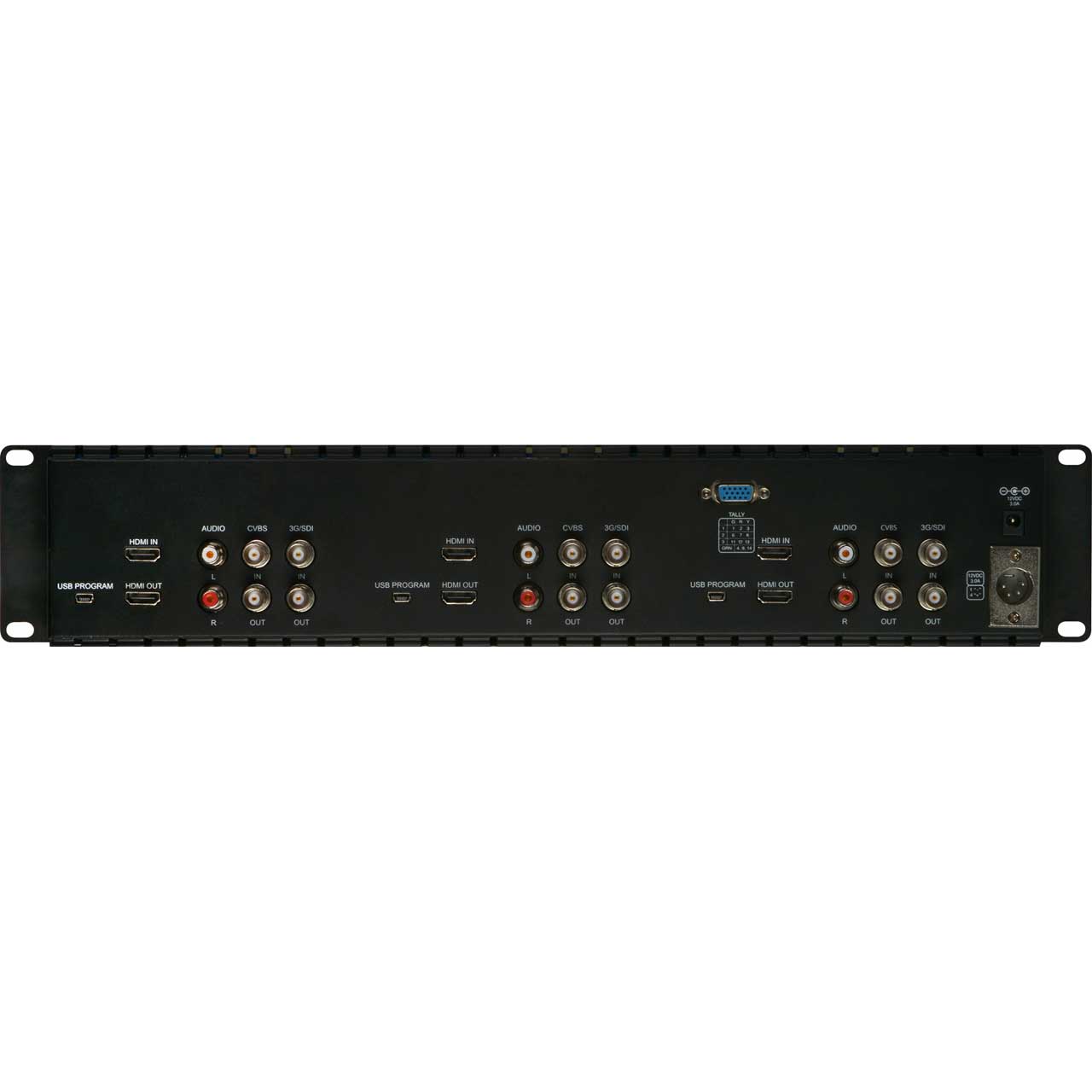

      • Each Screen:
      • 3G/HD/SD-SDI input
      • 3G/HD/SD-SDI loop output
      • HDMI input
      • HDMI loop output
      • CVBS input
      • CVBS output
      • Audio(L/R) input
      • Stereo Earphone output
      • USB for Software Upgrade

    • Item Includes:

      • 12VDC/3A Power Cable
      • Tally Interface Board

    • Warranty:

      • 1 year

    • GTIN:

      0854554007042
