Digital Forecast X-SDI AV Signal Effect & Synchronizer
  • Digital Forecast X-SDI AV Signal Effect & Synchronizer
  • Digital Forecast X-SDI AV Signal Effect & Synchronizer
  • Digital Forecast X-SDI AV Signal Effect & Synchronizer

Questions? Ask a Markertek Expert:
800-522-2025 Email

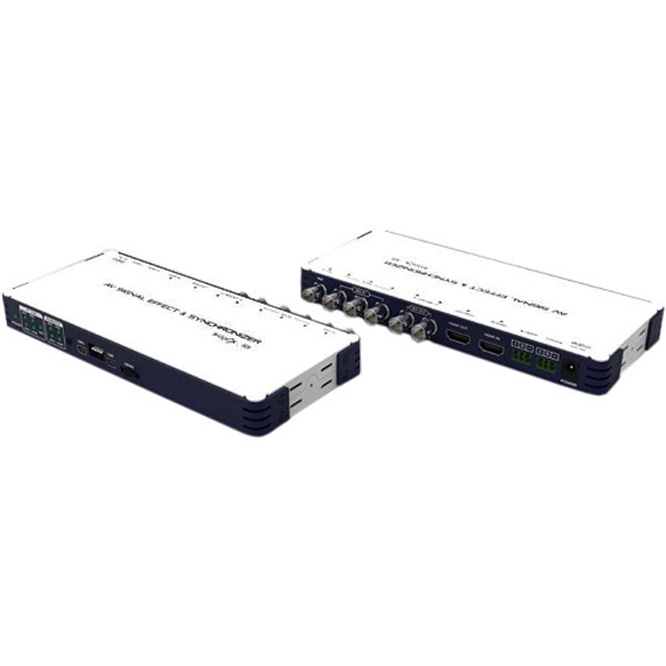

Digital Forecast X-SDI AV Signal Effect & Synchronizer

Manufacturer: Digital Forecast

Item #: DF-X-SDI   •   MFG #: X-SDI



List Price:$799.00
Our Price:$759.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The X-SDI is part of the Digital Forecast Bridge X Series and is an AV Signal Effect and Synchronizer converter. The X-SDI is a compact converter featuring 3 SDI/1 HDMI inputs and 2 SDI/1 HDMI simultaneous outputs. Any SDI/HDMI input can provide frame synchronization for use in switching unsynchronized video signals and there is a single keyer and logo generator option as well. Additional features include analog audio MUX/DEMUX, audio processing with delay (max 8 seconds), internal static logo support and SDI/HDMI cross conversion. HDMI v. 1.3 and SMPTE multi-rate SDI formats (up to 1080p) are supported.


    • Features

      • Compact SDI/HDMI 4 input selector (3 SDI/ 1 HDMI input)
      • 2 SDI / 1 HDMI simultaneous output
      • 1 reference input ( BB or Tri )

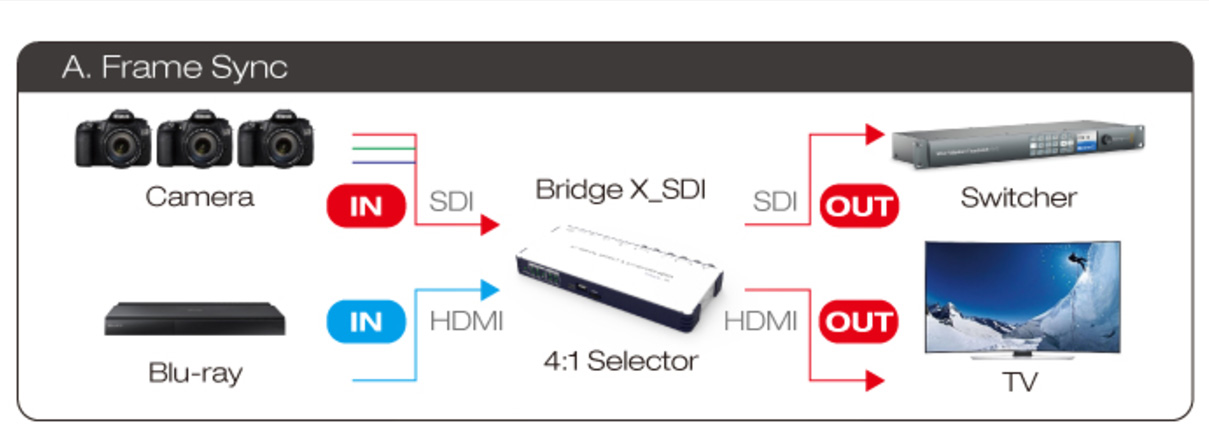

      • Any input that SDI/HDMI can work as a Frame Synchronizer
      • SDI/HDMI cross converter function
      • Analog audio MUX/DeMux
      • Audio processing with delay ( MAX 8 Sec )
      • Menu OSD function

    • Warranty

      • 2 Years
