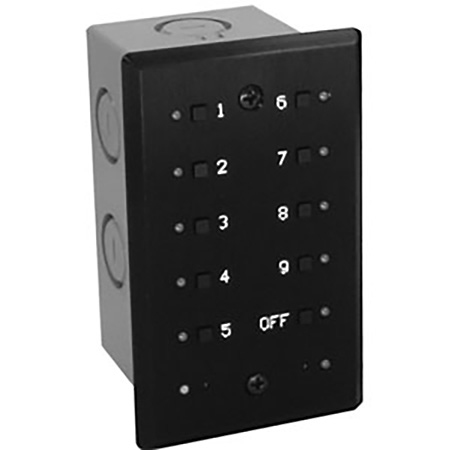

The Doug Fleenor Design PRE10A-POPO offers ten HTP presets. Each of these ten HTP presets are capable of being turned ON or OFF individually. Preset 10 Architectural is a lighting control station capable of storing up to ten presets. These presets are recorded by capturing the output of a DMX512 console. Each preset can then be assigned a unique fade time, from 0 to 999 seconds. Presets are recalled by pressing one of the buttons.

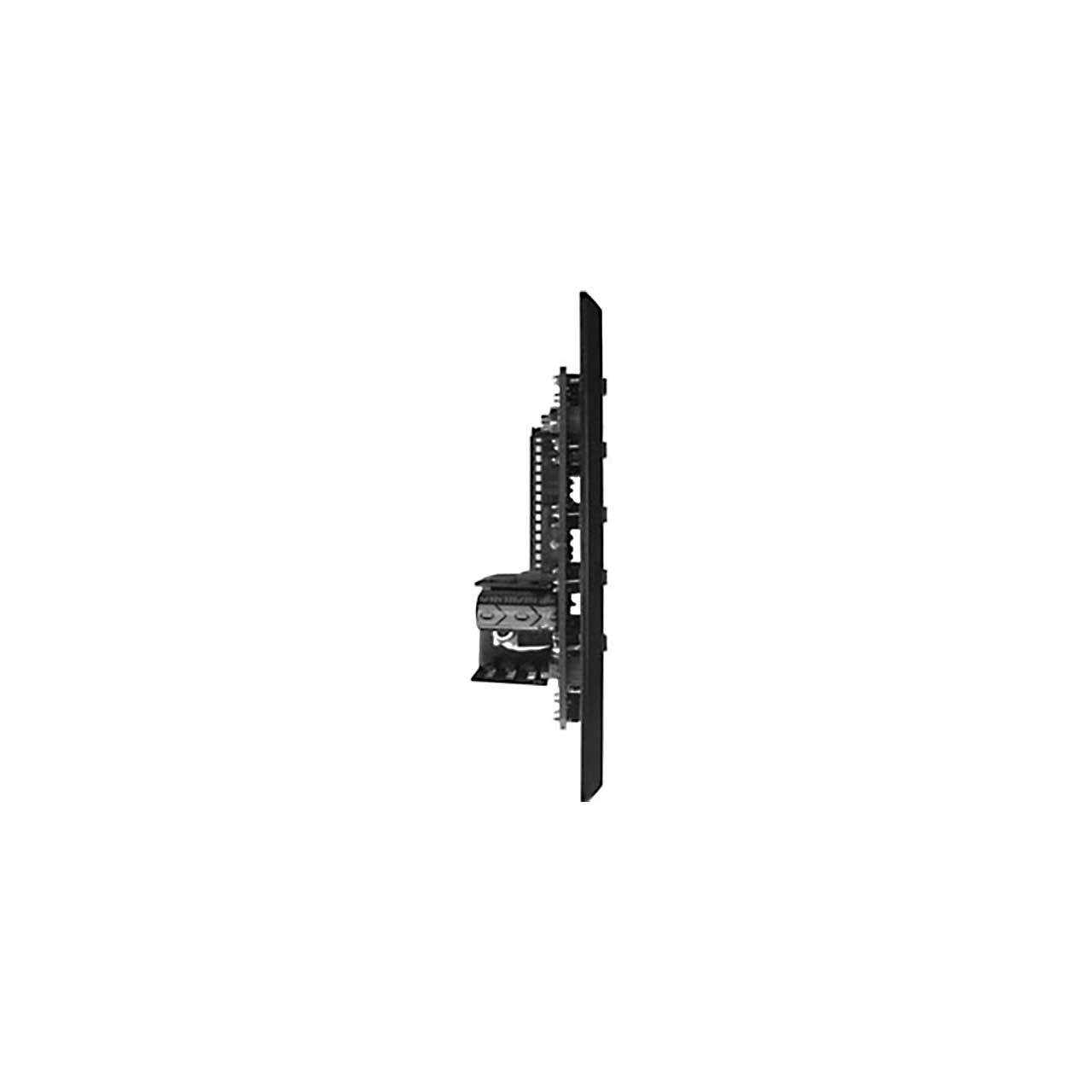

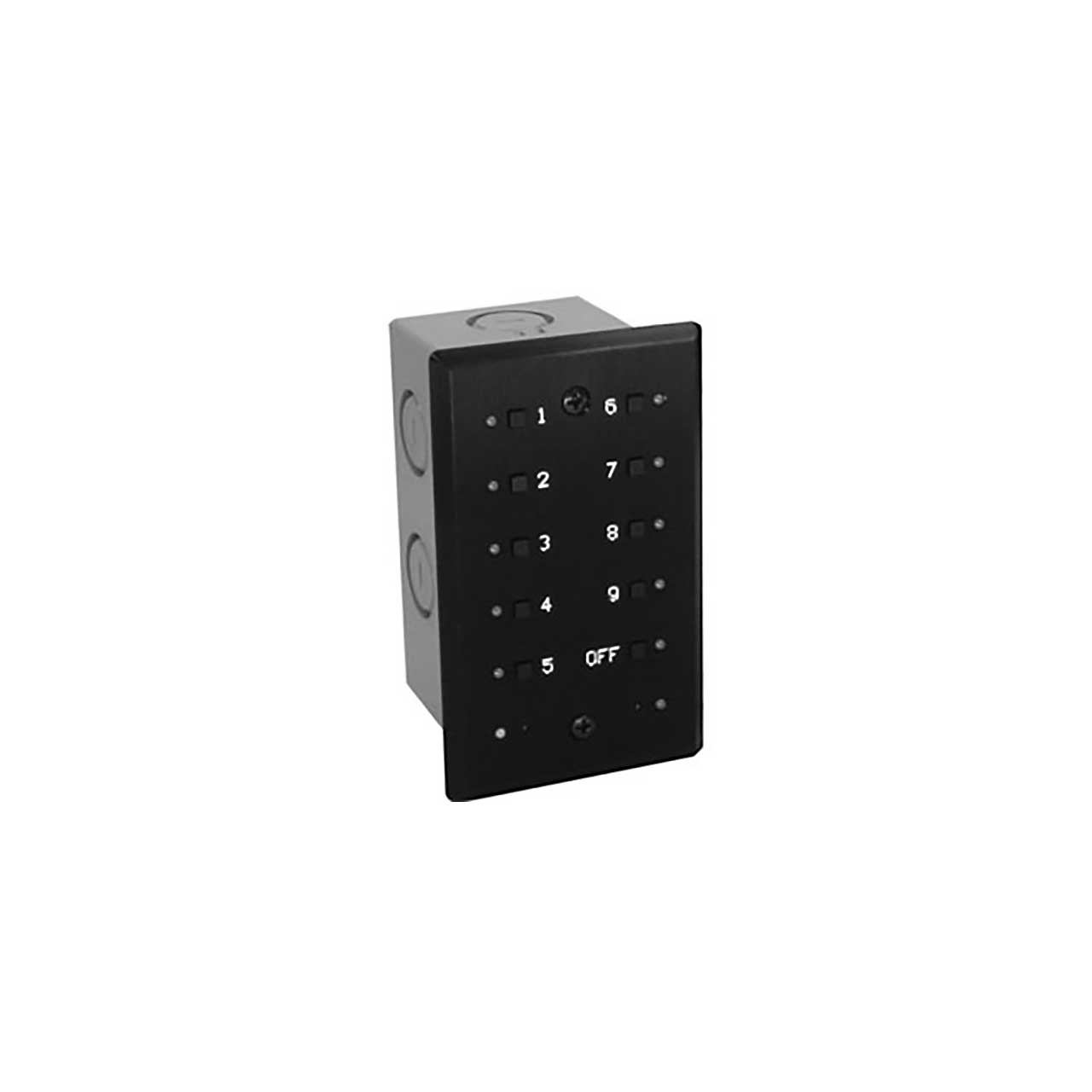

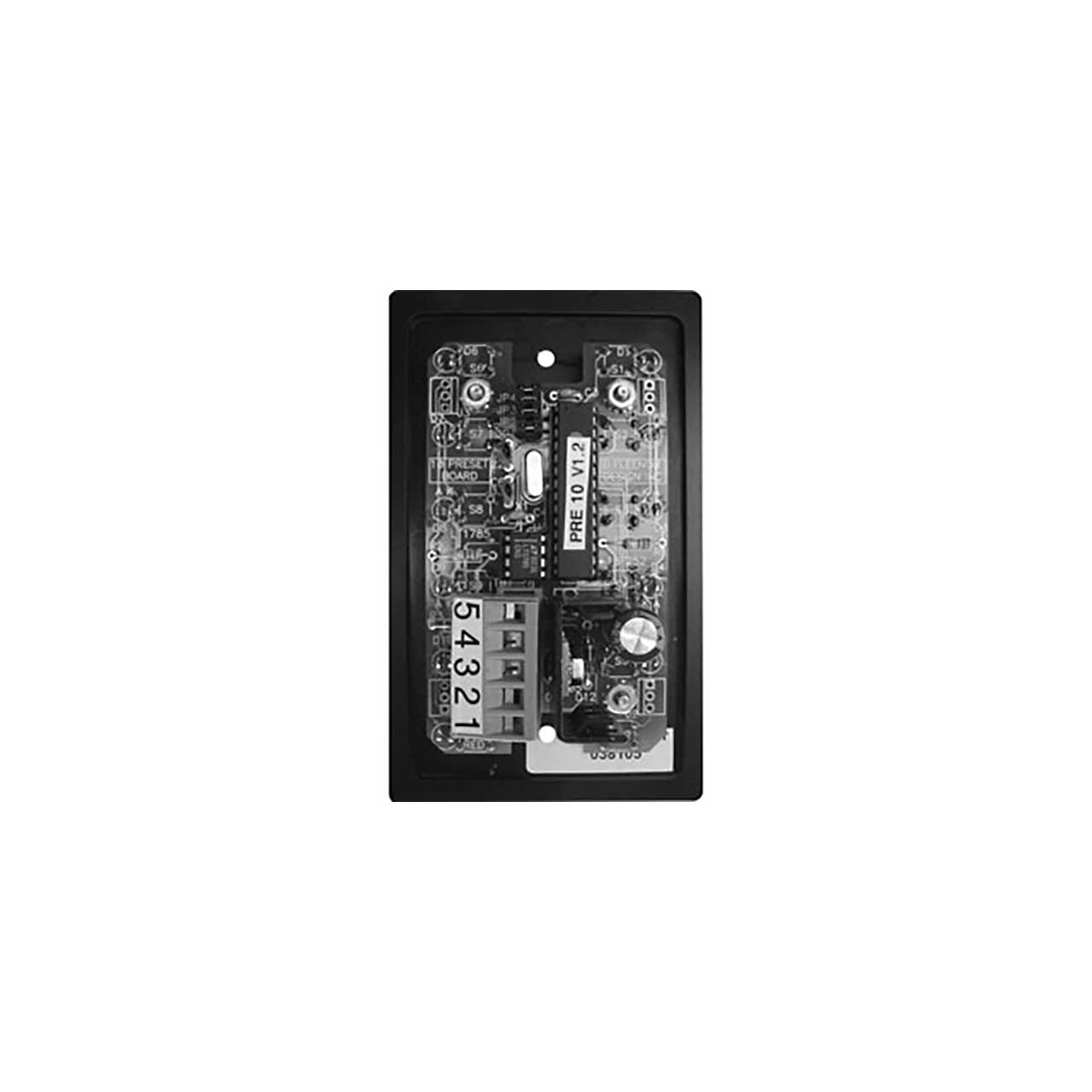

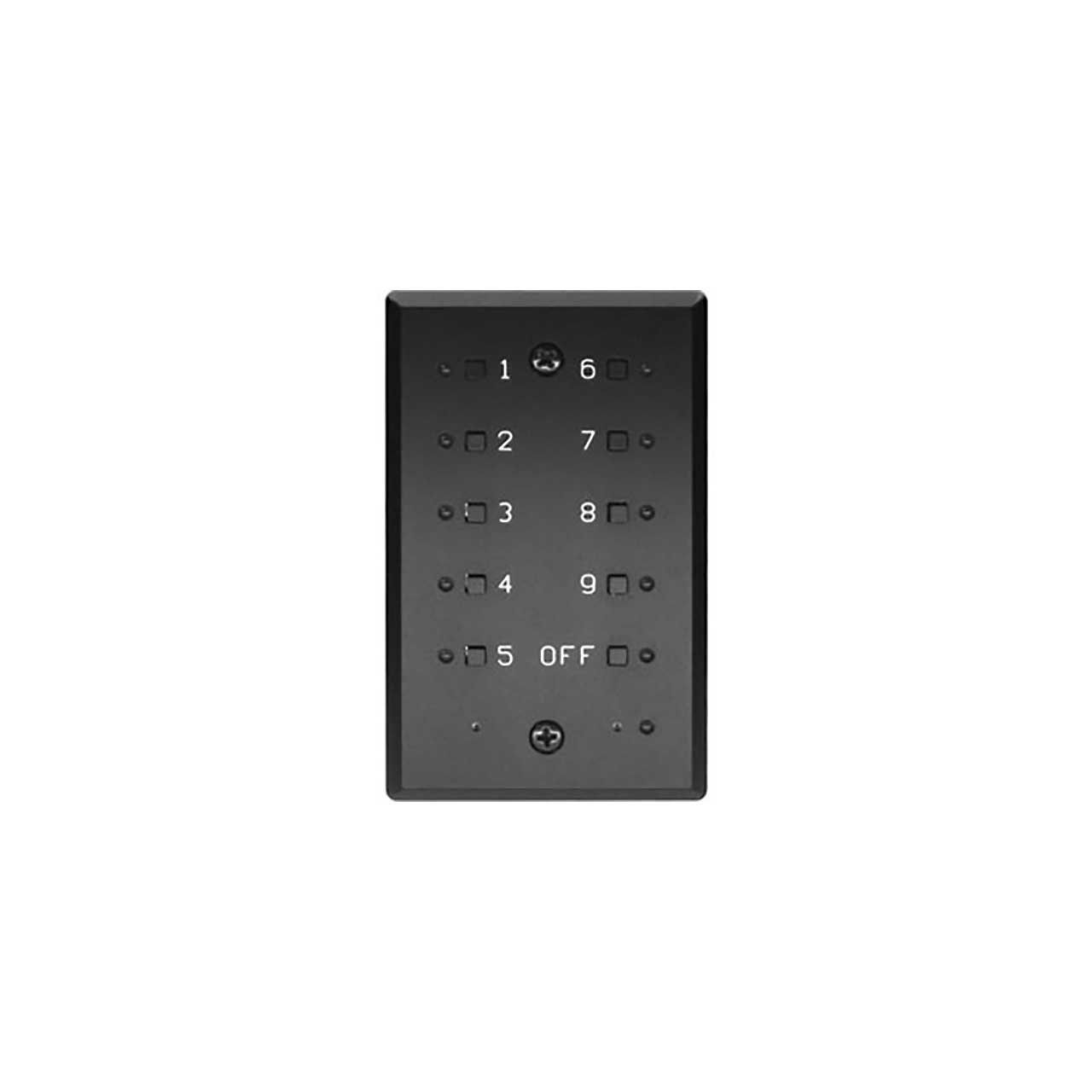

Systems can be created by using one or more stations and a power supply. The solid aluminum faceplate is designed to install over a standard single gang electrical box. Connections to the Preset 10 Architectural are power (2 wires) and DMX512 (3wires). Power for the Preset 10 can be supplied from a variety of sources, including a 10V class 2 "doorbell" transformer.
The Preset 10 Architectural system can work in conjunction with a lighting console, automatically switching between preset and console control. W hen the console generates a DMX512 signal the Preset 10 Architectural goes off-line. The console then operates normally. Upon loss of DMX512 from.
