    NETRON EN12 - Overview

    The NETRON EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.

    • Features:

      • RDM, Artnet and sACN support
      • Factory and user presets for plug and play setups
      • Line Voltage or POE powered
      • 1.8" OLED Display with rotary knob
      • 99 Internal cues with fade and delay time
      • Customizable routing and merging options
      • Remote configuration via internal webpage
      • Contact closures for cue or preset recall
      • Powder-coated aluminum rackmount housing

    • Specifications:

      • Connections

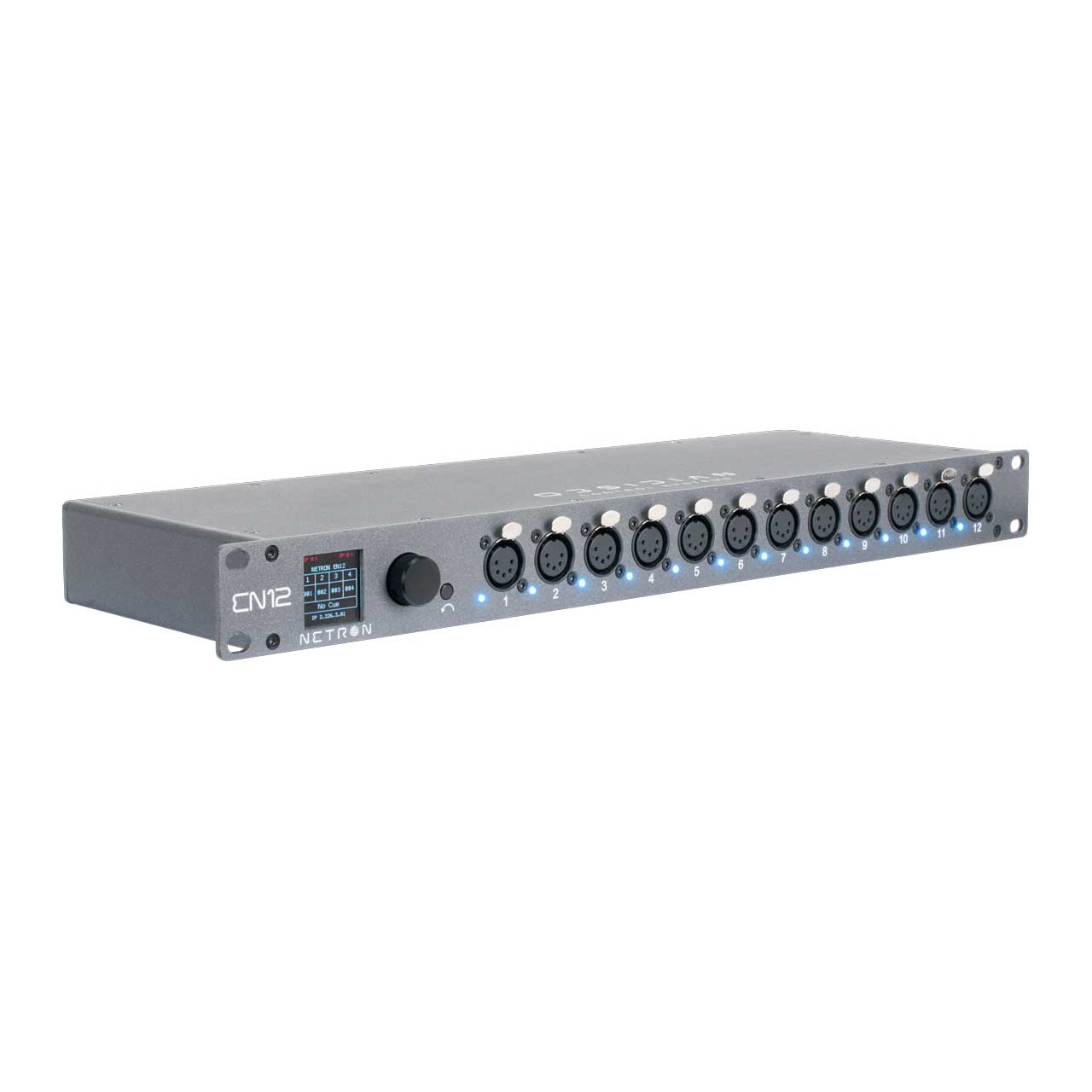

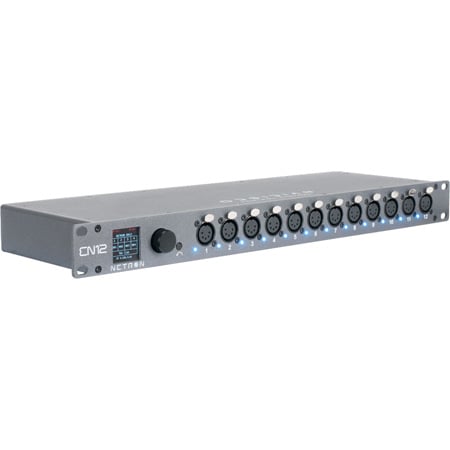

      • Front
      • 12x 5pin DMX/RDM optically isolated ports
      • Ports are bidirectional for DMX In and Output
      • Full color OLED display
      • Encoder w. Push to Select / Exit Button

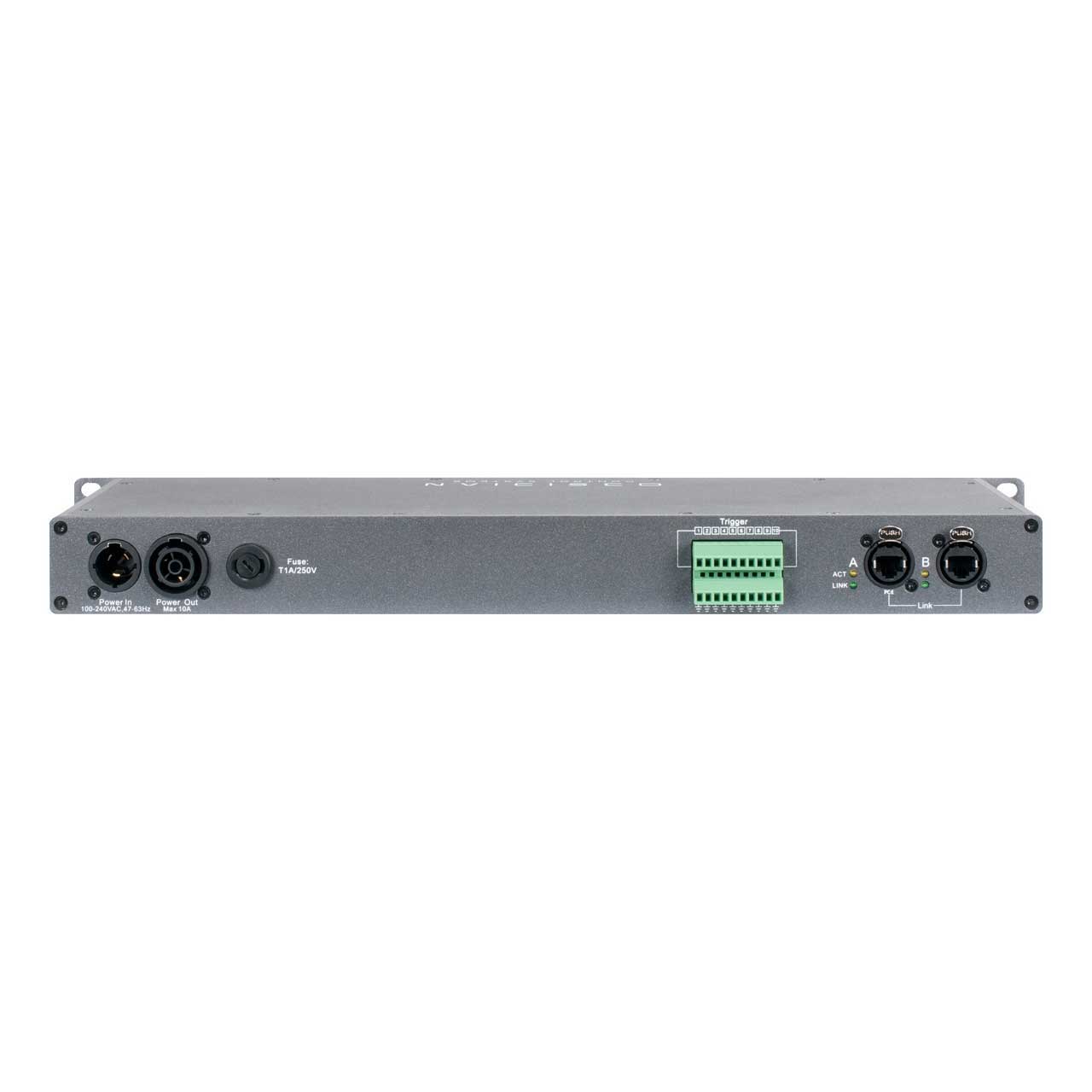

        Back
      • 2x Locking RJ45 Ethernet network In
      • 10x Contact Closures (Terminal Block)
      • Locking Power In/Thru

        Physical
      • Length: 19" (482.5)
      • Width: 5.7" (146 mm)
      • Height: 1.7" (44 mm)
      • Weight: 4 lbs (1.82)
      • Mounting: Rackmount

        Electrical
      • 100-240 V nominal, 50/60 Hz
      • POE 802.3af

        Approvals/Ratings
      • CE/cETLus/FCC/IP20

    • Item Includes:

      • 1x EN12 Ethernet to DMX Gateway
      • 1x Power Cable

    • Warranty:

      • 2 Year

    • GTIN:

      0810008260685
