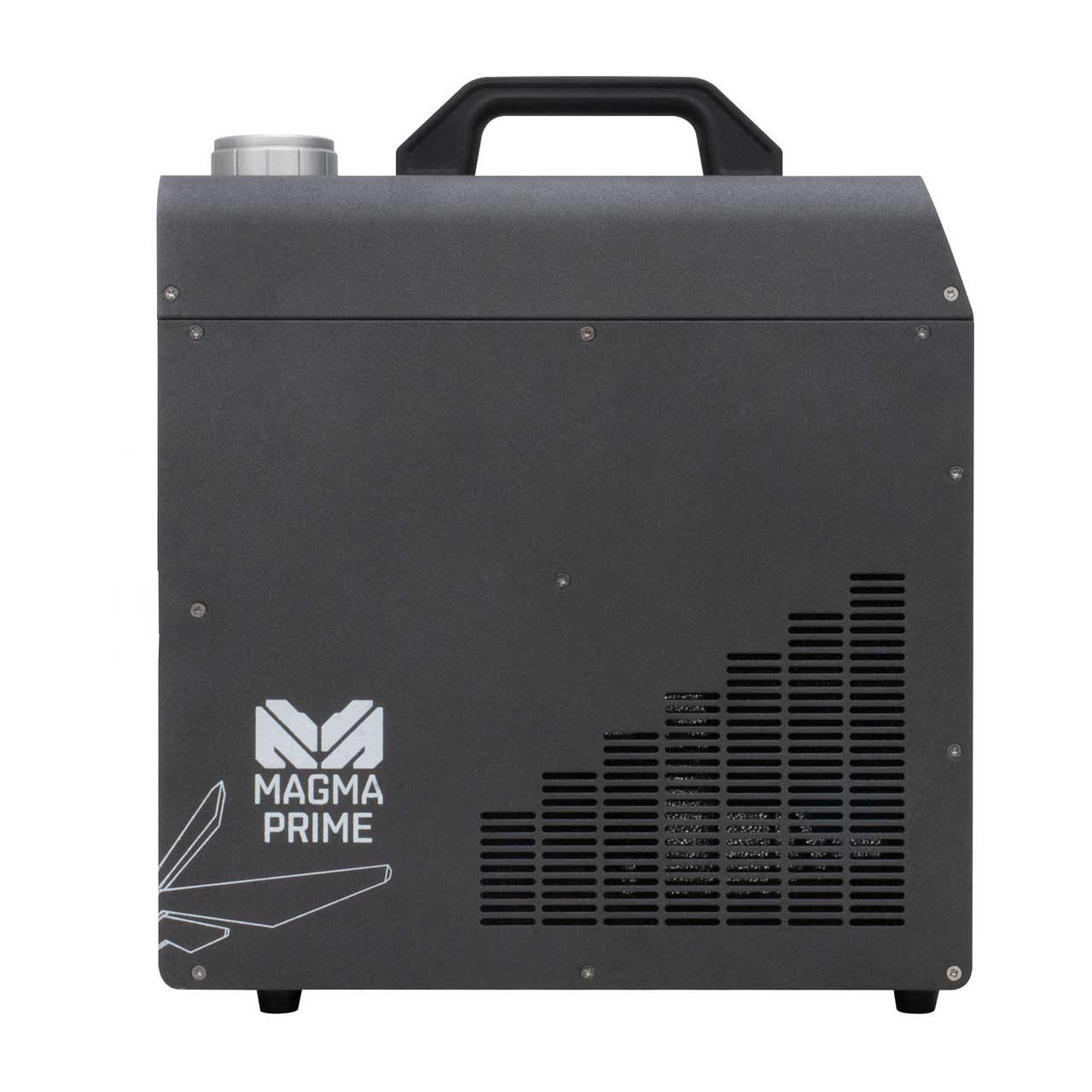

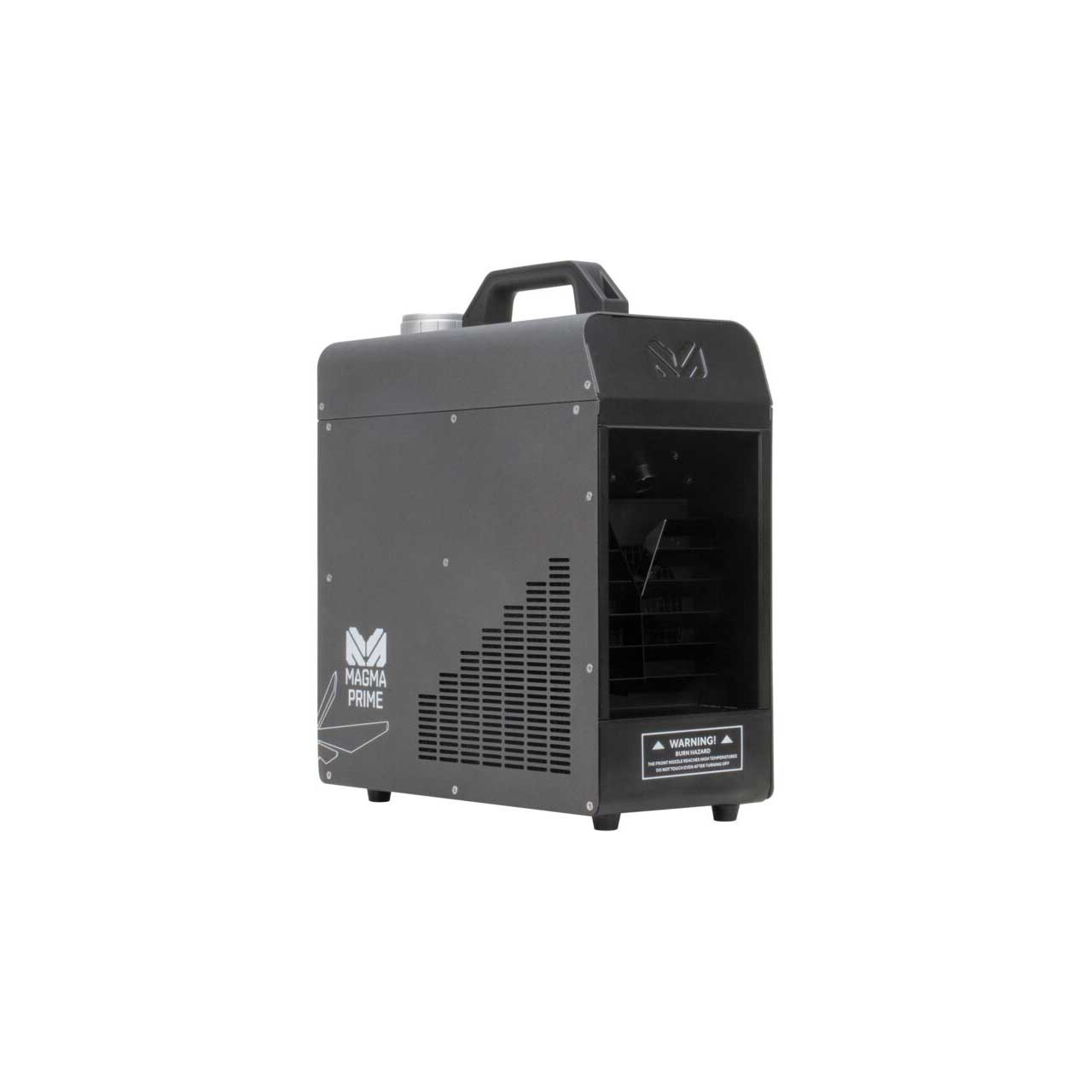

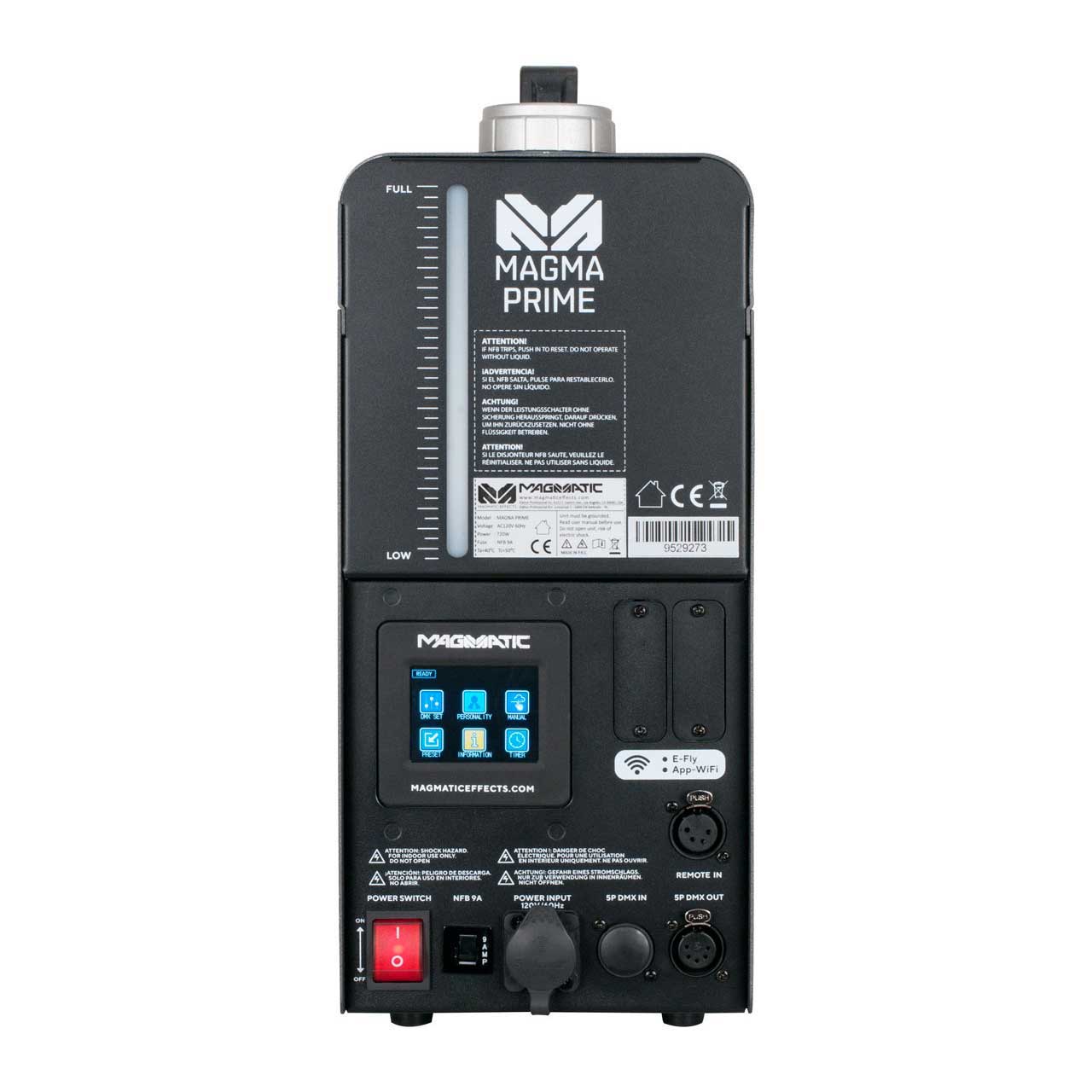

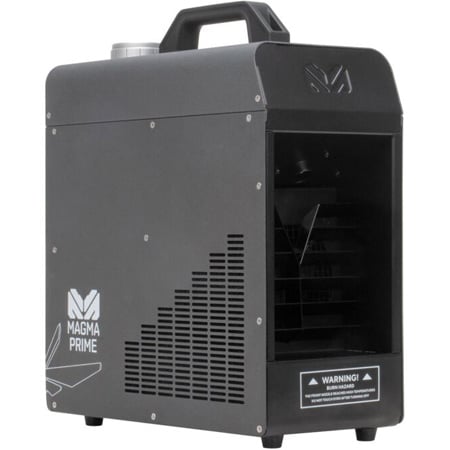

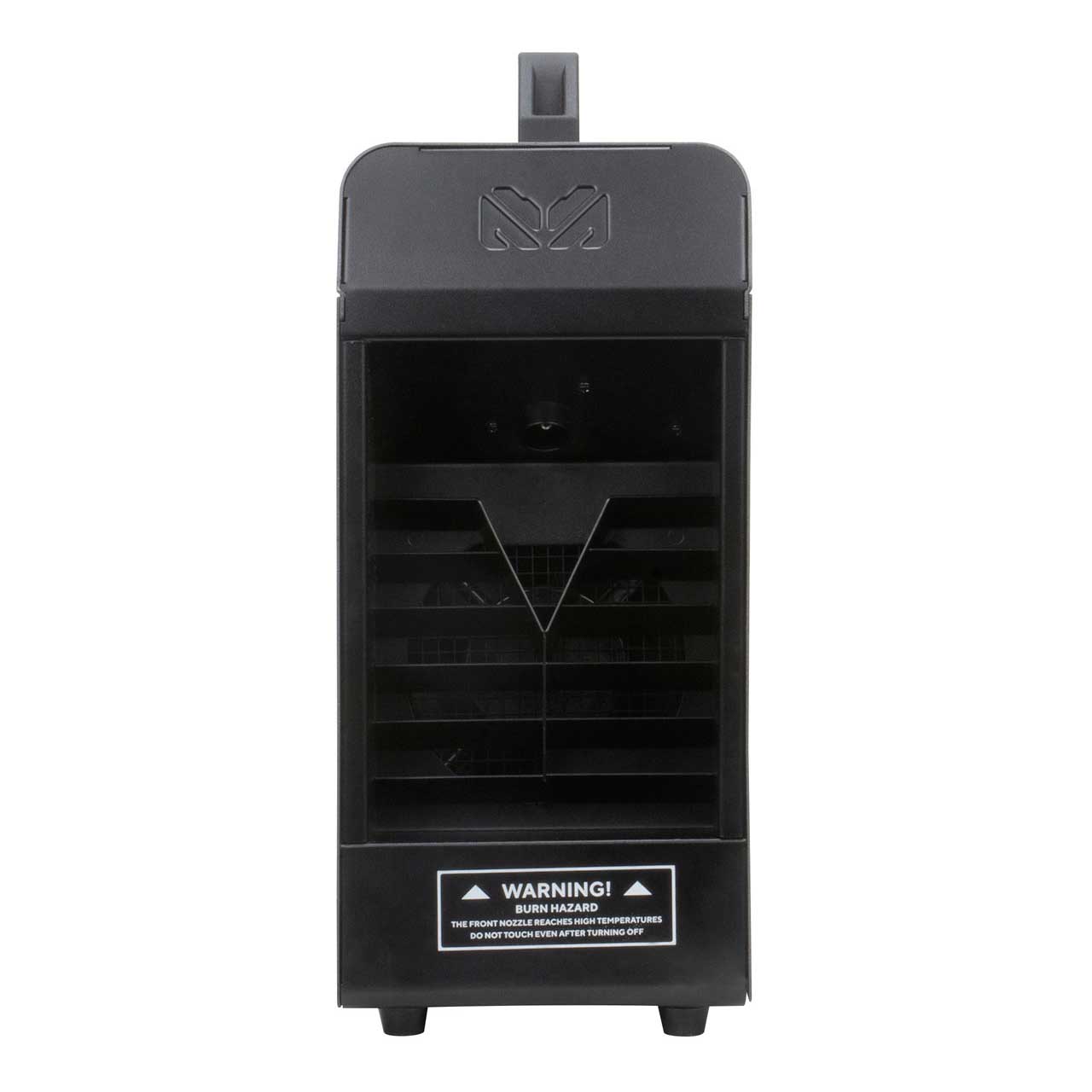

Elation Professional MSP001 Magmatic Magma Prime Hazer

MSP001 - Overview

• Features:

  • 700W Water-Based Hazer
  • 4,000 CFM (cu ft/min.) (113 m3/min) Output
  • Advanced HPA (high pressure air) Pump Technology
  • Energy Saving Mode with Auto-Clean Process
  • Compact Light Weight Robust Design
  • Onboard LCD Touch Control Panel
  • Optional MAGFLY Wireless DMX Transceiver
  • Optional MAGRF Wireless and Wired Remotes


• Specifications:

  • Performance:
  • Rated Power: 700W
  • Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
  • Ready Time: Initial = 6 Minutes*
  • Fluid Capacity: 0.345 gallons (1.3 liters)
  • Fluid Consumption: 0.115 oz/min (3.4 ml/min)
  • *approximate

    Compatible Fluid:
  • Atmosity Extreme Filtered Fog Fluid (AEF-4L)

    Construction:
  • Thermally Protected Heat Exchanger
  • Advanced HPA (high pressure air) Pump Technology
  • Energy Saving Mode with Auto-Clean Process
  • Sealed Fluid Reservoir
  • External Visual Fluid Level Detection
  • Compact Light Weight Mobile Design

    Control:
  • 3 DMX Channel Modes (1 / 3 / 5)
  • Onboard LCD Touch Control Panel
  • DMX-512 and RDM Protocol Support
  • Optional MAGFLY Wireless DMX Transceiver
  • Optional MAGRF Wireless and Wired Remotes

    Connections:
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In
  • With Wired Digital Communication Network

    Size / Weight:
  • Length: 13.3 in. (356mm)
  • Width: 6.29 in. (160mm)
  • Height: 15.91 in. (404mm)
  • Weight: 22.48 lbs. (10.2kg)

    Electrical:
  • AC 100-120V - 50/60Hz
  • 9A (NFB)
  • Max Power Consumption: 720W

    Thermal:
  • Maximum Ambient Temperature (Ta max) 104°F (40°C)
  • Exterior Surface Temperature, Steady State: 122°F (50°C)

    Approvals / Ratings:
  • CE
  • cETLus
  • IP20


• Item Includes:

  • 1x MSP001 Magmatic Magma Prime Hazer
  • 1x Power Cable


• Warranty:

  • 2 Year


• GTIN:

  0810008260906
