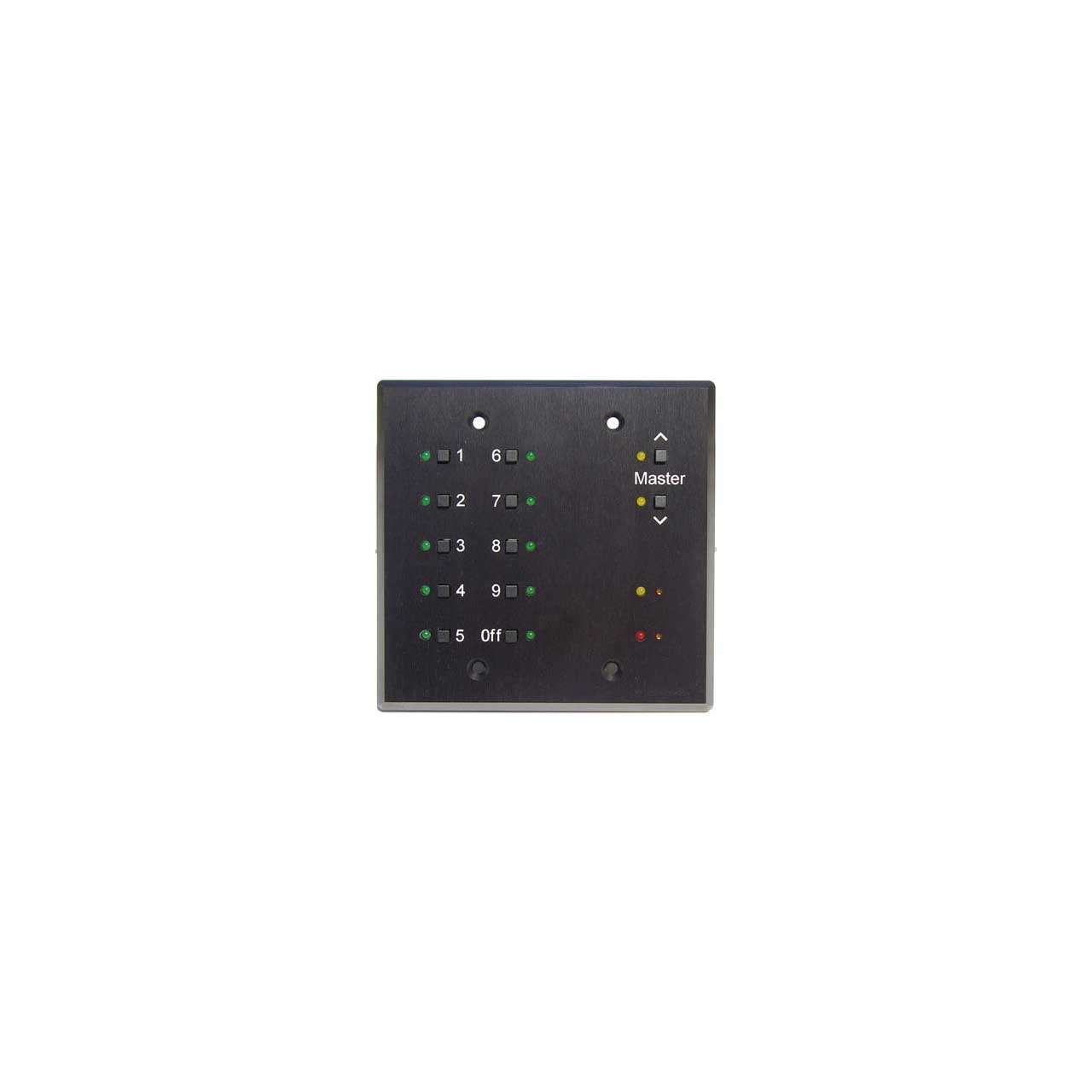

Doug Fleenor Design PRE10-A2 Enhanced Preset 10 Architectural 2 - 2-Gang DMX Controller

ITEM #: DFD-PRE10-A2 MFG #: PRE10-A2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,365.00

Our Price:

$1,143.00

Availability: In Stock
iAvailability Description Popup


    PRE10-A2 - Overview

    The Doug Fleenor Design Preset 10 Architectural Two is a further development of thier popular Preset 10 Architectural controller. The Preset 10 Architectural Two (PRE10A2) offers new features and different wiring options. The new features of the PRE10A2 include a grand master, pile on mode (input + preset), jumper selectable button modes (radio or push on/push off), face panel lockout, and a two gang form factor that allows PRE10A2 to fit in all two gang back boxes. The PRE10A2 has separate input and output ports allowing merging incoming levels with the local preset. This cascading of inputs allows multiple PRE10A2 and a live theatrical console to share control. Systems can also be created where multi-room control is required by a single dimming system.

    • Specifications:

      • Connector:
      • Phoenix Contact MSTB series 3 position two part terminal block
      • Model: MSTB 2,5/3-ST-5,08 Order Number: 17 57 02 2
      • Phoenix Contact MSTB series 5 position two part terminal block
      • Model: MSTB 2,5/5-ST-5,08 Order Number: 17 57 04 8

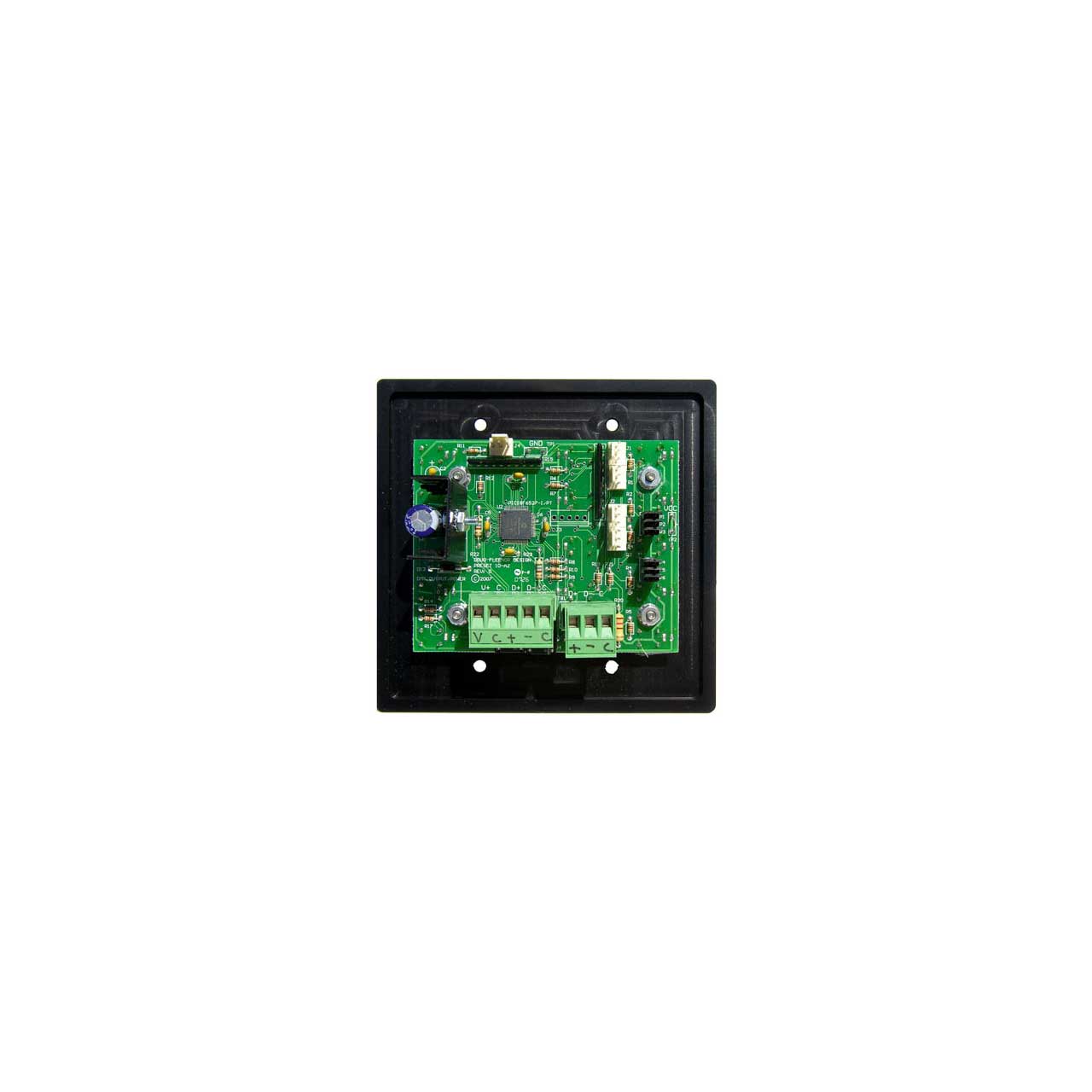

        Connector pin out:
      • 1 (C) DMX512 common
      • 2 ( -) DMX512 data - (input)
      • 3 (+) DMX512 data + (input)
      • 1 (C) DMX512 common
      • 2 ( -) DMX512 data - (output)
      • 3 (+) DMX512 data + (output)
      • 4 (C) Supply common (internally tied to pin1)
      • 5 (V) Supply voltage "hot"

        Input/Output circuit:
      • ESD protected EIA-485 transceiver (LT1785)

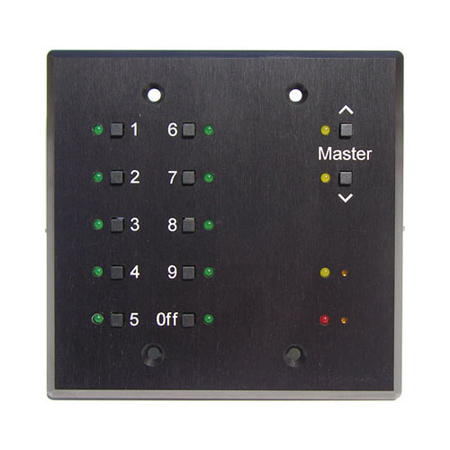

        Indicators:
      • Ten green preset indicator LEDs
      • One yellow "Grand Master 100%" indicator LED
      • One yellow "Grand Master 0%" indicator LED
      • One yellow Fade Time LED
      • One red Signal / Record LED

        User controls:
      • Ten preset push buttons
      • One "Grand Master Up" push button
      • One "Grand Master Down" push button
      • One recessed record push button
      • One recessed fade time push button

        Power input:
      • 9 to 16 volts AC or DC / 150 mA per station
      • (A 10 volt class "doorbell" transformer is recommended for fixed installations)

        Physical:
      • Color:Black anodized with L.A.S.E.R engraved nomenclature
      • Size : Faceplate: 4.5"h X 4.6"w X 0.2"d
      • Faceplate rear inset: 4.15"h X 4.25"w X 0.1"d
      • Electrical box minimum inside dimensions: 3.6"h X 2.9"w X 1.26"d

    • Item Includes:

      • 1x Doug Fleenor Design PRE10-A2 Preset 10 Architectural 2 - 2-gang Architectural Controller with Enhanced Preset 10
