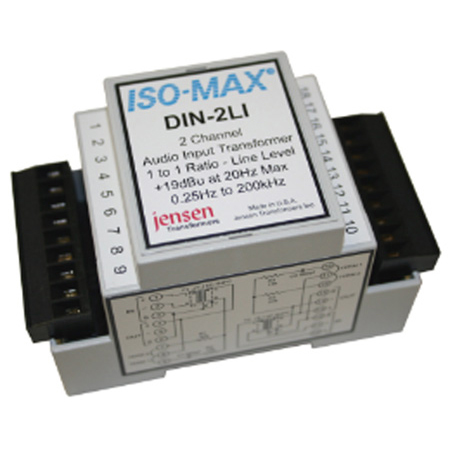

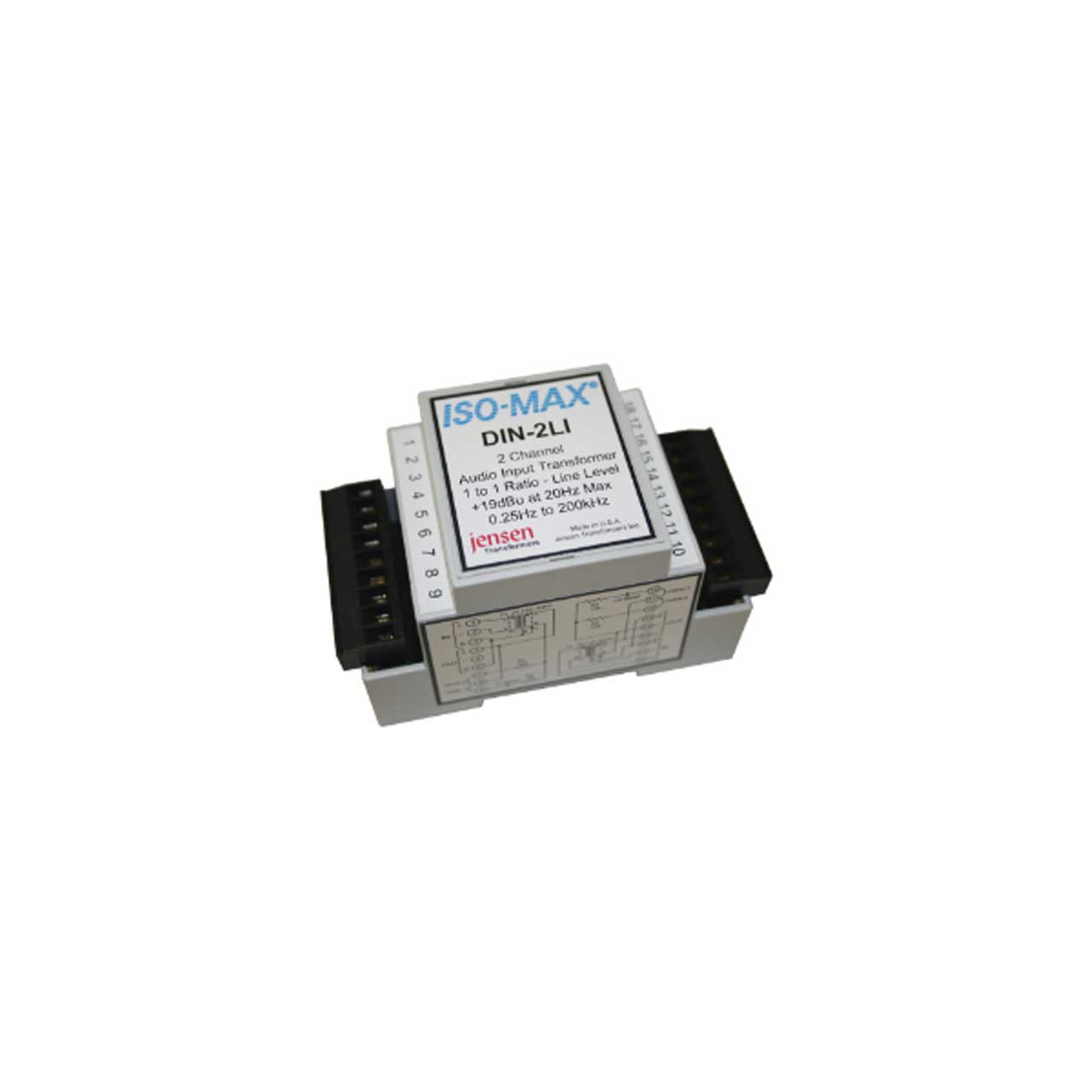

The Jensen Iso-Max DIN-2LI is a 2-channel line input isolator designed to eliminate noise in professional balanced audio systems by isolating the input of the connected device.
The design begins with a gray molded assembly made from UL94-VO flame retardant Noryl that snaps into place onto a standard 35mm DIN rail for easy installation in a NEMA enclosure. Connections to and from the module are made via removable screw-down wire terminals. Plug and play easy to use, this passive interface does not require any power to work. Inside are two Jensen high performance transformers that are able to withstand signal levels to +19dBu at 20Hz without discernible distortion. These provide galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 124dB. To further optimize the performance, a choice of connection point options enable the user to determine the most appropriate grounding scheme to suit the installation.
You simply connect the DIN-2LI between the source and the input destination to eliminate ground loops, electromagnetic interference (EMI) and RFI problems. The DIN-2LI will quietly go to work without introducing distortion, phase shift or artifact of any kind.

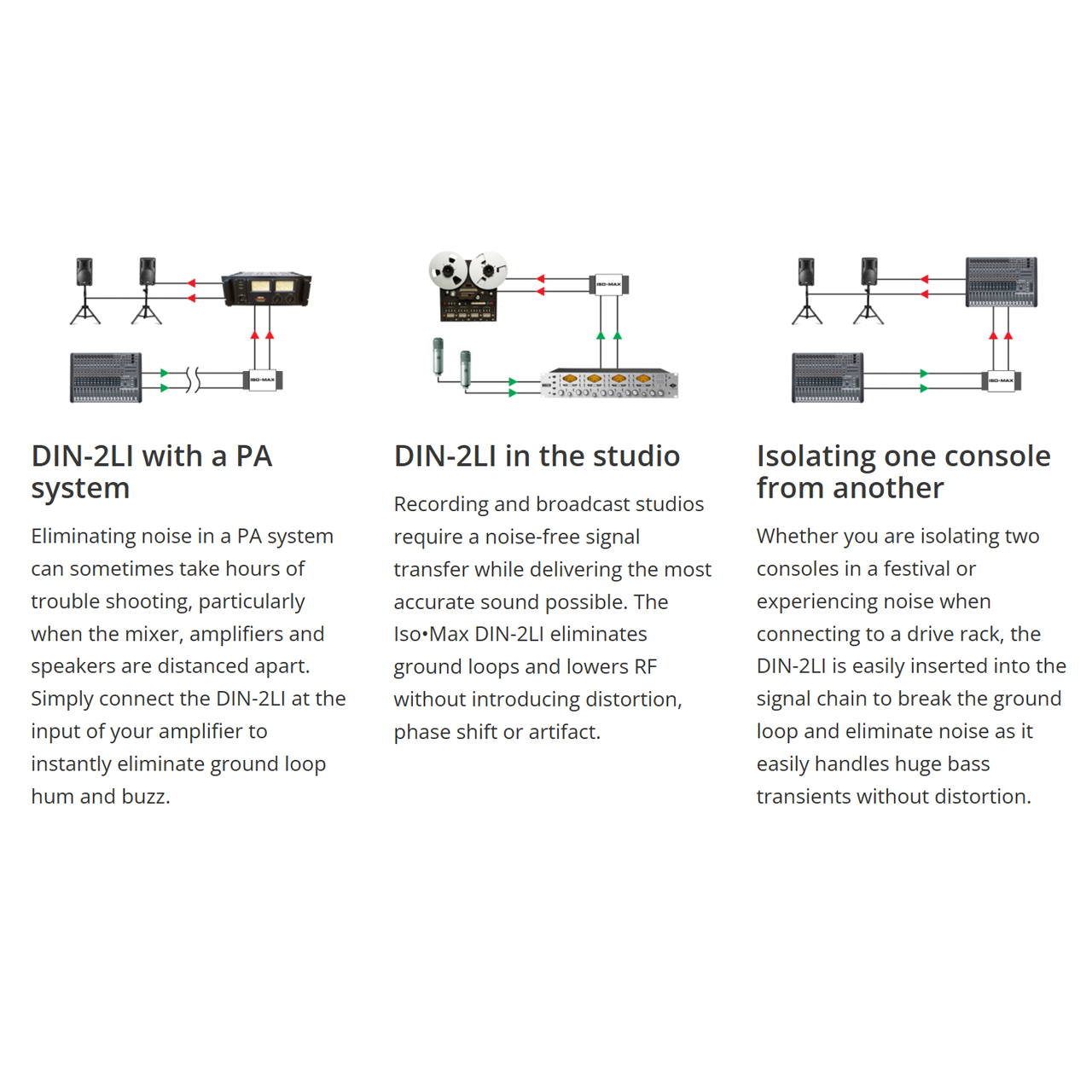

DIN-2LI with a PA System
Eliminating noise in a PA system can sometimes take hours of trouble shooting, particularly when the mixer, amplifiers and speakers are distanced apart. Simply connect the DIN-2LI at the input of your amplifier to instantly eliminate ground loop hum and buzz.
DIN-2LI in The Studio
Recording and broadcast studios require a noise-free signal transfer while delivering the most accurate sound possible. The IsoMax DIN-2LI eliminates ground loops and lowers RF without introducing distortion, phase shift or artifact.
Isolating One Console from Another
Whether you are isolating two consoles in a festival or experiencing noise when connecting to a drive rack, the DIN-2LI is easily inserted into the signal chain to break the ground loop and eliminate noise as it easily handles huge bass transients without distortion.
