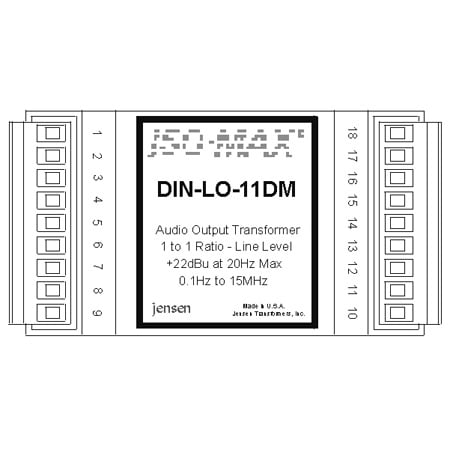

Jensen DIN-LO-11DM 600 to 600 1:1 Line Output Module

ITEM #: DIN-LO-11DM MFG #: DIN-LO-11DM

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DIN-LO-11DM

DIN-LO-11DM - Overview

This module is designed for very high performance line output stages. Specially processed 80% nickel core alloy is used for lowest possible harmonic distortion of high level low frequency signals. For best performance, driving signals should be free of DC and source impedance kept as low as possible.

  • Features:

    • Distortion 0.004% typ at 20 Hz and +4 dBu output level
    • Wide bandwidth: !3 dB at 0.10 Hz and 15 MHz
    • Drives 600 S loads to levels up to +22 dBu at 20 Hz
    • Excellent time domain performance: DLP 0.3E typ 20 Hz to 20 kHz
    • Insertion loss only 1.1 dB when driving 600 S load
