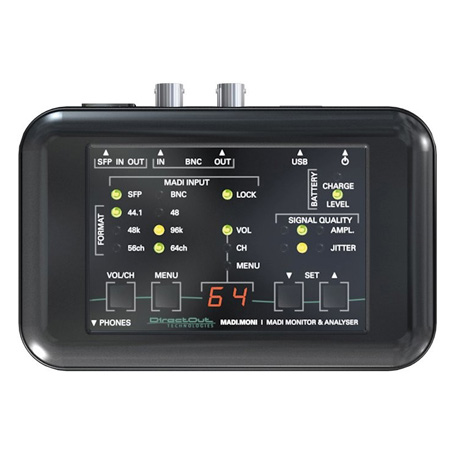

DirectOut Technologies MADI MONI Handheld MADI Tester with Comprehensive Monitoring
  • DirectOut Technologies MADI MONI Handheld MADI Tester with Comprehensive Monitoring
  • DirectOut Technologies MADI MONI Handheld MADI Tester with Comprehensive Monitoring

Questions? Ask a Markertek Expert:
800-522-2025 Email

DirectOut Technologies MADI MONI Handheld MADI Tester with Comprehensive Monitoring

Manufacturer: DirectOut Technologies

Item #: DOT-MADI-MONI   •   MFG #: MADI.MONI




Our Price:$1,250.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





The DirectOut Technologies MADI MONI Handheld MADI Tester with comprehensive monitoring was designed for Engineers working in the field. by offering a straightforward, easy to use interface that allows you to confirm the integrity, physical link and the audio of the MADI signal itself. The unit is battery powered, has a 3.5mm headphone jack, adjustable brightness and more.

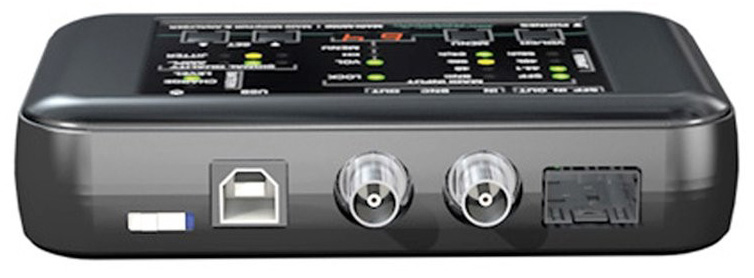

DirectOut's MADI MONI battery powered, mobile monitor and tester provides a coaxial MADI I/O for standard BNC cabling and a flexible SFP I/O to meet various connection standards by using SFP modules. Input signals are analysed (e.g. signal level, jitter, sample rate,...) and can be monitored via a headphone output.

How it Works

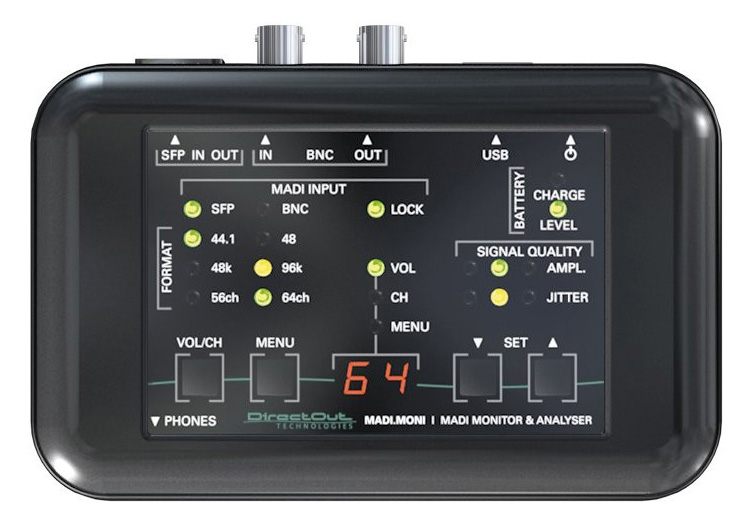

The signal of the selected input is analysed. Analysis results are displayed on the device itself by individual LEDs for each parameter. Amplitude and Jitter are monitored via simple `traffic light' LEDs.

The selected input can be monitored via headphones. Channel selection (mono or stereo pairs) and volume level are adjusted via two push buttons. The brightness of the display and the leds may be varied to match different lighting conditions.


  • Features

    • Portable MADI Audio Signal Monitoring
    • Ensure Stable Signal Connections
    • Detect Cabling Issues (poor signal condition)
    • Line Check of Pre-installed Cables
    • MADI Ports: 1 x SFP (empty cage without module) & 1 x coaxial BNC connectors
    • MADI Formats: 56/64 channel, 48k/96k Frame
    • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz +/-12.5%
    • USB Port: USB 2.0 (B) plug for charging and firmware updates.
    • Analysing Features: Sample Rate, MADI Format, Signal Amplitude, Jitter
    • Display: Segment display to indicate channel / volume / signal level and 12 LEDs to confi rm the integrity of the physical link, the format and settings of the MADI transmission at a glance.

  • Specifications

    • Interfaces: MADI ports (I/O): 1 x coaxial BNC, 75 Ohm & 1 x SFP (empty cage without module)
    • Headphone Out: 1 x 3.5 mm TRS jack, mono/stereo
    • Digital Sample rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
    • MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX
    • Global Service: USB 2.0 for firmware updates (Windowsr)
    • Display: 1 x segment display
    • Power supply: battery powered - rechargeable via USB
    • Width: 120 mm
    • Height: 90 mm
    • Depth: 28 mm
    • Weight: 0.2 kg
    • USB Serial driver:Windows
    • USB Port: 1 x USB 2.0 socket (Type B) for charging and firmware updates
