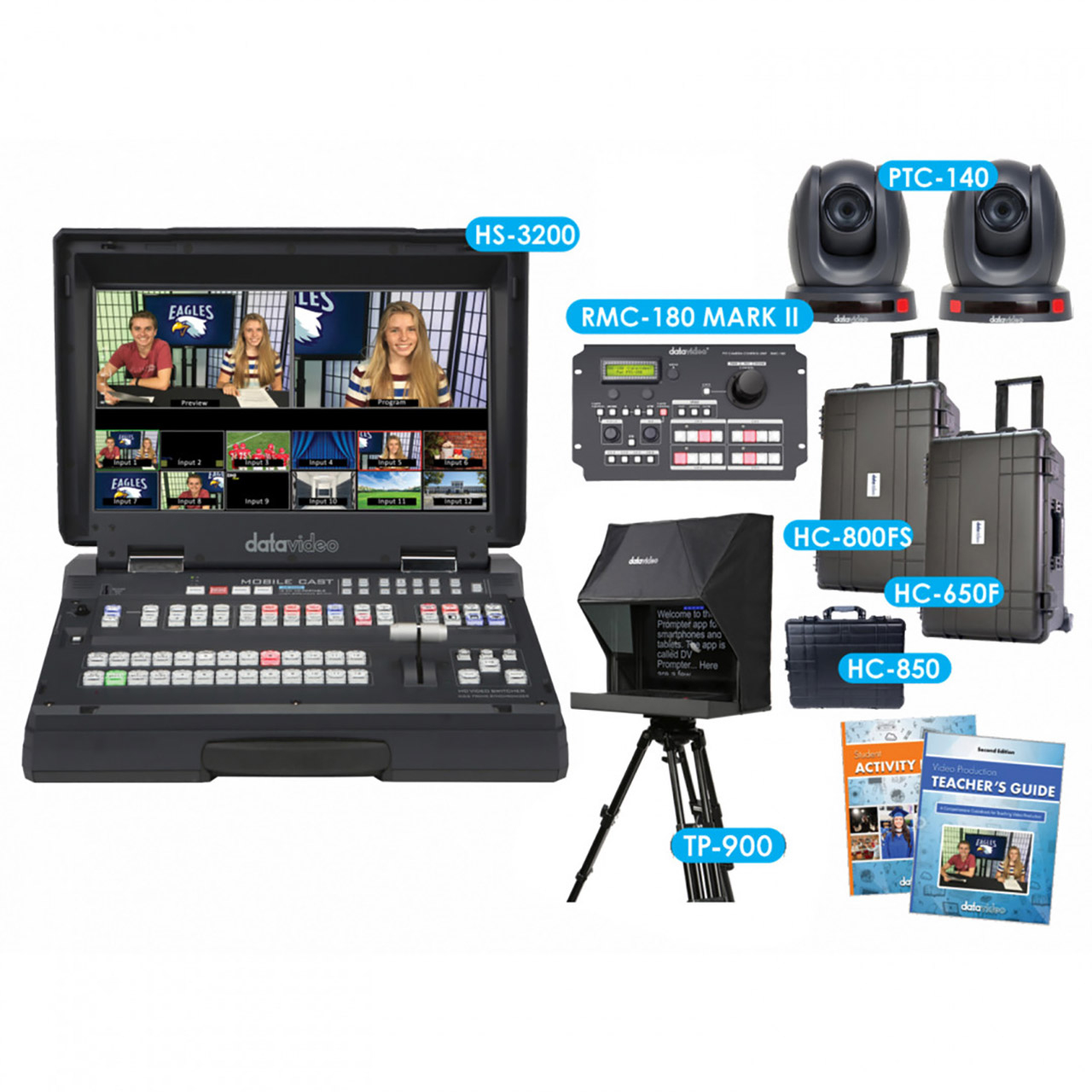

Datavideo EPB-3200 Educator Production Bundle with One HS-3200/One RMC-180 MARKII/Two PTC-140 and Three Equipment Cases

EPB-3200 - Overview

• Features:

  • HS-3200 SDI/HDMI Mobile Streaming Studio

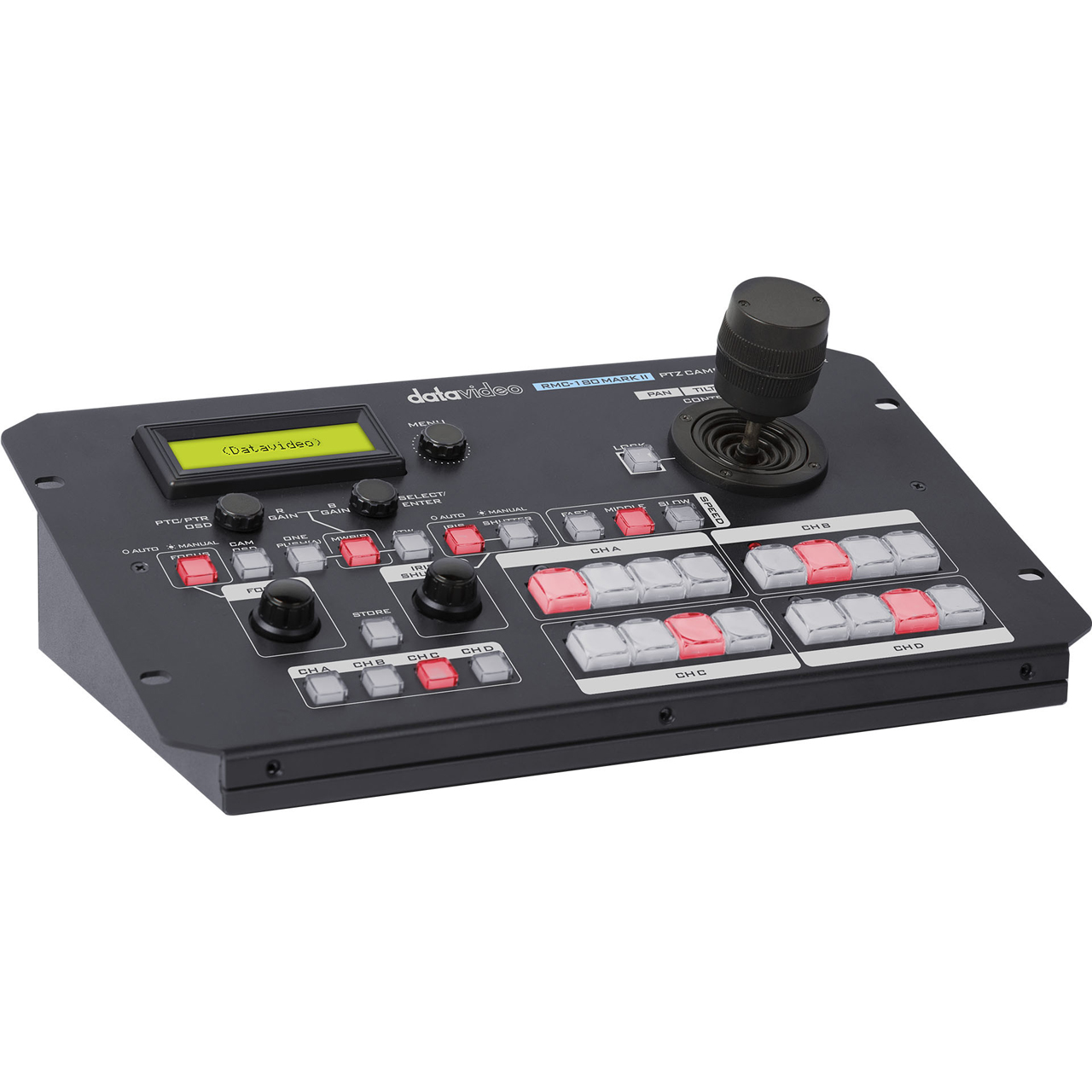

  • RMC-180 Mark II PTZ Camera Controller
  • Two PTC-140 PTZ Cameras with 20x Zoom
  • TP-900 Presentation Teleprompter Kit
  • Three Hard-Shell Carry Cases
  • Video Production Teacher's Guide
  • Tally, Ethernet, SDI, and HDMI Cables


• Specifications:

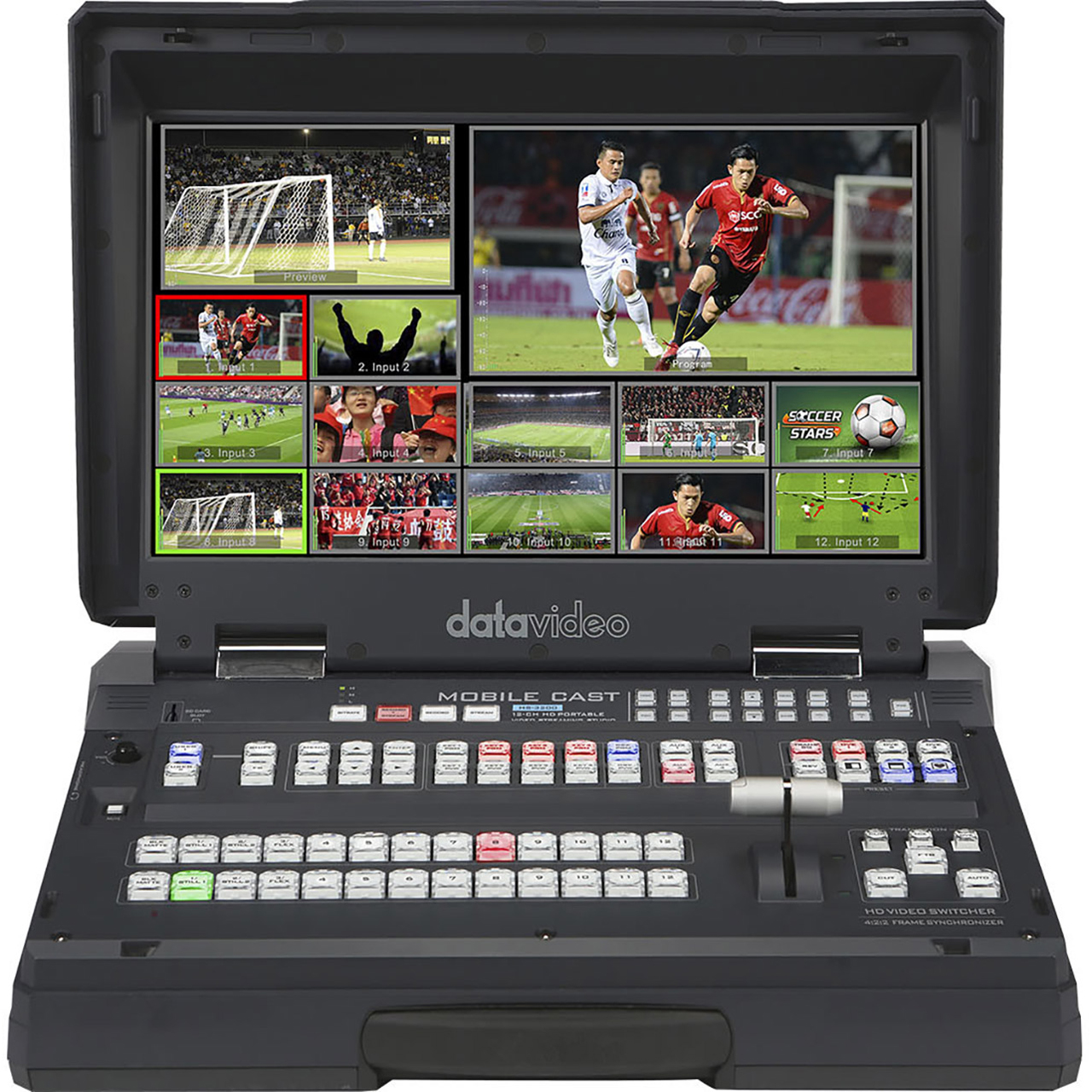

  HS-3200
  • Video Standard: FULL HD
  • Video Format:
    - 1080p 50/59.94/60Hz
    - 1080i 50/59.94/60Hz
    - 720p 50/59.94/60Hz
    Input Routable/Crosspoint: All 8, repeatable
  • Video Input:
    - 8x 3G-SDI
    - 4x HDMI
  • Computer Graphic Interface: 4 via HDMI
  • Down-Converted Output: 1x SDI
  • Video Output: 2-5X SDI
  • HDMI Assignable: 1x Multiview/PGM/PVW/PGM+DSK/Clean PGM/Clean PVW/Input 1-12/STILL 1, STILL 2, Flex source/3x HDMI PGM only
  • Analog Audio Input: 4x Balanced XLR
  • Analog Audio Output: 1x Balanced XLR
  • Digital Embedded Audio Support: Input 2 channels/Output 4 channels
  • Audio Delay Calibration: Up to 16 frames
  • A+V Switching: Yes
  • USK: 4
  • DSK: 2 Support Lumakey & Linear Key (Key/Fill)
  • Picture in Picture: 4
  • Logo Insertion: 2
  • Title Creator: Yes/free download
  • Built-In Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
  • Streaming: H.26/ACS/Main/High Profile Configurable Bit-Rate up to 10Mbs
  • Streaming Audio Encode: AAC-LC/Configurable bit rate range from 32Kbps to 384Kbps
  • Sample Rate: 48KHz, 16bit
  • Streaming Protocol: RTSP/RTMP/SRT
  • Streaming Control: Web browser UI for configuration and control Socket commands
  • Recording File System: FAT32, exFAT, NTFS
  • Recording File Format: MP4 (H.265+ AAC) or (H.264+ AAC)
  • Streaming & Recording Setting Control: Web UI for system configuration and control
  • Special Features:
    - Chroma-Key Virtual Studio
    - Stinger transition and 4 user preset
    - Built in TC-200 CG interface
    - Streaming encoder and recorder
    - 1x 12x9 matrix seamless switch
  • Dimension: 17.91" x 13.97" x 5.27" (455mm x 355mm x 134mm)
  • Weight: 18.7Ibs (8.5kg) Reinforce Plastic case
  • Power: DC 12V, 11A
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)

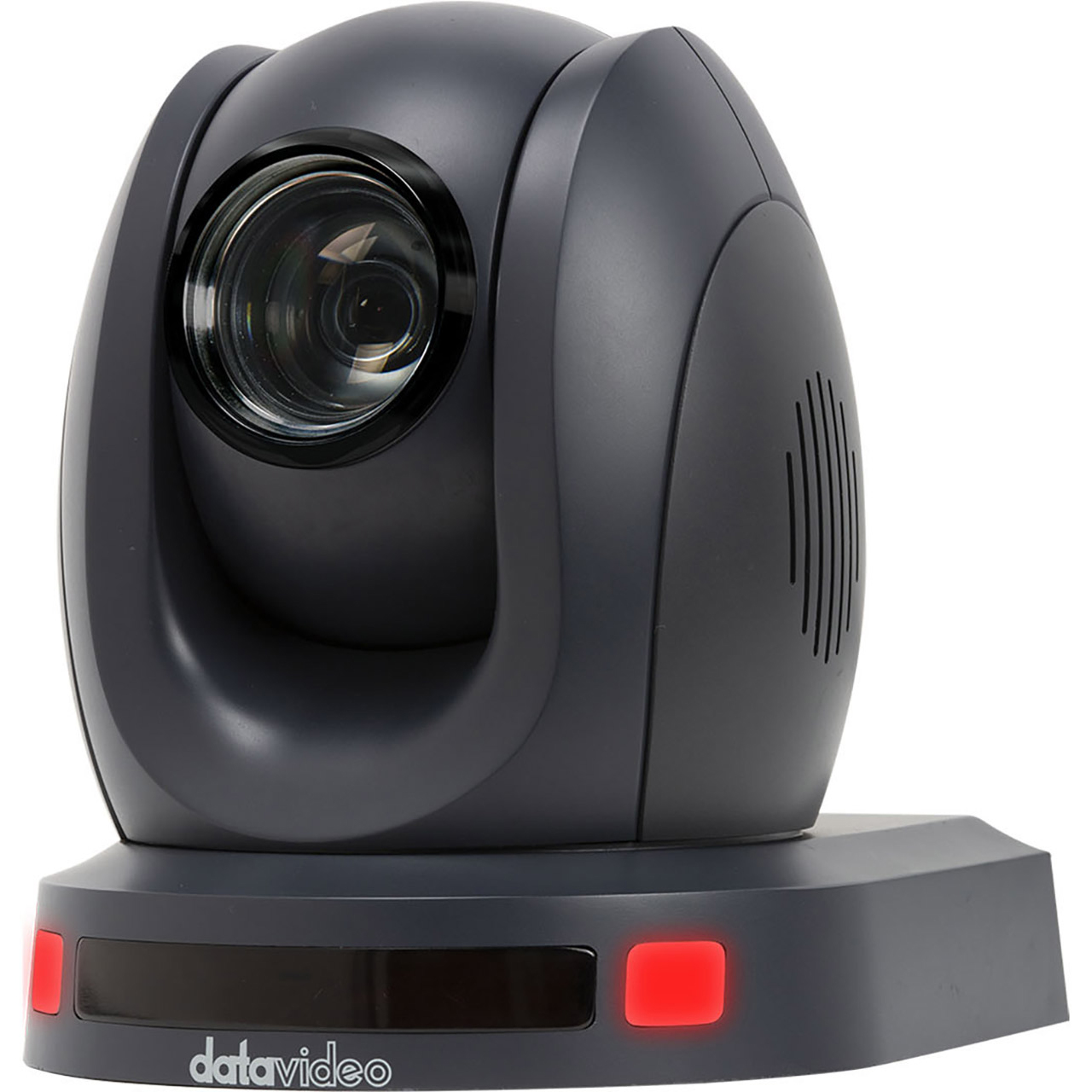

    PTC-140 PTZ Camera
  • Video Format/Resolution:
    - 1080p 60/59.94/50/30/29.97/25
    - 1080i 60/59.94/50
    - 720p 60/59.94/50
  • Image Sensor: Sony 1/2.8" CMOS
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: >55dB
  • Min. Illumination: 0.5Lux (F1.8, AGC ON)
  • Electronic Shutter: Auto/Manual
  • Zoom Ratio:
    - 20x Optical Zoom
    - 10x Digital Zoom
  • Effective Zoom Ratio: 18.85x
  • Gamma Control: Off/Normal
  • Iris Control: Auto/Manual
  • Digital Noise Reductions: Yes
  • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
  • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
  • AGC/Gain Control: Auto/Manual
  • Mirror/Flip Image: Yes
  • Focus Mode: Auto/Manual
  • Panning/Tilting Range:
    - Pan: 340°
    - Tilt: +90° - -30°
  • Panning/Tilting Speed:
    - Pan: 0.1~60°/sec
    - Tilt: 0.1~30°/sec
  • Preset: 255 Position
  • Focal Length: f=5.2 (wide) to 98mm (tele), F1.6 to F3.5
  • Field of View (Horizontal, Wide): Approx. 54.7° (WIDE END)/3.3° (TELE END)
  • Image Compensation: Backlight Compensation
  • Video Output
    - 1x HDMI
    - 1x SDI
  • Audio Input: 3.5mm Line in
  • Tally LED: Dual color (Red, Green)
  • Lens Filter: M52.0 x 0.75 Thread with UV Protection
  • Control Protocol: Pelco-D/Pelco-P/VISCA/VISCA over IP/DVIP/ONVIF
  • Remote Control Interface:
    - RJ-45 - for IP control (DVIP)
    - RS-232 - Mini DIN 8-pin (IN/OUT)
    - RS-485
  • Audio Compression Format: H.264/H.265
  • Audio Compression Format: AAC, G711
  • Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
  • HD IP Interface: 100M IP port(100BASE-TX); Support DVIP
  • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT
  • F/W Update: Via Web GUI
  • IR Control: Yes
  • Camera Control Unit:
    - RMC-2P
    - RMC-180 series
    - RMC-300 series
    - PTZ View Assist APP
  • Tripod Mount: ¼"-20 UNC
  • Optional Accessories: WM-1/WM-10/WM-11
  • Color: Black/White
  • Dimension (LxWxH): 6.14" x 7.2" x 7.32" (156mm x184mm x186mm)
  • Weight: 3.5Ibs (1.6kg)
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)
  • Power: DC 12V 12W


• Item Includes:

  • 1x HS-3200 Unit
  • 1x AD Switch DC 12V with AC Cord
