Datavideo NVD-35MK II IP Video Decoder with SDI / Composite and Analog Audio Outputs

ITEM #: DV-NVD-35MK-II MFG #: NVD-35MK II

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$719.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NVD-35MK II - Overview

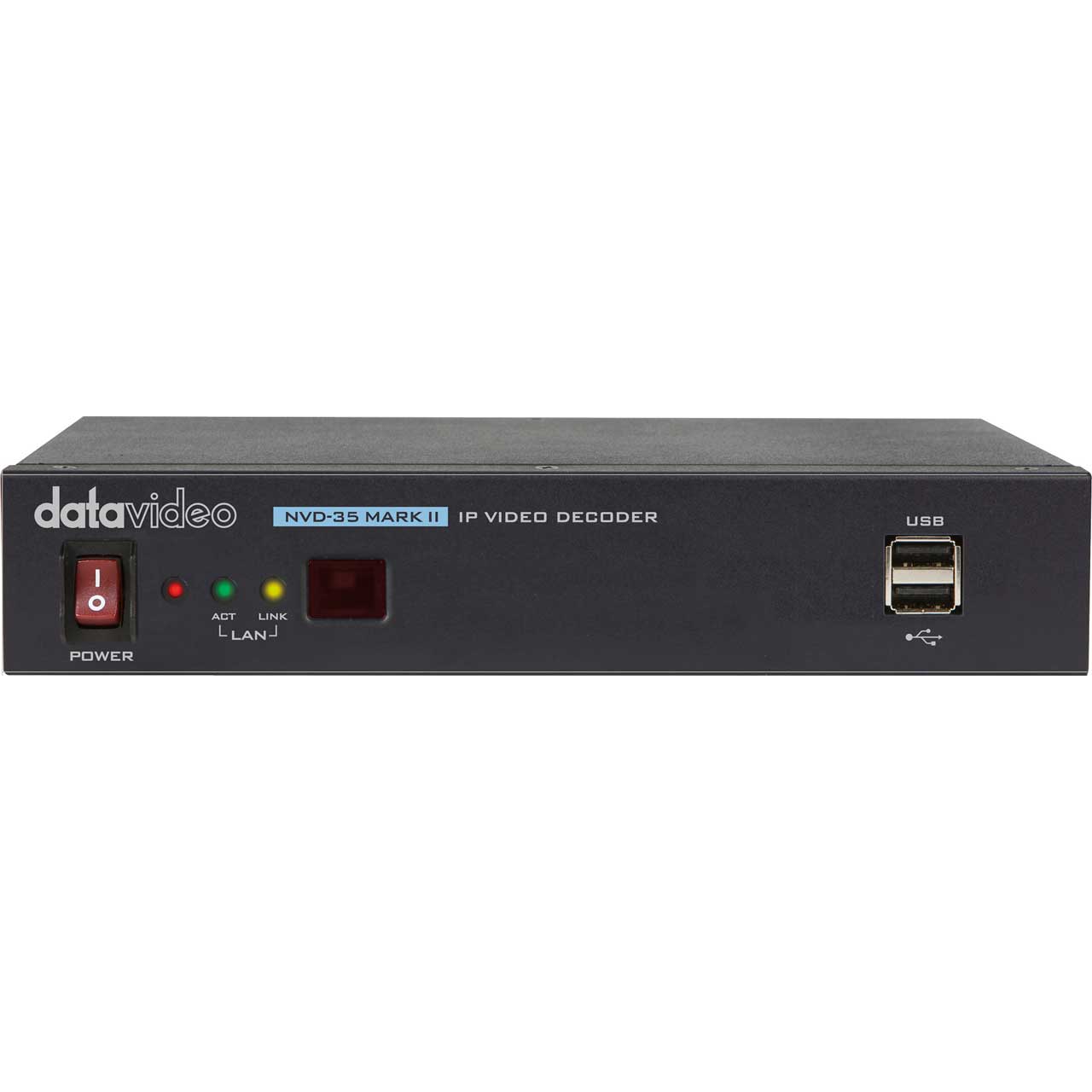

    The Datavideo NVD-35 MARK II is a wired IP video decoder with SDI, Composite and analogue audio outputs. The NVD-35 MARK II decodes all common protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS and can output SD/HD video at resolutions up to 1080p60.

    Decodes directly from YouTube Live, UStream and most major CDNs without any 3rd party advertising.

    This video decoder is the perfect partner to the Datavideo NVS-33/35/40 IP encoders allowing full HD point to point video links over Ethernet, WiFi or the Internet.When connected to dv Cloud the NVD-35 MARK II is controllable from anywhere in the world and can be easily connected to any encoder via the cloud.

    When connected to a Datavideo DVS-200 server or dv Cloud, the NVD-35 MARK II can function as an IPTV set top box downloading a channel list of both live and pre-recorded streams automatically.

    Output high quality video at 1080p 50/60 FPS
    The IP Video Decoder supports SDI and Composite video output with resolutions up to 1080p 50/60 FPS. RCA audio output is also supported.

    Decodes all common streaming protocols
    NVD-35 MARK II decodes all common streaming protocols, directly from YouTube Live, UStream, Dailymotion, Livestream, Twitch and other major CDNs, and skips all third-party ads.

    Decodes all common streaming protocols including SRT
    The video decoder decodes common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS. The new support for SRT streaming protocol has three main features of security, reliability and low latency, which enables high quality video streaming with ultra-low latency even in unstable network environment.

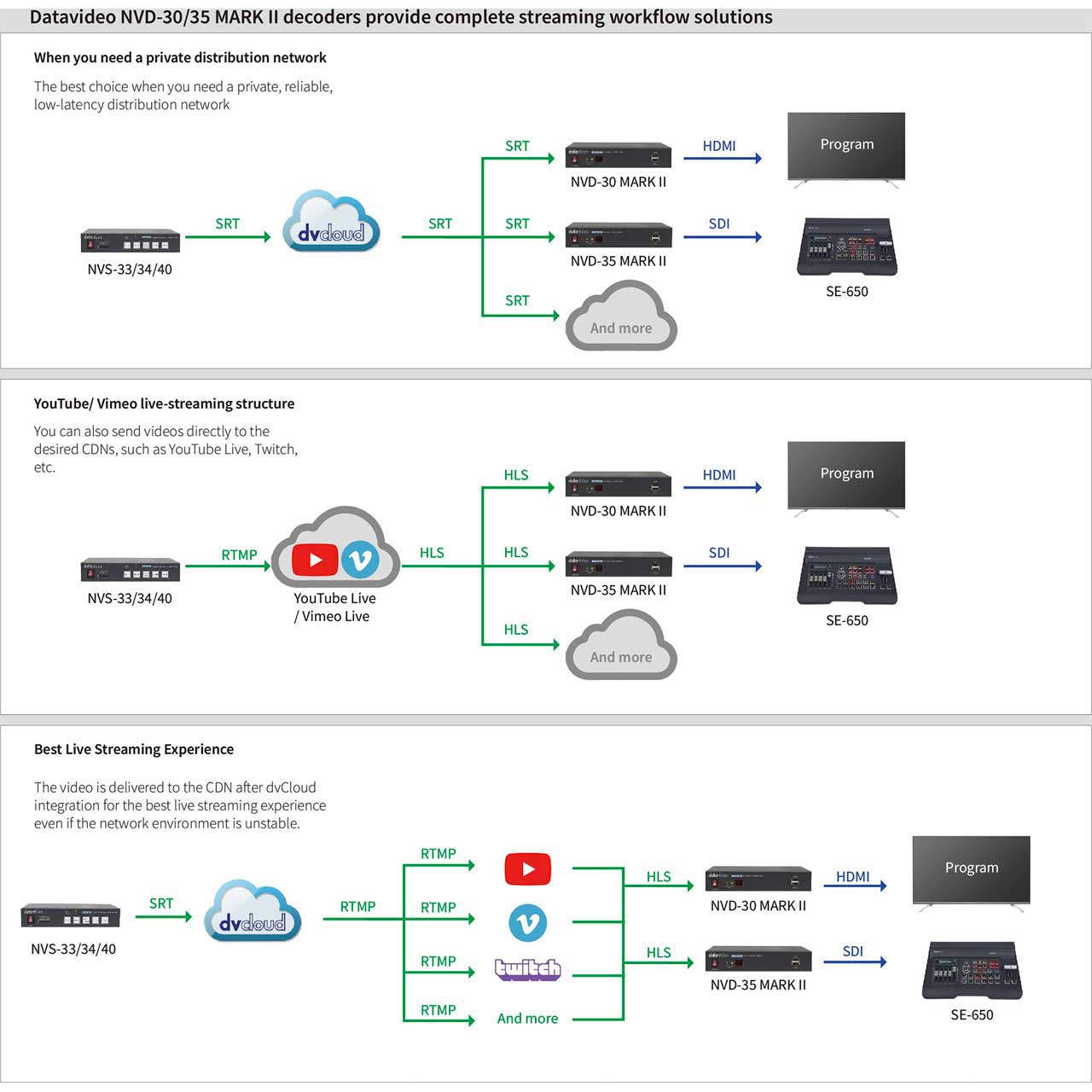

    Perfectly Matched with Datavideo Streaming Encoders
    The NVD-35 MARK II can be matched with Datavideo NVS-33/34/40 and other streaming encoders to create a Full HD video transmission architecture based on Ethernet, WiFi or the Internet.

    Real-time Video Flip and Rotate
    The NVD-35 MARK II adds real-time video flipping and rotating functions for more flexible video output options.

    • Features:

      • Operates on standard 10/100Mb Ethernet networks
      • Excellent image quality with very low delay
      • Unicast and multicast support
      • Supports RTSP (Unicast/Multicast), RTMP, UDP (Unicast/Multicast), TCP, HTTP, HLS and MPEG-TS
      • Supports SRT listener mode

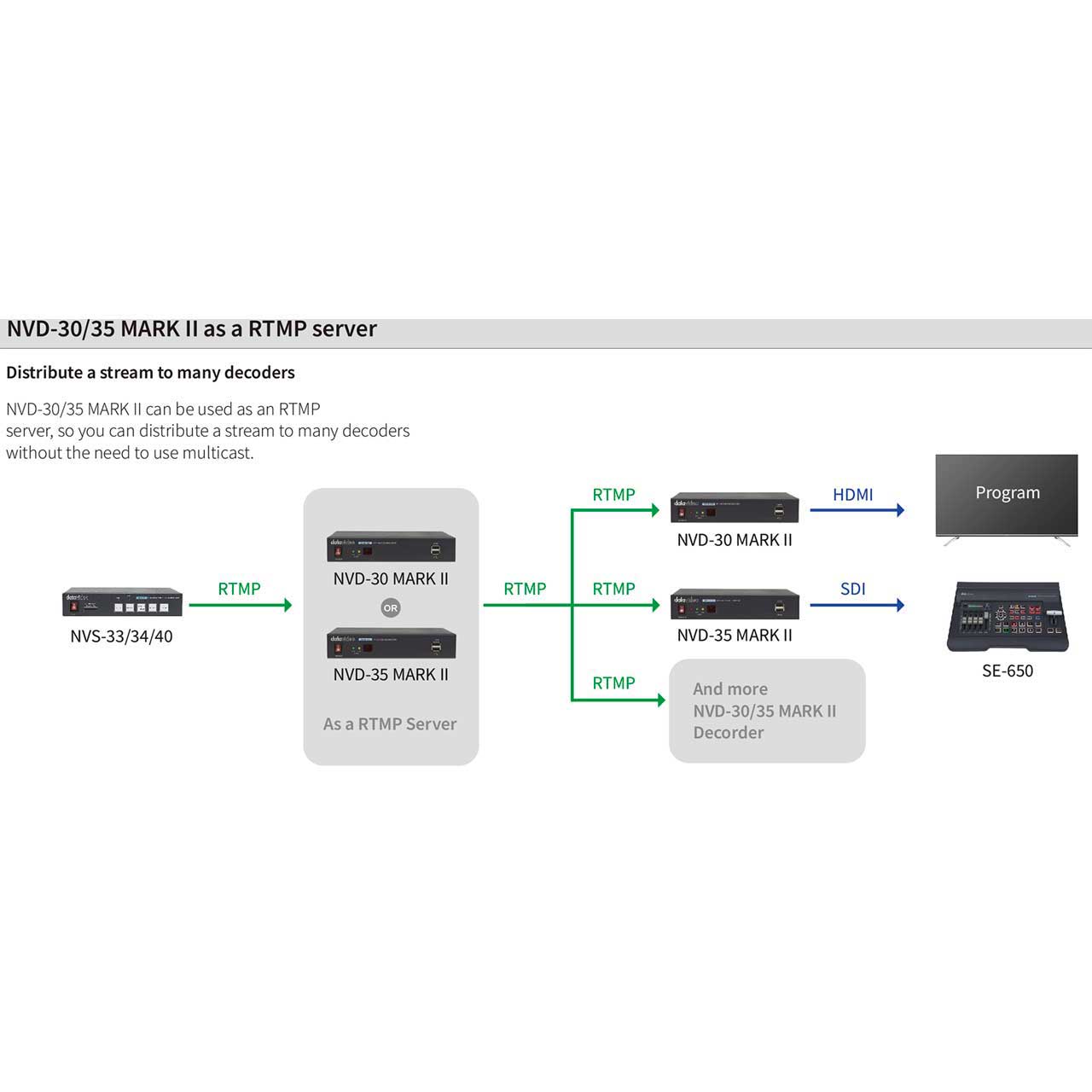

      • Built in RTMP server for point to multipoint distribution
      • Direct decoding from most major CDNs without any 3rd party advertising
      • Remote control via dv Cloud
      • Channel list download from DVS-200 Cloud Streaming Server
      • Feature-rich WebUI for configuration and control
      • Built in video scaler
      • Supports Full HD video and audio
      • Supports simultaneous digital embedded and analogue audio output

    • Specifications:

      • Audio/Video Input: RTSP over UDP (Unicast / Multicast), RTSP over TCP, RTSP over HTTP, SRT (Secure Reliable Transport) caller, MPEG-TS over UDP, RTMP Pull, RTMP Push (Internal Server), UDP raw (Unicast/Multicast), HLS over HTTP, MPEG-TS over TCP Pull, Video sharing websites
      • Audio Output: 2 x RCA(L/R), SDI embedded audio
      • Video Output: Composite (analog), SDI (digital)
      • Network Feature: 1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP
      • Supported Video Resolution: 1080p 60/59.94/30/29.97/25/24, 1080i 60/59.94/50, 720p 60/59.94/50, 576i 50 (PAL), 480i 60 (NTSC)
      • Supported Decoding Resolution: Up to 1080p60/50
      • Control: Web browser UI for configuration and control., TCP/IP Socket commands
      • Update: Automatic firmware upgrade
      • Power: Input AC 100~240V Switching Adaptor, Output DC 12V / 1A
      • Environmental Conditions: Operating temperature: 0~40°C, Storage temperature: -10~60°C
      • Dimension (LxWxH): 220 x 143 x 47 mm
      • Weight: 1 kg
      • Power: DC 12V, 1A

    • Item Includes:

      • 1x NVD-35 MARK II product
      • 1x AD Switch DC 12V
      • 1x Remote Control
