PTC-155W - Overview

AI-Powered PTZ Camera
Introducing the PTC-155 Series, Datavideo's latest AI-powered PTZ camera engineered for professional video production.Designed with a 1/2.8" CMOS sensor, 30x optical zoom, and an intelligent dual-lens system, the PTC-155 delivers smooth, natural tracking and premium Full HD 1080/60P image quality.
Whether it's a grand performance hall, a classroom lecture, a corporate conference, or a place of worship, the PTC-155 excels in capturing every moment with unmatched clarity and stability.

Tally Light
Green and red tally lights to show the preview and program status for broadcast applications.

Build a Reliable SRT Live Streaming Workflow with All Datavideo Products
Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

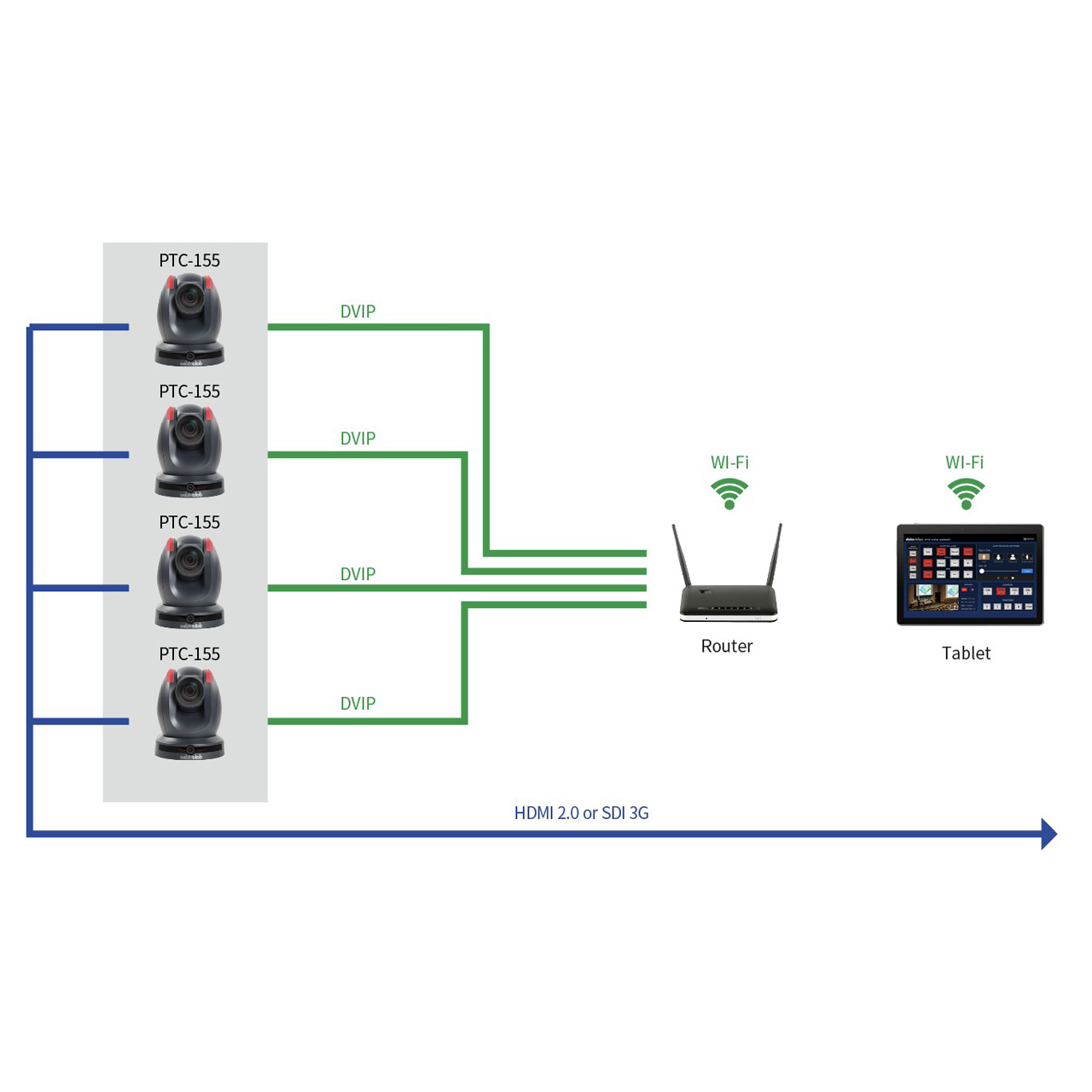

Remote Control From Anywhere in the World
Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

  • Features:

    • Powerful 30x Optical Zoom
    • AI Powered Auto-Tracking
    • Innovative Pan-Tilt-Zoom/Dual Lense System

  • Specifications:

    • Video Format/Resolution:
      - 1080p60/59.94/50/30/29.97/25
      - 720p60/59.94/50
    • Image Sensor: Sony 1/2.8" CMOS
    • Effective Pixels (approx.): 2.14 Mega pixels
    • S/N Ratio: =50dB
    • Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
    • Electronic Shutter: 1/25s ~ 1/10000s
    • Zoom Ratio: 30x Optical Zoom, 16x Digital Zoom
    • Effective Zoom Ratio: 27.35x
    • Iris Control: Auto/Manual
    • Digital Noise Reductions: 2D/3D
    • On-Screen Display: English/Simplified Chinese/Traditional Chinese
    • White Balance: Auto, OnePush, Manual
    • AGC/Gain Control: Yes
    • HDR/WDR: WDR
    • Mirror/Flip Image: Yes
    • Focus Mode: Auto/Manual
    • Panning/Tilting Range:
      - Pan: 300°
      - Tilt: +130° - -15°
    • Panning/Tilting Speed
      - Pan: 0.1~ 60°/sec
      - Tilt: 0.1° - 30°/sec
    • Preset: 255 Positions
    • Focal Length: f = 5.5mm (wide) to 150.43mm (tele), F1.66(Wide) ~ F4.99 (Tele)
    • Field of View: (Horizontal,Wide)
    • Main: 54°
    • Panorama: 86°
    • Image Compensation: Backlight Compensation
    • Video Output:
      - 1x HDMI 1.3
      - 1x 3G-SDI
      - 1x UVC output
      - 1x 10/100M RJ45 (PoE)
    • Audio Input: 1x 3.5mm (LINE in/Mic in)
    • Tally LED: Yes
    • Control Protocol: Pelco-D/Pelco-P/VISCA/VISCA over IP, NDI, DVIP, ONVIF
    • Remote Control Interface: IR/Web UIRS-422/RS-232 (RJ-45)/DVIP/NDI
    • Video Compression Format: H.264/H.265/MJPEG
    • Audio Compression Format: AAC, G711
    • Audio Bitrate: 96Kbps, 128Kbps
    • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3
    • First Stream Supported Resolution:
      - 1920x1080
      - 1280x720
      - 1024x576
      - 960x540
      - 640x480
      - 640x360
    • Second Stream Supported Resolution:
      - 720x480
      - 640x360
      - 640x480
      - 320x240
    • Video Bitrate: 32Kbps ~ 20Mbps (First Stream)32Kbps ~ 5Mbps (Second Stream)
    • Video Bitrate Mode: VBR, CBR
    • Encoding Frame Rate
      - 50Hz:
      1fps - 50fps
      - 60Hz: 1fps - 60fps
    • POE: IEEE 802.3at
    • F/W: Update Via Web UI
    • IR Control: Yes
    • Camera Control Unit:
      - RMC-2P
      - RMC-180 series
      - RMC-300 series
      - PTZ View Assist APP
    • Tripod Mount: ¼"-20 UNC
    • Optional Accessories: WM-1/WM-10/WM-11
    • Color: Dark Blue/White
    • Dimensions (LxWxH): 7.2" x 0.89" x 7.63" (184mm x 228.5mm x 194mm)
    • Weight: 5.95Ibs (2.7kg)
    • Operating Temp. Range: 32°F - 104°F (0°C - 40°C)
    • Power: DC 12V 19W

  • Item Includes:

    • 1x PTC-155 product
    • 1x IR remote controller
    • 1x Ceiling mount bracket -B
    • 6x Ceiling mount bracket screw M3*4mm
    • 1x DC 12V Power Adaptor
    • 1x Safety cable
