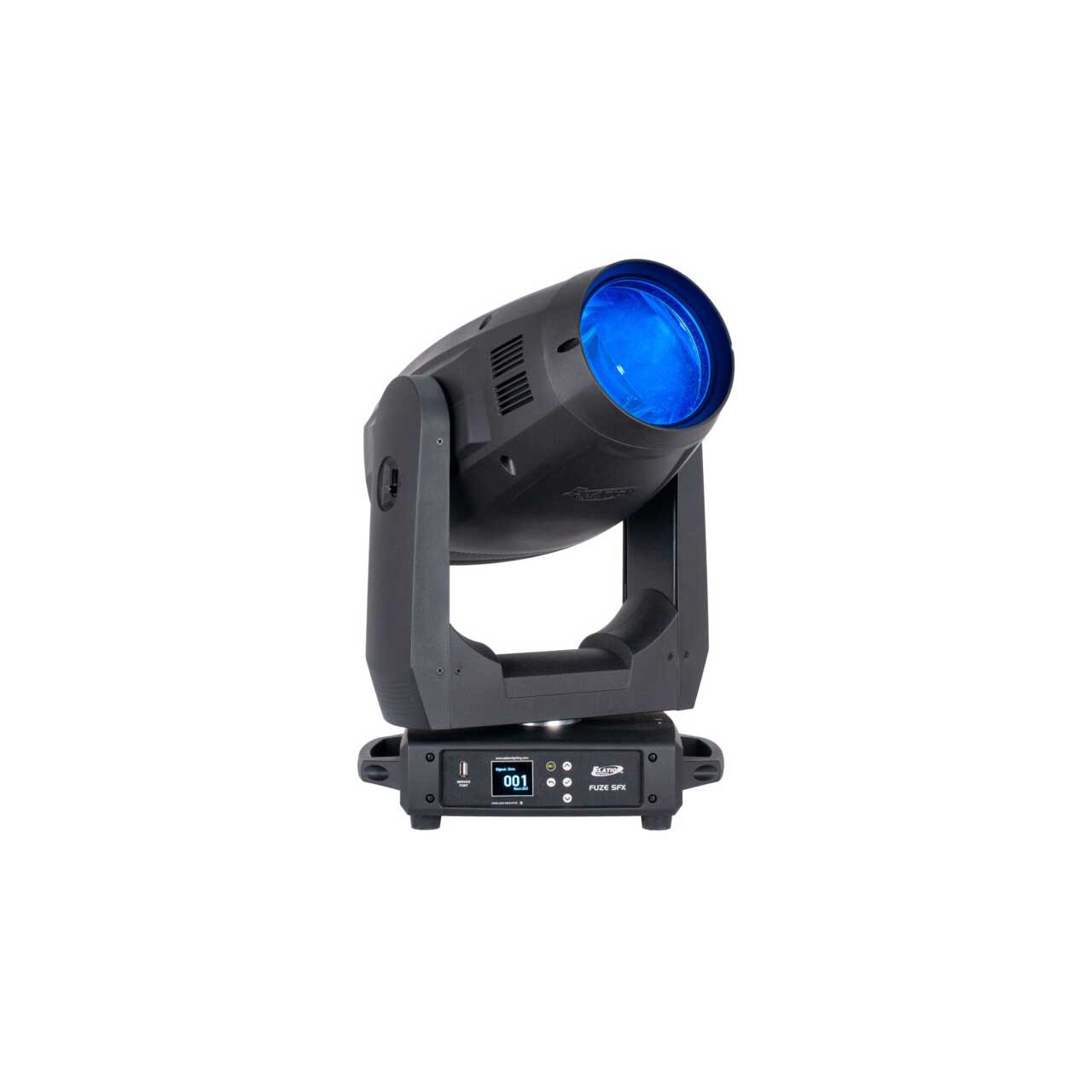

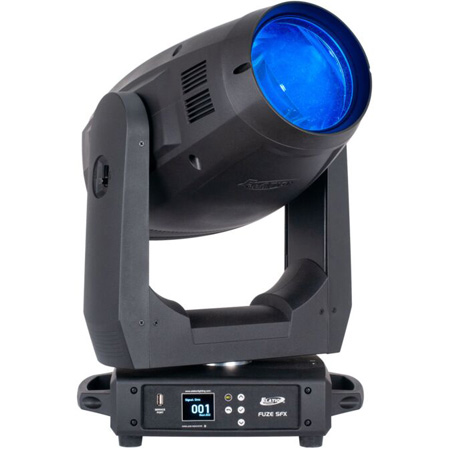

Elation Professional FUZ406 Fuze SFX LED Spot FX Fixture

ITEM #: ELAT-FUZ406 MFG #: FUZ406

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,700.00

Our Price:

$2,960.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    FUZ406 - Overview

    The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.

    Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.

    A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.

    • Features:

      • 300W LED 6,600K White LED Engine
      • 12,000 Total Lumen Fixture Output
      • Spot and Effects Fixture
      • Zoom Range from 4.5° to 38°
      • Variable CMY and 7-Position Color Wheel
      • 8 Rotating and 10 Fixed Gobos
      • Dual Independent Prisms for Layering
      • Motorized Iris
      • Variable Wash Frost Filter

    • Specifications:

      • Source:
      • 300W 6,600K Bright White LED Engine
      • 20,000 Hour Average LED Life*
      • *Test lab conditions. May vary depending on several factors including but not limited to:
      • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

        Photometric Data:
      • 12,135 Total Lumen Output
      • CRI 68

        Effects:
      • 4.5° - 38° Motorized Zoom
      • Remote Focus
      • Variable Frost Filter
      • Dual Independent Prisms (6 Facet linear & 6 Facet round)
      • Motorized Iris
      • Variable 16-bit Dimming Curve Modes
      • High Speed Electronic Shutter and Strobe
      • Color:
      • CMY Variable Color Mix
      • 7 Position Color Wheel

        Gobos:
      • 2 Gobo Wheels
      • Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
      • Wheel #2 with 10 Static Gobos

        Control / Connections:
      • 31 DMX Channels
      • 16-bit Pan, Tilt, and Dimming Control
      • DMX Adjustable LED Frequency
      • DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
      • 4 Button Touch Control Panel
      • Full Color 180° Reversible LCD Menu Display
      • Locking 5pin XLR Connector In/Out
      • Locking RJ45 Ethernet Connector In/Out
      • IP65 Locking Power Connector In/Out
      • USB Connection (Firmware Updates)
      • With Wired Digital Communication Network

        Size / Weight:
      • Length: 14.3” (362mm)
      • Width: 9.2"" (233mm)
      • Vertical Height: 23.4"" (595mm)
      • Weight: 46.3 lbs. (19.3kg)

        Electrical / Thermal:
      • AC 100-240V - 50/60Hz
      • 432W Max Power Consumption
      • 14°F to 113°F (-10°C to 45°C)
      • BTU/hr (+/- 10%) 1473.12

        Approvals / Ratings:
      • CE
      • cETLus
      • IP20

    • Item Includes:

      • 1x FUZ406 LED Spot FX Fixture
      • 1x Power Cable

    • Warranty:

      • 2 Year

    • GTIN:

      0810008260852
