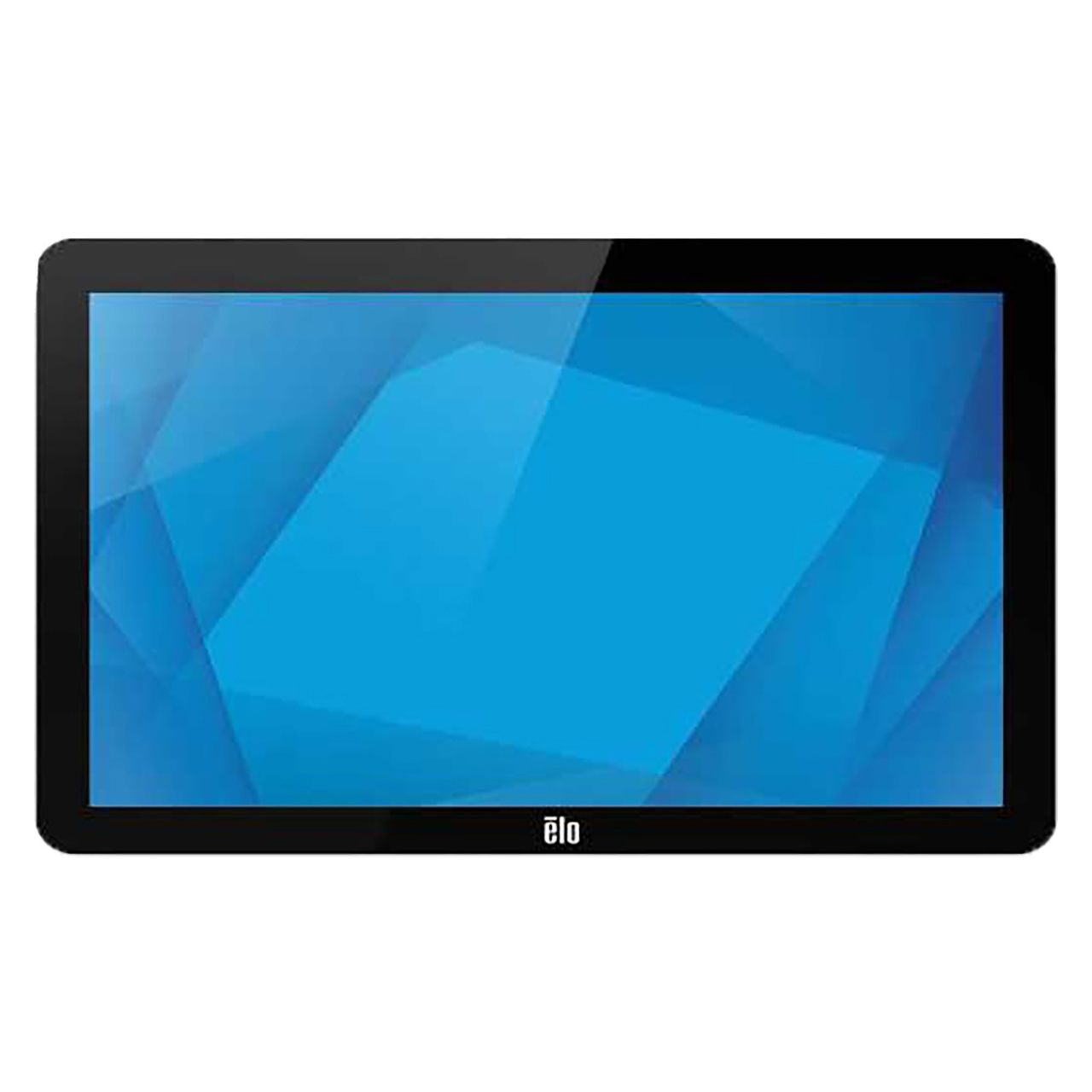

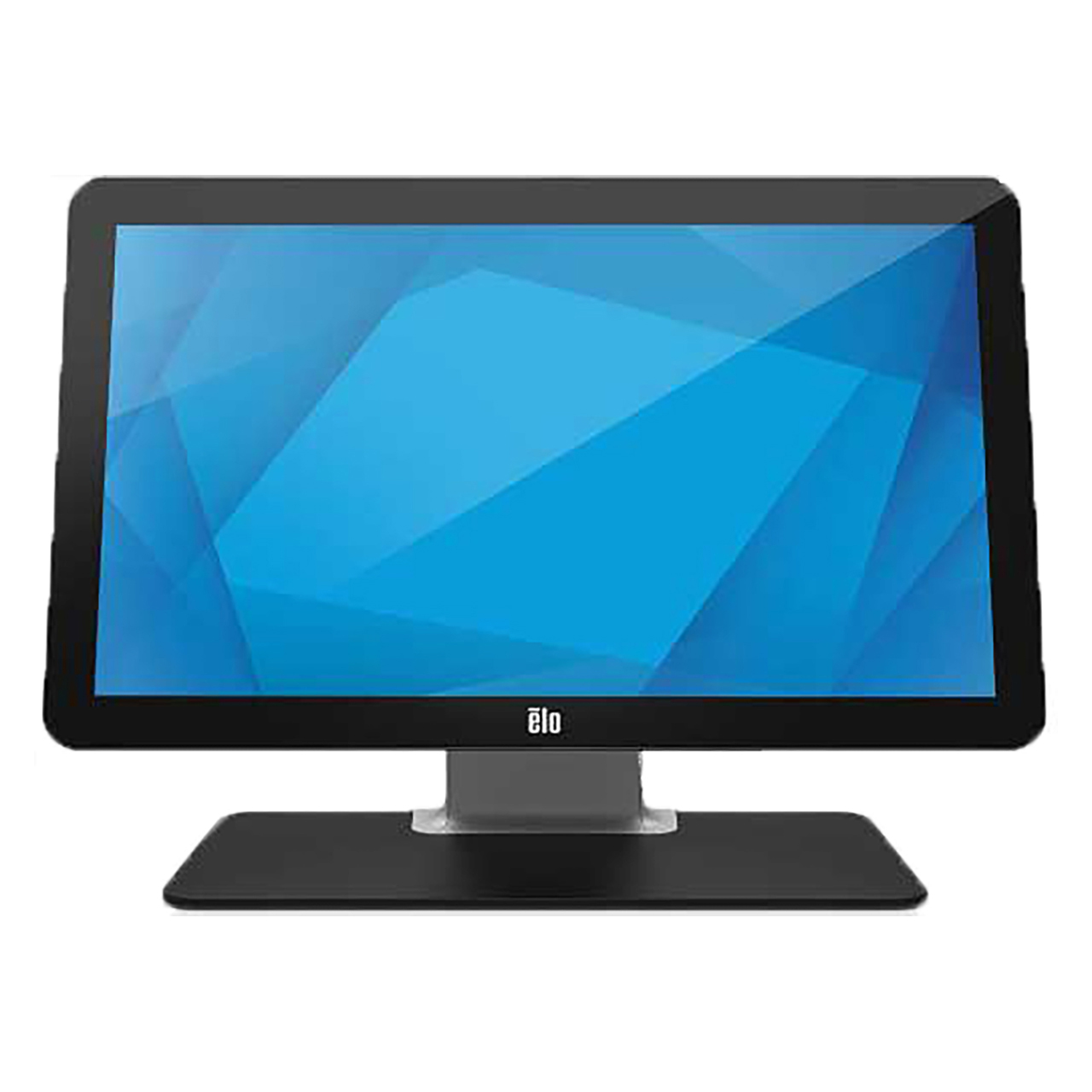

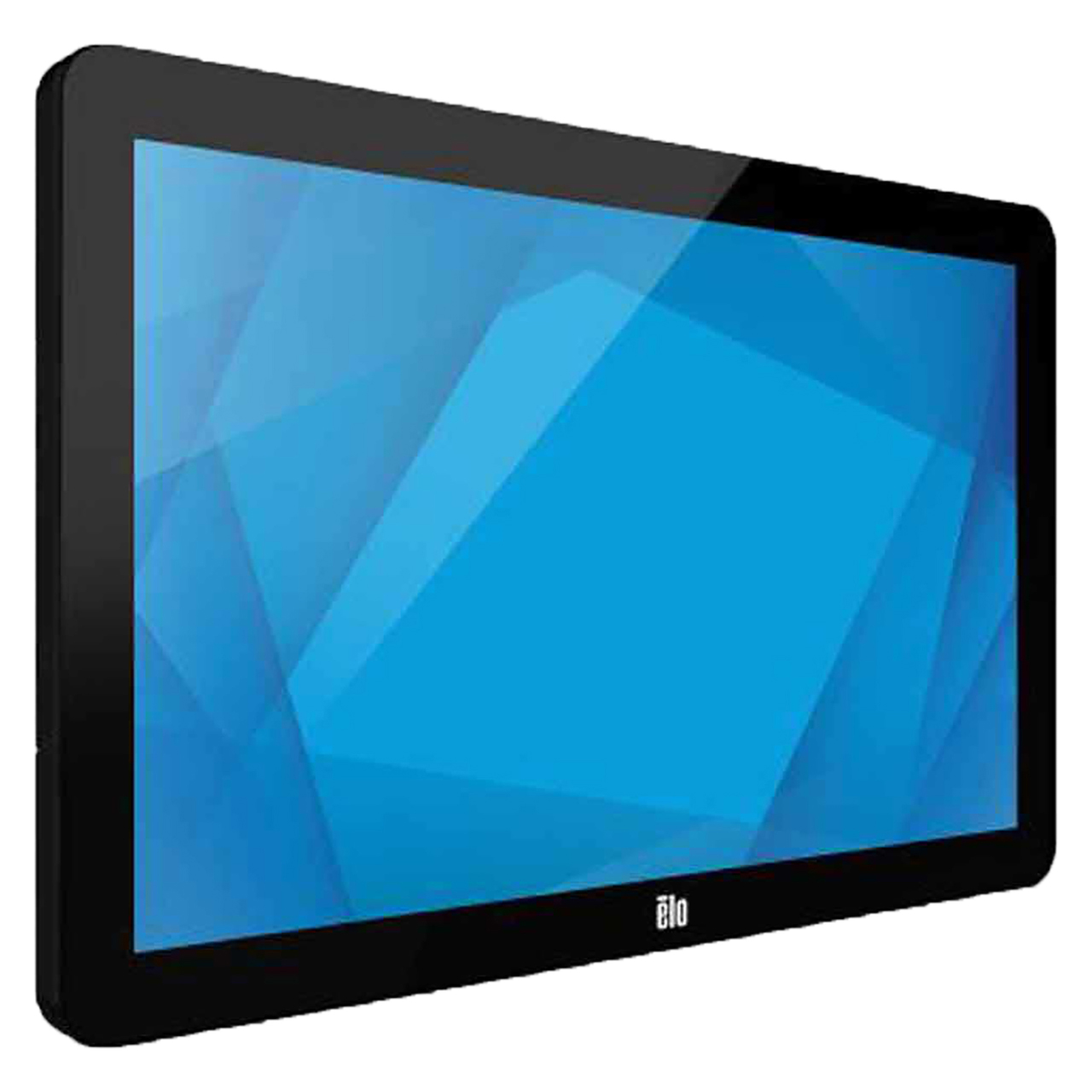

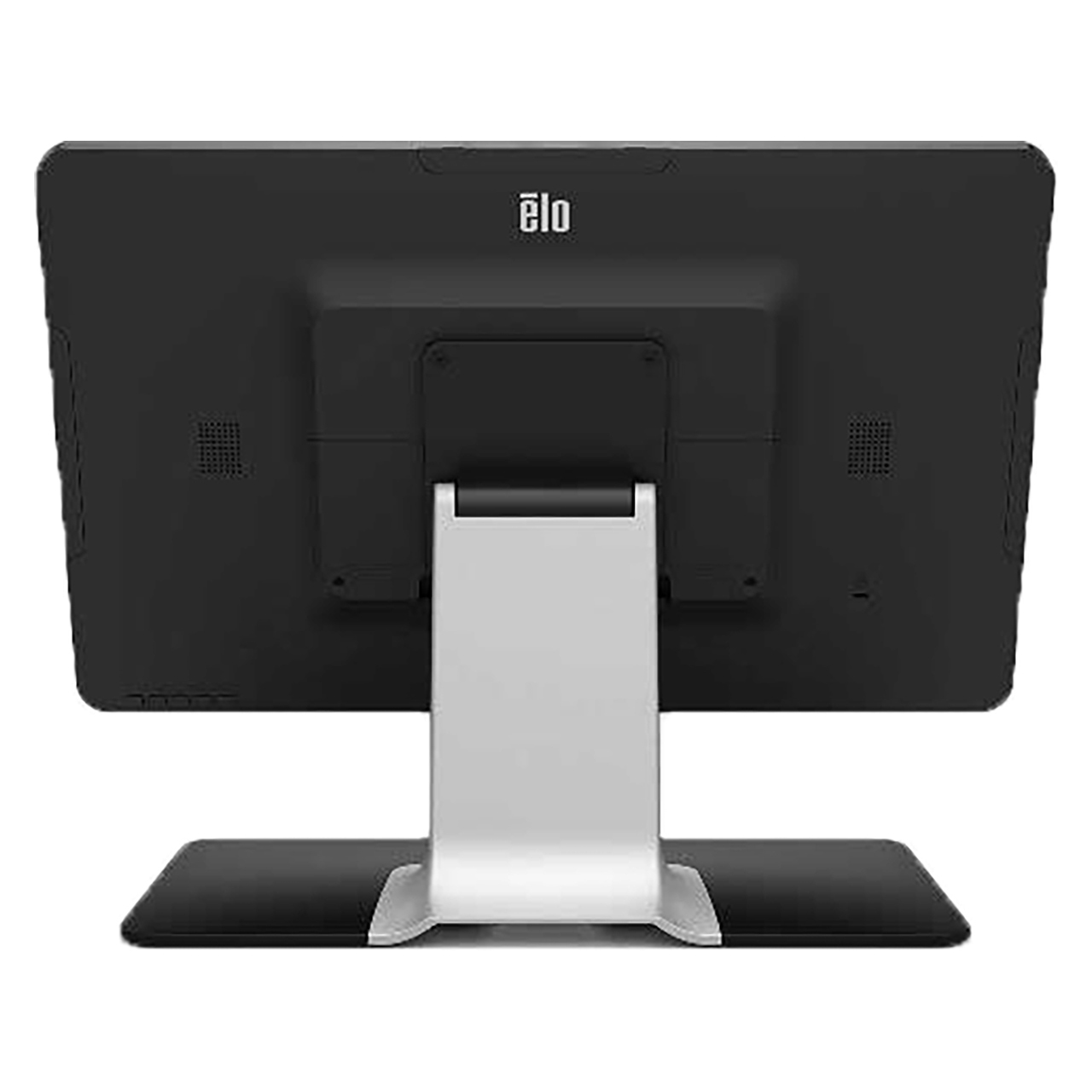

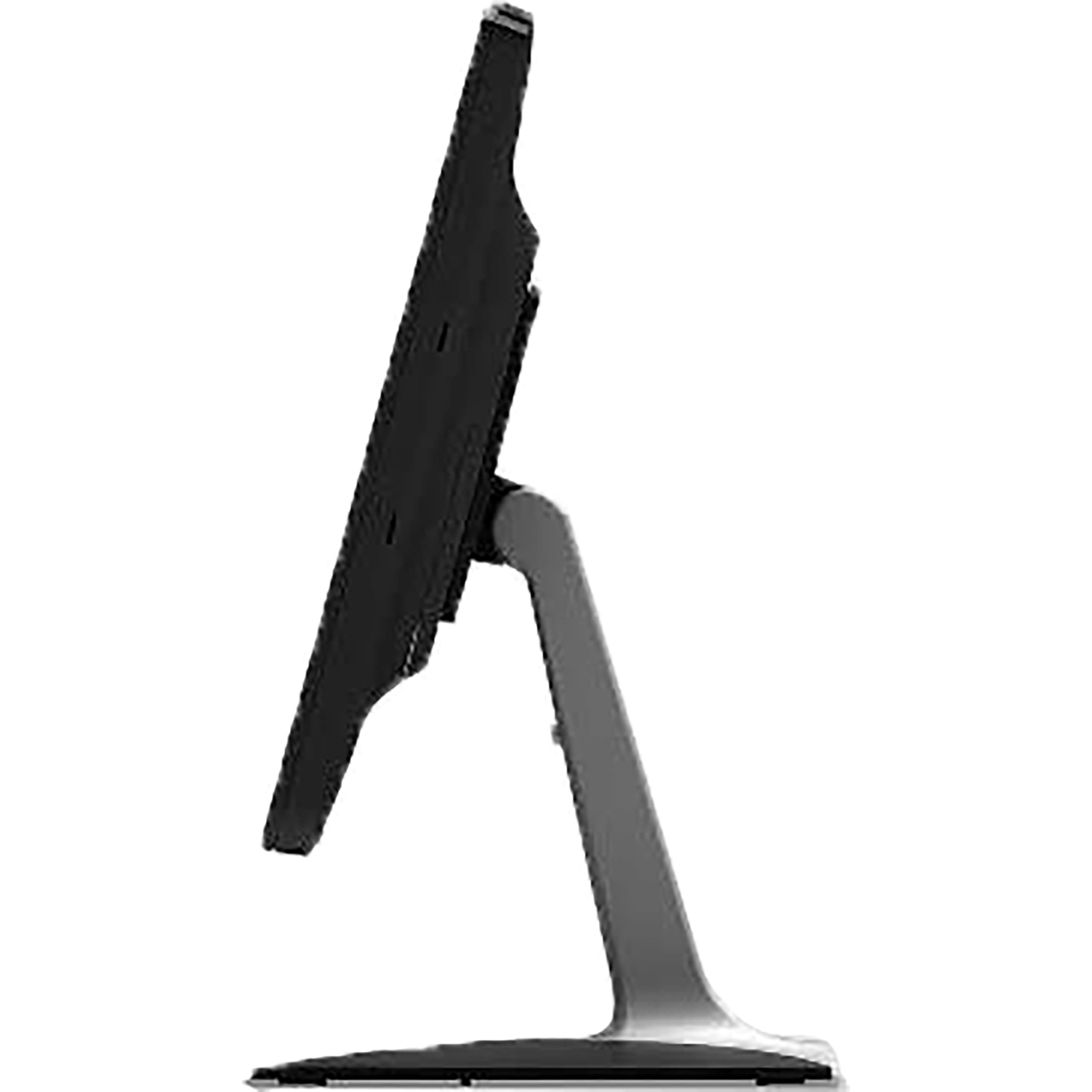

Elo 2002L 20 Inch LCD Touchscreen Monitor for Digital Signage w/ Stand - Black

ITEM #: ELO-2002L MFG #: E396119

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$810.57

Our Price:

$729.51

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    E396119 - Overview

    The Elo 2002L 20-inch widescreen LCD touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo's industry-leading TouchPro PCAP technology. The sleek, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 2002L well suited for high traffic environments. The Elo 02-Series Monitors are available in sizes from 7 to 27 inch with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.

    The 2002L offers optional accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.For retail applications where customer engagement is critical, the 2002L offers 11.5% more screen real estate compared to the 1919L. The 20-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

    • Features:

      • Sleek and modern widescreen design with built-for-touch reliability.
      • Energy savings using LED technology.
      • Full HD Edge-to-edge glass display with anti-glare for retail interiors.
      • Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand.
      • Typical power consumption: 8.7W.
      • Three-year standard warranty.

    • Specifications:

      • Enclosure Color: Black
      • Touch Technology & Capacity: PCAP (Projected Capacitive) - 10 Touch
      • Diagonal Size: 19.5'' diagonal, Active matrix TFT LCD (LED)
      • Aspect Ratio: 16:9
      • Active Area (mm): 17.20" x 9.48"
      • Resolution: 1920 x 1080 @ 50, 60Hz, 640 x 480 60Hz, 640 x 400 70Hz, 720 x 576 50Hz, 720 x 400 70Hz, 800 x 600 56, 60Hz, 1024 x 768 60Hz
      • Other Supported Resolutions: 640 x 480 60Hz, 640 x 400 70Hz, 720 x 576 50Hz, 720 x 400 70Hz, 800 x 600 56, 60Hz, 1024 x 768 60Hz, 1280 x 720 50, 60Hz, 1280 x 960 60Hz, 1280 x 1024 60Hz, 1366 x 768 60Hz, 60Hz RB, 1440 x 900 60Hz, 60Hz RB, 1680 x 1050 60Hz, 60Hz RB, 1920 x 1080 50, 60Hz
      • Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
      • Number of Colors: 16.7 million
      • Brightness (typical): LCD Panel: 250 nits, PCAP: 225 nits
      • Response Time-total (typical): 20 msec
      • Contrast Ratio: 3000:1
      • Touch Interface: USB, Accessible through switches along the bottom, Controls Include: Menu, Power, Up, Down, Select
      • On Screen Display: Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
      • Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
      • Lockouts: OSD, Power
      • Speakers: Two x 2W internal speakers
      • Input Video Format: Mini-VGA (Mini-VGA to VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included), HDCP supported
      • Input Voltage: 12VDC +/- 5%; 100-240VAC, 50/60Hz
      • Monitor Dimensions (without Stand): 11.57" x 19.22" x 1.52"
      • Monitor Dimensions (with Stand): 13.87" x 19.22" x 7.61", Without Stand: 18.35" x 24.49" x 7.17"
      • Weight (Unpackaged): With Stand: 11.68 lbs, Without Stand: 7.25 lbs
      • Weight (Packaged): With Stand: 19.84 lbs, Without Stand: 11.42 lbs
      • Operating Temperature: 32°F to 104°F
      • Storage Temperature: -4°F to 140°F
      • Mounting Options: VESA 4-hole 75mm and 100mm mounting interface on rear of unit
      • Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
      • MTBF: 50,000 hours demonstrated

    • Item Includes:

      • Touchmonitor
      • Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
      • USB cable (USB Type A plug to USB Type B plug)
      • HDMI cable
      • Audio cable
      • QIG
      • Power brick with US, EU, UK, KR, AU and CN clips
      • 4 screws (for E125897)
