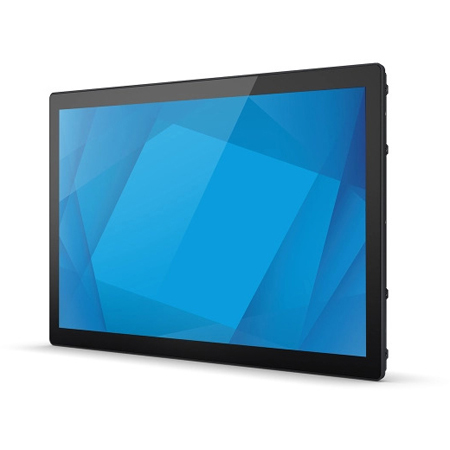

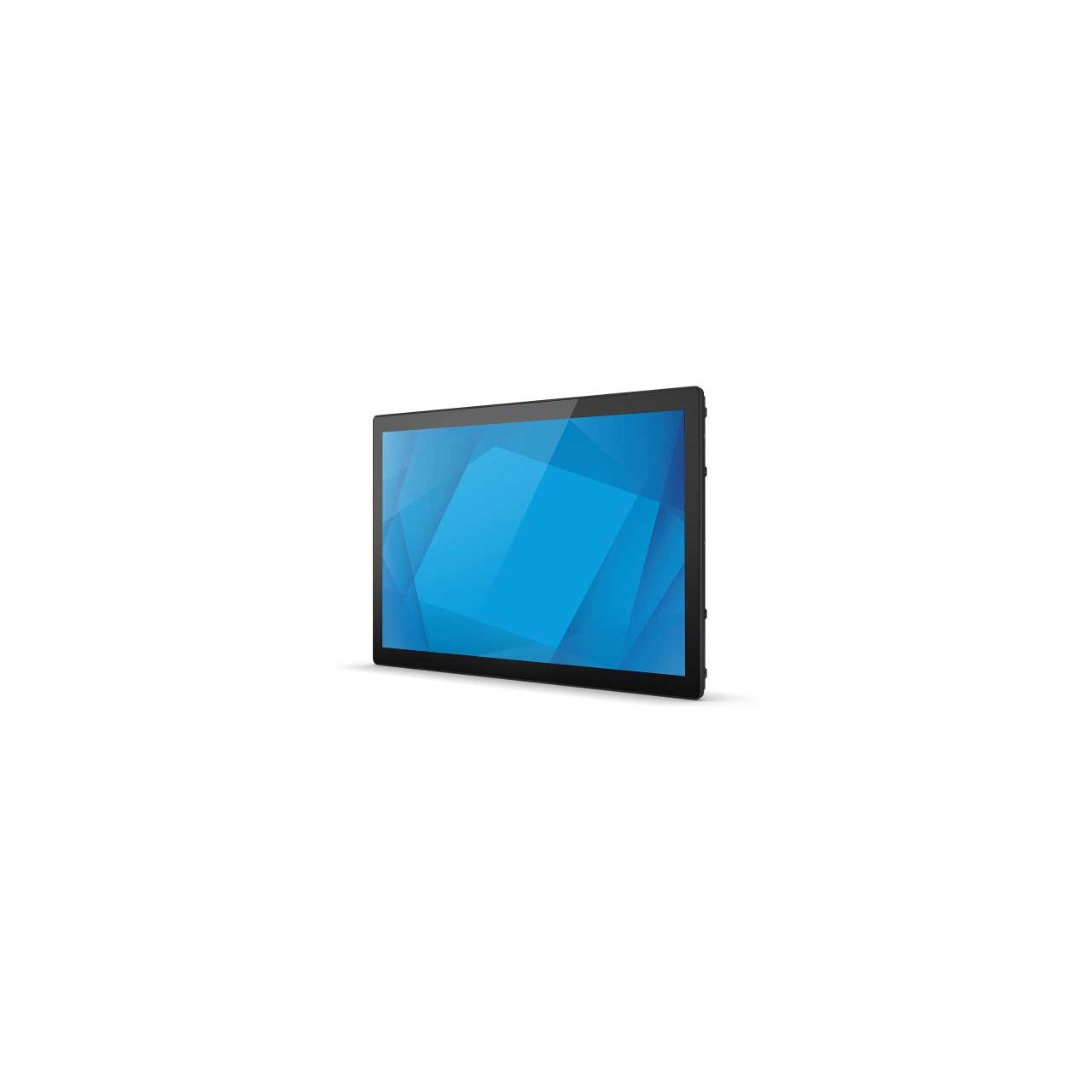

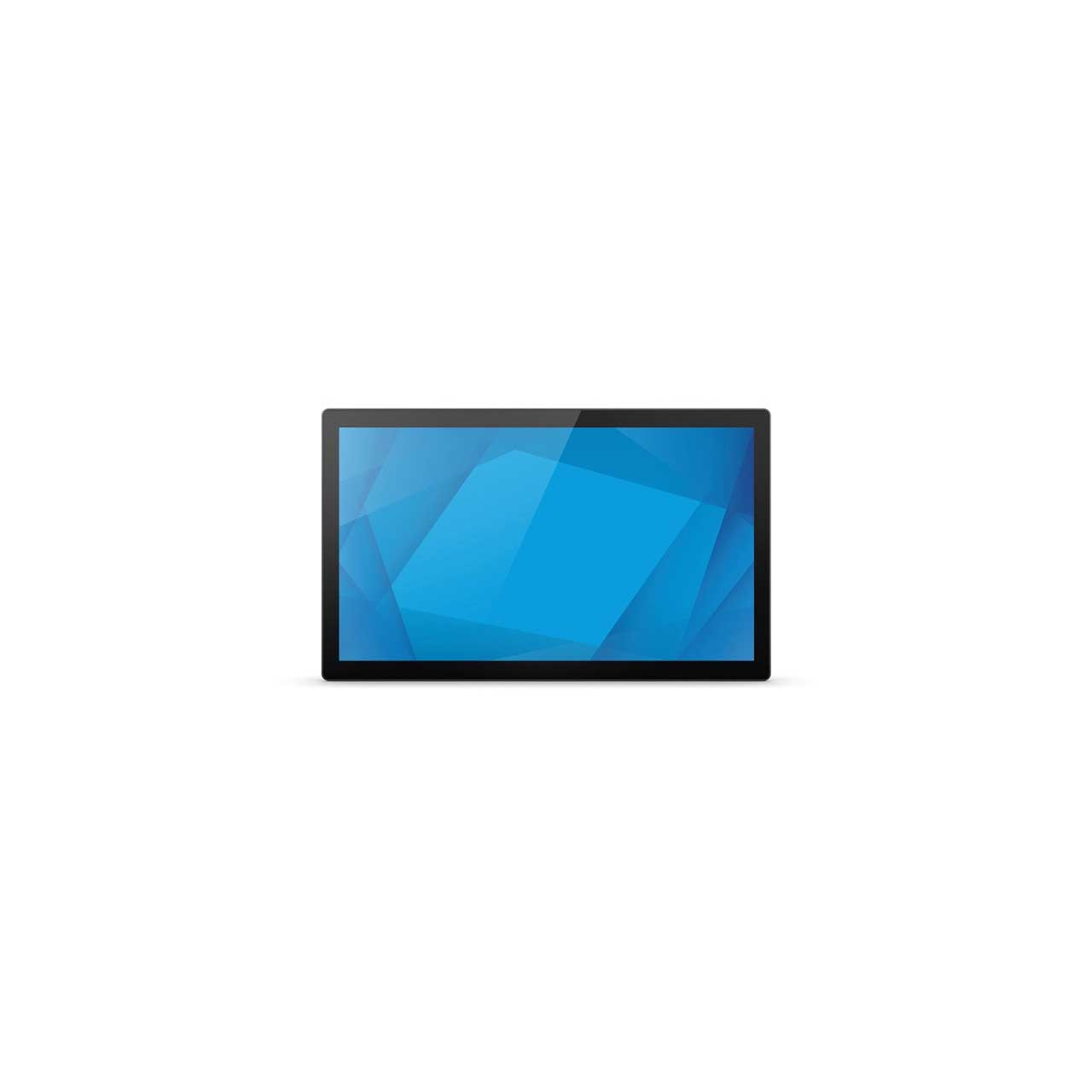

ELO 2794L 27 Inch Open Frame TouchPro Touchscreen Display for Digital Signage

8VZ424 - Overview

Design Your Solution with Elo

• Features:

  • Flexibility for Your Install
  • Touch Thru Glass enabled with PCAP
  • 10-touch capability that passes UL-62368, IK-08 impact testing and GLI ESD 27kV air / 8kV contact
  • OSD enabled touch thru with up to 6mm of additional coverglass for increased durability & protection


• Specifications:

  • Enclosure Color: Black
  • Touch Technology & Capacity: PCAP (TouchPro Projected Capacitive) - 10 Touch
  • Touch Interface: TouchPro PCAP, IntelliTouch DT - USB 2.0
  • Diagonal Size: 27'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display: Accessible through switches on the unit's tethered OSD Control box.
  • Controls: Menu, Up, Down, Select, Power
  • Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru (Only available for TouchPro PCAP)
  • Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
  • Lockouts: OSD, Power


  • Aspect Ratio: 16:9
  • Active Area: 23.53" x 13.23" / 597.6 mm x 336.15 mm
  • Resolution: 1920 x 1080
  • Other Supported Resolutions 640 x 480 60Hz, 720 x 400 70Hz, 800 x 500, 60Hz, 800 x 600 56, 60Hz, 1024 x 768 60Hz, 1280 x 800 60Hz, 1280 x 1024 60Hz, 1366 x 768 60Hz, 60Hz RB, 1440 x 900 60Hz, 60Hz RB, 1680 x 1050 60Hz, 60Hz RB, 1920 x 1080 50, 60Hz
  • Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
  • Number of Colors: 16.7 million
  • Brightness (typical): 270 nits
  • Response Time-total (typical): 12 msec
  • Contrast Ratio: 3000:1

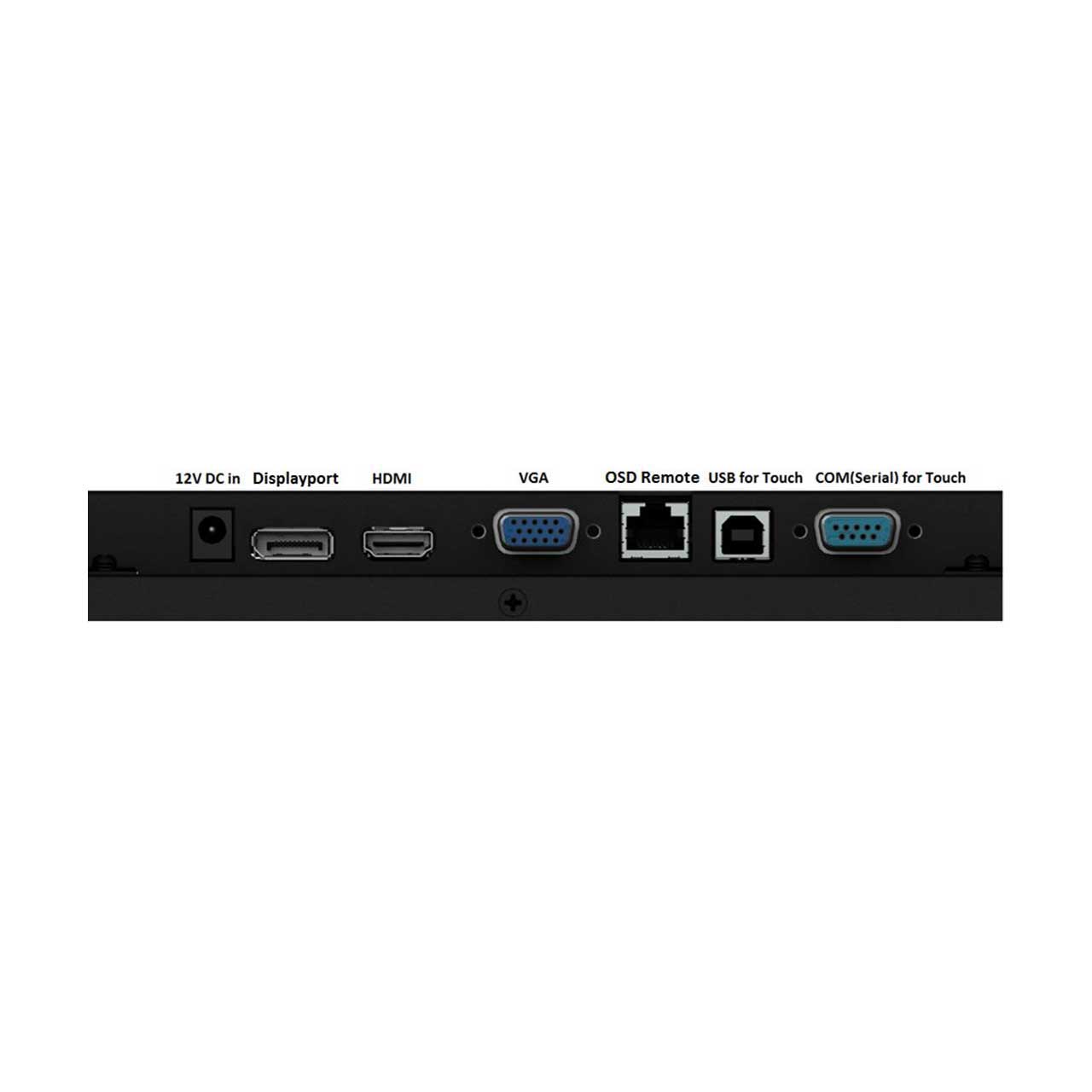

  • I/O Ports:: Serial port (IntelliTouch only), USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
  • Input Video Format:HDMI V1.3 Type A receptacle for HDMI input, Analog VGA on Female DB-15 connector, DisplayPort V1.1a - Supports later versions of DisplayPort video input
  • Input Video Frequency: Horizontal: 30 - 82 KHz, Vertical: 50 - 75 Hz
  • Video Interface: HDMI, VGA & Display Port
  • Power Supply: External DC - Optional power brick (sold separately)
  • Input power connector (Monitor): Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
  • Input Voltage: 12VDC +/- 5%
  • Adapter Output Power Connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

    Power Consumption (Typical):
  • ON (Default - 75% Brightness): 21 W
  • ON (Typical - 100% Brightness): 27 W
  • SLEEP FROM PC (monitor + adapter): 1.5 W
  • OFF (monitor + adapter): 0.5 W


  • Dimensions: Bezel: 24.93" x 14.74" x 1.65" / 633.2 mm x 374.4 mm x 41.8 mm Zero-Bezel: 25.36" x 15.29" x 1.6" / 644.2 mm x 388.4 mm x 40.6 mm
  • Weight: 16.09 lbs / 7.3 Kg
  • Operating Temperature: 0°C to 40°C / 32°F to 104°F
  • Storage Temperature: -20°C to 60°C / -4°F to 140°F
  • Humidity: Operating: 20% to 80% Storage: 10% to 95%
  • Sealability Touchscreen sealed to bezel, Touchscreen sealed to LCD
  • MTBF 50,000 hours demonstrated


• Item Includes:

  • 1x HDMI cable
  • 1x VGA Cable
  • 1x RJ45 OSD Remote
  • 1x Touch USB Cable
  • 1x Quick Install Guide
  • 1x Japan Class-B TM info sheet


• Warranty:

  • 3-Year Warranty


• GTIN:

  0843173109794
