ELO 1504LS 15-Inch Class LED Touchscreen POS Monitor - 16:9 - 20ms - 15.6-Inch Viewable - Stand Sold Seperately

Name: ELO 1504LS 15-Inch Class LED Touchscreen POS Monitor - 16:9 - 20ms - 15.6-Inch Viewable - Stand Sold Seperately
Brand: Elo Touch Solutions
SKU: ELO-E968313
Price: 610.00 USD
Availability: Backorder

ITEM #: ELO-E968313 MFG #: 1504LS

Elo Touch Solutions

Our Price:

$610.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1504LS - Overview

Razor thin design. Brilliant touchscreen.The perfect pairing foryour POS terminal.

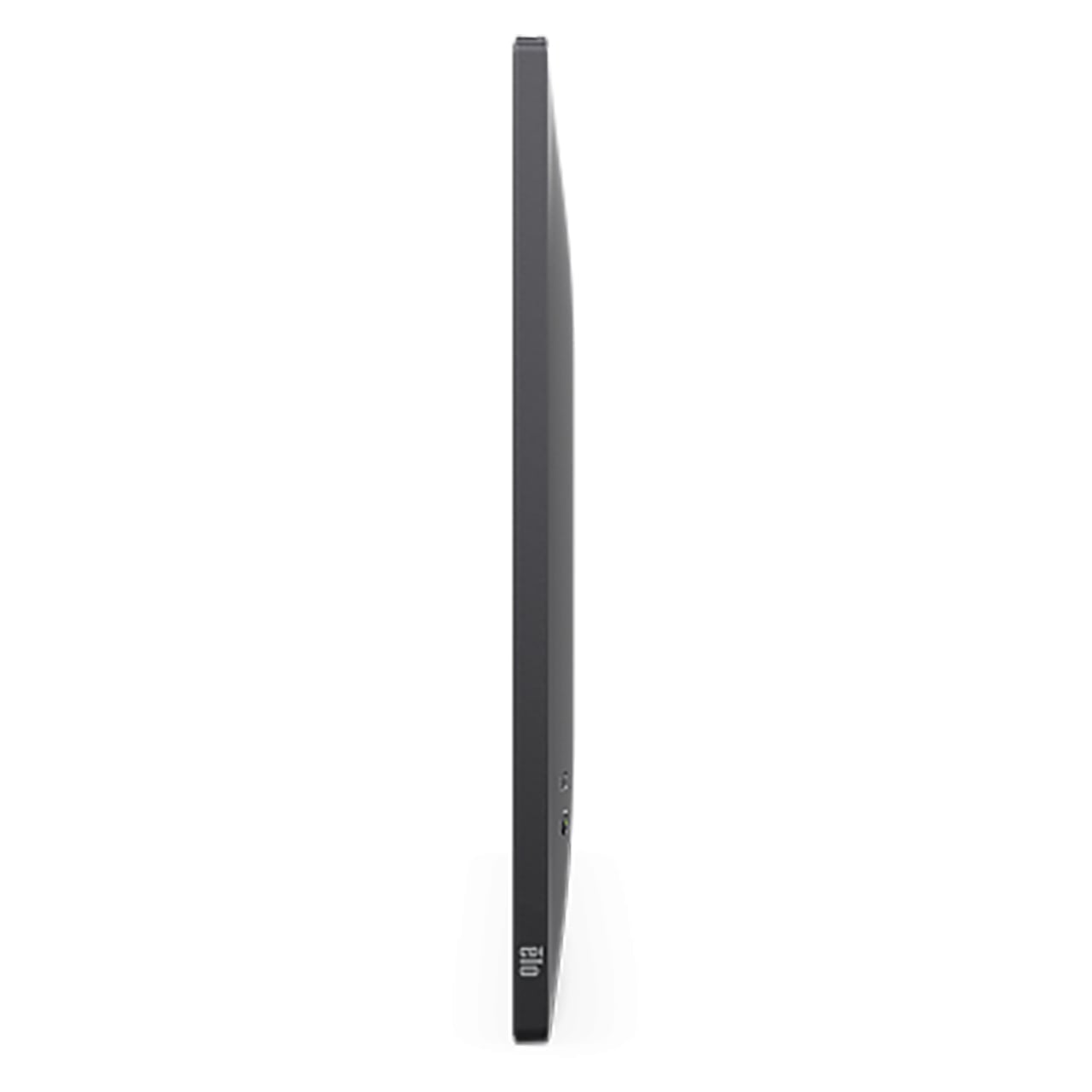

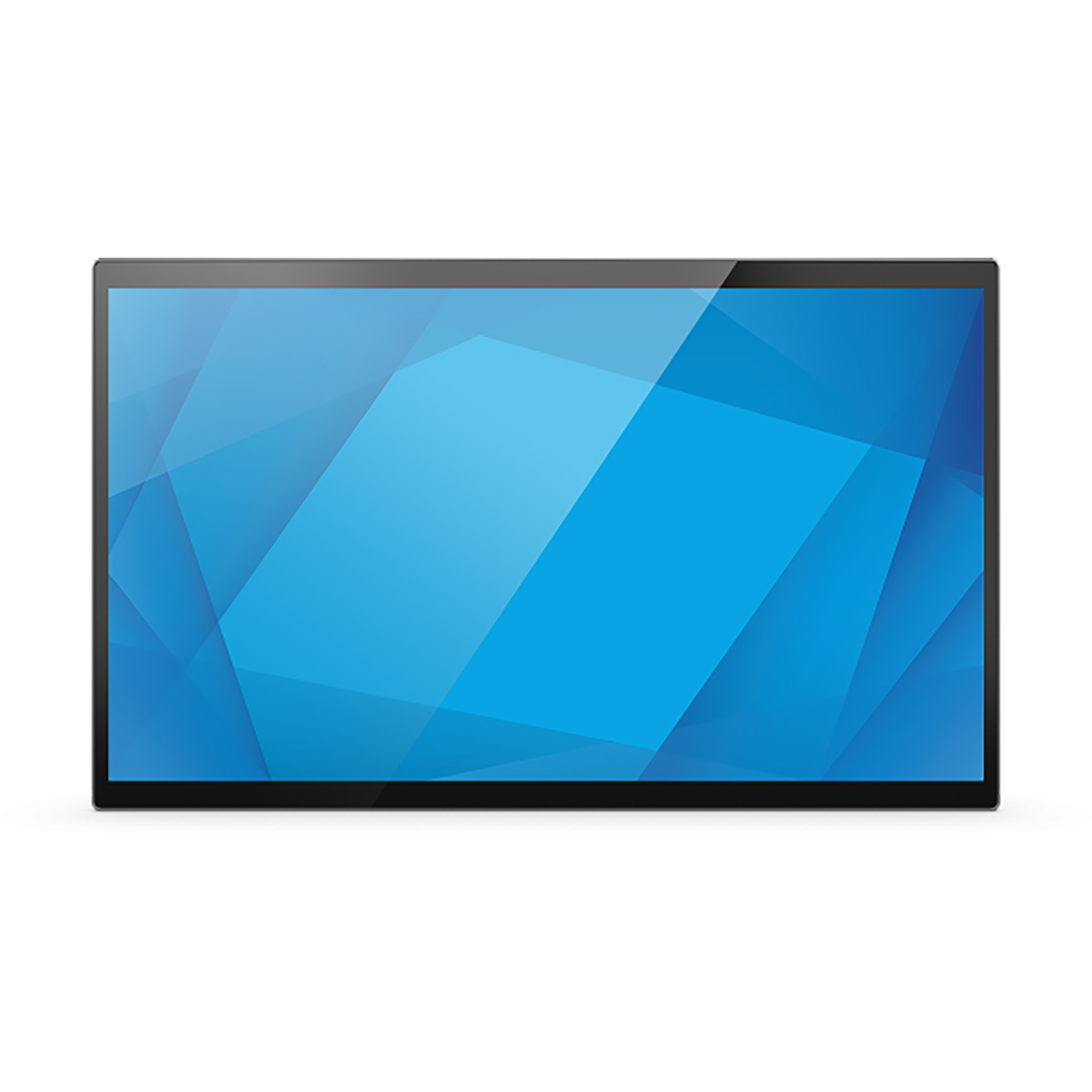

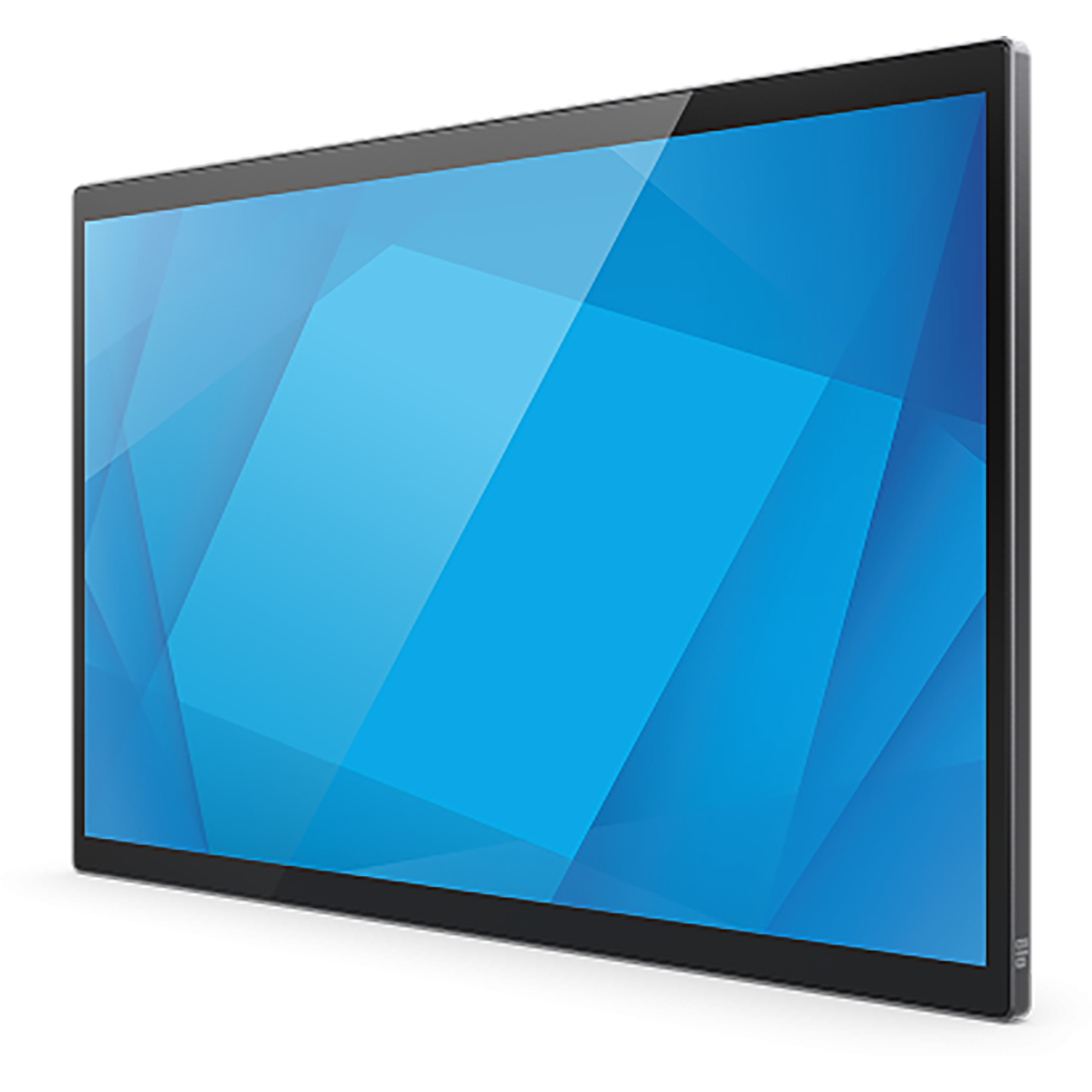

Built to be one of the thinnest commercial-grade 15" touchscreen monitors, the ELO 1504LS delivers a stunning design with thin borders, enhanced durability and state-of-the-art optical bonding - all with brilliant display clarity.

This touch monitor incorporates an active matrix thin-film-transistor LCD panel to provide high-quality display performance. ET1304LS/ET1504LS supporting full HD 1920 x 1080.ET0704LS/ET1004LS supporting 1280 x 800, Its LED backlight significantly reduces power consumption and eliminates the need for mercury (compared to CCFL-backlit panels). Other features that enhance this LCD monitor's display performance are USB-C (display, touch and video) only connectivity, Plug & Play compatibility, a touch-enabled menu with on screen display (OSD) controls, and extremely thin design with optimized narrow PCAP borders.

Please Note! VESA Stand sold seperately. Image is for reference only!

Features:
- Optically-bonded display
- Ultra-thin design
- Energy Star 8.0 certified
- Create a sleek POS terminal with the 1504LS and the Elo Pay 7" Integrated payment solution.
- USB-C interface that provides touch, video and power connectivity
- Durable IK07 design with chemically strengthened scratch resistant glass
- Narrow border touchscreen with edge-to-edge glass
Specifications:
- Color: Dark Gray
- Diagonal Size: 15.6" (396.24mm)
- Active Touch Area: 13.55" x 7.62" (344.16mm x 193.59mm)
- LCD Technology: Active matrix TFT LCD
- Touch Technology: TouchPro PCAP
- Number of Touches: 10 Touches
- Aspect Ratio: 16:9
- Native Resolution: 1920 x 1080
- Preset Video Timings: 640x480 60Hz, 800x600 60Hz, 1024x768 60Hz, 1280x800 60Hz, 1280x720 60Hz, 1280x1024 60Hz, 1366x768 60Hz, 60Hz RB, 1440x900 60Hz, 60Hz RB, 1680x1050 60Hz, 60Hz RB, 1920x1080 60Hz
- Number of Colors: 16.2M
- Brightness (typical):
  - Panel: 350 nits
  - With TouchPro PCAP: 315 nits
- Response Time (Tr + Tf) (typical): 20 msec
- Viewing Angle (typical):
  - Horizontal: 85°/85° or 170° total
  - Vertical: 85°/85° or 170° total
- Contrast Ratio (typical): 1000:1
- On-Screen Display (OSD):
  - Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
  - Controls: Menu, Power
  - Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Touch through, Recall Defaults
  - Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
  - Lockouts: OSD, Power
- I/O Ports: USB Type-C connector (for power, video and touch)
- Video:
  - USB Type-C connector
  - Input Video Horizontal Sync frequency range: 30Hz - 82kHz
  - Input Video Vertical Sync (frame rate) frequency range: 60Hz
- Speakers: 2x 2W internal speakers
- Power:
  - Power Delivery compatible via USB Type-C connector
  - ON (Default - 100% Brightness): 8W
  - SLEEP: 0.8W
  - OFF: 0.15W
- Dimensions with Stand (HxWxD):
  - Without VESA Adapter: 14.16" x 8.61" x 0.59" (359.73mm x 218.82mm x 14.97mm)
  - With VESA Adapter: 14.16" x 8.61" x 0.79" (359.73mm x 218.82mm x 19.97mm)
- Shipping Dimensions: 17.01" x 3.66" x 11.61" (432mm x 93mm x 295mm)
- Weight Unpackaged: 2.45lbs (1.11kg)
- Shipping Weight: 6lbs (2.7kg)

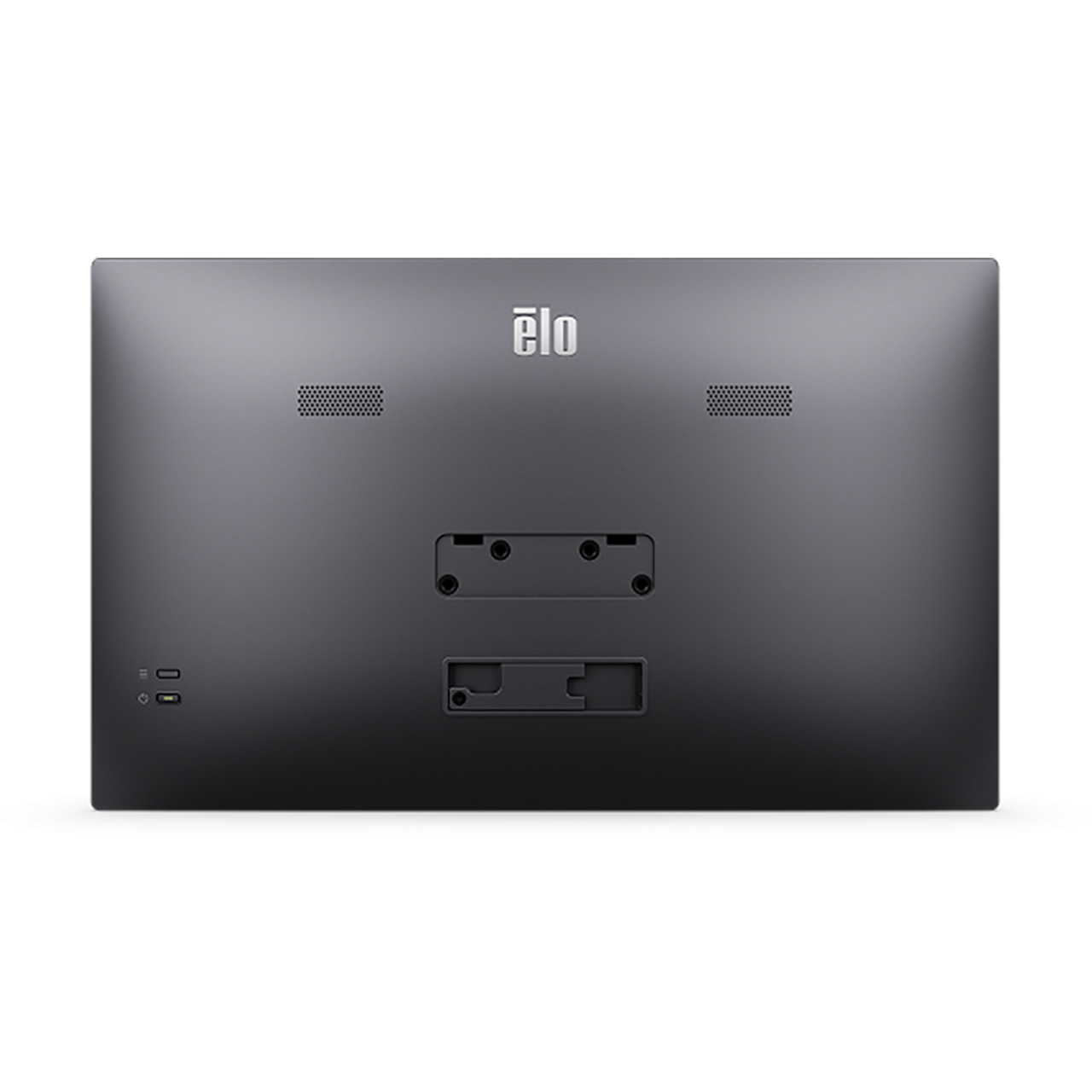

- Mounting Options: VESA via 4-hold 75mm mounting adapter on rear of unit.
- Temperature:
  - Operating: 32°F - 104°F (0°C - 40°C)
  - Storage: -4°F - 140°F (-20°C - 60°C)
- Humidity (non-condensing):
  - Operating: 20% - 80%
  - Storage: 10% - 95% (101.6°F [38.7°C] max wet bulb temperature)
Item Includes:
- 1x 1504LS Touch monitor
- 1x Quick Install Guide
- 1x USB Type-C cable
- 1x 75mm VESA adapter (assembled)
Warranty:
- 3 Year Limited Warranty

1504LS - Recommended Accessories

Peerless-AV ST630 Tilting LCD Wall Mount For 10-24in Screens VESA 75mm/100mm- Black
PER-ST630
Our Price: $55.00
Ergotron 33-310-060 Neo-Flex Monitor Desk Stand - Supports Up to 24-Inch - 16 Lb Capacity Displays
ERGO-33-310-060
Our Price: $100.00
CAIG Products CCS-503 Screen Cleaning Kit
CCS-503
Our Price: $16.95
StarTech 104B USB-C Multiport Adapter - 3-Port USB Hub / 4K 60Hz HDMI with HDR / 100W Power Delivery Pass-Through
ST-104B-USBC-MP
Our Price: $48.75
CP30211 USB-C Female to USB-C Male Feed-Thru Chassis Mount Barrel Connector
CP30211
Our Price: $22.95
Connectronics 3.1 USB-C Female to USB-C Female Feedthru Barrel Connector - Keystone Insert
CTX-USBC-USBC-KM
Our Price: $5.95
Tripp Lite U420-000-F-UD USB C to USB Type C Adapter Converter - Right Angle Male/Female - 10Gbps - 3A
TRL-U420-000FUD
Our Price: $13.41
