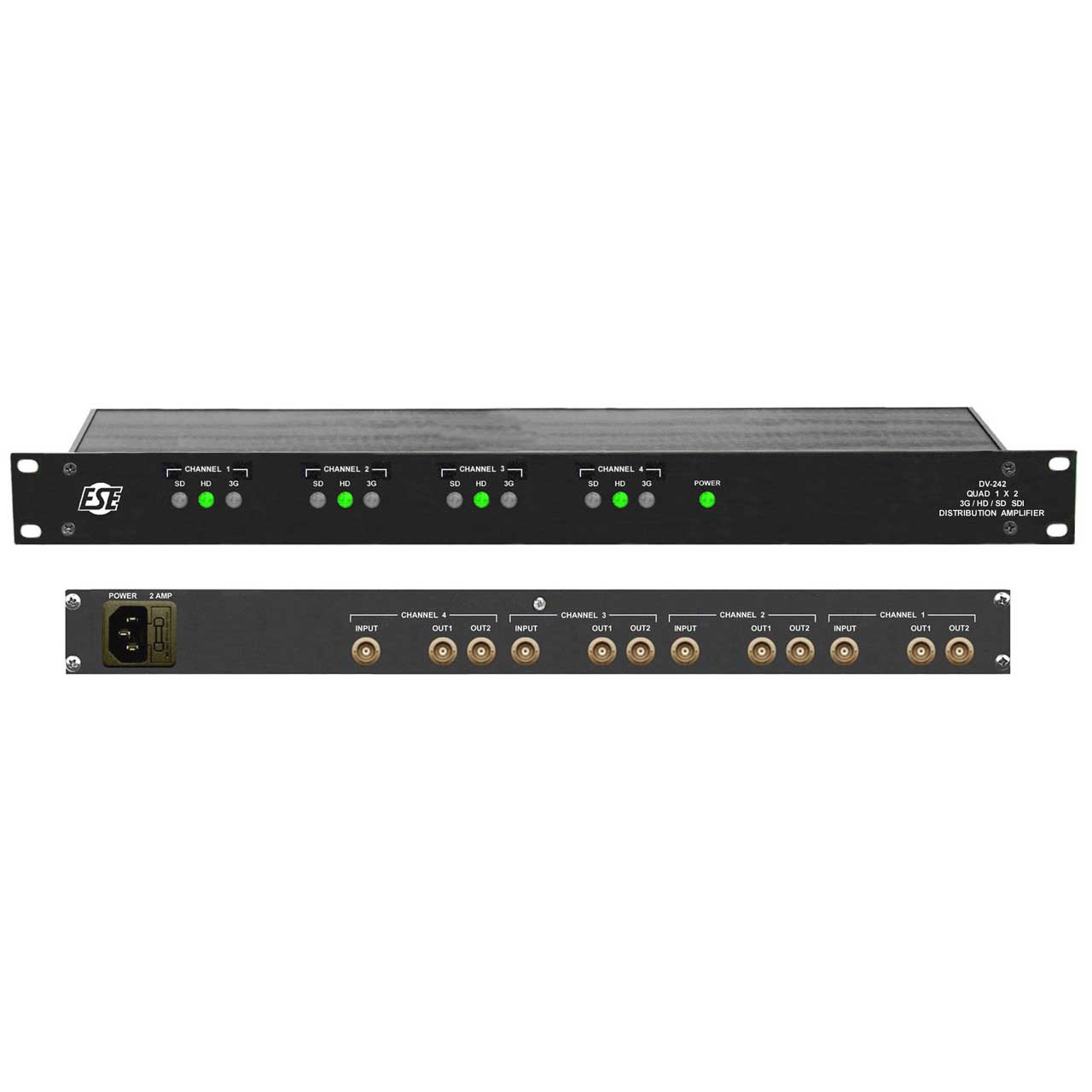

ESE DV-242 3G/HD/SD SDI Quad 1x2 Reclocking Distribution Amplifier

Name: ESE DV-242 3G/HD/SD SDI Quad 1x2 Reclocking Distribution Amplifier
Brand: ESE
SKU: ESE-DV-242
Price: 1521.00 USD
Availability: Backorder

ITEM #: ESE-DV-242 MFG #: DV-242

ESE

List Price:

$1,690.00

Our Price:

$1,521.00

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.
Extended Lead Time; estimated delivery in January.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DV-242 - Overview

3G/HD/SD SDI Quad 1x2 Reclocking Distribution Amplifier

The ESE DV-242 is an SDI digital video (3G, HD & SD) Quad 1x2 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-242 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. An external power supply is not required as the DV-242 is completely self-contained requiring only 85-264VAC to operate.

Features:
- Four independent SDI Channels
- Two reclocked Outputs Per Channel (BNC)
- 270MB/s, 1.5Gb/s, 3Gb/s
- Reclocking & Equalization
- Automatic Input Rate Detection
- DVB-ASI Compliant at 270Mb/s
- 85-264VAC Operation
- Optional Loop Output
Specifications:
- Power: 85 - 264 VAC, 47 - 63 Hz, 20 Watts maximum
- Mechanical: Rack Mount Enclosure 1.75" H x 19" W x 5" D
- Video Standards: SMPTE 259M-C, SMPTE 292M and SMPTE 424M compliant
- Video Input: 1 BNC per channel
- Cable Equalization:
  - 2.97Gb/s: 140m @ 0.3UI (Belden 1694A cable)
  - 1.485 Gb/s: 200m @ 0.3UI (Belden 1694A cable)
  - 270 Mb/s: 400m (Belden 1694A cable)
- Video Outputs: 2 BNCs per channel
- Options (sold separately): DC, Loop, UL, Custom
Item Includes:
- 1x ESE DV-242 3G/HD/SD SDI Quad 1x2 Reclocking Distribution Amplifier
