Freakshow HD 2x4-O SW DA 2x4 12G HD-SDI Reclocking Video Distribution Amplifier with Built In Li-Ion Battery

ITEM #: FREAKS-2X4SWDA MFG #: HD 2X4 SW DA

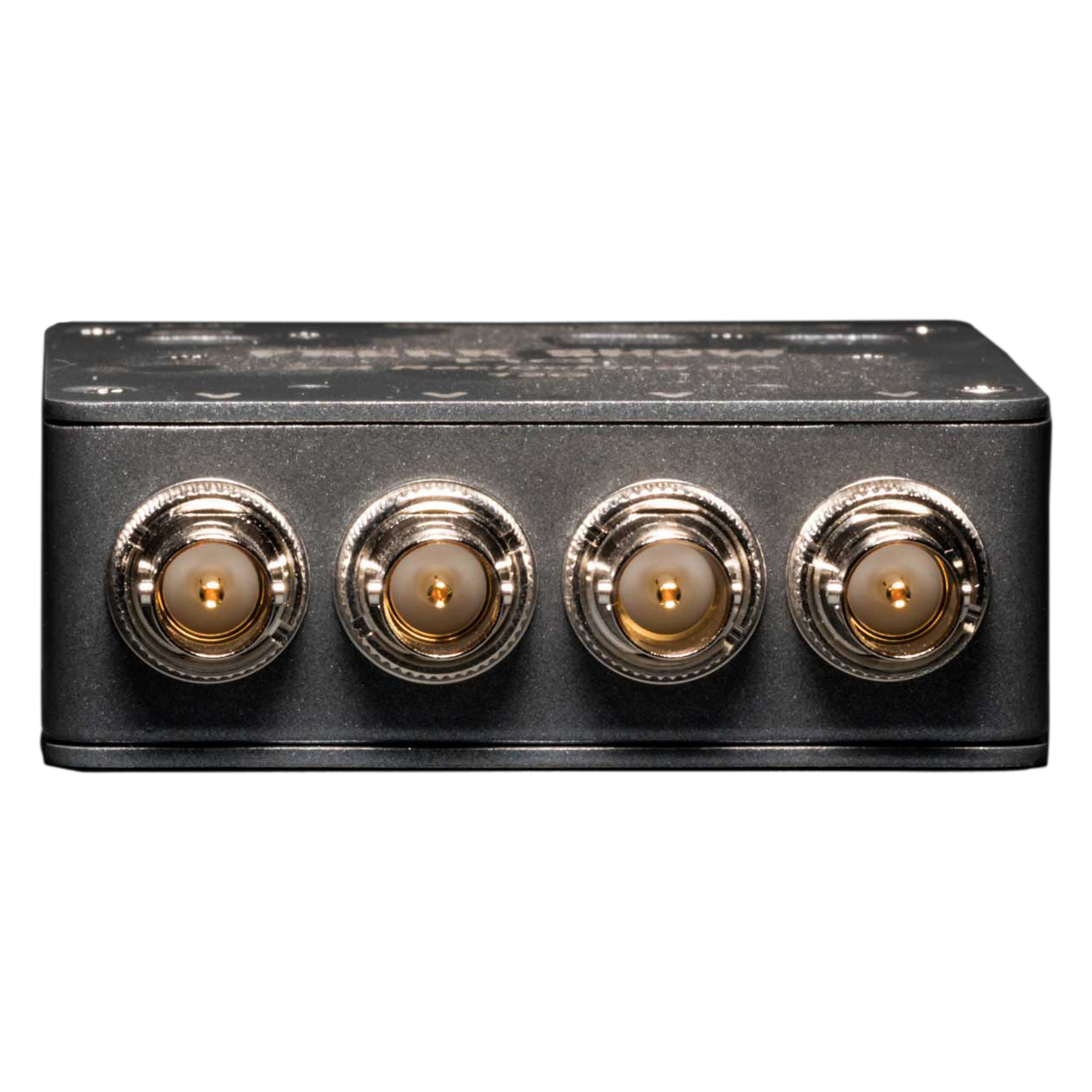

  • Product Image Thumbnail 1 of 4

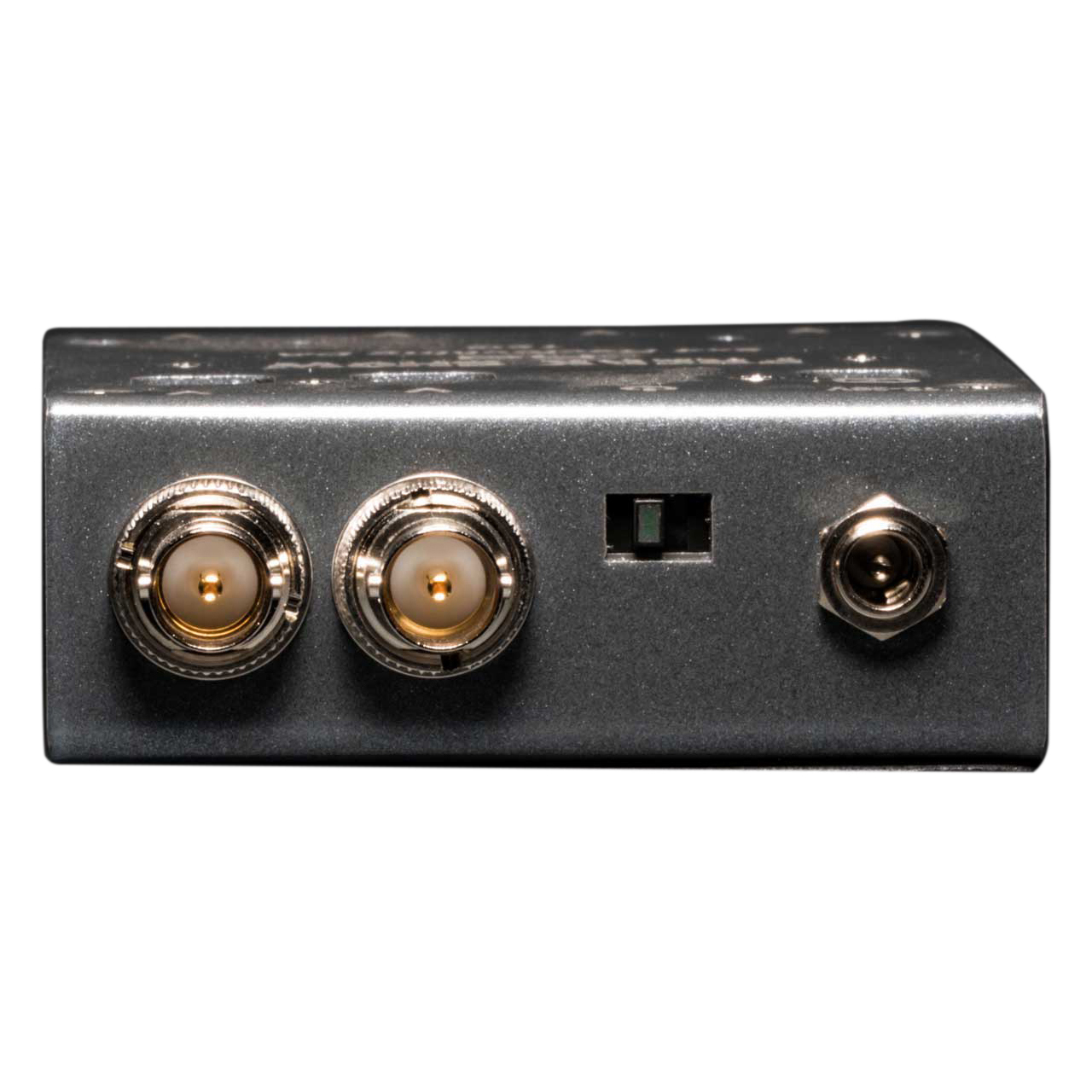

  • Product Image Thumbnail 2 of 4

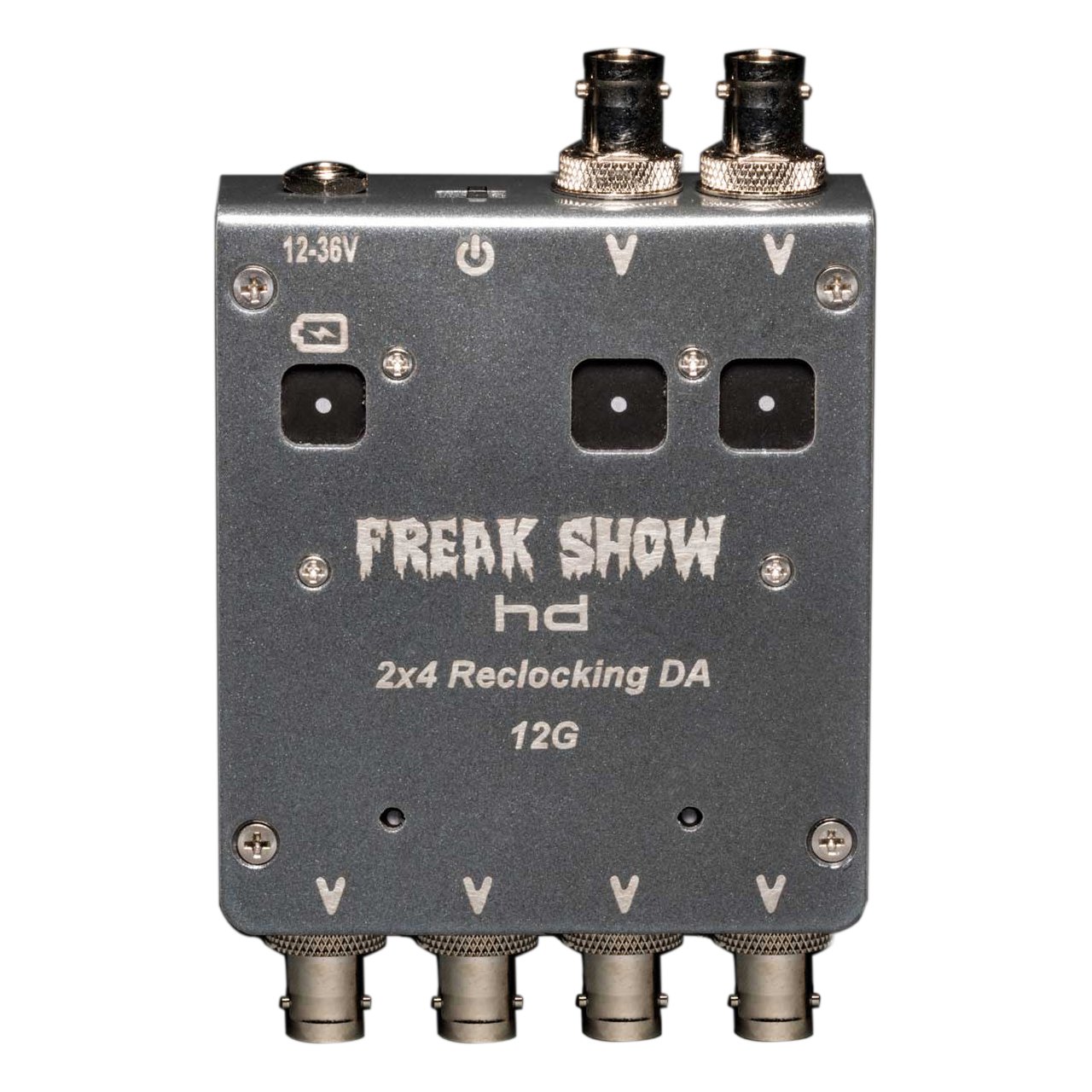

  • Product Image Thumbnail 3 of 4

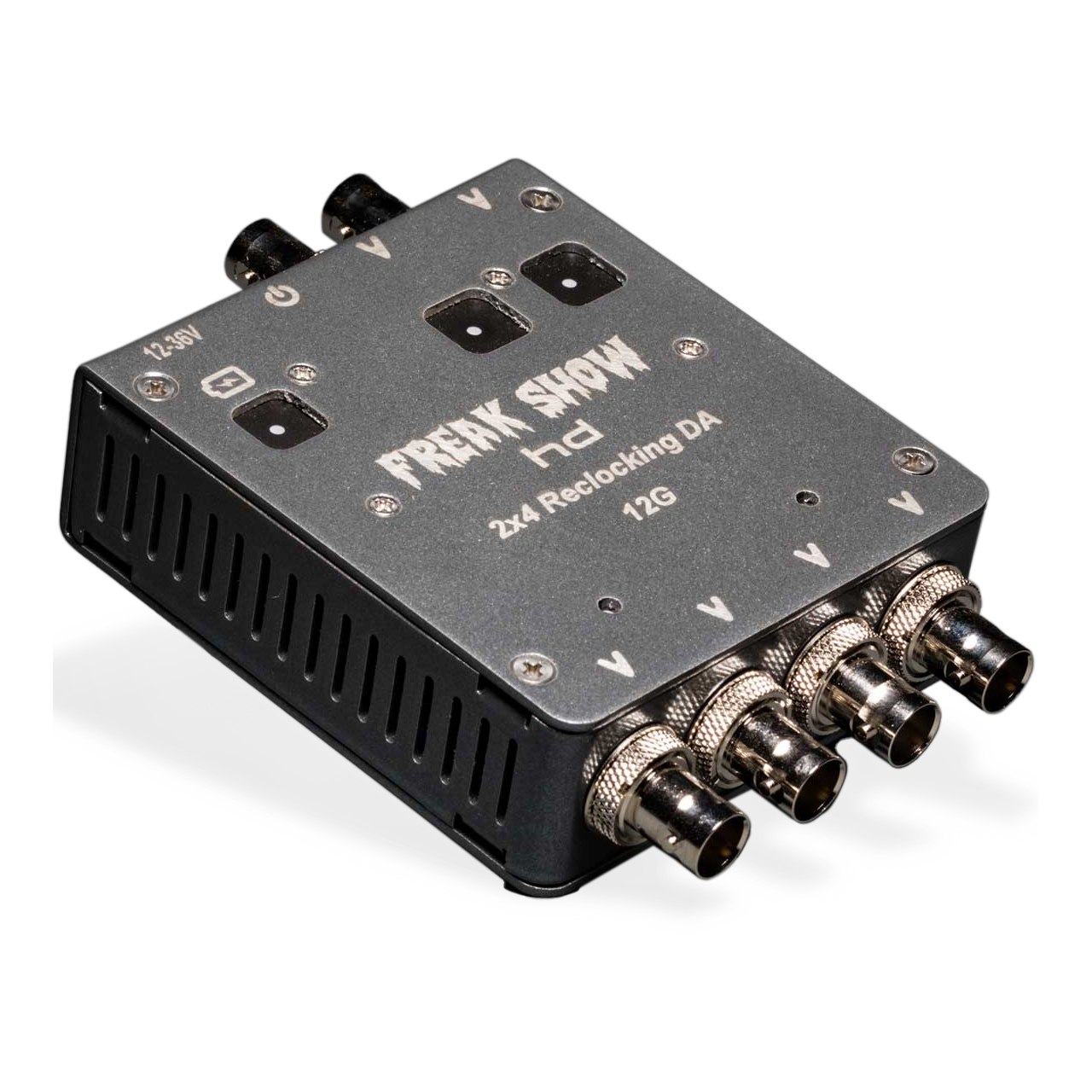

  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$519.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    HD 2X4 SW DA - Overview

    Freakshow 2X4SWDA-O is a complete 12G video assist system in a box. The same 2x4 you know and love, now better than ever. Two inputs, 4 outputs, re-clocking, switching, and equalizing all in a compact internal Battery powered package. Quite simply this baby does it all. Introducing both automatic switching and locked 2x4 modes, as well as switching between A and B 1x4 modes to provide maximum signal flexibility. The re-clocked and equalized output extends two 12Gb signals over 250ft. each, and 1.5G signals over 800ft each. The new 2x4 also integrates an easily controllable top mounted touch pad for maximum durability. The 2x4's 12G/HD/SD-SDI flexibility is future proof, and exceeds previous generations' performance. The New 2x4 is available in O-series with a standard straight pin connector or in L-series with a locking Lemo connector.

    • Features:

      • New unit is full 12G!!
      • An entire new chipset making it the best performing product we have ever had
      • New touch panel control with new modes of operation to maximize durability and flexibility
      • Available in both O series with straight pin power and L series with a locking lemo power connector.

    • Specifications:

      • Formats: 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259
      • Inputs: 2x12G/ 6G/ 3G/ 1.5G/ 270Mb - Auto-selectable SDI, 1xBNC
      • Outputs: 4x12G/ 6G/ 3G/ 1.5G/ 270Mb SDI, 4xBNC with equalization and re-clocking
      • Cable Re-Clocking and Equalization (all with Belden 1694A - divide by half for Belden 1505): 75 meters (246ft) at 12G, 100 meters (328ft) at 6G, 220 meters (722ft) at 3G, 265 meters (870ft) at HD, 530 meters (1740ft) at SD
      • Input Return Loss: -8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
      • Output Return Loss: Return loss -6dB at 12G, -8.5dB at 6G, -15dB at 3G, -23dB at HD/SD
      • Volt Operation: 12-36
