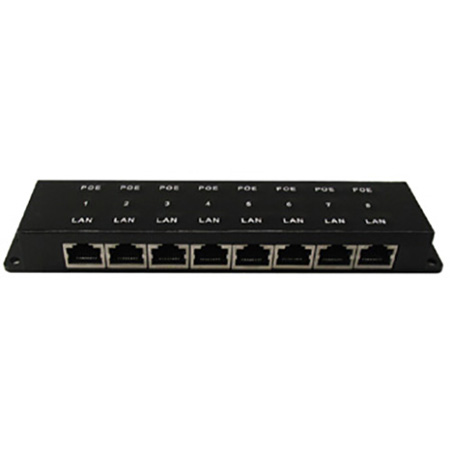

ESE ES 808/120 8 Port Power Injector for Power over Ethernet/120 Watt Power Supply

ITEM #: ESE-ES-808-120 MFG #: ES 808/120

free ship

List Price:


Our Price:


Availability: More on the Way
iAvailability Description Popup

    ES 808/120 - Overview

    ESE ES 808/120 is an 8-port Power Injector for Power over Ethernet (PoE) devices. The unit accepts an Ethernet data signal and passes through the identical signal along with 48 VDC "injected" into the RJ-45 Ethernet connector using the Spare Pair. This unit injects power passively. Applied voltage is available all the time, there is no autonegotiation with the attached client device. These devices have no switching function - there is no configuration needed, and VLANs and other management features of any switch will be handled transparently thru the injector. The ES-808 may be bolted to a surface or placed conveniently anywhere. The unit consists of the Power Injector and an external Power Supply (90-240 VAC, 50/60 Hz) and is capable of powering eight/twelve PoE devices up to 328 feet from the Injector.

    ES 808/120 - Required Accessories

      ES 808/120 - Recommended Accessories
